Product description

• Ghost-Eye Wireless HDMI & SDI Video Transmitter 1000M
  • Cinegears Ghost-Eye Wireless Video Transmission Live

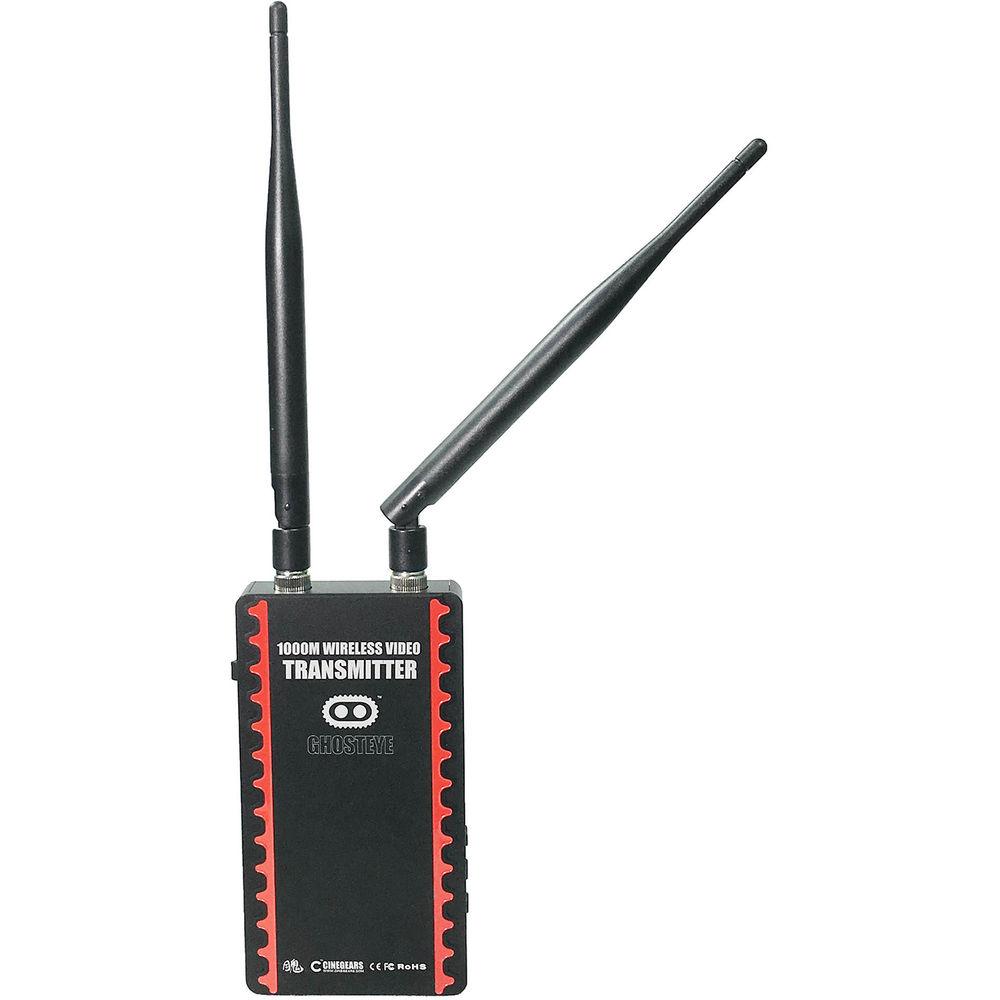

  Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3,250' with the CINEGEARS Ghost-Eye Transmitter 1000M. It safely supports up to four receivers (sold separately) simultaneously on each channel and is cross-compatible with any Ghost-Eye receiver model. (Unlike some of the other Ghost-Eye models in which the "M" figure represents the minimum transmission distance ensured, the 1000 meter/3,250' distance of the 1000M is the max distance supported.)

  Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the optional receiver end or vice-versa.

  Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. Other features include AES-128 signal encryption and timecode.

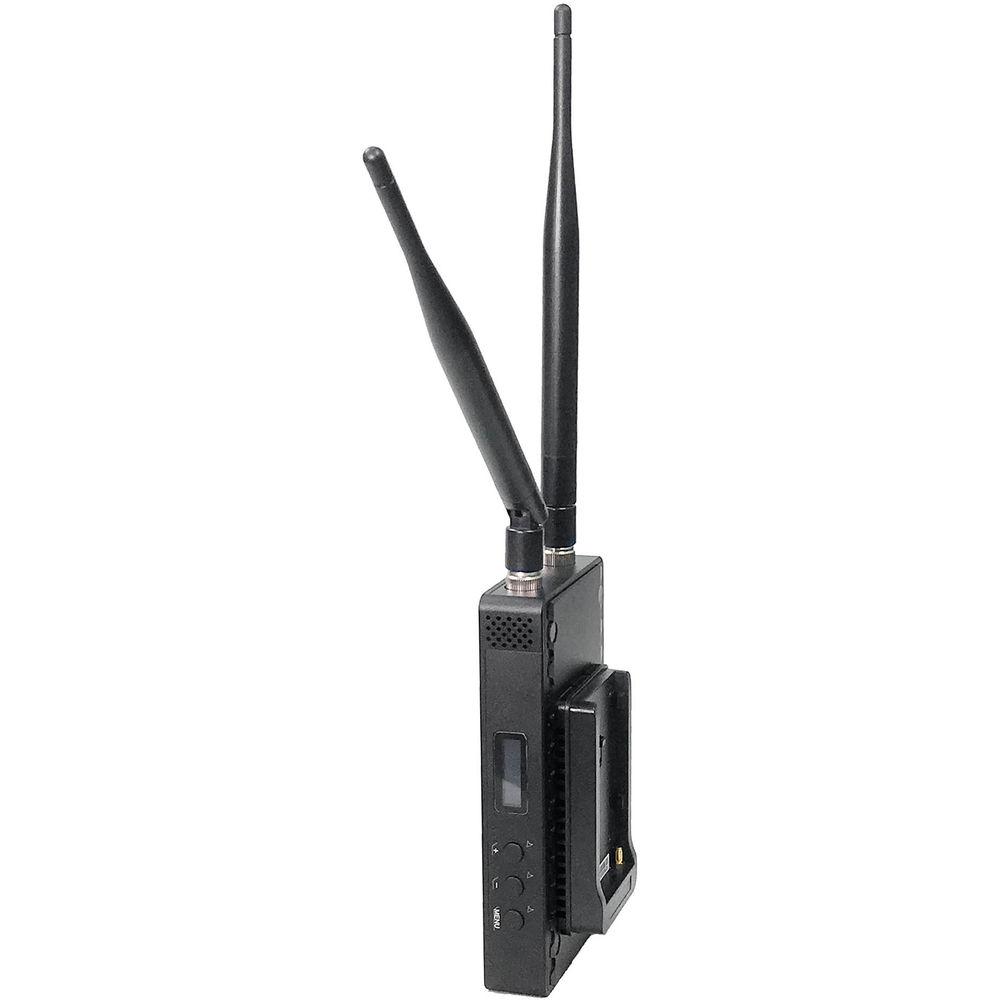

  The 1000M transmitter comes with two high range antennas and features a Sony L-series battery plate. Batteries are sold separately.
  Key Features
  • • Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3,250'
    • Compatible with any Ghost Eye receiver (100M, 150M, etc.)
    • Supports 4 receivers simultaneously on each channel
    • Less than 1 ms of latency
    • Operates on the license-free 5 GHz frequency band
    • HDMI and SDI inputs; SDI loop output; cross-conversion capability with and optional receiver
    • Adaptive signal logarithm compensates for small obstacles in the line-of-sight
    • Auto-relink
    • AES-128 signal encryption
    • Timecode
    • Sony L-series battery plate
  UPC: 612520356156

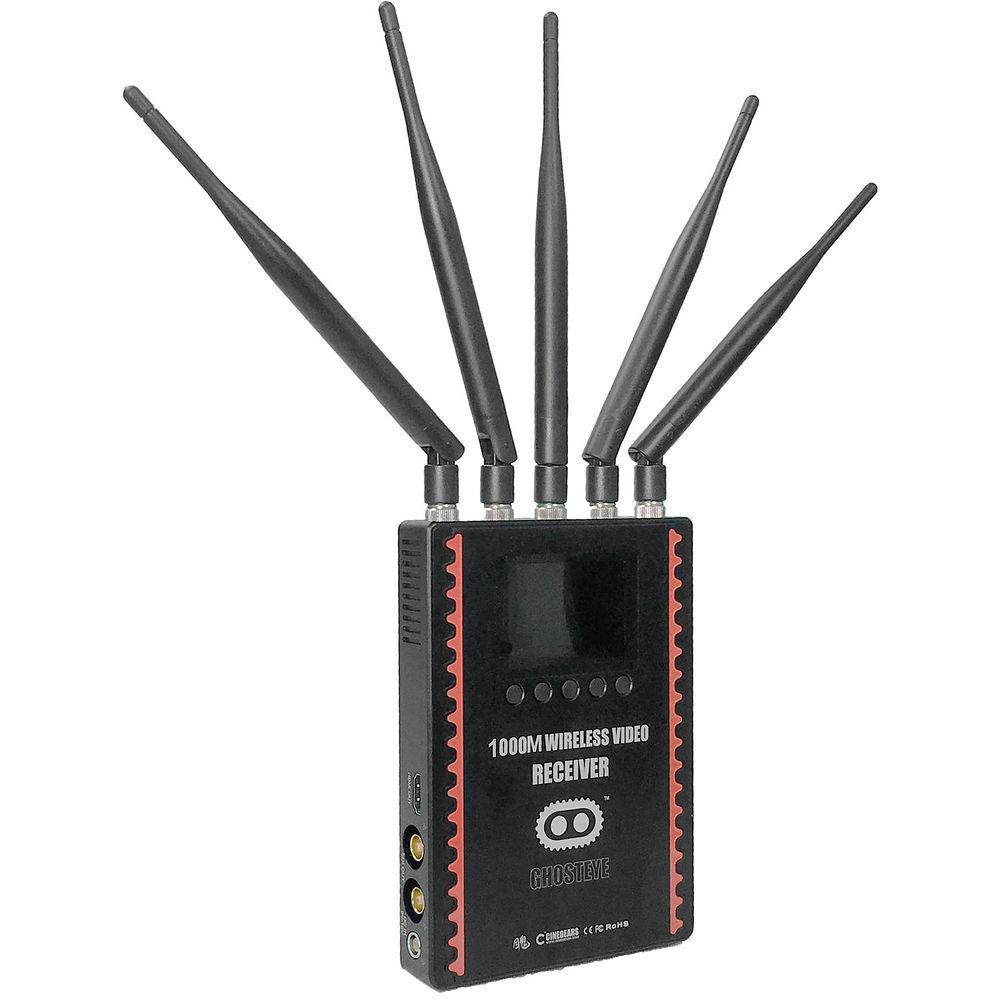

• Ghost-Eye Wireless HDMI & SDI Video Receiver 1000M The CINEGEARS Ghost-Eye Receiver 1000M pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 3,250' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. (Unlike some of the other Ghost-Eye models, in which the "M" figure represents the minimum transmission distance ensured, the 1000 meter/3,250' distance of the 1000M is the max distance supported.)

  The receiver features both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.

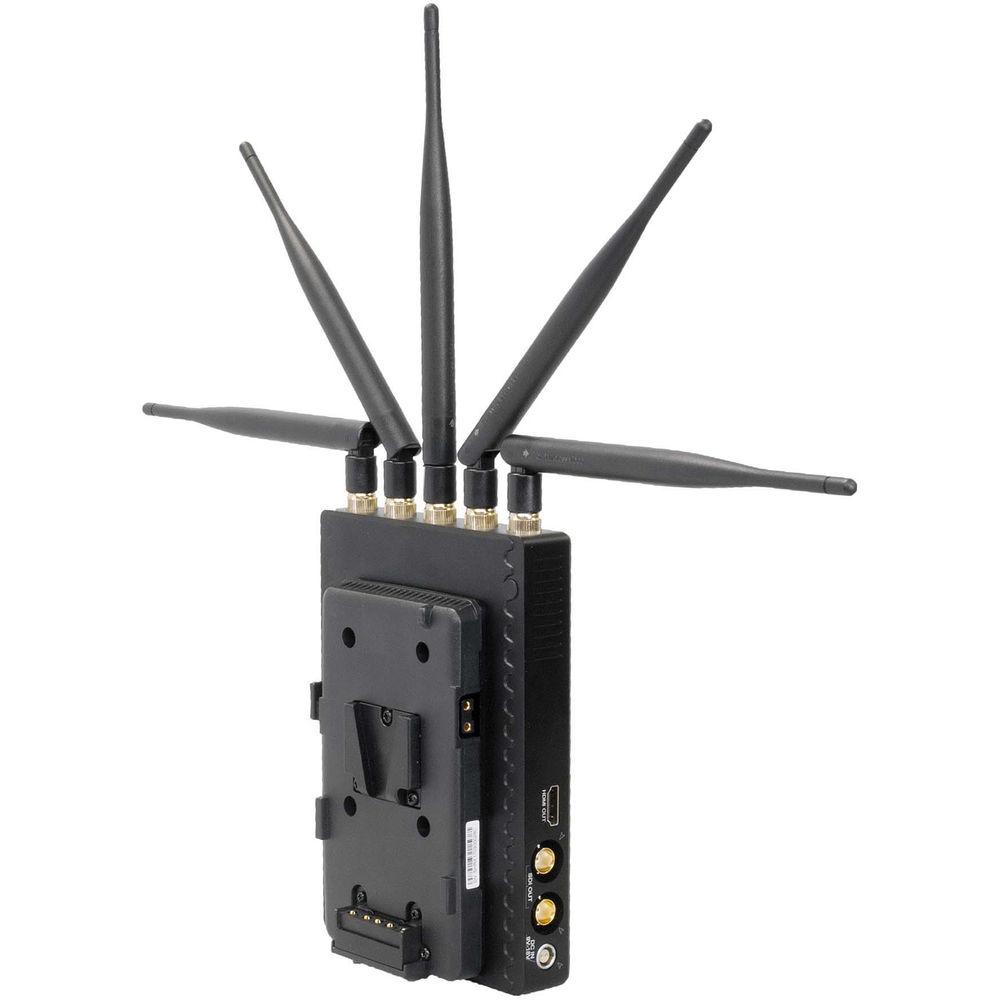

  The receiver also features AES-128 signal encryption and timecode, and it comes with a V-mount battery plate.
  Key Features
  • • Pairs with any Ghost-Eye transmitter
    • Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 3,250'
    • Less than 1 ms of latency
    • Operates on the license-free 5 GHz frequency band
    • HDMI and SDI outputs with cross conversion capability
    • Adaptive signal logarithm compensates for small obstacles in the line-of-sight
    • Auto-relink
    • AES-128 signal encryption
    • Timecode
    • V-mount battery plate
    • Plug-and-play installation
  UPC: 612520356163
• AC Adapter for Ghost Eye 150M & 400M Transmitter & Receiver Units The AC Adapter lets you conveniently power the Ghost Eye 150M and 400M units directly from a wall outlet. It runs on 100 to 240 VAC for worldwide use and connects to the Ghost Eye units via the 2-pin LEMO connector.
  Compatibility
  • Ghost Eye 150M and 400M transmitter and receiver units
  UPC: 611138357463

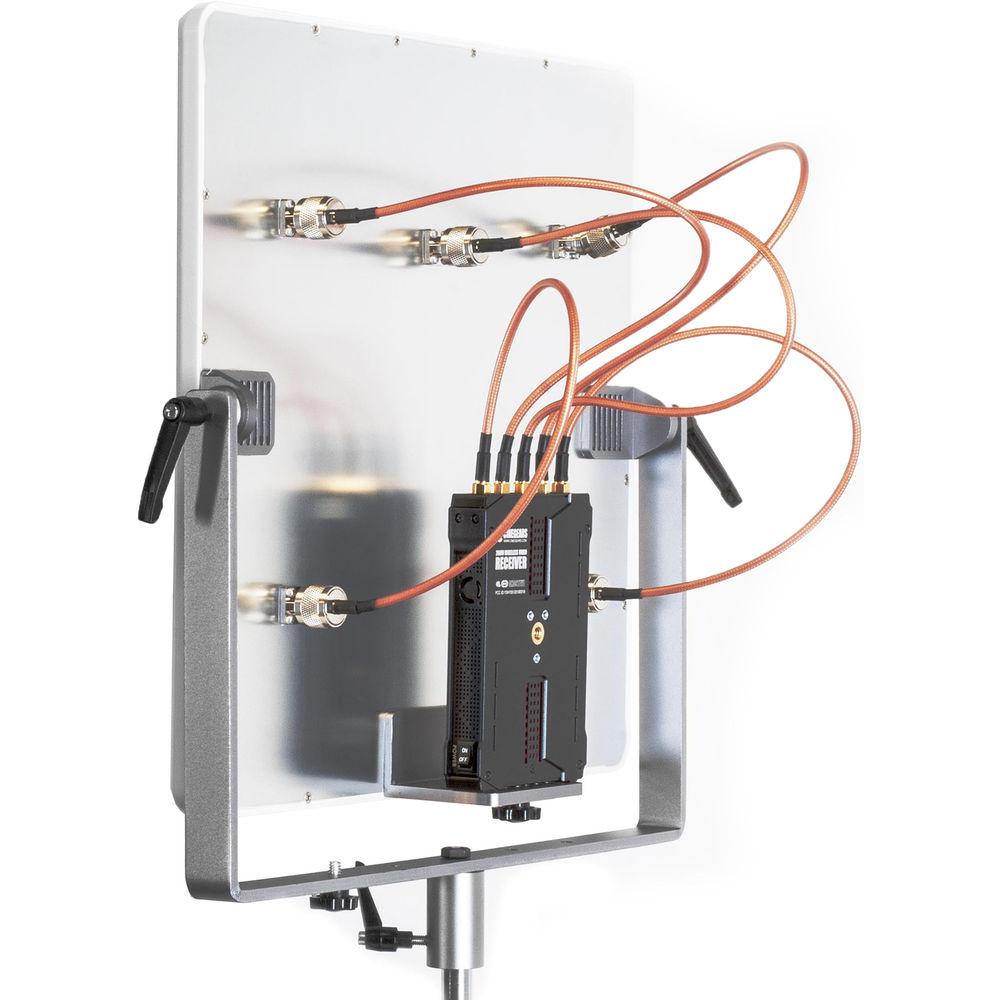

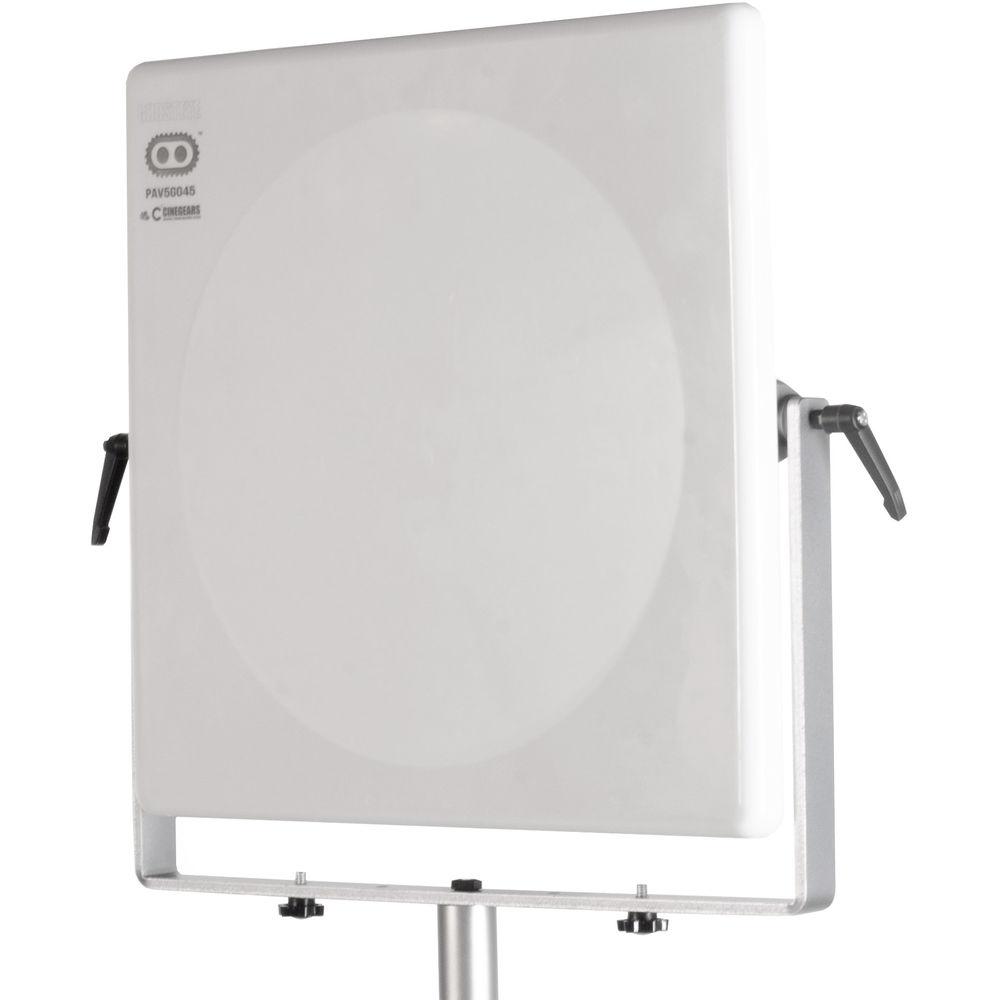

• Panel Antenna Extend your Ghost-Eye's operating range with this Cinegears Panel Antenna. Use the included cables to connect your transmitter's or receiver's antenna ports to the panel antenna and set up the antenna on a light stand with the integrated stand adapter. A bracket to mount the transmitter or receiver to the antenna is included. The unit itself is sealed for use in inclement weather conditions. UPC: 612520356484
• 5G Cloverleaf Antenna The 5G Cloverleaf Antenna from CINEGEARS comes with a weather-resistant and water-resistant body. With a range of 164 to 656', the antenna is suitable for both indoor and outdoor shoots. UPC: 612520356583

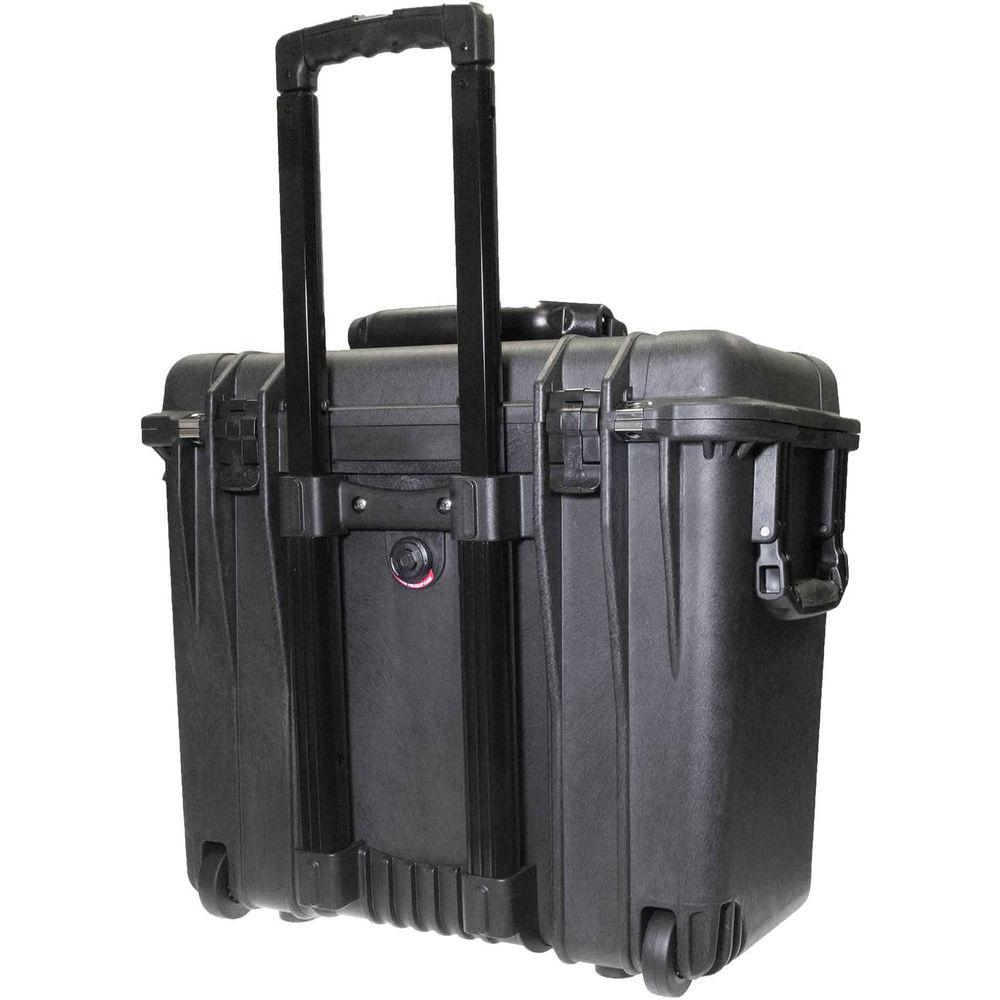

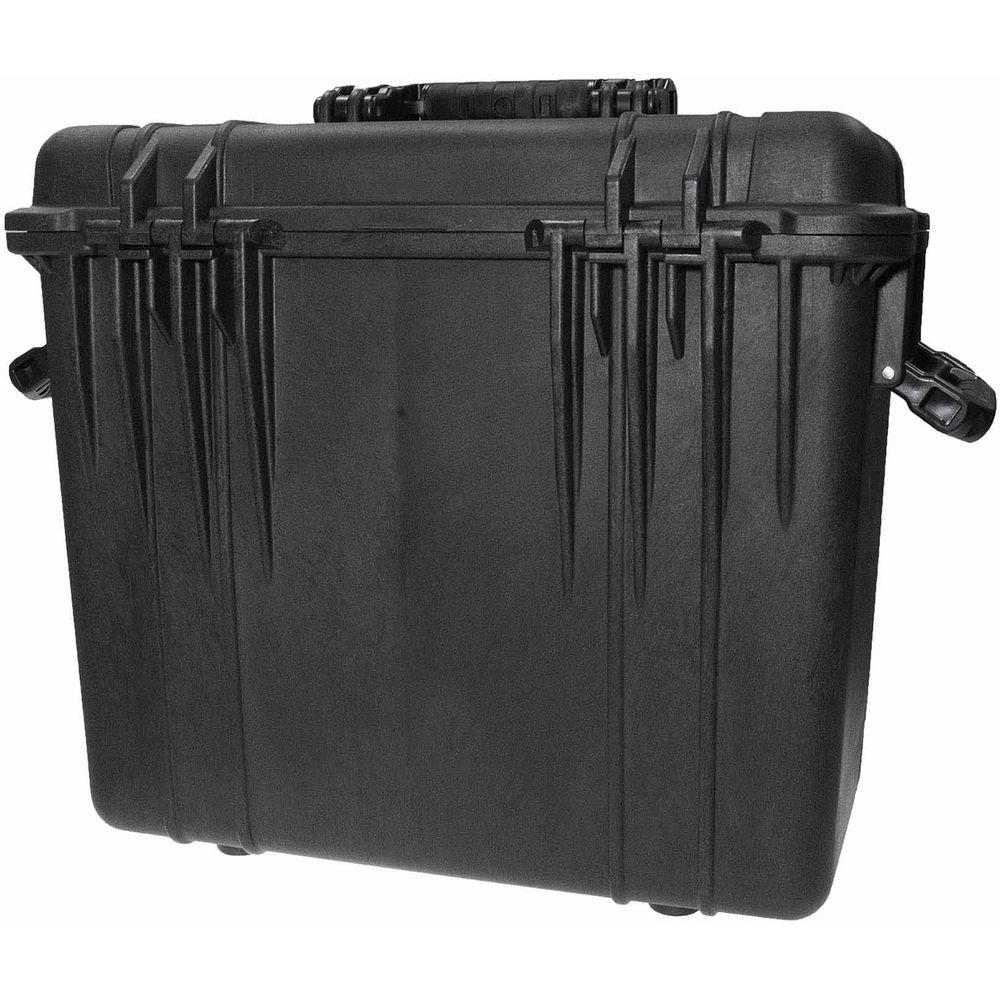

• Pelican 1440 Case with Padded Dividers and Lid Organizer (Black) The Cinegears Pelican 1440 Case with Padded Dividers and Lid Organizer is a waterproof rolling hard case designed to store and protect your gear. The included padded dividers can be distributed within the case to fit your gear requirements and accessories along with small essentials can be stored in the lid organizer's pouches. To transport this case, extend the handle to roll the case using the built-in wheels, or grab onto one of the three built-in fold-down handles to lift the case. A purge valve ensures the case will acclimate to pressure changes due to elevation while retaining its waterproof nature.
  Construction
  • • Ultra-high-impact structural polypropylene
    • Watertight, crushproof, and dustproof
    • Utility divider set interior
    • Clear-mesh, lid organizer for accessories
    • Open-cell core with solid wall design
    • Stainless steel hardware
  • Utility divider set consists of top tray with 1 (15") and 6 (3.0") flexible dividers, and a lower tray with 1 (15") and 3 (3.5") flexible padded dividers
  • Top load design provides easy access to all the gear
  • Easy-open, double-throw latches with stainless steel padlock protectors (for an optional, user-supplied lock)
  Carrying options;
  • • Fold-down top and side rubber over-molded handles
    • Retractable extension handle
    • Two built-in polyurethane wheels with stainless steel bearings
  Certifications
  • • IP67-rated (1 meter submersion for 30 minutes)
    • Def Stan 81-41 / STANAG 4280

• 2-Pin LEMO to D-Tap Power Cable

• 2 x Extended High-Range Antennas

• Limited 3-Year Warranty

• 2-Pin LEMO to D-Tap Power Cable

• 5 x Extended High-Range Antennas

• Limited 3-Year Warranty

• Limited 1-Year Warranty

• 5 x Antenna Connection Cables

• Transmitter/Receiver Bracket

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty
