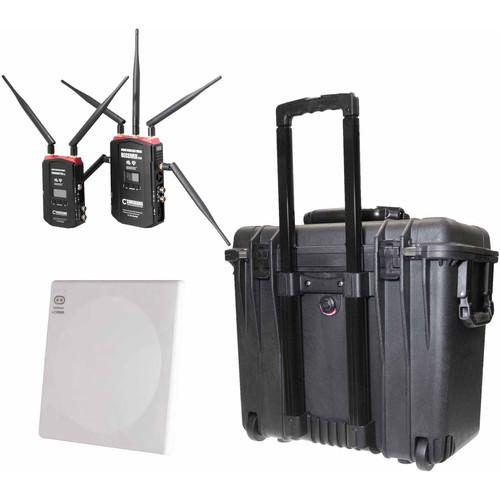

User Manual for CINEGEARS Ghost-Eye Wireless HD-SDI Video Transmission 400M V2 Pro Kit

• Product category: Wireless Transmission Systems CINEGEARS
• Brand: CINEGEARS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CINEGEARS Wireless Transmission Systems

Product description

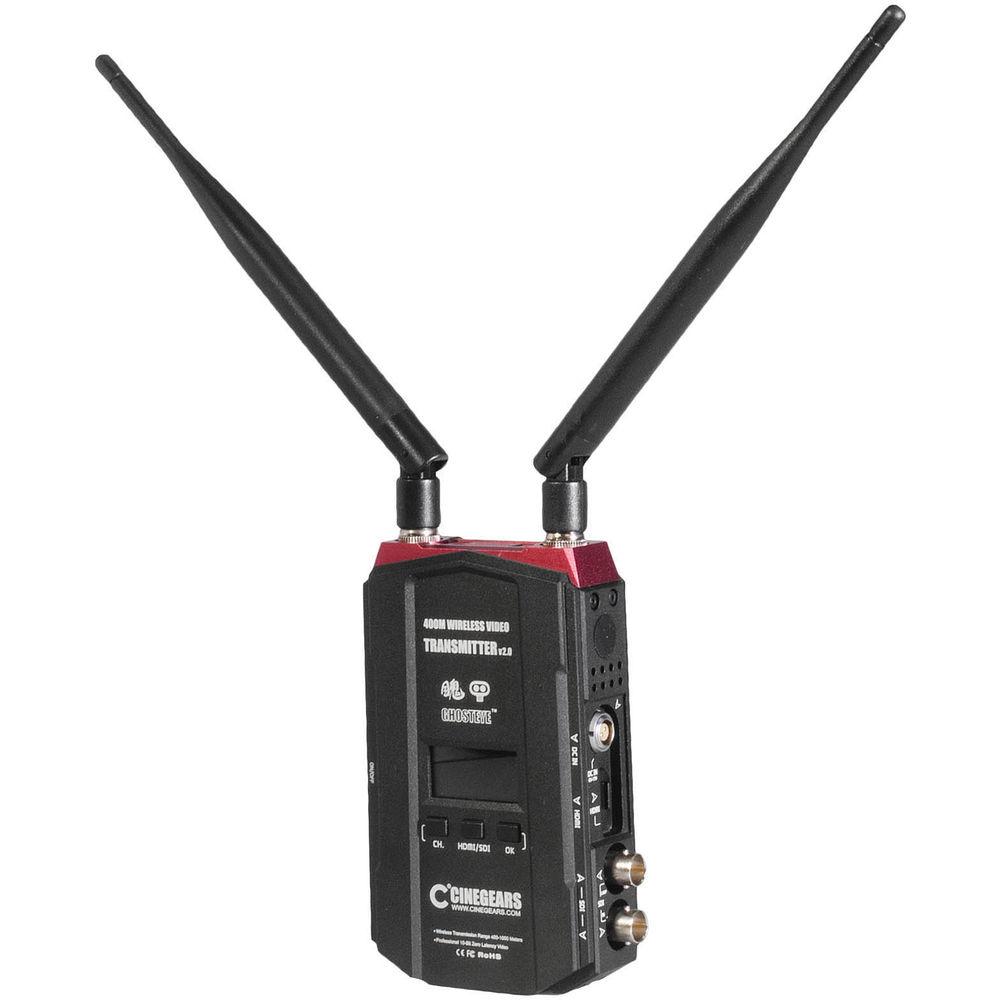

• Ghost-Eye 400M V2 HDMI/SDI Transmitter
  • Ghost-Eye Wireless Video Transmission 1KM Range Test
  • Ghost-Eye Wireless Video Transmission 400M
  • Uwe Boll Raw and Cinegears Ghost-Eye Wireless Video Transmission, Rampage 3
  Transmit 1080p60, 4:4:4 HD video up to 3281 feet with the Ghost-Eye 400M V2 Wireless HDMI/SDI Transmitter from CINEGEARS. Using the license-free 5 GHz frequency band, this transmitter supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Transmitter features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.One useful feature of the Ghost-Eye 400M V2 Transmitter is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Transmitter features plug-and-play installation, with firmware upgrades available via its mini-USB port.
  Transmission Details
  • The transmitter operates on the 5 GHz band using up to four channels simultaneously
  Maximum Range
  • Transmits uncompressed 10-bit HD video and audio up to 3281' range
  Latency
  • Low-latency rate of <1 millisecond
  Multiple Receivers
  • Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
  Cross Compatibility
  • Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
  Resolution
  • The transmitter handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
  Integrated Cross Conversion
  • Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
  Additional Features
  • • AES-128/256 encryption
    • Timecode and tally signal support
    • Optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included)
    • Plug-and-play installation with firmware upgrades via mini-USB port
    • Integrated LCD status display
  UPC: 714983522267

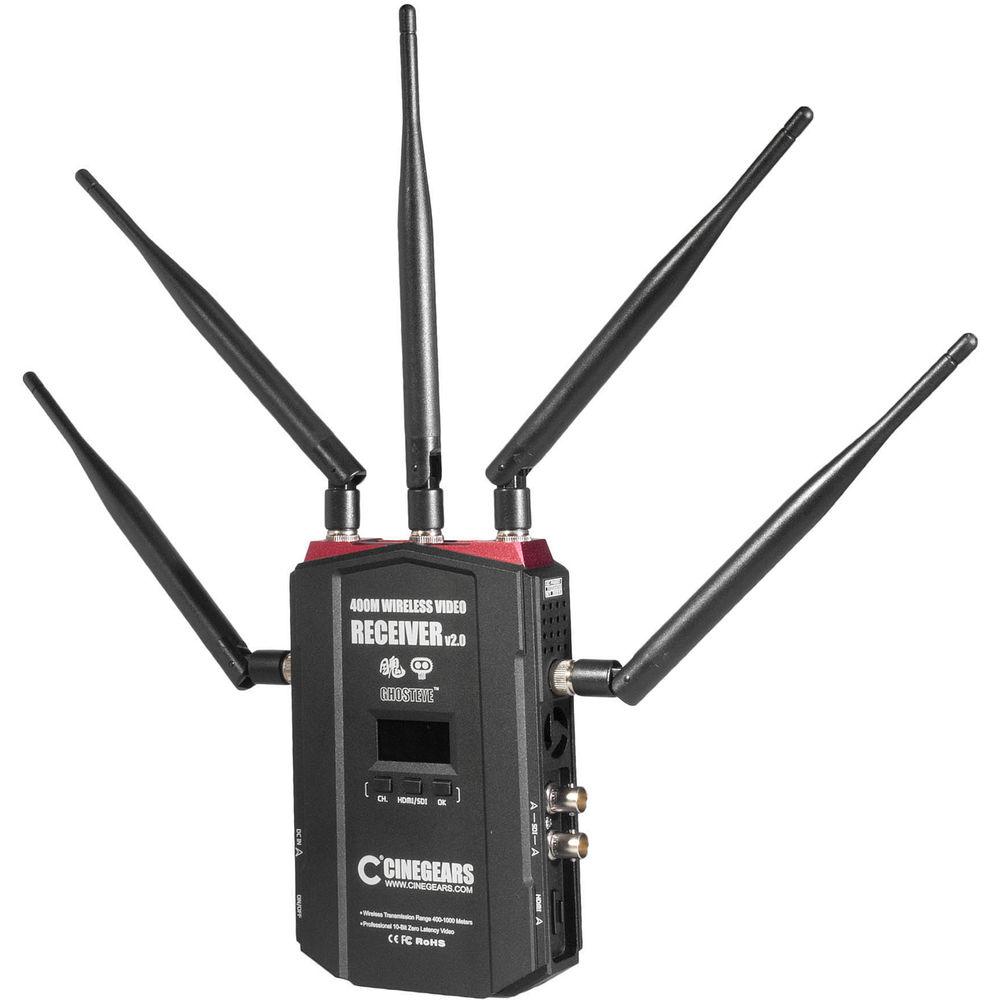

• Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver The Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver from CINEGEARS receives wireless 1080p60, 4:4:4 HD video at distances up to 3281 feet. Using the license-free 5 GHz frequency band, this receiver supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Receiver features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each coordinating transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.A handy function of the Ghost-Eye 400M V2 Receiver is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Receiver features plug-and-play installation, with firmware upgrades available via its mini-USB port.
  Receiver Details
  • The receiver operates on the 5 GHz band, using up to four channels simultaneously
  Maximum Range
  • Receives uncompressed 10-bit HD video and audio up to 3281' range
  Latency
  • Low-latency rate of <1 millisecond
  Multiple Receivers
  • Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
  Cross Compatibility
  • Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
  Resolution
  • The receiver handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
  Integrated Cross Conversion
  • Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
  Additional Features
  • • AES-128/256 encryption
    • Timecode and tally signal support
    • Optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included)
    • Plug-and-play installation with firmware upgrades via mini-USB port
    • Integrated LCD status display
  UPC: 714983522250

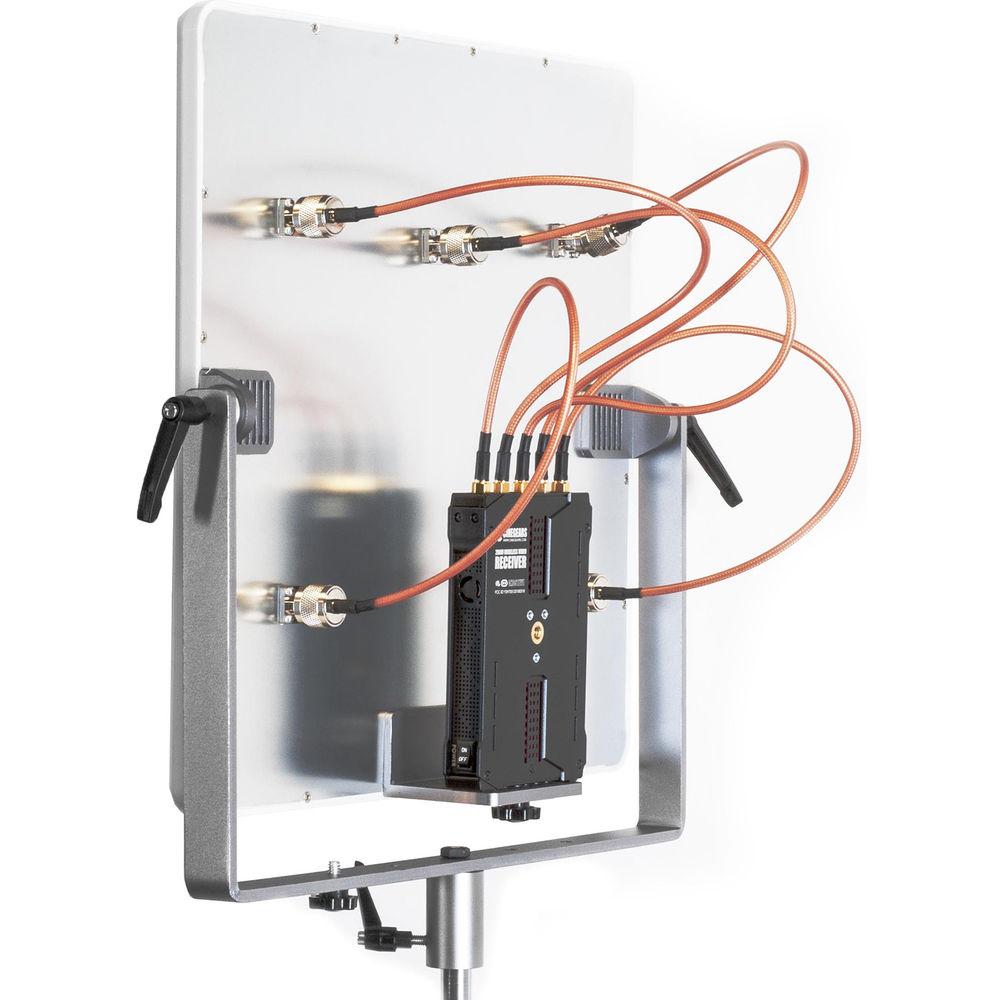

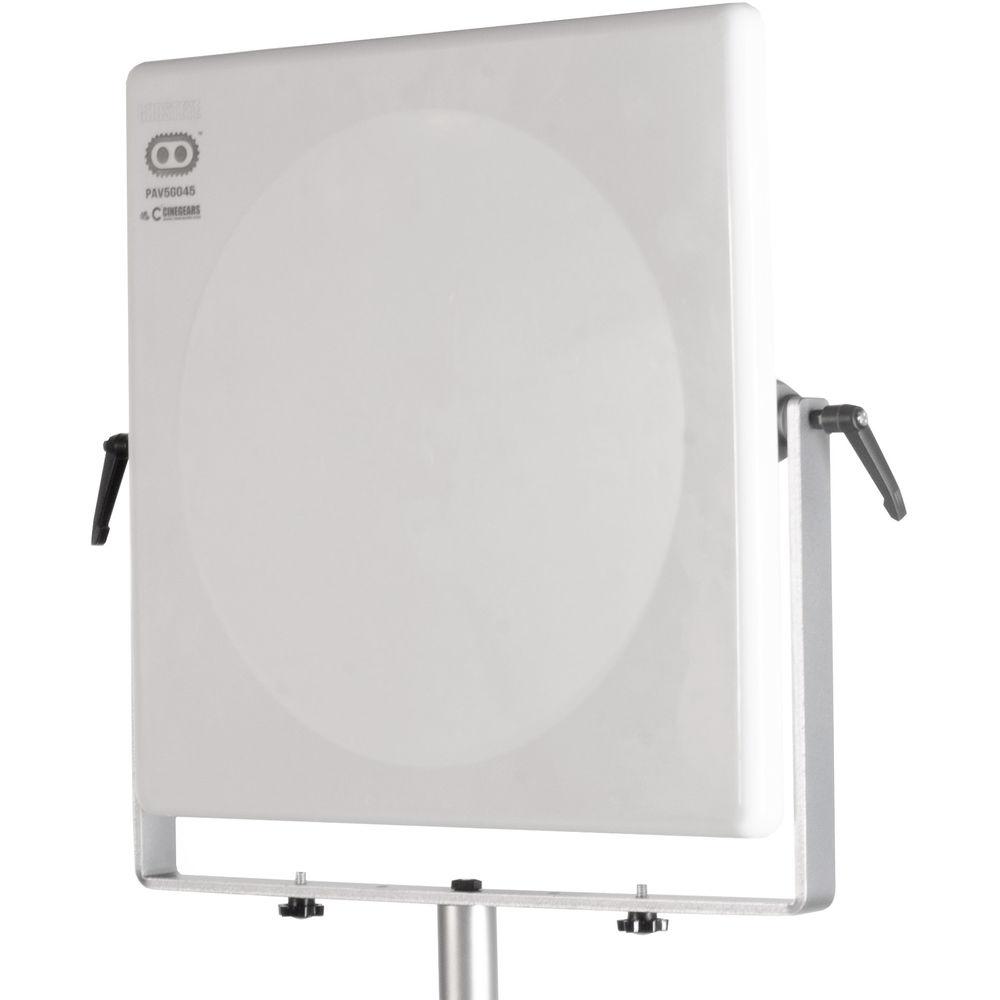

• Ghost-Eye Extra-Large Panel Antenna The Cinegears Ghost-Eye Extra-Large Panel Antenna can extend the working distance of the Cinegears Ghost-Eye 5 GHz transmitter/receiver system up to 3300'. Inside the panel are five 14 dBi antennas in an array to focus the transmission/reception. The exterior is finished in white to help prevent overheating in bright sunlight. A yoke for light-stand mounting, a bracket for securing the transmitter or receiver, and antenna cables are included. UPC: 610877598328

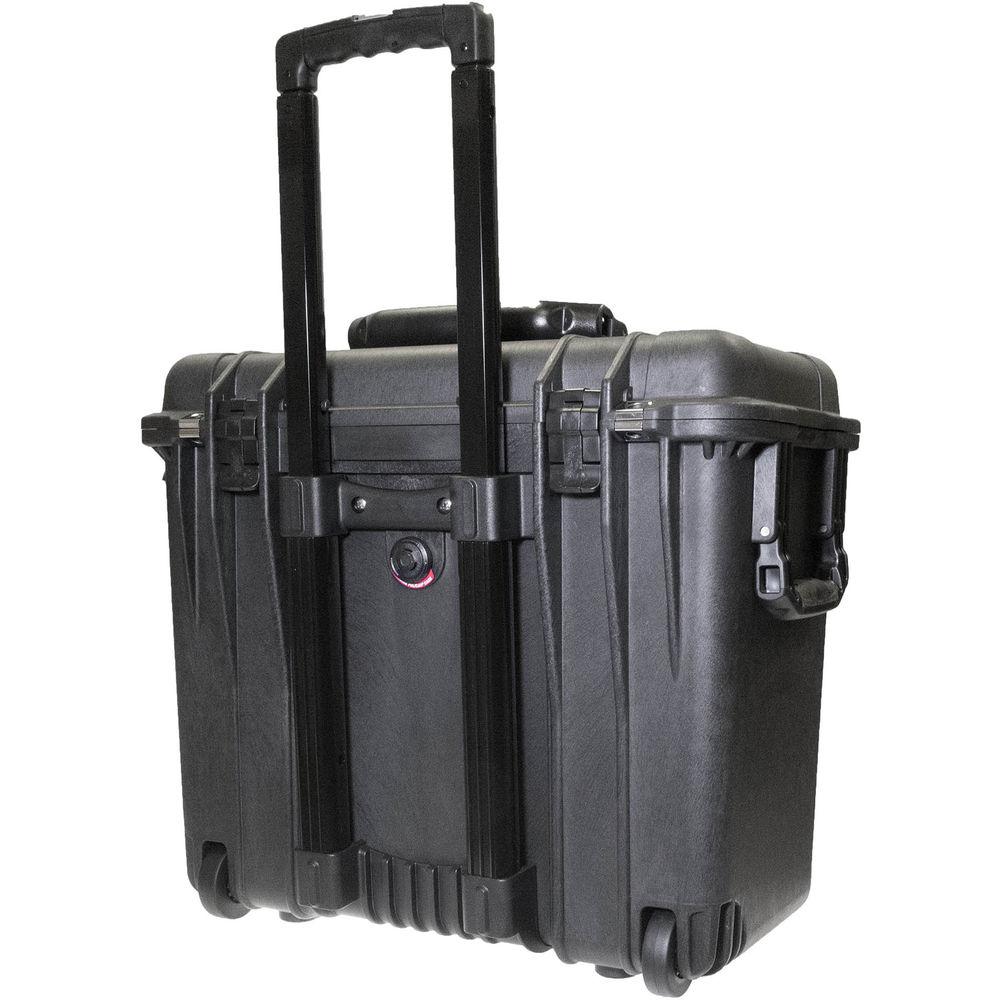

• Pelican 1440 Case with Padded Dividers and Lid Organizer (Black) The Cinegears Pelican 1440 Case with Padded Dividers and Lid Organizer is a waterproof rolling hard case designed to store and protect your gear. The included padded dividers can be distributed within the case to fit your gear requirements and accessories along with small essentials can be stored in the lid organizer's pouches. To transport this case, extend the handle to roll the case using the built-in wheels, or grab onto one of the three built-in fold-down handles to lift the case. A purge valve ensures the case will acclimate to pressure changes due to elevation while retaining its waterproof nature.
  Construction
  • • Ultra-high-impact structural polypropylene
    • Watertight, crushproof, and dustproof
    • Utility divider set interior
    • Clear-mesh, lid organizer for accessories
    • Open-cell core with solid wall design
    • Stainless steel hardware
  • Utility divider set consists of top tray with 1 (15") and 6 (3.0") flexible dividers, and a lower tray with 1 (15") and 3 (3.5") flexible padded dividers
  • Top load design provides easy access to all the gear
  • Easy-open, double-throw latches with stainless steel padlock protectors (for an optional, user-supplied lock)
  Carrying options;
  • • Fold-down top and side rubber over-molded handles
    • Retractable extension handle
    • Two built-in polyurethane wheels with stainless steel bearings
  Certifications
  • • IP67-rated (1 meter submersion for 30 minutes)
    • Def Stan 81-41 / STANAG 4280

• 2 x Antennas

• 2-Pin LEMO to D-Tap Cable

• Limited 3-Year Warranty (North America Only)

• 5 x Antennas

• 2-Pin LEMO to D-Tap Cable

• Limited 3-Year Warranty (North America Only)

• 5 x Antenna Cables

• Transmitter/Receiver Bracket

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ghost-Eye 400M V2 HDMI/SDI Transmitter

  Interface	Input: 1 x SDI BNC, female 1 x HDMI Type A, female Output: 1 x SDI BNC, loop-through out Power In Power On/Off Antenna: 2 x RP5MA
  Power	Consumption: <6.5 W Input Voltage Range: 6.5 to 16.8 VDC
  Video Input Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Video Output Format	SDI input loop-through out
  Audio Input Formats	SDI embedded 4-channel 24-bit/48 kHz PCM DTS-HD Dolby TrueHD
  Audio Output Format	SDI embedded audio loop-through out
  Maximum Transmission Distance	3281' (1000 m)
  Frequency	5.1 to 5.9 GHz
  Transmission Power	<21 dBm
  Occupied Bandwidth	40 MHz
  Encryption	AES-128/256
  Temperature	Operating: 5 to 140°F (-15 to 60°C) Storage: -40 to 176°F (-40 to 80°C)
  Dimensions (LxWxH)	4.3 x 2.4 x 0.9" (10.9 x 6.1 x 2.3 cm)
  Weight	12.7 oz (360 g)

  Box Dimensions (LxWxH)	10.0 x 8.0 x 3.0"

• Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver

  Interface	Output: 1 x SDI BNC, female 1 x HDMI Type A, female 1 x SDI, loop-through out Power In Power On/Off Antenna: 5 x RP5MA
  Power	Consumption: <6 W Input Voltage Range: 6.5 to 16.8 VDC
  Video Input Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Video Output Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Audio Output Format	SDI embedded 4-channel 24-bit/48 kHz PCM DTS-HD Dolby TrueHD
  Maximum Transmission Distance	3281' (1000 m)
  Frequency Band	5.1 to 5.9 GHz
  Receiver Sensitivity	-75 dBm
  Occupied Bandwidth	40 MHz
  Encryption	AES-128/256
  Temperature	Operating: 5 to 140°F (-15 to 60°C) Storage: -40 to 176°F (-40 to 80°C)
  Dimensions (LxWxH)	5 x 3 x 1.2" (12.7 x 7.5 x 3.15 cm)
  Weight	1.1 lb (480 g)

  Box Dimensions (LxWxH)	10.25 x 7.75 x 2.75"

• Ghost-Eye Extra-Large Panel Antenna

  Frequency	5.0-5.8 GHz
  Antennas	5 x 14 dBi
  Working Distance	Up to 3300' / 1000 m
  Dimensions	L x W: 14 x 14" / 37 x 37 cm Diagonal: 20.7" / 51 cm

  Box Dimensions (LxWxH)	20.1 x 16.4 x 4.8"

• Pelican 1440 Case with Padded Dividers and Lid Organizer (Black)

  Material	High-impact structural copolymer polypropylene and stainless-steel hardware
  Type of Closure	Easy-open double-throw ABS latches Padlock protectors for optional, user-supplied padlock
  Carrying/Transport Options	Fold-down top and side handles Retractable extension handle Built-in wheels
  Certifications	IP67 STANAG 4280 Def Stan 81-41
  Maximum Buoyancy	Floats in salt water with 95.3 lb / 43.2 kg
  Temperature Range	-40 to 210°F / -40 to 99°C
  Interior Dimensions	17.1 x 7.5 x 16.0" / 43.4 x 19.1 x 40.6 cm Top lid depth: 2.0" / 5.1 cm Bottom depth: 14" / 35.6 cm
  Exterior Dimensions	19.7 x 12.0 x 18.0" / 50.0 x 30.5 x 45.7 cm
  Weight	16.5 lb / 7.5 kg
