User Manual for CINEGEARS Ghost-Eye Wireless HD-SDI Video Transmission Kit 800T.Code Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HD-SDI Video Transmission
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HD-SDI Video Transmission contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

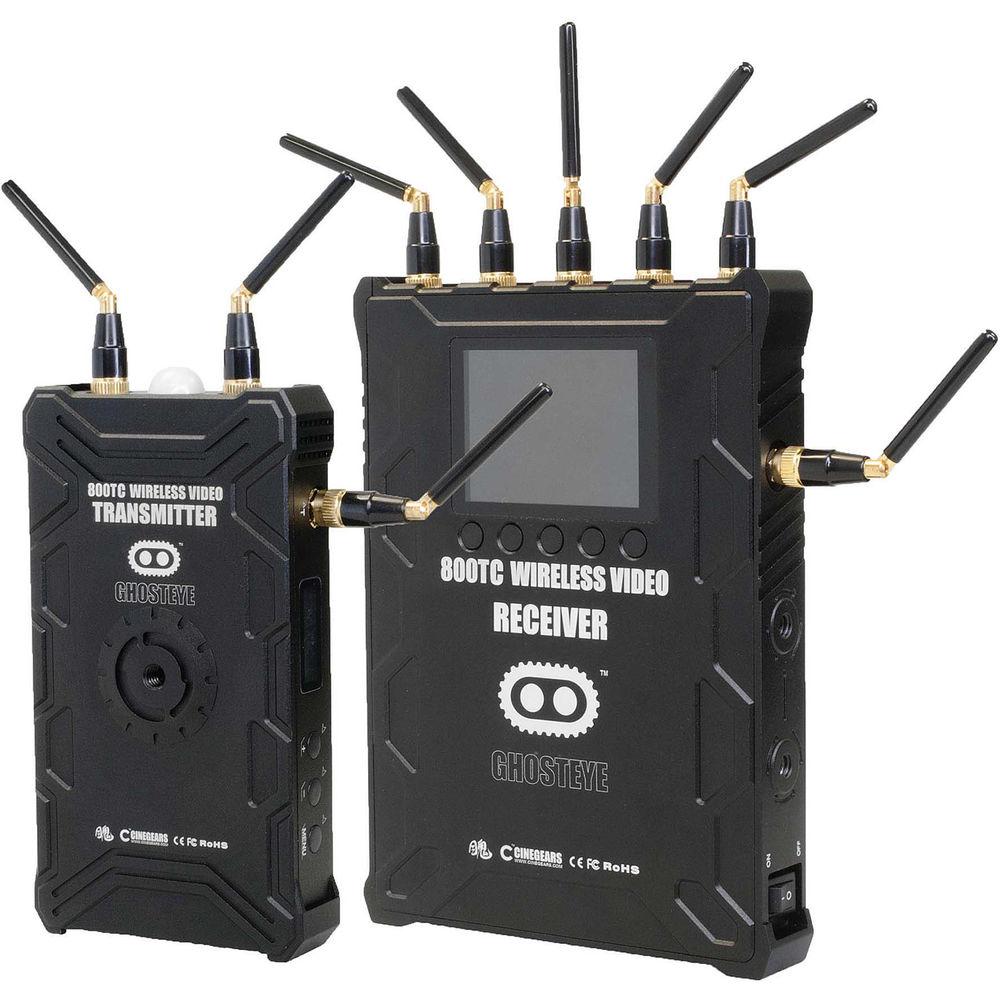

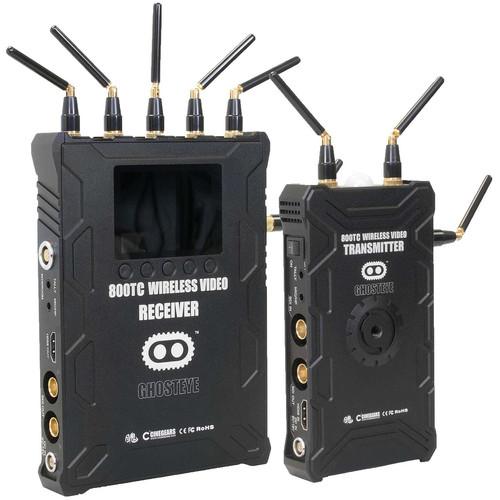

Product description Transmit uncompressed 1080p60, 10-bit, 4:2:2 video up to 2600' with the CINEGEARS Ghost-Eye Transmission Kit 800T.Code, in a V-mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. It's cross-compatible with all other Ghost-Eye versions so you can connect longer/shorter-distance receivers if you'd like. The receiver in this kit features a V-mount battery plate attached on the back, and the transmitter has a Sony L-series plate. Batteries are sold separately. The 800T.Code system also features tally and talk-back functionality and timecode support.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The set is also capable of HDMI/SDI cross conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. - Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T.Code
- Ghost-Eye Wireless Video Transmission T-Series Instructions
Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600' with the CINEGEARS Ghost-Eye Transmitter 800T.Code. It safely supports up to four receivers (sold separately) simultaneously on each channel and is cross-compatible with any Ghost-Eye receiver model. It also features tally and talk-back functionality and timecode support.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the optional receiver end or vice-versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. The transmitter features a Sony L-series battery plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600'
- Tally, talkback, and timecode
- Supports up to 4 receivers simultaneously on each channel
- Supports any Ghost-Eye receiver
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- Sony L-series battery plate
UPC: 612520356279 - Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code The CINEGEARS Ghost-Eye Receiver 800T.Code pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. It also features tally and talk-back functionality and timecode support.
The receiver has both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.

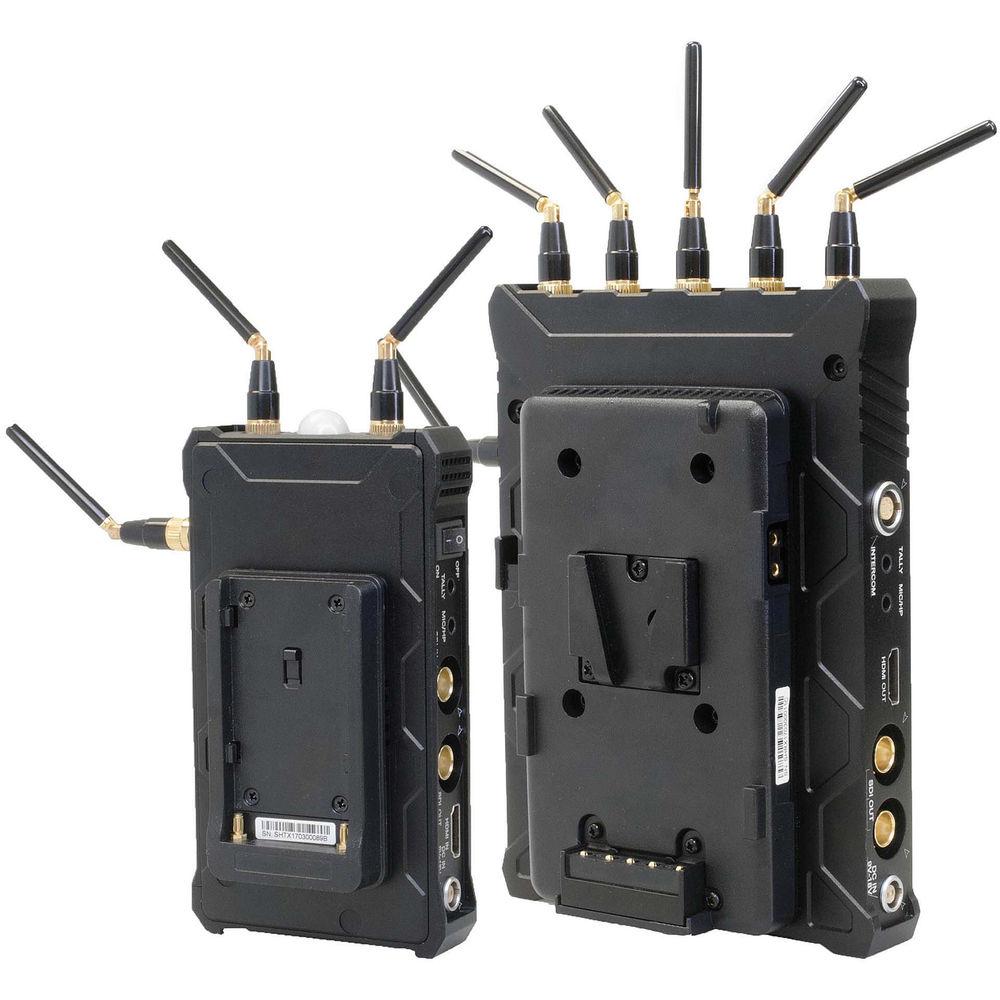

The receiver comes with a V-mount battery plate. - Key Features
-
- Pairs with any Ghost-Eye transmitter
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600'
- Tally, talkback, and timecode
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- V-mount battery plate
- Plug-and-play installation
UPC: 612520356286 - Heavy Duty Steel Ball Joint Articulated Arm
In the Box Bundle Items Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T.Code evyauxffcffevybzwdwwvsqyveqcscrrybyv - 2-Pin LEMO to D-Tap Power Cable
- 2 x Extended High-Range Antennas
Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code - 2-Pin LEMO to D-Tap Power Cable
- 5 x Extended High-Range Antennas
Heavy Duty Steel Ball Joint Articulated Arm

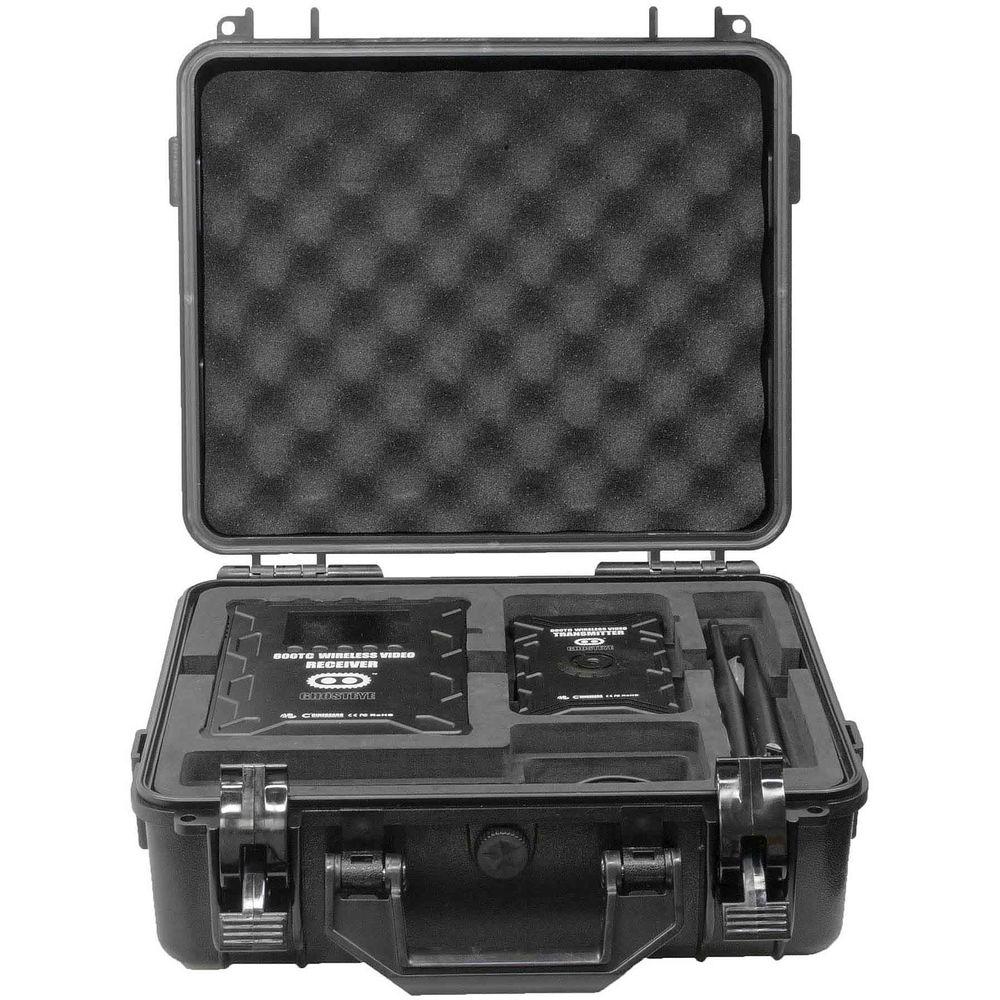

Also Includes - Waterproof Foam Case
- Limited 3-Year Warranty
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HD-SDI Video Transmission Kit 800T.Code in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HD-SDI Video Transmission Kit 800T.Code can be downloaded in PDF format at the link stated below.
Technical parameters - Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T.Code
| Interface | 1 x SDI input on BNC
1 x HDMI Type A input
1 x SDI local output on BNC | | Transmission Distance | 2,600' (800 m) line-of-sight | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | - Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code
| Interface | 1 x HDMI Type A output
2 x SDI outputs on BNC | | Transmission Distance | 2,600' (800 m) line-of-sight
| | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 - 5.9 GHz | | | | Box Dimensions (LxWxH) | 10.2 x 7.7 x 2.8" | - Heavy Duty Steel Ball Joint Articulated Arm
