User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

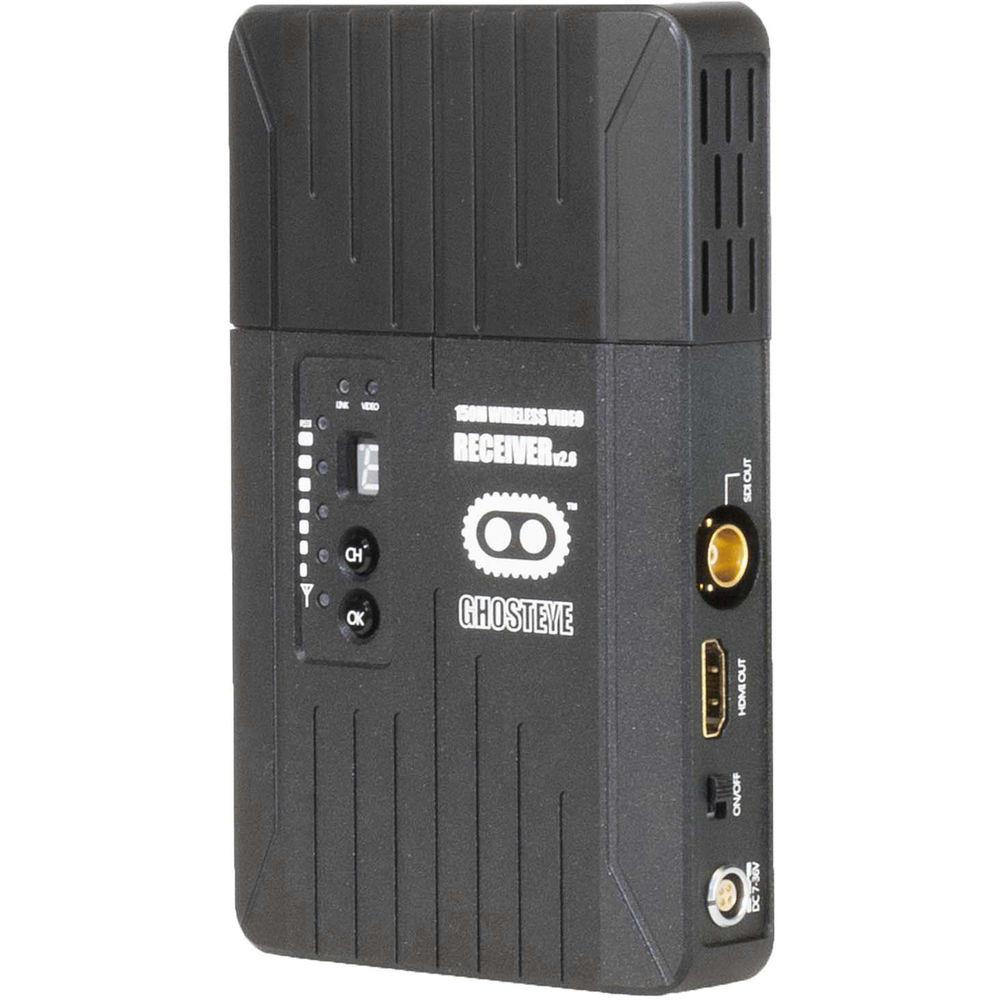

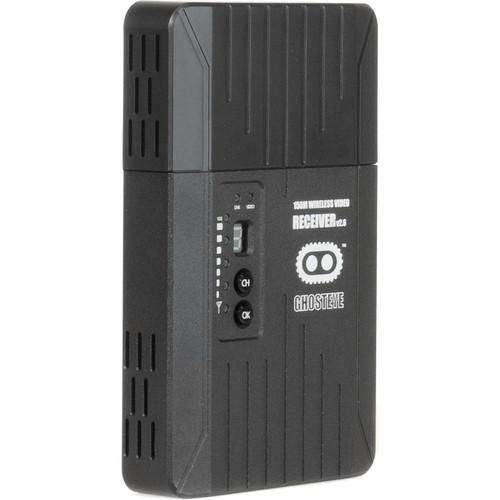

Product description The CINEGEARS Ghost-Eye Receiver 150M V2 pairs with any Ghost-Eye transmitter (100M, 150M, etc.) and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 985 ft with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band and ensures a minimum distance of 492 ft (150m) line-of-sight (from a 150M or higher transmitter), while the maximum distance is 985 ft (longer distances have successfully been tested in open spaces).
The receiver features both HDMI and SDI outputs and is capable of cross conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed — auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the receiver include AES-128 signal encryption and plug-and-play installation.

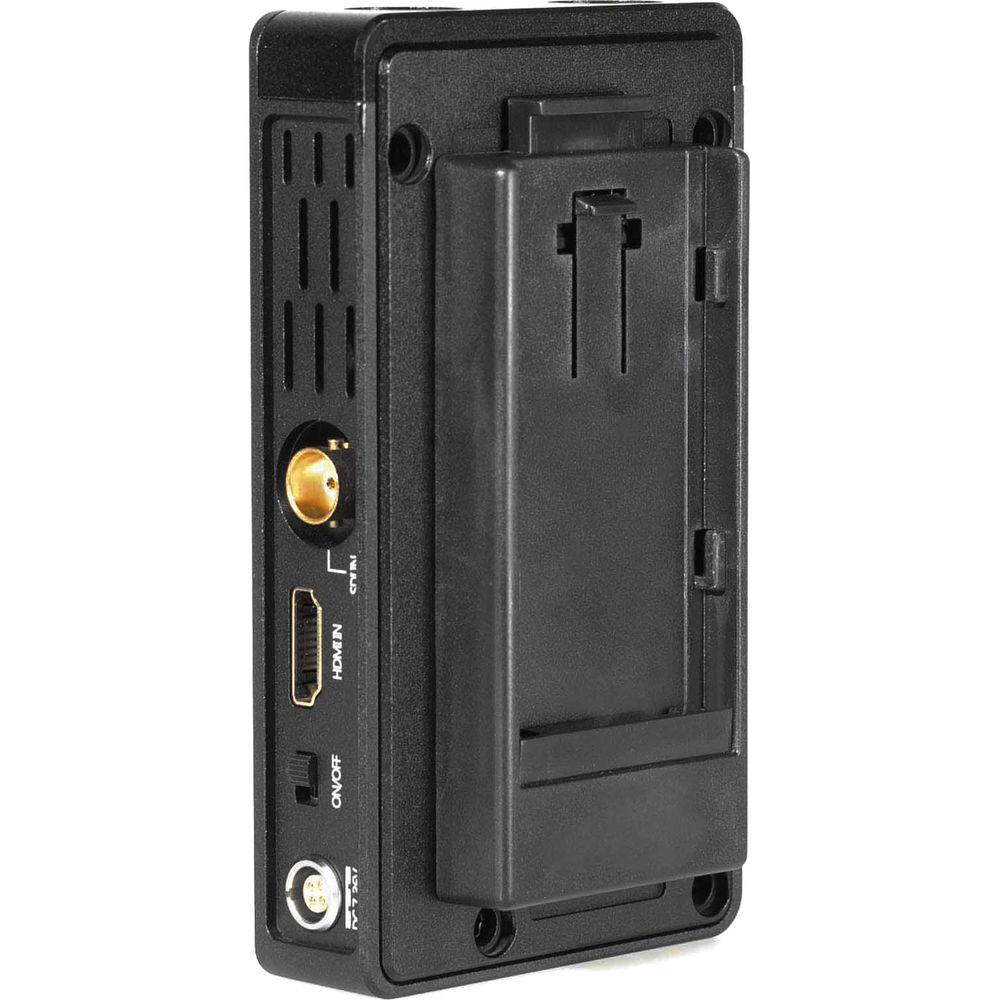

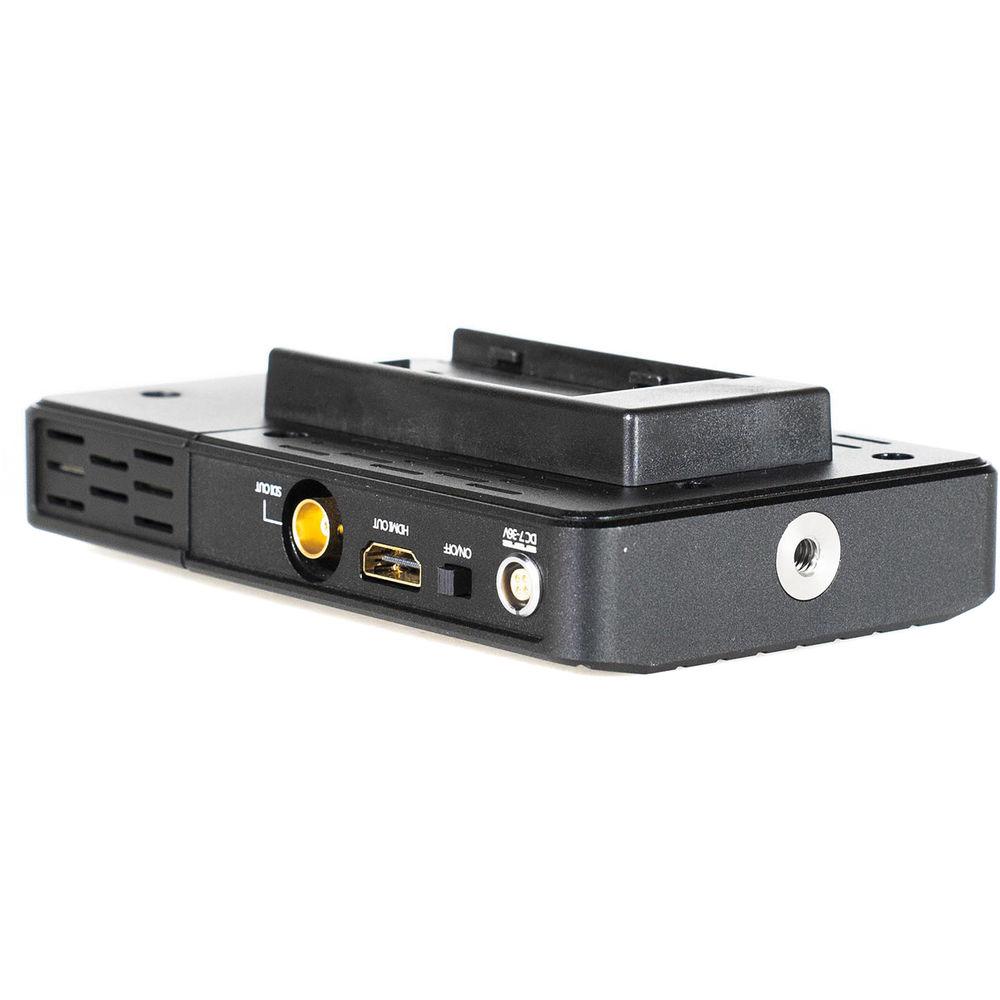

The 150M receiver has built-in antennas and a Sony L-Series battery plate. Batteries are sold separately. - Key Features
-
- Pairs with any Ghost-Eye transmitter (100M, 150M, etc.)
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 985 ft
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
- 492 ft line-of-sight, to 985 ft max transmission distance
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Plug-and-play installation
- Built-in antennas
- Sony L-Series battery plate
UPC: 714983522274 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate) 2-Pin LEMO to D-Tap Cable Limited 3-Year Warranty User Manual PDF 1.4mbueeftwsfrx Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-153 Specs | Interface | Output:
1 x SDI BNC, female
1 x HDMI Type-A, female
1 x SDI, loop-through out | | Transmission Distance | 985 ft (300 m) line-of-sight
492 ft (150 m) minimum line-of-sight ensured | | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type-A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Audio Output Format | SDI-embedded 2-channel 24-bit/48 kHz | | Frequency Band | 5.1 - 5.9 GHz | | Modulation Mode | OFDM 16-QAM | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128 | | Housing | Plastic | | Power | Input Voltage Range: 6.5 - 16.8 VDC
Consumption: 6.5 W | | Compliance | FCC, CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 6 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm) | | Weight | 0.8 lb (355 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 6.3 x 3.7 x 1.4" |
