Product description - Cinegears New Ghost Eye Models
- Cinegears Ghost-Eye Wireless Video Transmission Live Broadcasting for CCTV

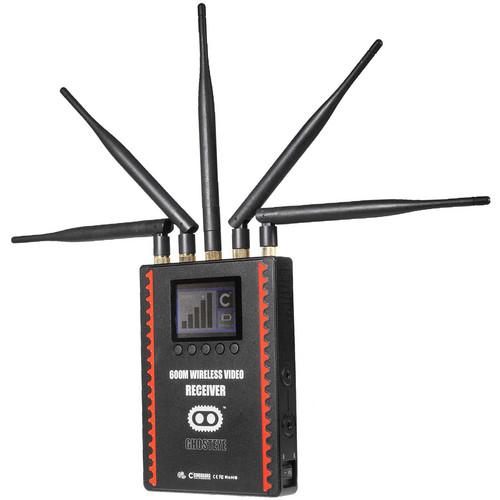

The CINEGEARS Ghost-Eye Receiver 600M pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2000' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. (Unlike some of the other Ghost-Eye models, in which the "M" figure represents the minimum transmission distance ensured, the 600 meter/2000' distance of the 600M is the max distance supported.)
The receiver features both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.

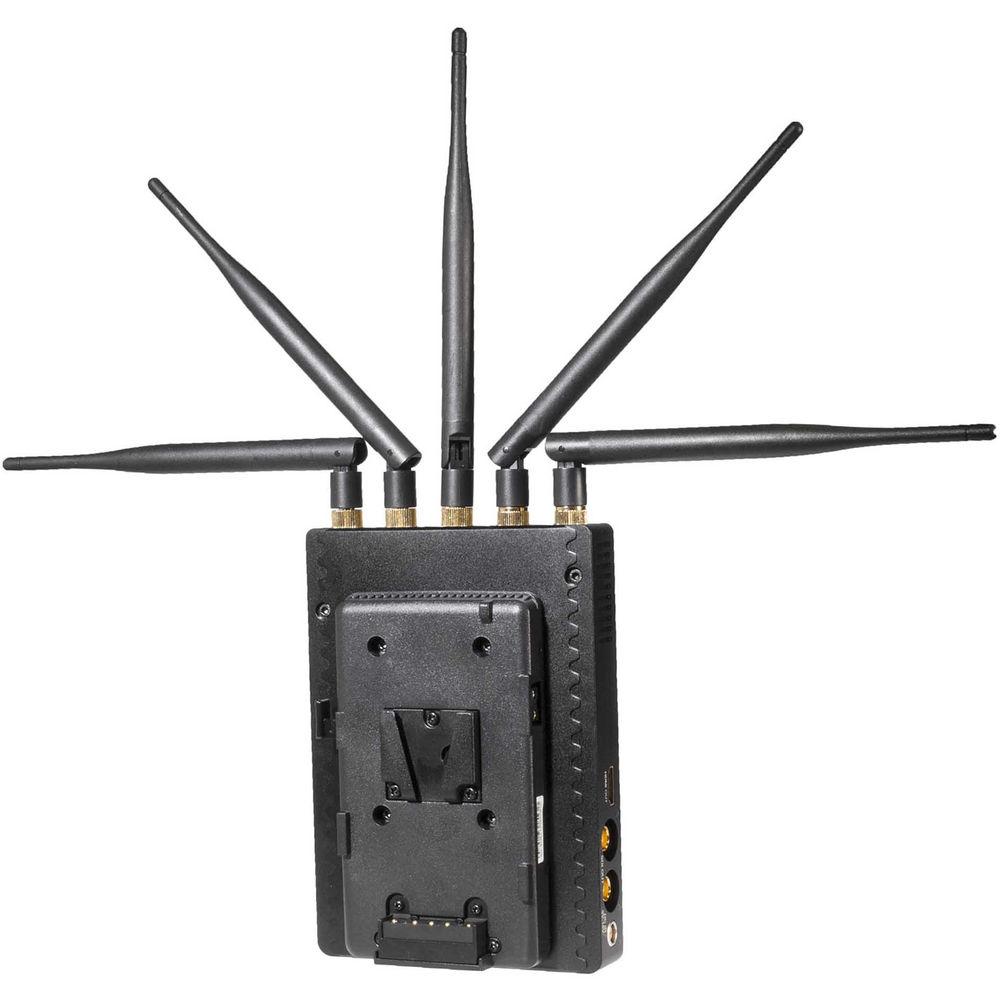

The 600M receiver features AES signal encryption and timecode, and it comes with a V-mount battery plate. - Key Features
-
- Pairs with any Ghost-Eye transmitter
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2000'
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs; SDI loop output; cross conversion capability with optional transmitter
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES signal encryption
- Timecode
- V-mount battery plate
- Plug-and-play installation
UPC: 612520356101 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 600M 2-Pin LEMO to D-Tap Power Cable 5 x Extended High-Range Antennas Limited 3-Year Warranty User Manual PDF 6.6mbxzqtqccuywc Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 600M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Interface | Output:
1 x SDI on BNC
1 x HDMI Type A
1 x SDI loop-output on BNC | | Transmission Distance | 2000' (600 m) line-of-sight
| | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 - 5.9 GHz | | | | Package Weight | 1.92 lb | | Box Dimensions (LxWxH) | 10.25 x 7.75 x 2.5" |
