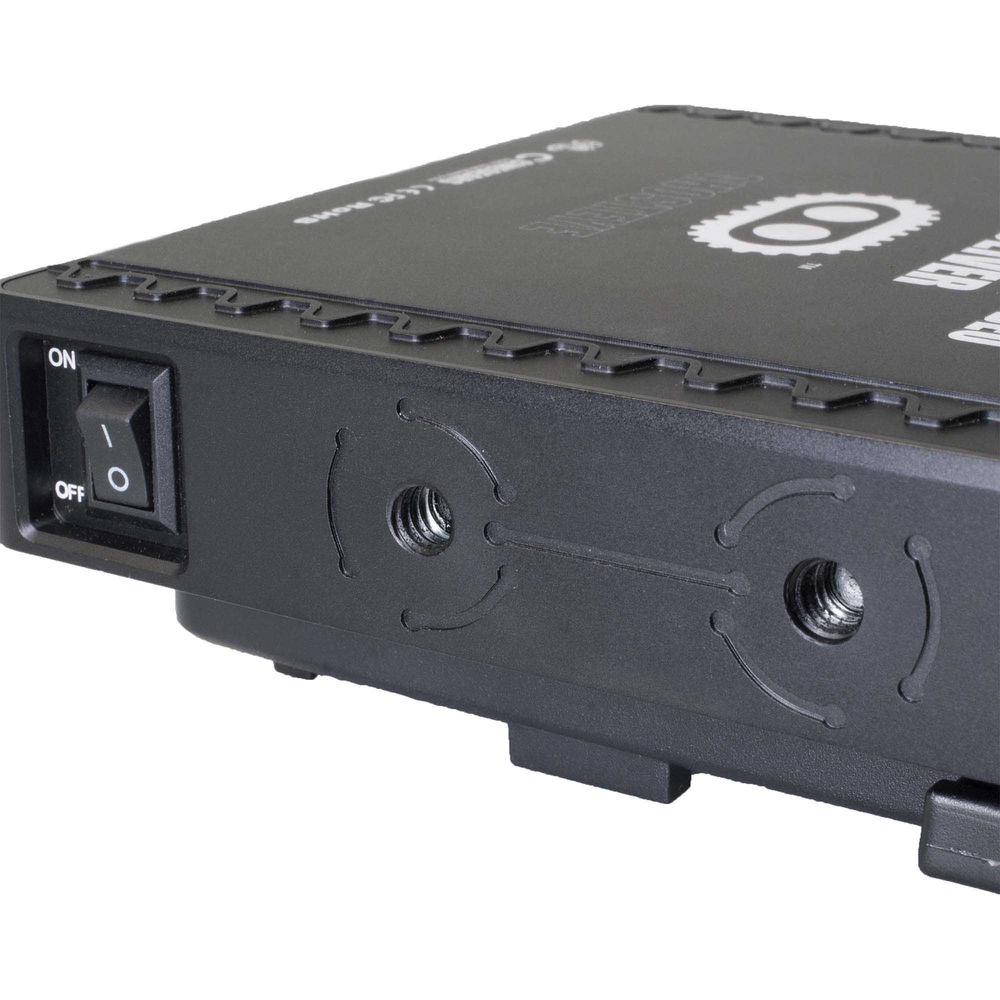

User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission T-Series Instructions

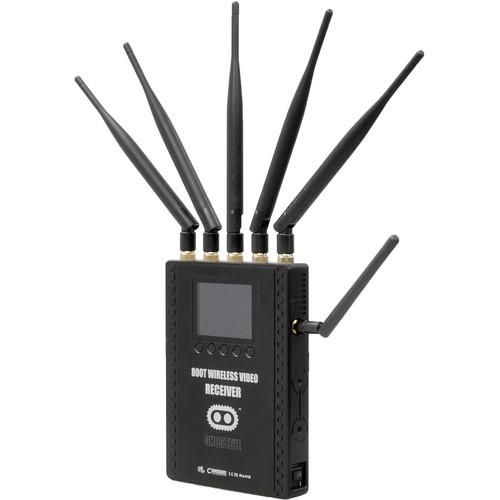

The CINEGEARS Ghost-Eye Receiver 800T pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. The 800T also features tally and talk-back functionality.
The receiver features both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.

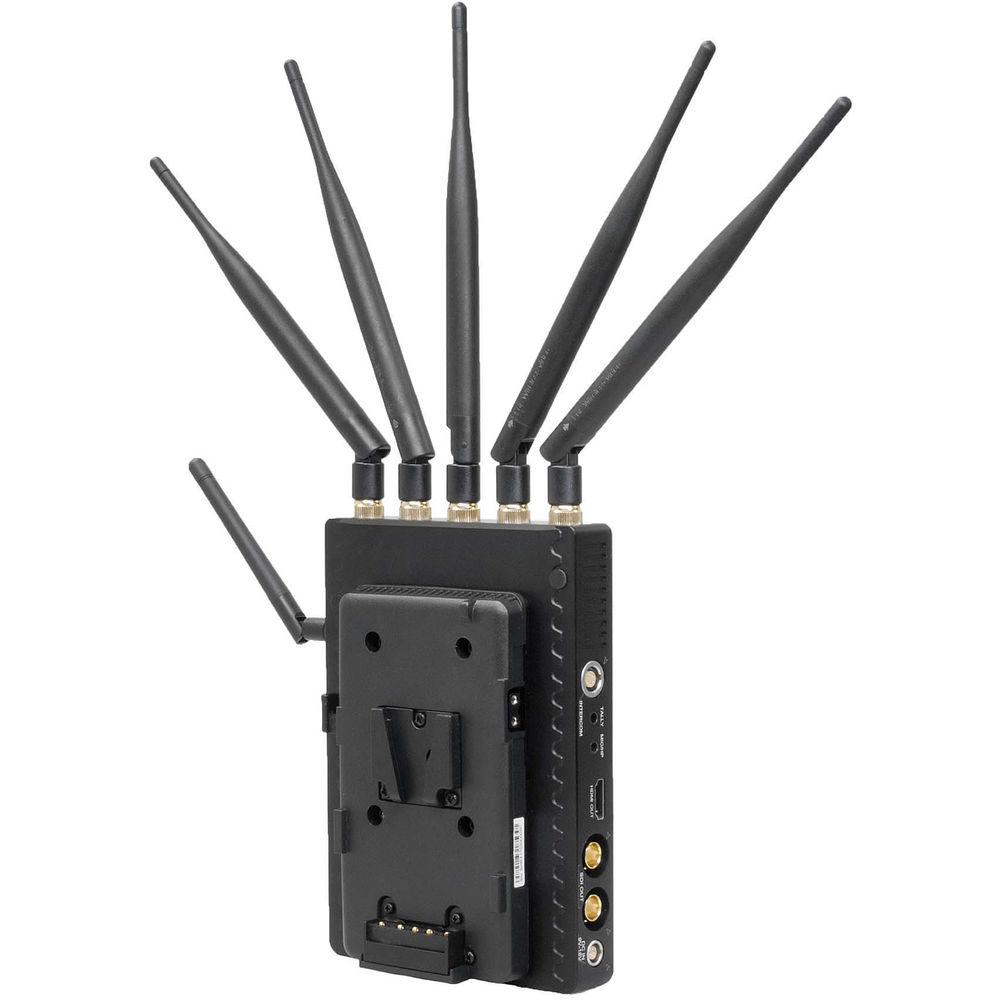

The receiver comes with a V-mount battery plate. - Key Features
-
- Pairs with any Ghost-Eye transmitter
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600'
- Tally and talkback
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- V-mount battery plate
- Plug-and-play installation
UPC: 612520356132 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T 2-Pin LEMO to D-Tap Power Cable 5 x Extended High-Range Antennas Standard Antenna Limited 3-Year Warranty User Manual PDF 6.6mbeyrsxcsuqzc Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-803 Specs | Interface | Output:
1 x HDMI Type A, female
1 x SDI BNC, female
1 x SDI, loop-through out | | Transmission Distance | 2,600' (800 m) line-of-sight
| | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 - 5.9 GHz |
