User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission T-Series Instructions

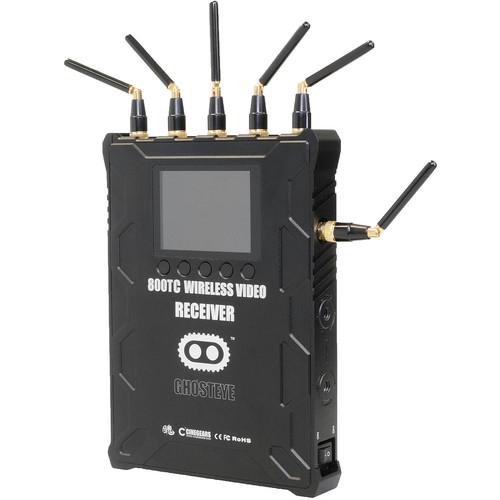

The CINEGEARS Ghost-Eye Receiver 800T.Code pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. It also features tally and talk-back functionality and timecode support.

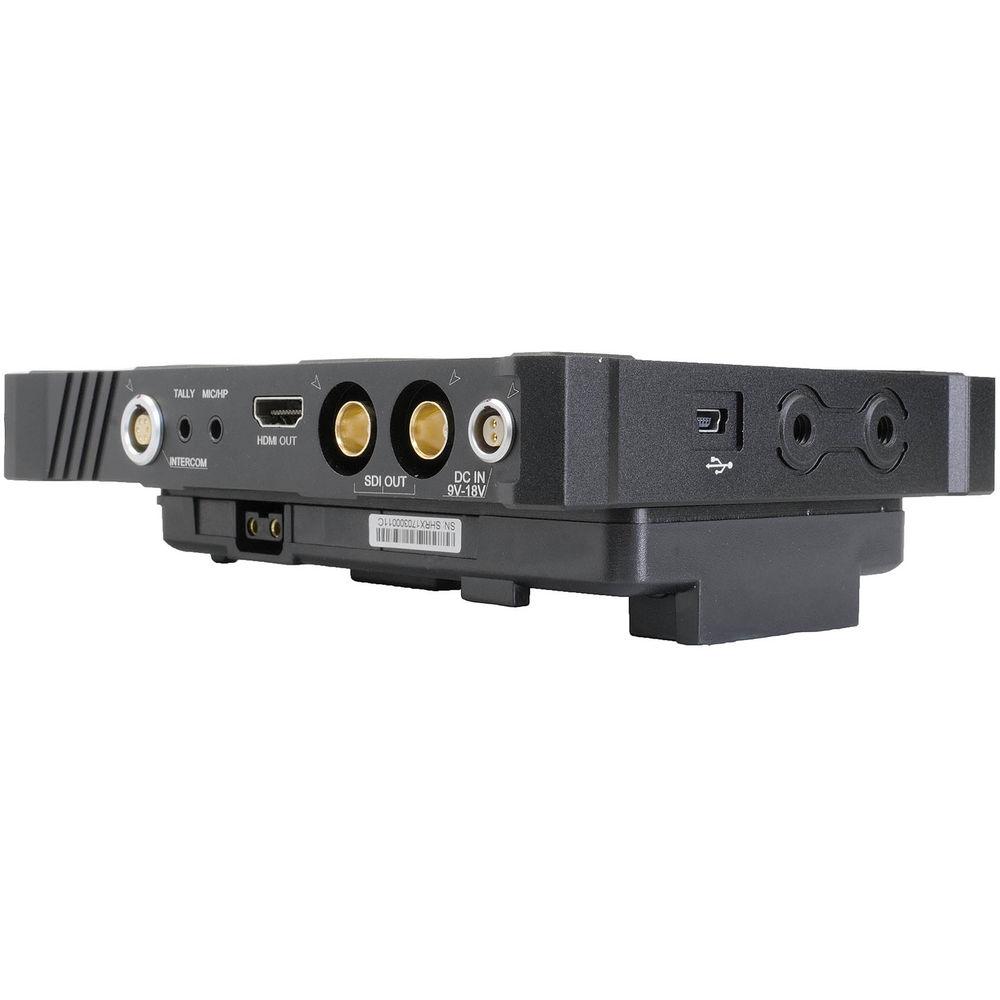

The receiver has both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.

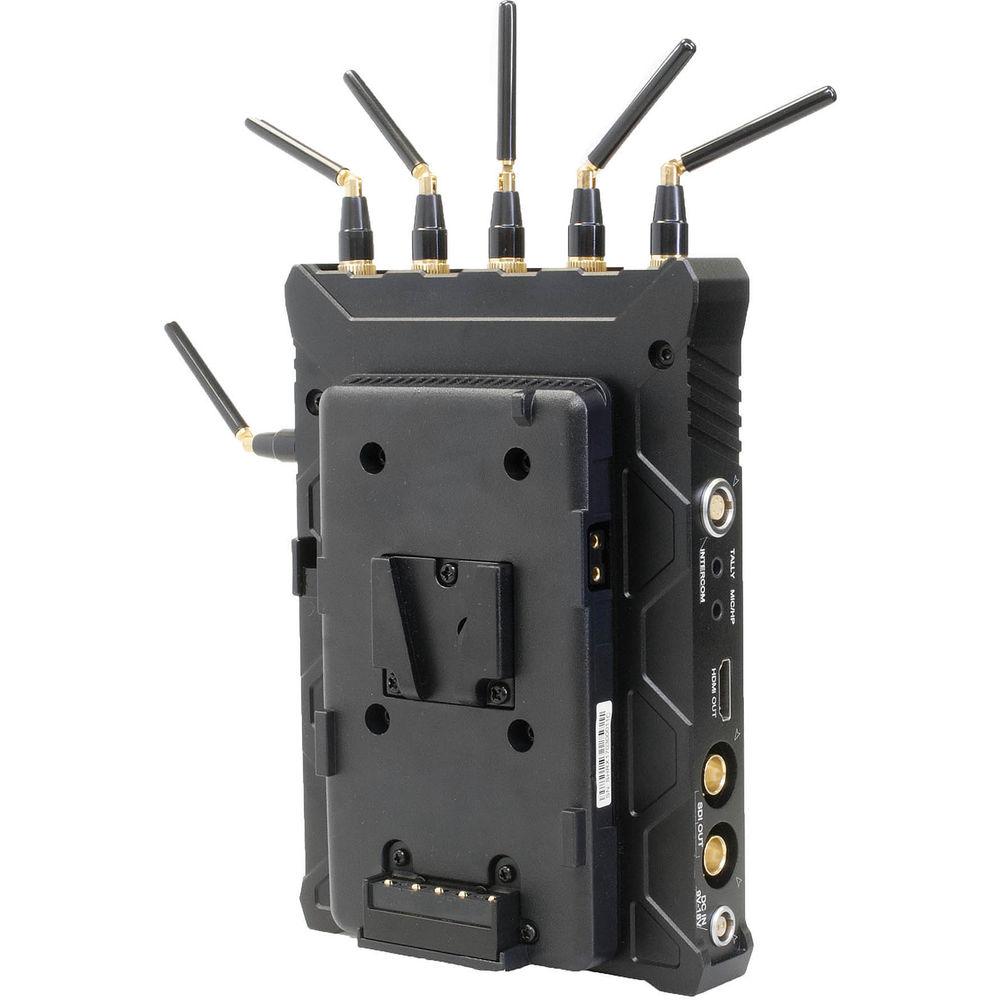

The receiver comes with a V-mount battery plate. - Key Features
-
- Pairs with any Ghost-Eye transmitter
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600'
- Tally, talkback, and timecode
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- V-mount battery plate
- Plug-and-play installation
UPC: 612520356286 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code 2-Pin LEMO to D-Tap Power Cable 5 x Extended High-Range Antennas Standard Antenna Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Receiver 800T.Code can be downloaded in PDF format at the link stated below.
Technical parametersCINEGEARS 6-806 Specs | Interface | 1 x HDMI Type A output
2 x SDI outputs on BNC | | Transmission Distance | 2,600' (800 m) line-of-sight
| | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 - 5.9 GHz | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.2 x 7.7 x 2.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
