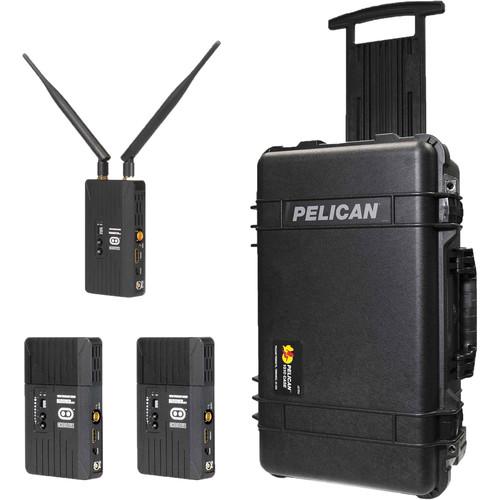

User Manual for CINEGEARS Ghost-Eye Wireless HDMI SDI Video Transmission 150M V2 Pro Kit

• Product category: Wireless Transmission Systems CINEGEARS
• Brand: CINEGEARS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CINEGEARS Wireless Transmission Systems

Product description

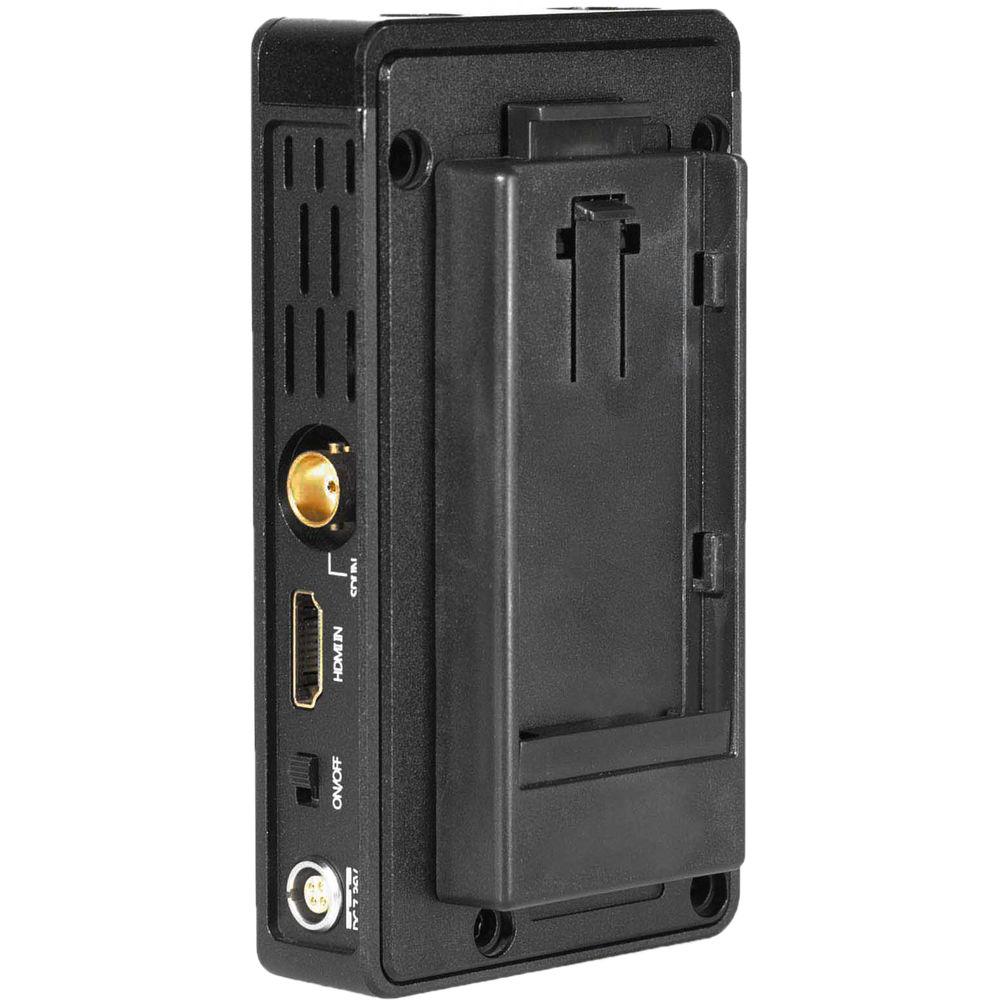

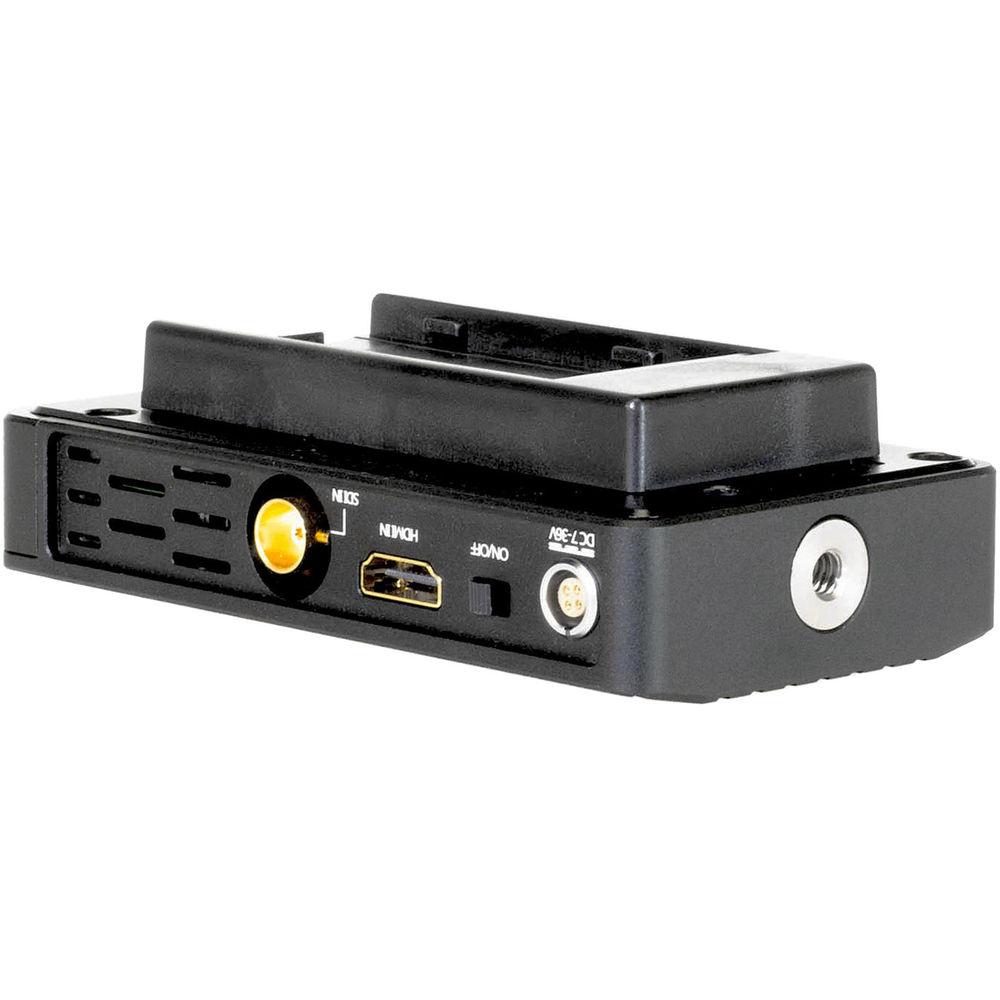

• Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate) Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 985 ft with the CINEGEARS Ghost-Eye Transmitter 150M V2. It safely supports up to four receivers (sold separately) simultaneously on each channel; moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.), so you can connect to longer/shorter range receivers if you'd like.

  Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1ms in the license-free 5 GHz frequency band. A minimum range of 492 ft (150 m) line-of-sight is ensured, while the maximum range is 985 ft line-of-sight. (It has even been successfully tested at much longer distances in open spaces.) The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the receiver end or vice-versa.

  Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1ms of the obstacle being removed - auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the transmitter include AES-128 signal encryption and plug-and-play installation.

  The 150M transmitter comes with two paddle antennas and a Sony L-Series battery plate. Batteries are sold separately.
  Key Features
  • • Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 985 ft
    • Compatible with any Ghost Eye receiver (100M, 150M, etc.)
    • Supports 4 receivers simultaneously on each channel
    • Less than 1ms of latency
    • Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
    • 492 ft (150m) line-of-sight to 985 ft max transmission distance
    • HDMI and SDI outputs with cross-conversion capability
    • Adaptive signal logarithm compensates for small obstacles in the line-of-sight
    • Auto-relink
    • AES-128 signal encryption
    • Plug-and-play installation
    • Includes two paddle antennas
    • Sony F970 L-Series battery plate
  UPC: 714983522281

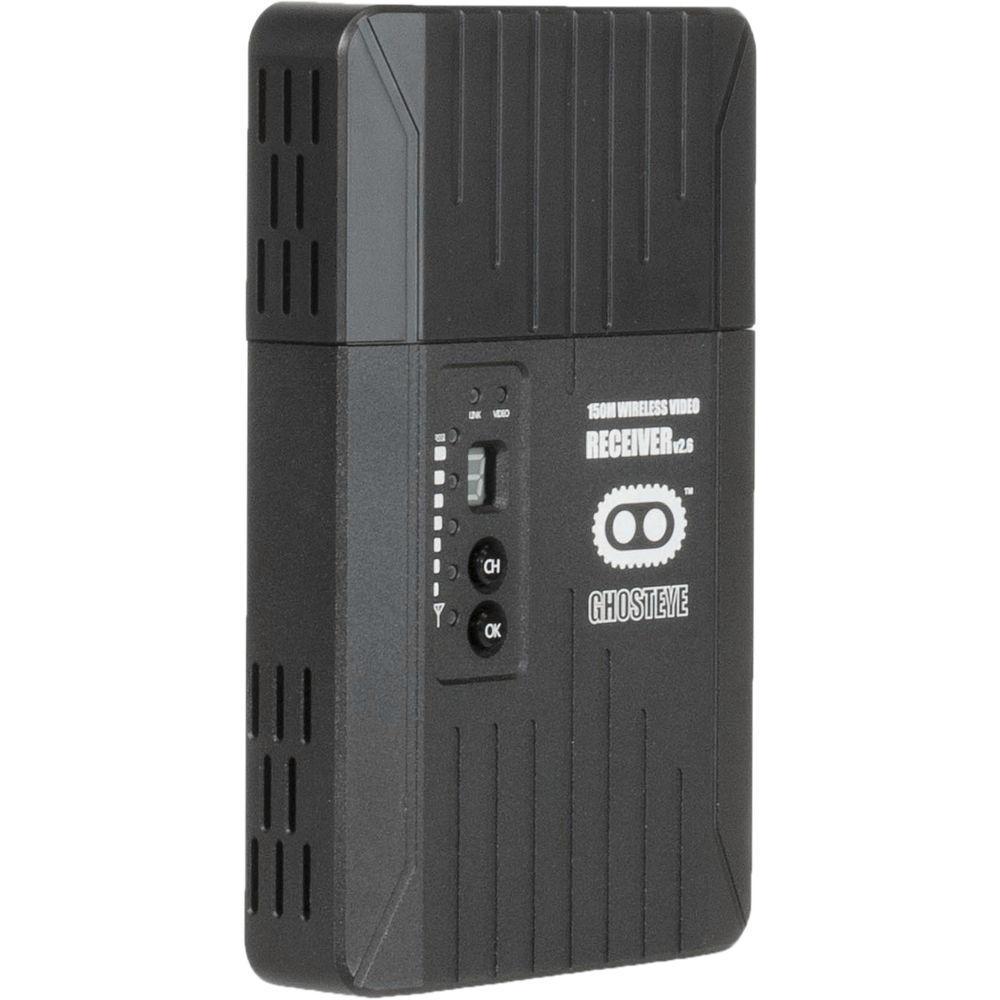

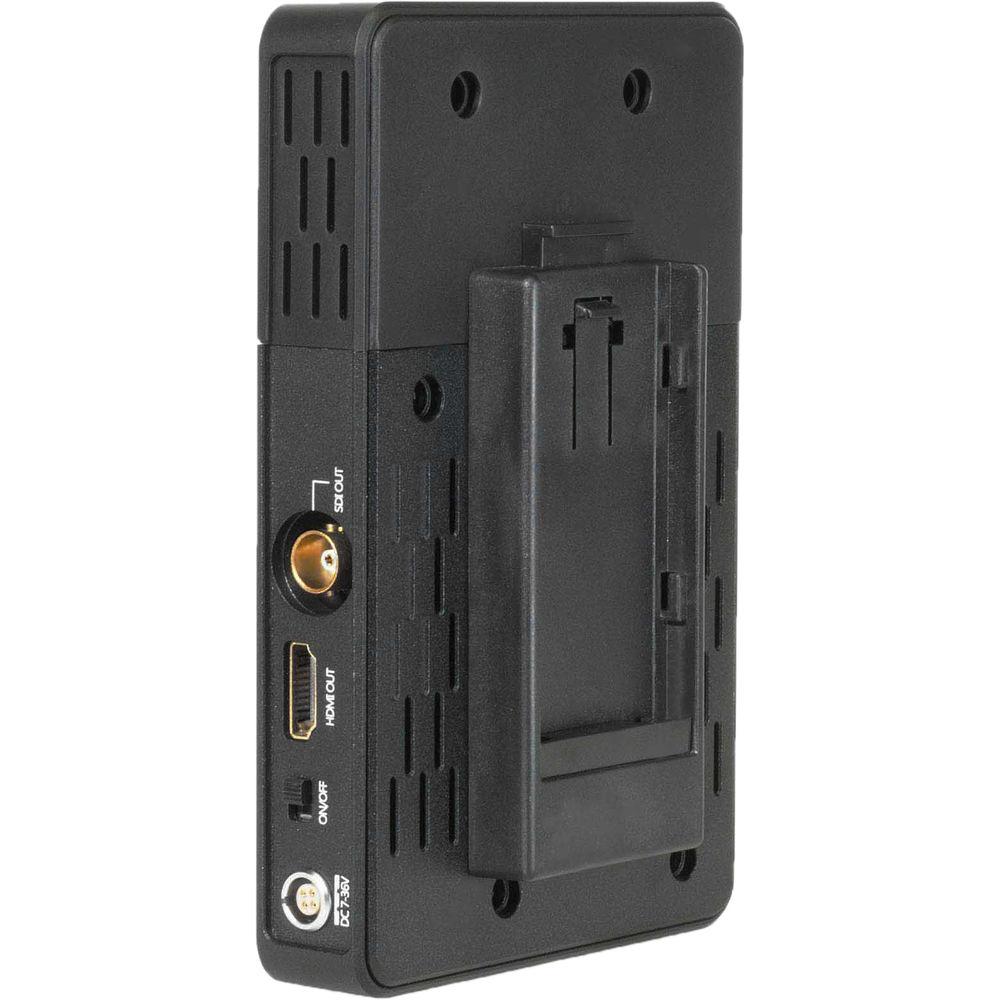

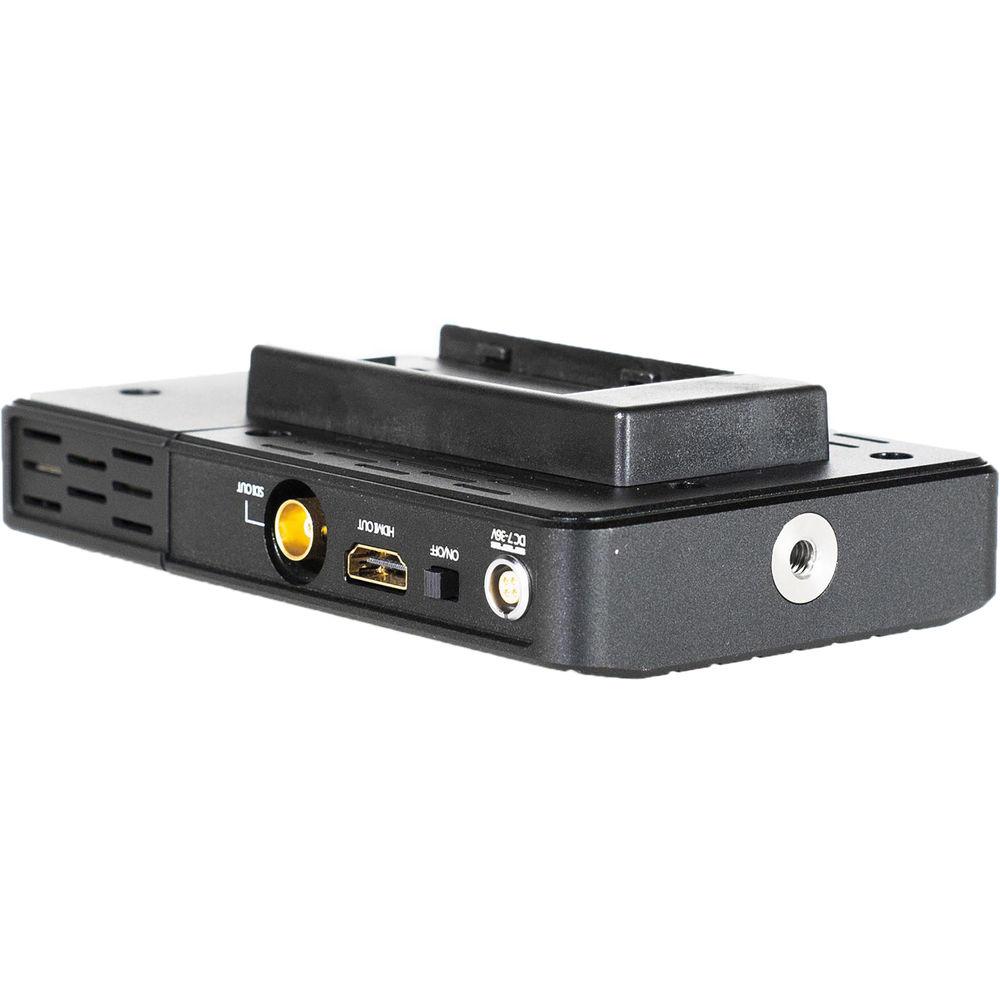

• Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate) The CINEGEARS Ghost-Eye Receiver 150M V2 pairs with any Ghost-Eye transmitter (100M, 150M, etc.) and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 985 ft with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band and ensures a minimum distance of 492 ft (150m) line-of-sight (from a 150M or higher transmitter), while the maximum distance is 985 ft (longer distances have successfully been tested in open spaces).

  The receiver features both HDMI and SDI outputs and is capable of cross conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed — auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the receiver include AES-128 signal encryption and plug-and-play installation.

  The 150M receiver has built-in antennas and a Sony L-Series battery plate. Batteries are sold separately.
  Key Features
  • • Pairs with any Ghost-Eye transmitter (100M, 150M, etc.)
    • Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 985 ft
    • Less than 1 ms of latency
    • Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
    • 492 ft line-of-sight, to 985 ft max transmission distance
    • HDMI and SDI outputs with cross conversion capability
    • Adaptive signal logarithm compensates for small obstacles in the line-of-sight
    • Auto-relink
    • AES-128 signal encryption
    • Plug-and-play installation
    • Built-in antennas
    • Sony L-Series battery plate
  UPC: 714983522274
• 5G Cloverleaf Antenna The 5G Cloverleaf Antenna from CINEGEARS comes with a weather-resistant and water-resistant body. With a range of 164 to 656', the antenna is suitable for both indoor and outdoor shoots. UPC: 612520356583
• Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems The Paddle Antenna from Cinegears is a replacement antenna for the Ghost-Eye 150M and 300M Wireless Video Transmission Systems.
  Compatibility
  • Ghost-Eye 150M and 300M Wireless Transmission Systems
  UPC: 731236163237

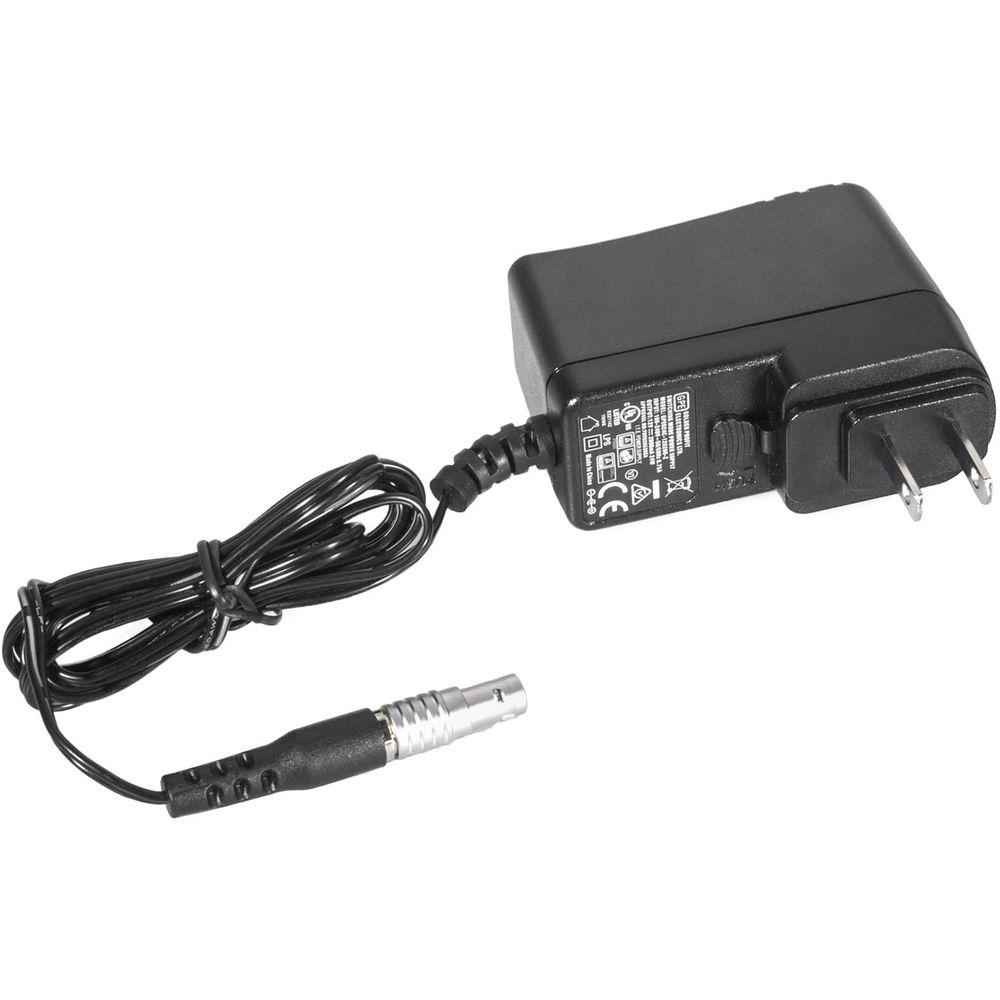

• AC Adapter for Ghost Eye 150M & 400M Transmitter & Receiver Units The AC Adapter lets you conveniently power the Ghost Eye 150M and 400M units directly from a wall outlet. It runs on 100 to 240 VAC for worldwide use and connects to the Ghost Eye units via the 2-pin LEMO connector.
  Compatibility
  • Ghost Eye 150M and 400M transmitter and receiver units
  UPC: 611138357463

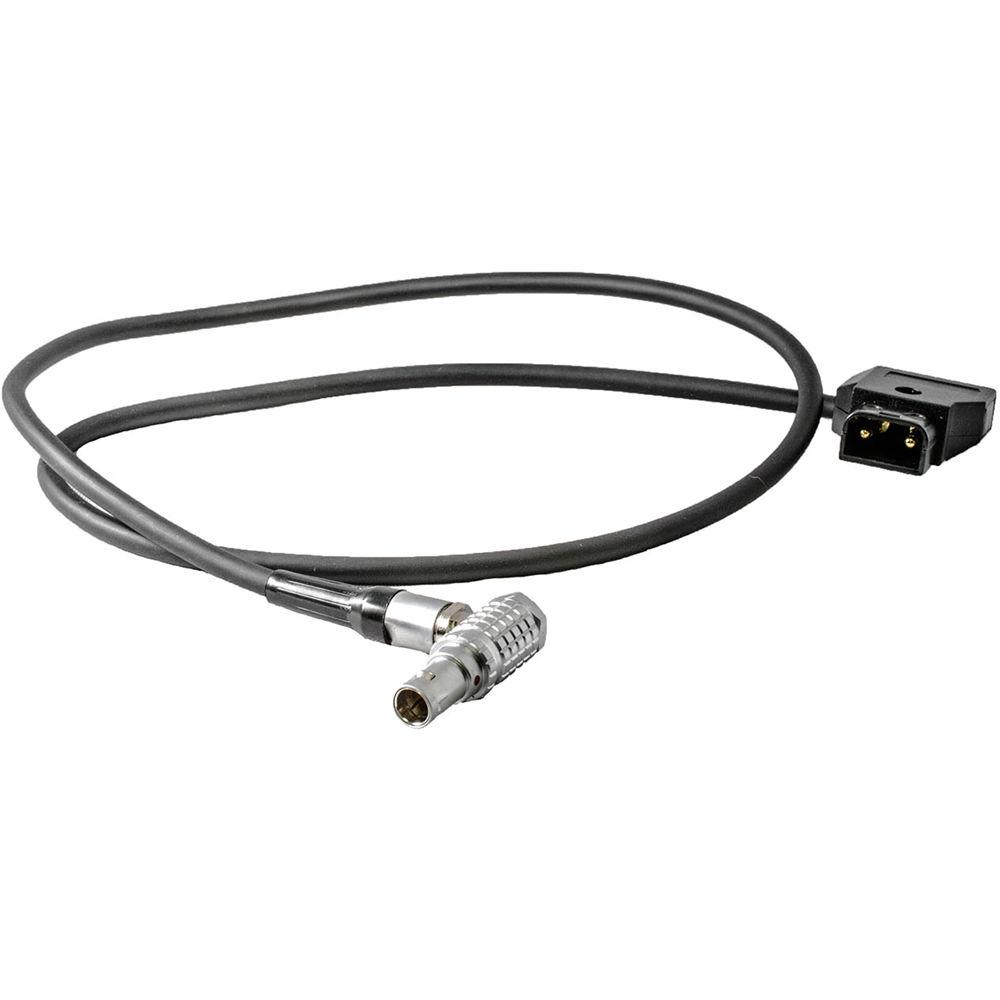

• 2-Pin LEMO Power Cable for Ghost-Eye 150M Transmission Kit The 2-Pin LEMO Power Cable from CINEGEARS is designed for use with the Ghost-Eye 150M Wireless HD and SDI Video Transmission Kit.
  Compatibility
  • Ghost-Eye 150M Wireless HD and SDI Video Transmission Kit
  UPC: 731236163114
• Steel Mounting Clamp (.5-2.2")
  Key Features
  • • Easily adjustable
  UPC: 714983522199

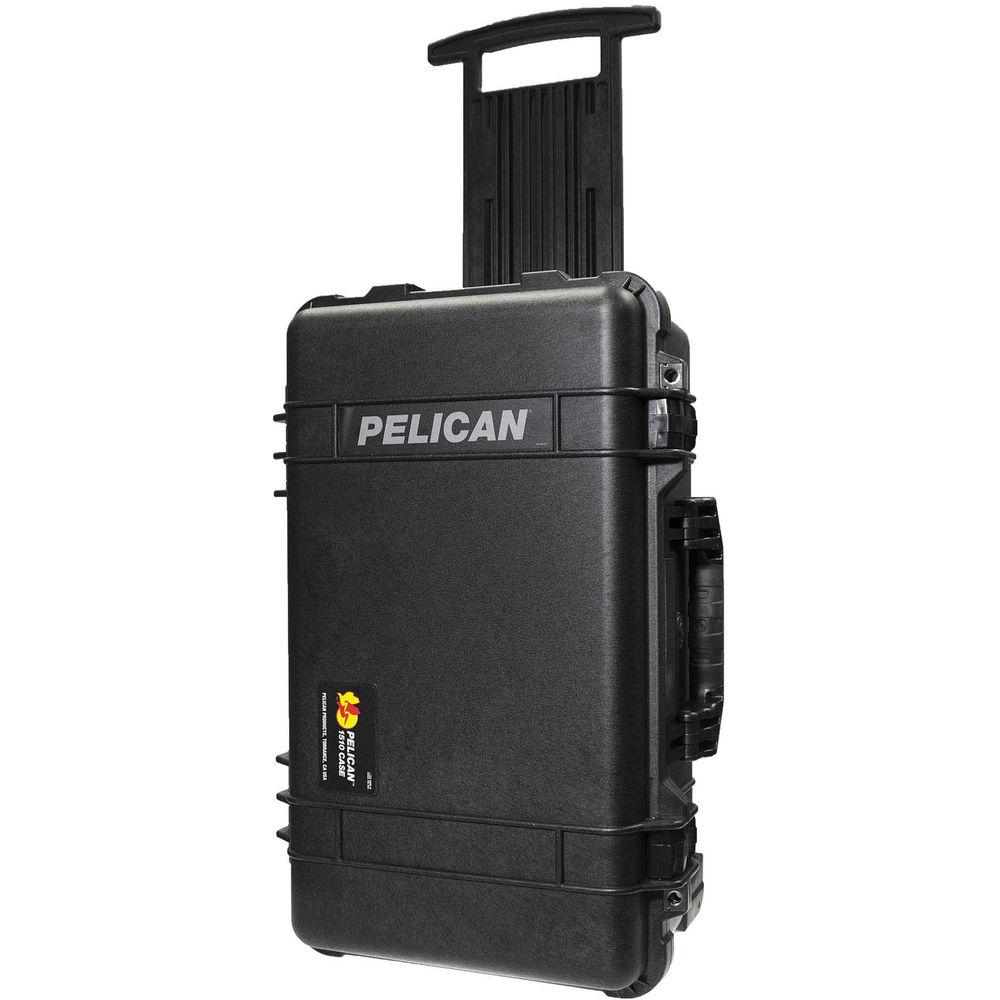

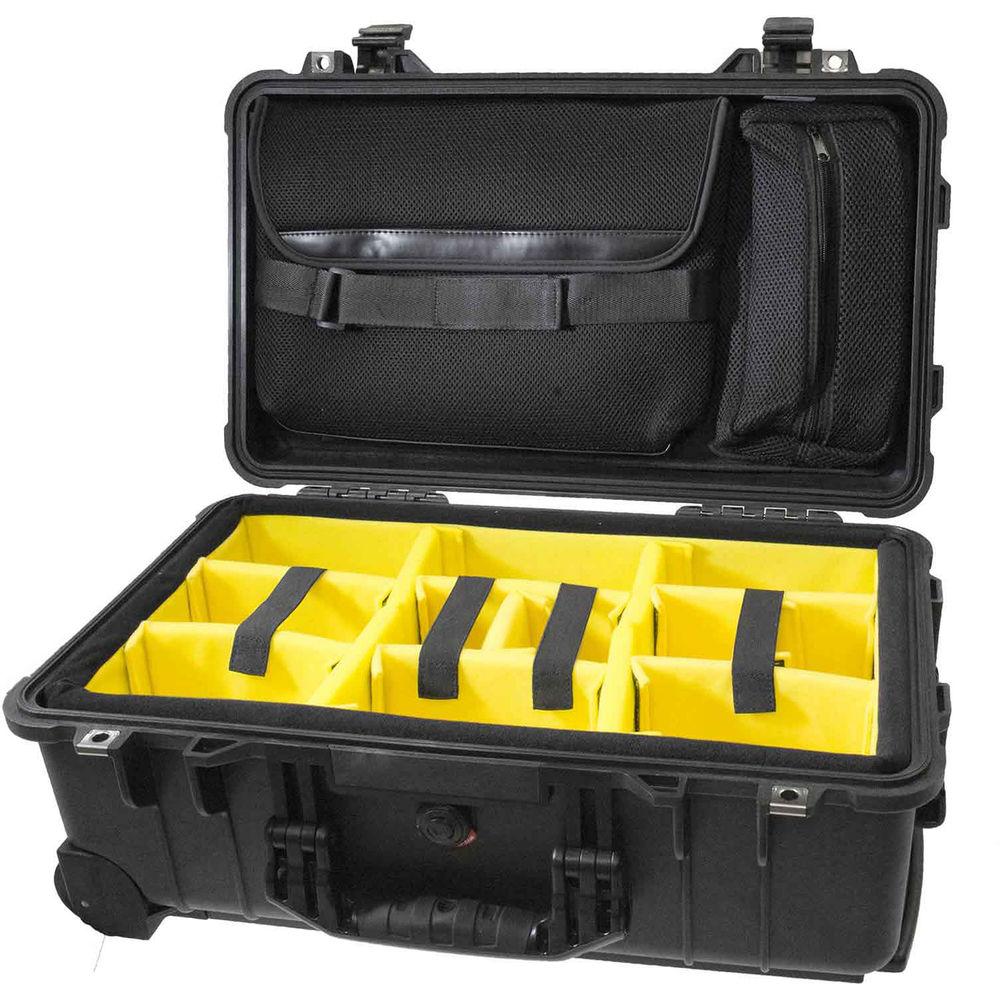

• Pelican 1510 Case with Padded Dividers and Lid Organizer (Black) The black Cinegears Pelican 1510 Case with Padded Dividers and Lid Organizer provides ample room for your travel needs with a durable, weather-proof design. The included padded dividers can be distributed within the case to fit your gear requirements and accessories along with small essentials can be stored in the lid organizer's pouches. To transport this case, extend the handle to roll the case using the built-in wheels, or grab onto one of the three built-in fold-down handles to lift the case. A purge valve ensures the case will acclimate to pressure changes due to elevation while retaining its waterproof nature.
  • Ultra-high-impact polypropylene shell
  • Open cell core with solid wall design
  • Double-throw latches
  • Polymer O-ring waterproof seal
  • Large fold down handle
  • 2 padlock-able hasps
  • Automatic pressure equalization valve
  • Stainless-steel hardware
  • Chemical-resistant, corrosion-resistant, airtight, watertight, dustproof, crushproof

• Heavy Duty Ball Joint Articulated Arm

2 x
• Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems

• 2-Pin LEMO to D-Tap Cable

• Limited 3-Year Warranty

• 2-Pin LEMO to D-Tap Cable

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate)

  Interface	Input: 1 x SDI BNC, female 1 x HDMI Type A, female 2 x antenna ports (PR-SMA male)
  Transmission Distance	985 ft (300 m) line-of-sight 492 ft (150 m) minimum line-of-sight ensured
  Video Input Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Color Depth	8-bit; 10-bit 4:0:0, 4:2:2
  Audio Input Format	SDI embedded 2-channel 24-bit/48 kHz
  Frequency Band	5.1 to 5.9 GHz
  Modulation Mode	OFDM 16QAM
  Transmission Power	<18 dBm
  Occupied Bandwidth	40 MHz
  Encryption	AES-128
  Housing	Plastic
  Power	Input Voltage Range: 6.5 to 16.8 VDC Consumption: 5.5 W
  Compliance	FCC, CE, RoHS
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	-4 to 140°F (-20 to 60°C)
  Dimensions	4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm)
  Weight	0.6 lb (270 g)

  Box Dimensions (LxWxH)	4.9 x 4.9 x 2.1"

• Ghost-Eye Wireless HDMI & SDI Video Receiver 150M V2 (L-Series Plate)

  Interface	Output: 1 x SDI BNC, female 1 x HDMI Type-A, female 1 x SDI, loop-through out
  Transmission Distance	985 ft (300 m) line-of-sight 492 ft (150 m) minimum line-of-sight ensured
  Video Output Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type-A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Color Depth	8-bit; 10-bit 4:0:0, 4:2:2
  Audio Output Format	SDI-embedded 2-channel 24-bit/48 kHz
  Frequency Band	5.1 - 5.9 GHz
  Modulation Mode	OFDM 16-QAM
  Receiver Sensitivity	-75 dBm
  Occupied Bandwidth	40 MHz
  Encryption	AES-128
  Housing	Plastic
  Power	Input Voltage Range: 6.5 - 16.8 VDC Consumption: 6.5 W
  Compliance	FCC, CE, RoHS
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	-4 to 140°F (-20 to 60°C)
  Dimensions	6 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm)
  Weight	0.8 lb (355 g)

  Box Dimensions (LxWxH)	6.3 x 3.7 x 1.4"

• 5G Cloverleaf Antenna

  Range	164 to 656' (50 to 200 m)
  Frequency Band	5G
  Dimensions	Not specified by the manufacturer
  Weight	Not specified by the manufacturer

  Box Dimensions (LxWxH)	4.0 x 1.2 x 1.2"

• Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems

  Connector

  BNC, 75 Ohms

  Box Dimensions (LxWxH)	6.0 x 3.85 x 1.1"

• AC Adapter for Ghost Eye 150M & 400M Transmitter & Receiver Units

  Input	100 to 240 VAC, 50/60 Hz
  Output	12 V, 2000 mA 24 W

  Box Dimensions (LxWxH)	4.7 x 3.8 x 3.35"

• 2-Pin LEMO Power Cable for Ghost-Eye 150M Transmission Kit

  Connectors	Right angle D-Tap 2-pin LEMO
  Length	29.5" (75 cm)
  Weight	1.3 oz (38 g)

  Box Dimensions (LxWxH)	8.35 x 5.65 x 0.65"

• Steel Mounting Clamp (.5-2.2")

  Accessory Type	Mounting clamp

  Features	Adjustable width 12-55mm

  Box Dimensions (LxWxH)	3.9 x 2.1 x 0.9"

• Pelican 1510 Case with Padded Dividers and Lid Organizer (Black)

  Material	Polypropylene
  Type of Closure	Double throw latches
  Certifications	IP67, DEF STAN 81-41/STANAG 4280
  Exterior Dimensions (LxWxH)	22.0 x 13.81 x 9.0" / 55.88 x 35.08 x 22.86 cm
  Interior Dimensions (LxWxH)	19.75 x 11.0 x 7.6" / 50.17 x 27.94 x 19.3 cm
  Interior Depth	Lid: 1.79" / 4.55 cm Bottom: 5.79" / 14.71 cm
  Weight	13.6 lb / 6.2 kg (empty)

• Heavy Duty Ball Joint Articulated Arm
