User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Cinegears Ghost-Eye Wireless Video Transmission Live

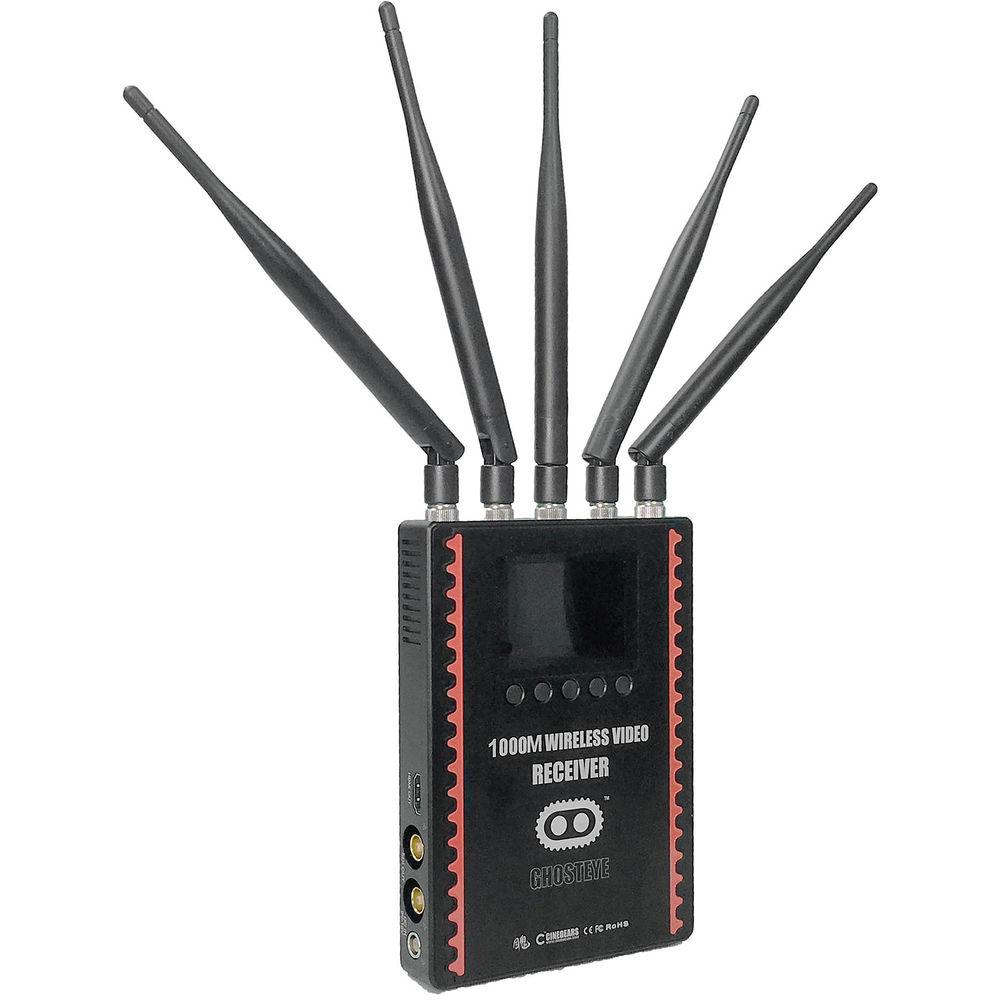

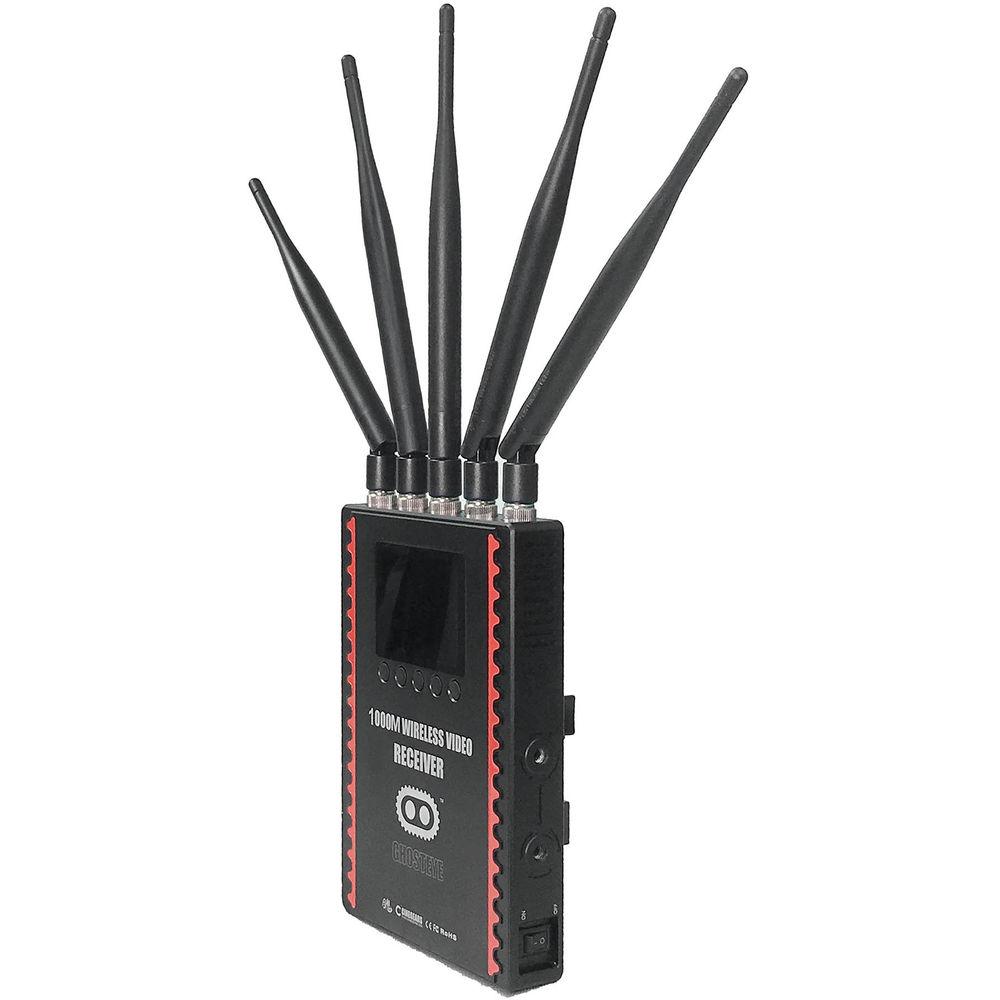

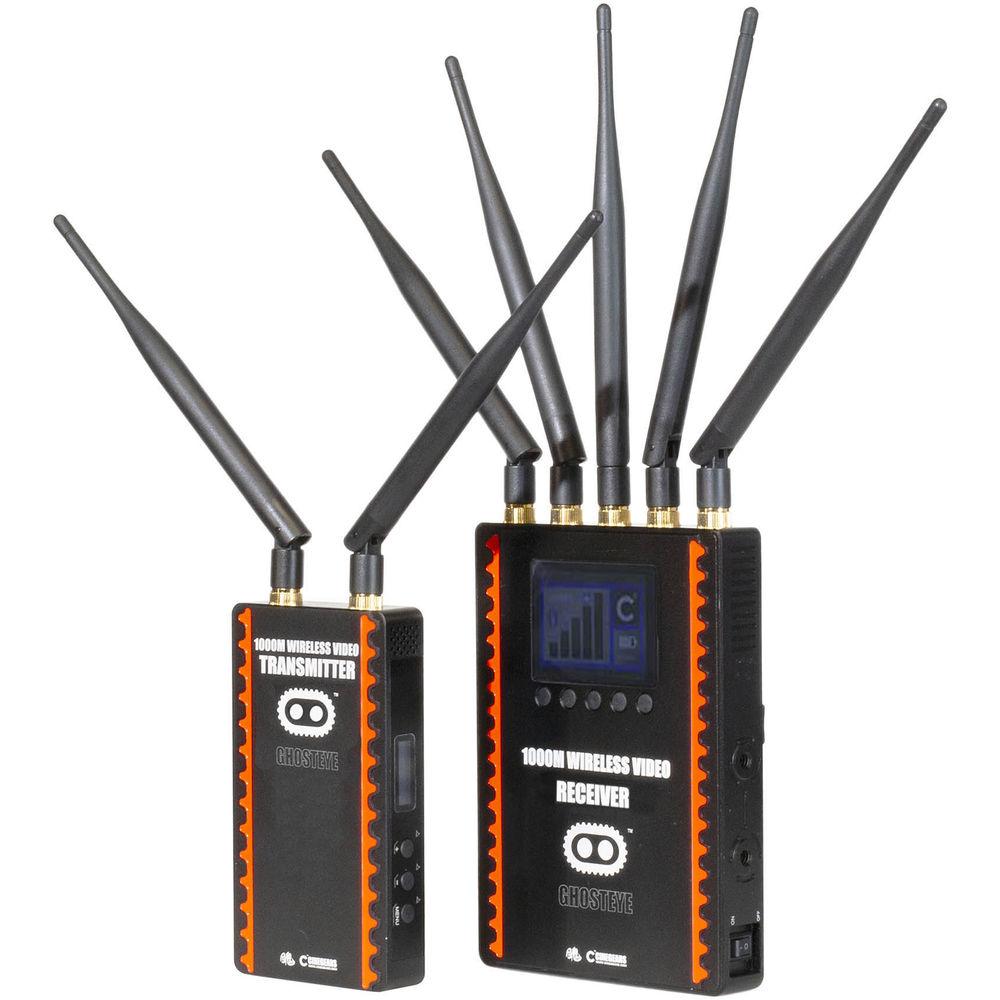

Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3,250' with the CINEGEARS Ghost-Eye Transmission Kit 1000M, in a Gold mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. It's cross-compatible with all other Ghost-Eye versions so you can connect longer/shorter-distance receivers if you'd like. The receiver in this kit features a Gold mount battery plate attached on the back and the transmitter has a Sony L-series plate. Batteries are sold separately. (Unlike some of the other Ghost-Eye models in which the "M" figure represents the minimum transmission distance ensured, the 1000 meter/3,250' distance of the 1000M is the max distance supported.)Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The set is also capable of HDMI/SDI cross conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. Other features of the set include AES-128 signal encryption and timecode. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3,250'
- Up to 4 receivers supported simultaneously on each channel
- Any Ghost Eye receiver supported
- Less than 1ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Timecode
- Transmitter with Sony L-series battery plate
- Receiver with Gold mount plate
UPC: 612520356477 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M (Gold Mount) Ghost-Eye Wireless HDMI & SDI Video Transmitter 1000M Ghost-Eye Wireless HDMI & SDI Video Receiver 1000M (Gold Mount) 2 x 2-Pin LEMO to D-Tap Power Cables 7 x Extended High-Range Antennas Waterproof Foam Case Limited 3-Year Warranty Guides & Manuals tqvwbveberyewtazsysrwfczsuys Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M can be downloaded in PDF format at the link stated below.
Technical parametersCINEGEARS 6-114 Specs | Input/Output | Transmitter Input:
1 x SDI BNC, female
1 x HDMI Type A, female
Receiver Output:
1 x SDI BNC, female
1 x HDMI Type A, female
1 x SDI, loop-through out | | Transmission Distance | 3,250' (1000 m) line-of-sight | | Video Input/Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 to 5.9 GHz | | Encryption | AES-128 | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 13.1 x 12.0 x 4.7" |
