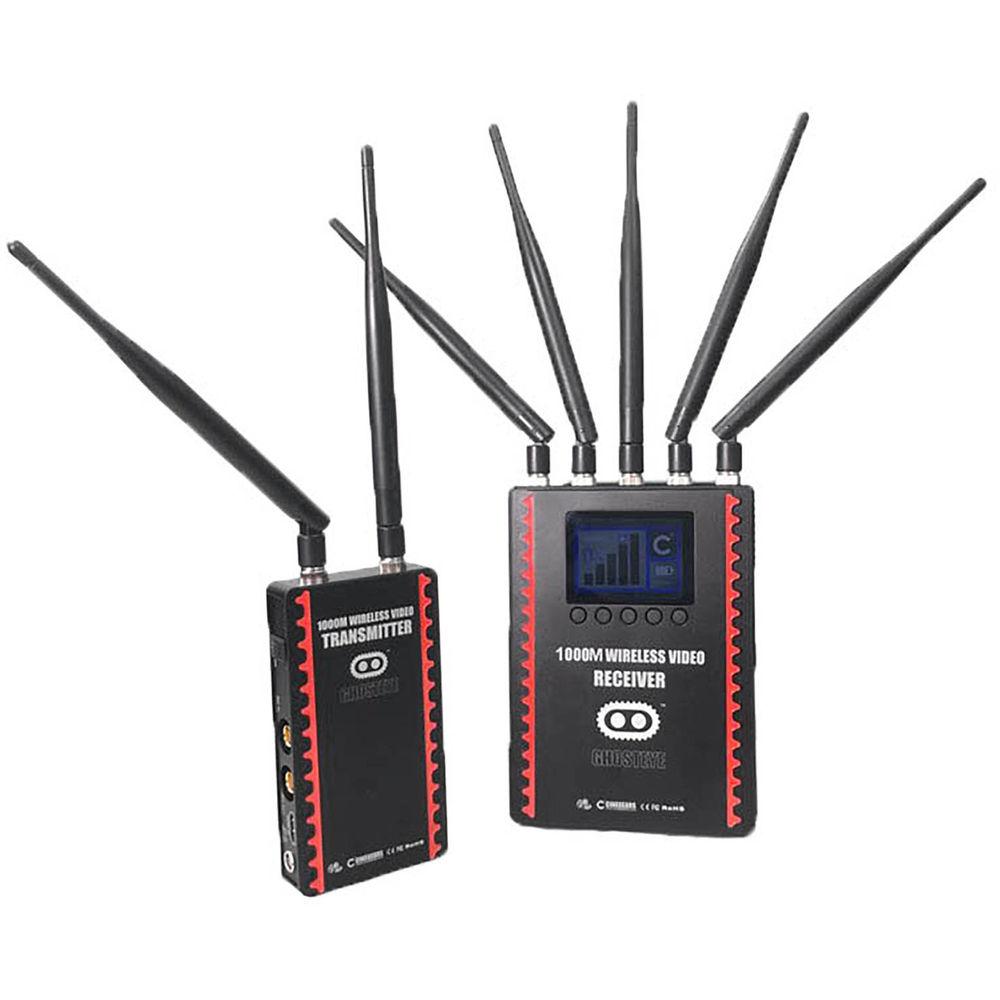

Product description Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3250' with the CINEGEARS Ghost-Eye Transmission Kit 1000M, in a V-mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. It's cross-compatible with all other Ghost-Eye versions so you can connect longer/shorter-distance receivers if you'd like. The receiver in this kit features a V-mount battery plate attached on the back, and the transmitter has a Sony L-series plate. Batteries are sold separately. (Unlike some of the other Ghost-Eye models in which the "M" figure represents the minimum transmission distance ensured, the 1000-meter/3250' distance of the 1000M is the maximum distance supported.)
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The set is also capable of HDMI/SDI cross conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. Other features of the set include AES-128 signal encryption and timecode. - Ghost-Eye Wireless HDMI & SDI Video Transmitter 1000M
- Cinegears Ghost-Eye Wireless Video Transmission Live
Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3,250' with the CINEGEARS Ghost-Eye Transmitter 1000M. It safely supports up to four receivers (sold separately) simultaneously on each channel and is cross-compatible with any Ghost-Eye receiver model. (Unlike some of the other Ghost-Eye models in which the "M" figure represents the minimum transmission distance ensured, the 1000 meter/3,250' distance of the 1000M is the max distance supported.)
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the optional receiver end or vice-versa.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. Other features include AES-128 signal encryption and timecode.

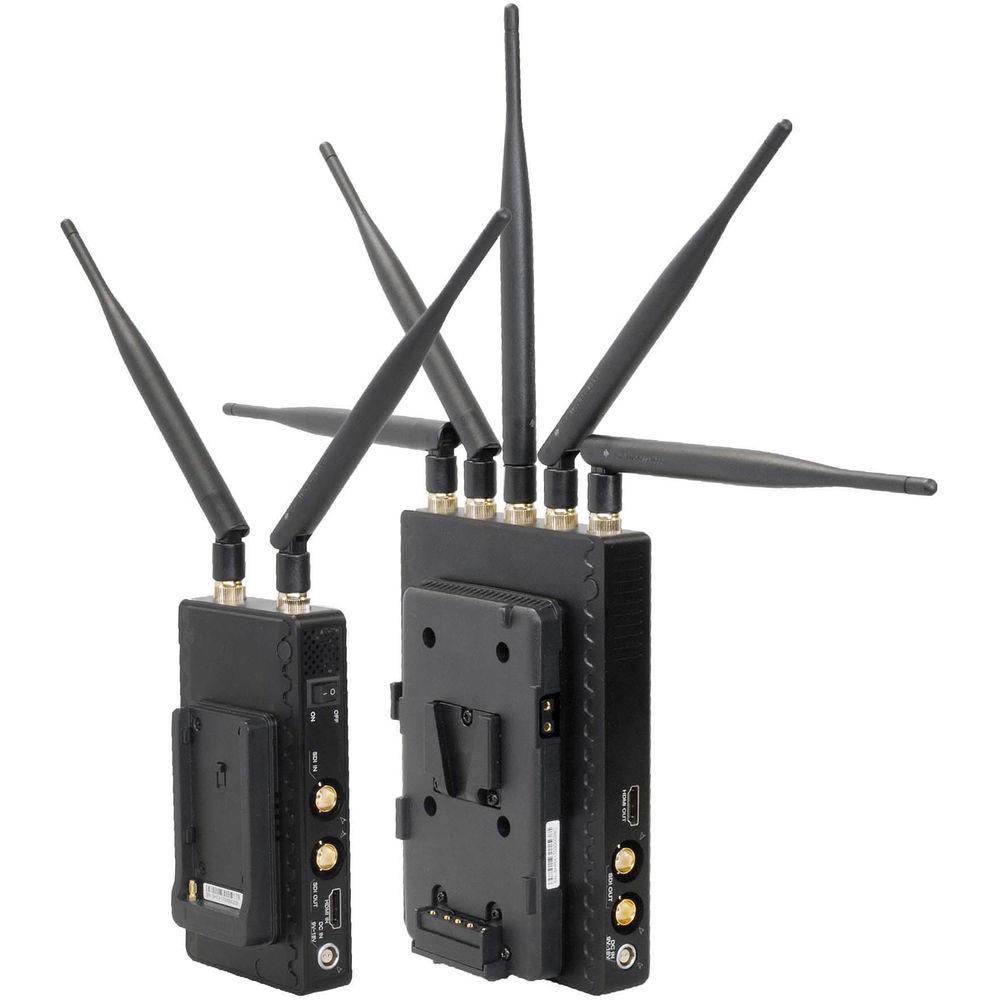

The 1000M transmitter comes with two high range antennas and features a Sony L-series battery plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3,250'
- Compatible with any Ghost Eye receiver (100M, 150M, etc.)
- Supports 4 receivers simultaneously on each channel
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI inputs; SDI loop output; cross-conversion capability with and optional receiver
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Timecode
- Sony L-series battery plate
UPC: 612520356156 - Ghost-Eye Wireless HDMI & SDI Video Receiver 1000M The CINEGEARS Ghost-Eye Receiver 1000M pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 3,250' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. (Unlike some of the other Ghost-Eye models, in which the "M" figure represents the minimum transmission distance ensured, the 1000 meter/3,250' distance of the 1000M is the max distance supported.)
The receiver features both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.
The receiver also features AES-128 signal encryption and timecode, and it comes with a V-mount battery plate. - Key Features
-
- Pairs with any Ghost-Eye transmitter
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 3,250'
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Timecode
- V-mount battery plate
- Plug-and-play installation
UPC: 612520356163 - Heavy Duty Steel Ball Joint Articulated Arm

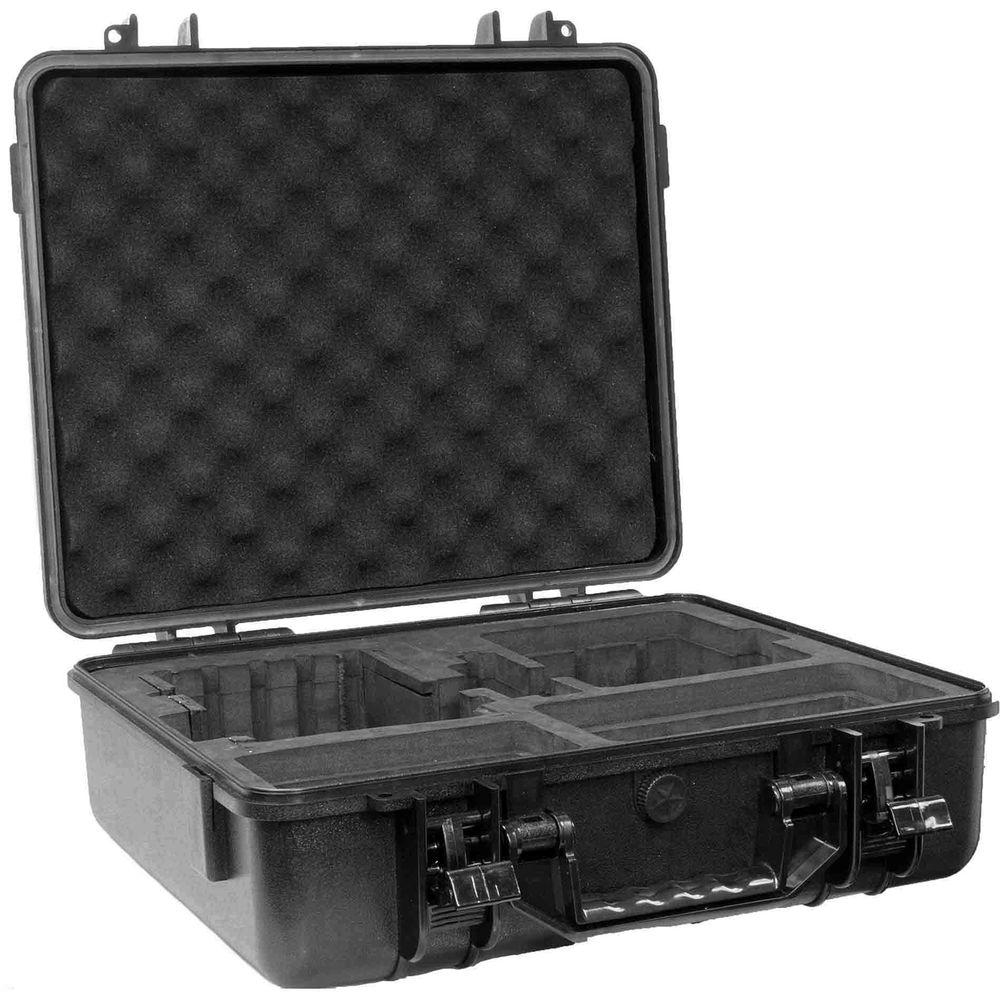

In the Box Bundle Items Ghost-Eye Wireless HDMI & SDI Video Transmitter 1000M faastaww - 2-Pin LEMO to D-Tap Power Cable
- 2 x Extended High-Range Antennas
Ghost-Eye Wireless HDMI & SDI Video Receiver 1000M - 2-Pin LEMO to D-Tap Power Cable
- 5 x Extended High-Range Antennas
Heavy Duty Steel Ball Joint Articulated Arm
Also Includes Guides & Manuals faastaww Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M can be downloaded in PDF format at the link stated below.
Technical parameters - Ghost-Eye Wireless HDMI & SDI Video Transmitter 1000M
| Interface | Input:
1 x SDI BNC, female
1 x HDMI Type A, female | | Transmission Distance | 3,250' (1000 m) line-of-sight | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 to 5.9 GHz | | Encryption | AES-128 | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 2.5" | - Ghost-Eye Wireless HDMI & SDI Video Receiver 1000M
| Interface | Output:
1 x SDI BNC, female
1 x HDMI Type A, female
1 x SDI, loop-through out | | Transmission Distance | 3,250' (1000 m) line-of-sight
| | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 - 5.9 GHz | | Encryption | AES-128 | - Heavy Duty Steel Ball Joint Articulated Arm
