Product description - Cinegears Ghost-Eye Wireless Video Transmission Live

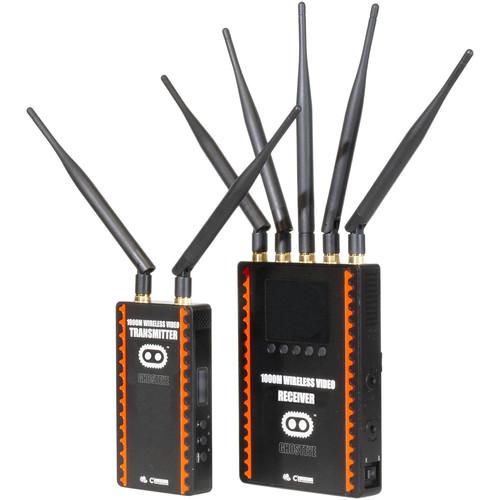

Designed for ENG-style use, both the transmitter and the receiver in the 1000M ENG HD/SDI Video Transmission Kit from CINEGEARS can be powered via Gold mount batteries. The transmitter incorporates a battery plate with pass-through power, enabling you to power both the transmitter and your camera with a single Gold mount battery. Supporting up to 1080p60 video with 10-bit 4:2:2 color, this wireless video system offers 3250' line-of-sight transmission and HDMI/SDI cross-compatibility. System features include SDI loop-through output, time-code support, low <1 ms latency, and accurate rec start> Both the 1000M ENG Transmitter and the Receiver feature heavy-duty housings with durable, inset SDI connectors that minimize the chance of port damage. The transmitter's auto-link function is useful for traveling shots, relinking the transmitter once it's returned after traveling out of range. A waterproof case is included for transporting the kit components. - Features
-
- Zero-latency wireless HD video and audio transmission over 3250'
- Power both the transmitter and the receiver using Gold mount batteries
- Gold mount battery plate with pass-through powers both the transmitter and your camera
- Supports up to 1080p60 video with 10-bit 4:2:2 color
- HDMI/SDI cross compatibility with SDI loop-through out
- Timecode support
- Accurate REC start/stop function
- 10 selectable channels
- Pairs with an unlimited number of Ghost-Eye receivers
- Cross-compatible with other Ghost-Eye models
- Auto-relinking once the transmitter is carried back within range
- Kit includes a waterproof carrying case
UPC: 610877597635 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M ENG (Gold Mount) 2 x 2-Pin LEMO-Type to D-Tap Power Cables 7 x Extended-Range Antennas Waterproof Case Limited 3-Year Warranty User Manual PDF 702.4kbcqcrqytzstuwcytsezdycuceyevefb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 1000M ENG in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | | | Frequency | 5.1-5.9 GHz | | Bandwidth | 40 MHz | | Supported Video Formats | 1080p: 60/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i | | Supported Audio Formats | PCM, DTS-HD, Dolby TrueHD | | Timecode | SMPTE-12M | | Transmission Range | 3250' / 1000 m | | | | Battery Plate | Gold mount | | Antenna | 2 x External | | Transmission Power | 18 dBm | | Interface | 1 x HDMI Input
1 x SDI Input
1 x SDI Loop-Out
1 x Mini-USB
1 x LEMO-Type Power In
2 x RPSMA Antenna Sockets
1 x Power On/Off | | Mount Interface | 1/4"-20 Hot Shoe | | Display Screen | LCD | | Operating Voltage | 9-18 VDC | | Power Consumption | 9 W | | Dimensions (HxWxD) | 5.6 x 3 x 1" / 142.5 x 76 x 24.3 mm | | Weight | 1.2 lb / 0.5 kg | | | | Battery Plate | Gold mount | | Antenna | 5 x External | | Receiving Sensitivity | -70 dBm | | Interface | 1 x HDMI Onput
2 x SDI Onputs
1 x Mini-USB
1 x LEMO-Type Power In
5 x RPSMA Antenna Sockets
1 x Power On/Off | | Mount Interface | 1/4"-20 Hot Shoe | | Display Screen | LCD | | Operating Voltage | 9-18 VDC | | Power Consumption | 7-8 W | | Dimensions (HxWxD) | 6.7 x 4.8 x 1" / 169.5 x 122 x 25.2 mm | | Weight | 1.6 / 0.7 kg | | | | Operating Temperature & Humidity | 14 to 140°F / -10 to 60°C
10-90% Relative Humidity | | Storage Temperature & Humidity | -40 to 176°F / -40 to 80°C
10-90% Relative Humidity | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 13.4 x 12.9 x 5.4" |
