User Manual for CINEGEARS Ghost-Eye Wireless HDMI SDI Video Transmission Kit 200M Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI SDI Video
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI SDI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission 200M Review by Doug Johnson

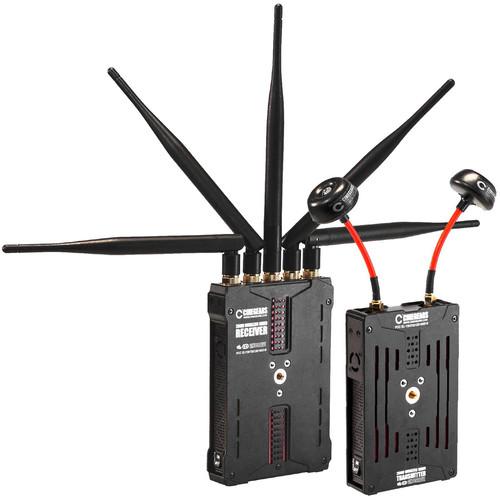

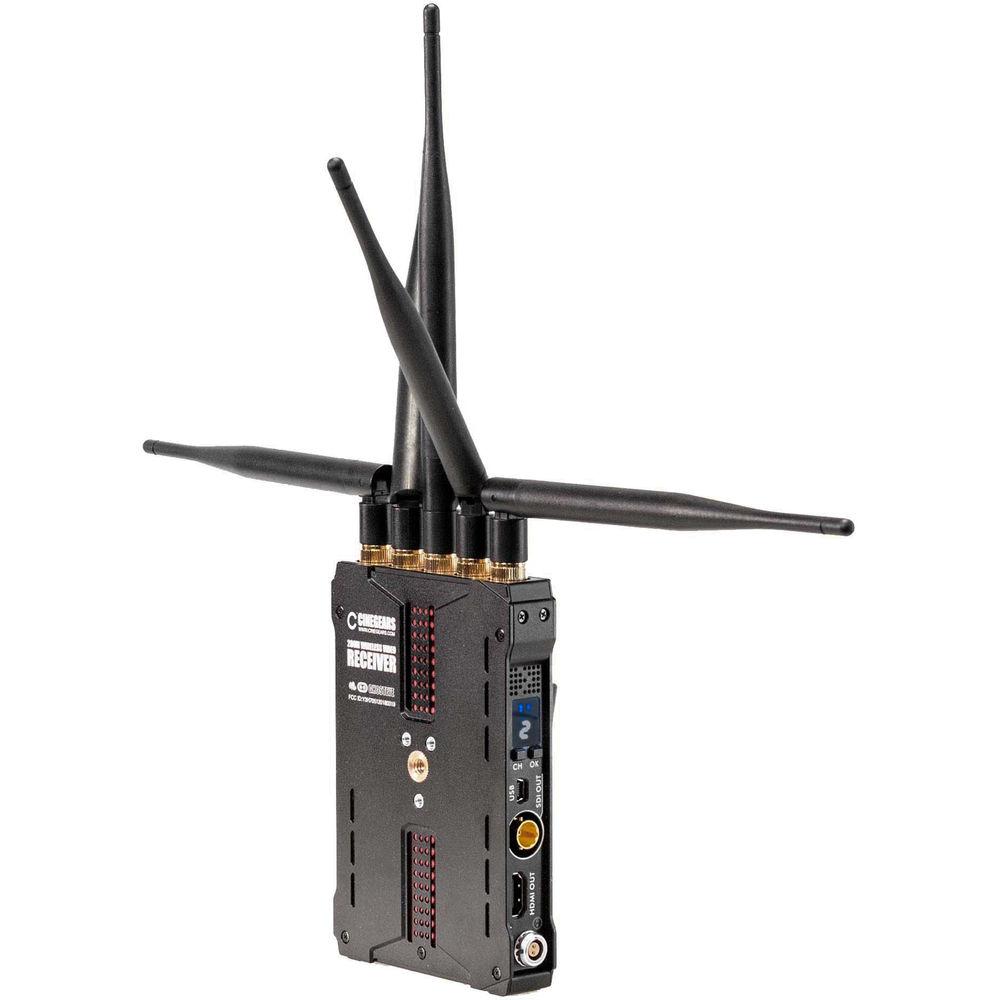

Transmit an uncompressed HD or SD video signal up to 656' with near-zero latency with the CINEGEARS Ghost-Eye Wireless HDMI/SDI Video Transmission Kit 200M. The kit features the 200M transmitter and receiver, both equipped with an L-series battery plate. It also includes essential power and mounting accessories, among them a V-mount bracket that allows for quick release mounting onto various clamps.

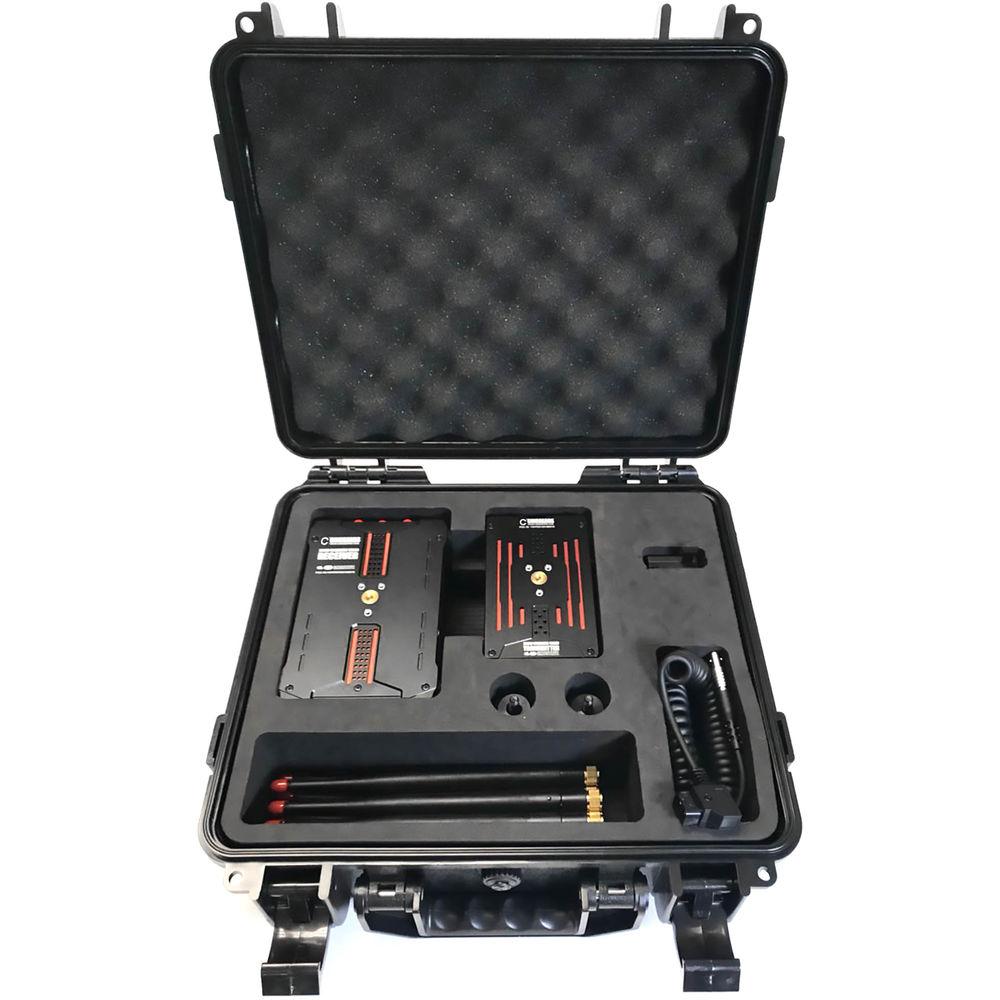

Both the transmitter and receiver feature HDMI and SDI connections for connecting to professional and consumer equipment on either end of the transmission. Resolutions up to 1080p at 60 fps at 10-bit 4:2:2 sampling are supported with either connection. A waterproof hard case is included to fit everything that comes in the kit and help protect the equipment from the rigors of the road. - LED Readout

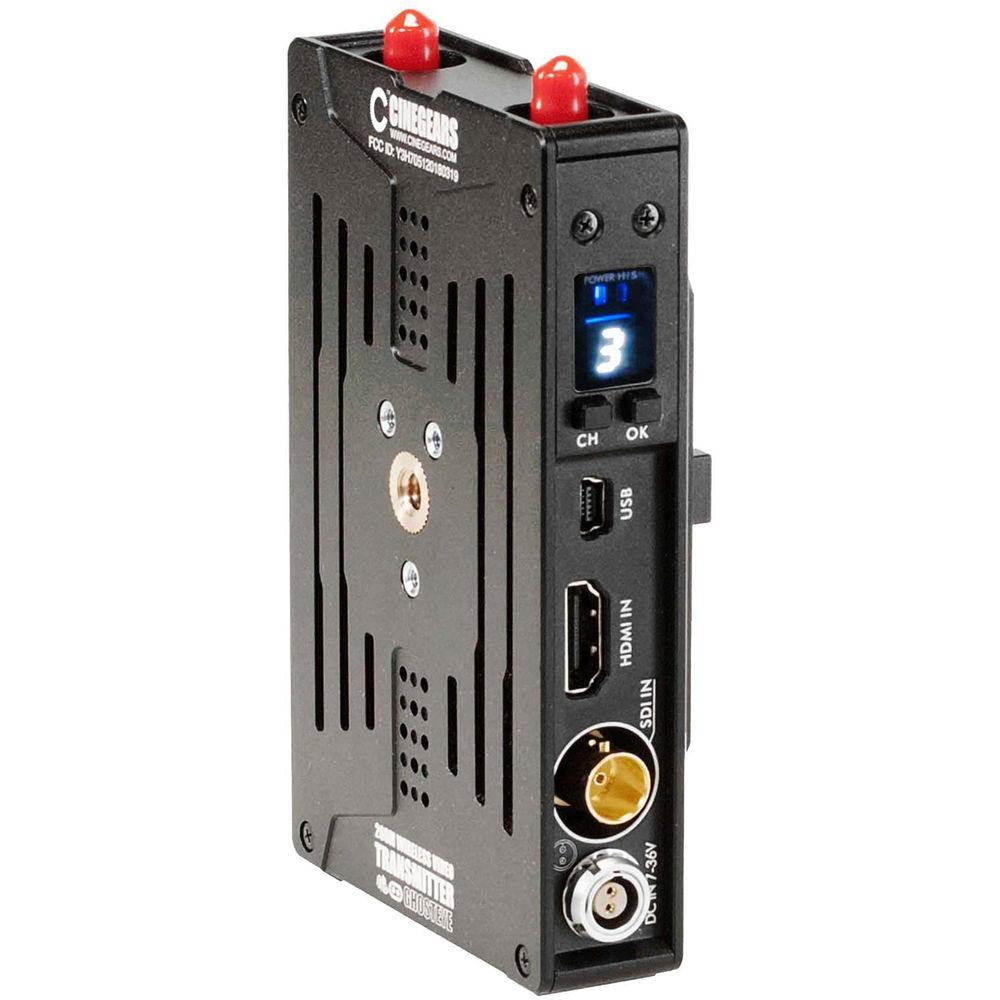

- Check and select your wireless channel using the easy-to-read LED numerical readout. Use one button to select the channel and the second button to confirm selection.
- Power Options

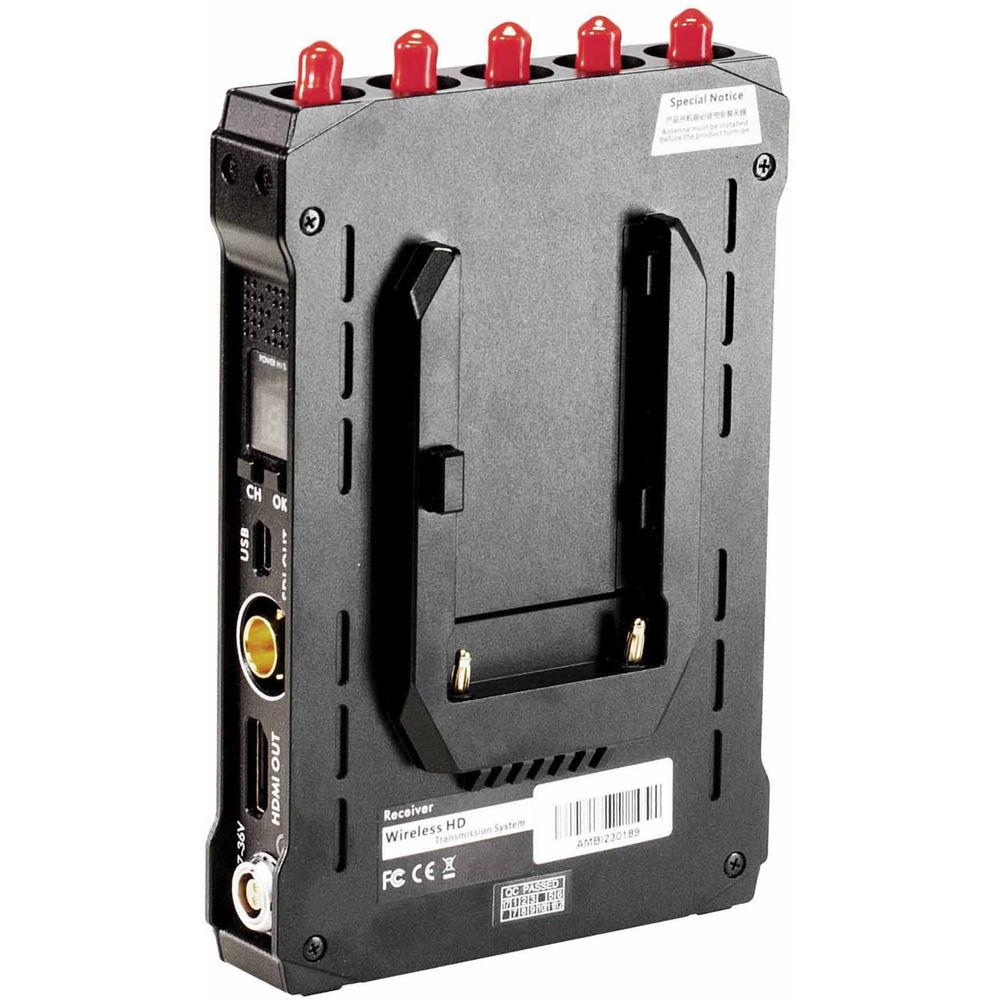

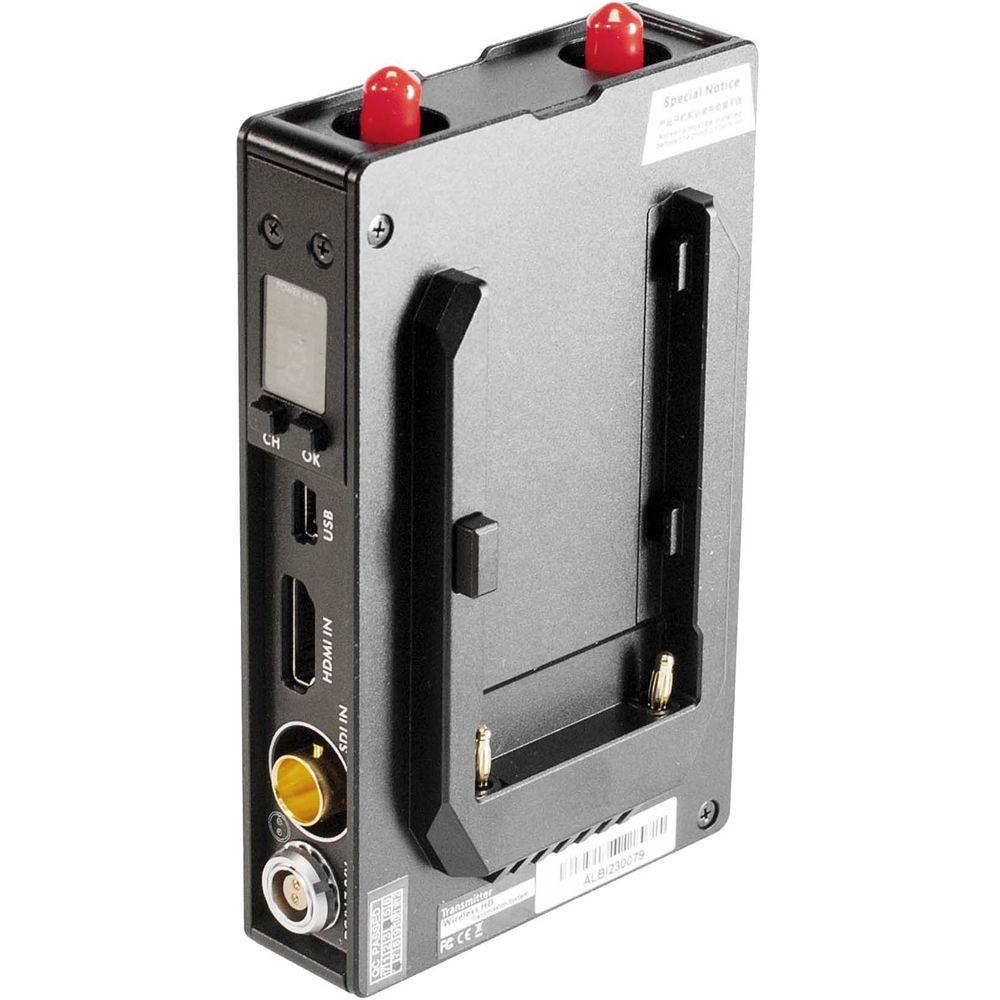

- Conveniently power the transmitter or receiver with widely available L-series batteries. Additionally, the transmitter and receiver each have a 2-pin LEMO input for external power.
- Input/Output Cross Conversion
- HDMI input from the transmitter can be converted to SDI output on the receiver and vice-versa. Whether the source is HDMI or SDI, you can connect it to HDMI or SDI equipment without a hitch.
- Auto-Relink
- Lost signals can be recovered quickly once line-of-sight is re-established. Small objects within the line-of-sight will be compensated for automatically.
UPC: 610877598229 In the Box CINEGEARS Ghost-Eye Wireless HDMI/SDI Video Transmission Kit 200M 200M Transmitter 200M Receiver 2 x Two-Pin LEMO to D-Tap Power Cable for 400M Ghost-Eye System (2') 7 x Extended High-Range Antenna for 5G Large and Outdoor Projects Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System Universal V-Mount Bracket Waterproof Hard Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI SDI Video Transmission Kit 200M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Inputs | 1 x HDMI Type A
1 x SDI, BNC | | Outputs | 1 x HDMI Type A
1 x SDI, BNC | | Resolution Support | Up to 1080p60 | | Video Sampling | 10-Bit, 4:2:2 | | Transmission Distance | 656' / 200 m (With Included Antennas) | | Power | 2-Pin LEMO Input
L-Series Battery Plate | | Dimensions | Transmitter: 4.5 x 2.8 x 0.8" / 11.5 x 7 x 2 cm
Receiver: 5.5 x 3.5 x 0.8" / 14 x 9 x 2 cm | | Weight | Transmitter: 8.8 oz / 250 g
Receiver: 12.1 oz / 342 g | | | | Package Weight | 7.105 lb | | Box Dimensions (LxWxH) | 14.15 x 13.2 x 5.65" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
