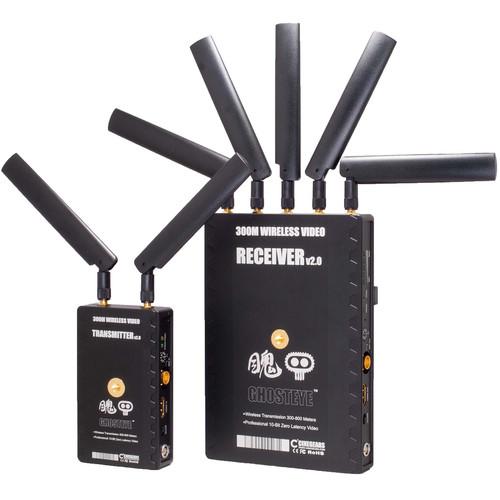

Transmit uncompressed 1080p60, 10-bit, 4:2:2 video up to 2,295' with the CINEGEARS Ghost-Eye Kit 300M V2, in a V-mount version. The kit includes a single transmitter and single receiver but supports up to four receivers simultaneously. Moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.), so you can connect longer/shorter-distance receivers if you'd like.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. A minimum distance of 985' (300m) line-of-sight is ensured, while the maximum distance is 2295' line-of-sight. (The kit has even been successfully tested at much longer distances in open spaces.) The set is also capable of HDMI/SDI cross conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed—auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the set include AES-128/256 signal encryption and plug-and-play installation.

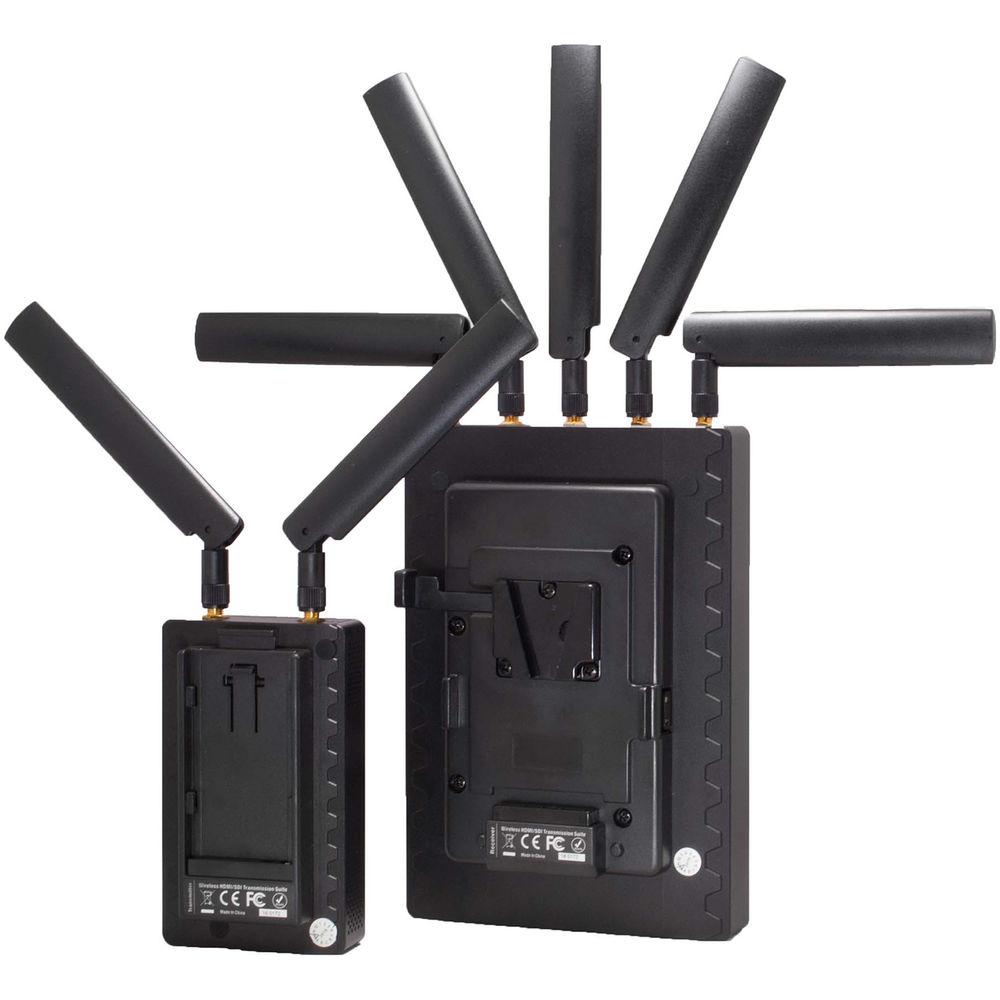

The receiver features a V-mount battery plate attached on the back while the transmitter offers a Sony L-series type plate. Batteries are sold separately.
Key Features
Transmit uncompressed 1080p60, 10-bit, 4:2:2 video up to 2295' ft
Cross-compatible with all Ghost-Eye models (100M, 150M, etc.)
Supports four receivers simultaneously on each channel
Less than 1 ms of latency
Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
985' line-of-sight to 2,295' max transmission distance
HDMI and SDI outputs with cross conversion capability
Adaptive signal logarithm compensates for small obstacles in the line-of-sight
Auto-relink
AES-128/265 signal encryption
Plug-and-play installation
V-mount battery mount integrated on the back of the receiver
L-series type battery mount on the back of the transmitter
UPC: 714983522243 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 300M V2 (V-Mount)
Ghost-Eye Wireless HDMI & SDI Video Transmitter 300M V2
Ghost-Eye Wireless HDMI & SDI Video Receiver 300M V2

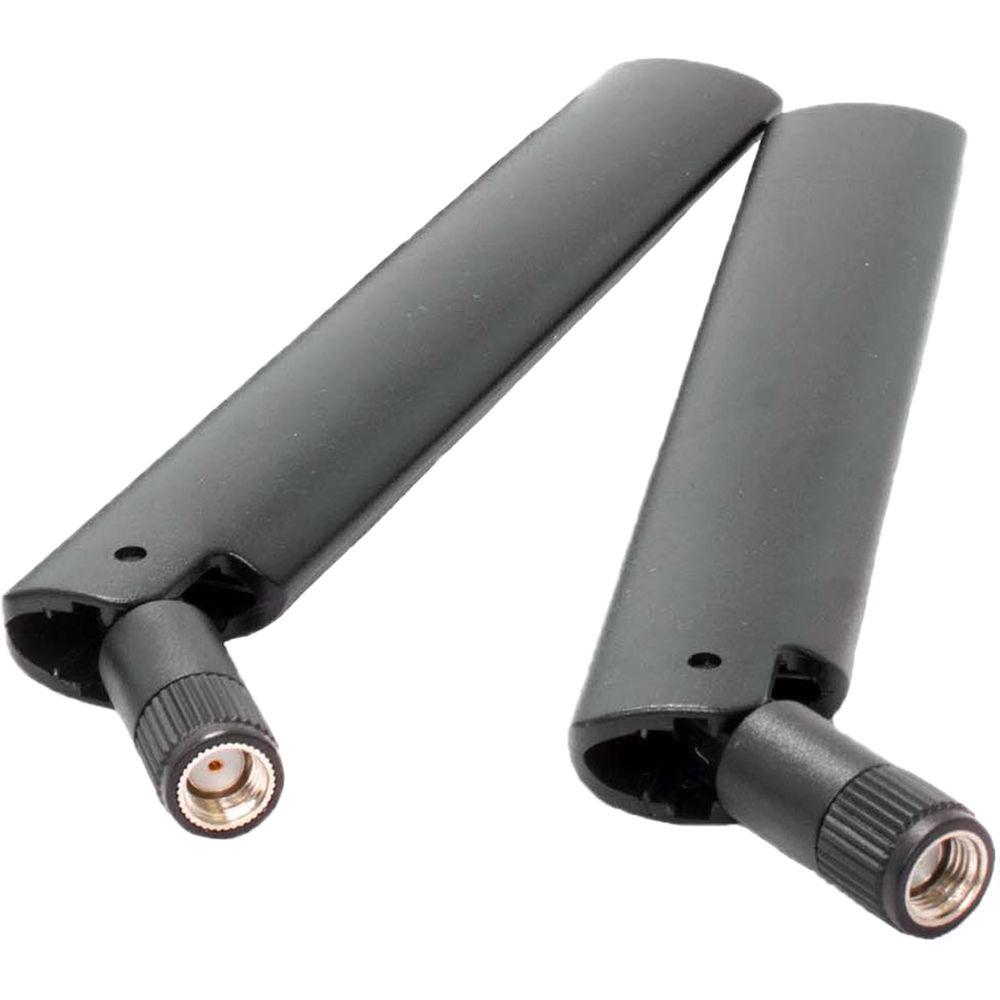

7 x Paddle Antennas
2 x Four-Pin LEMO to D-Tap Power Cable for 300M Ghost-Eye System (2')
Heavy Duty Steel Ball Joint Articulated Arm
Steel Mounting Clamp (.5-2.2")
Waterproof Foamed Case for Ghost-Eye 300M Wireless Transmission Kit
Limited 3-Year Warranty
User Manual PDF 12.7mb Table of Contents
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 300M V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
CINEGEARS 6-303 Specs
Interface
Input (Transmitter): 1 x SDI BNC, female 1 x HDMI Type A, female 2 x Antenna ports (PR-SMA male)
Output (Receiver): 1 x SDI BNC, female 1 x HDMI Type A, female 1 x SDI, loop-through out 5 x Antenna ports (PR-SMA male)
Transmission Distance
2,295' (700 m) line-of-sight 985' (350 m) minimum line-of-sight ensured
Input Voltage Range: 6.5 - 16.8 VDC Consumption: 6.5 W (TX), 6 W (RX) DC Input (Transmitter/Receiver): 4-pin LEMO, female
Compliance
FCC, CE, RoHS
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Dimensions
TX: 4.5 x 2.6 x 0.9" (12 x 7 x 2.5 cm) RX: 6 x 3.7 x 0.9" (16 x 11 x 2.5 cm)
Weight
TX: 0.84 lb (380 g) RX: 1.2 lb (540 g)
Package Weight
7.05 lb
Box Dimensions (LxWxH)
14.1 x 11.8 x 4.2"
Rating
80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
