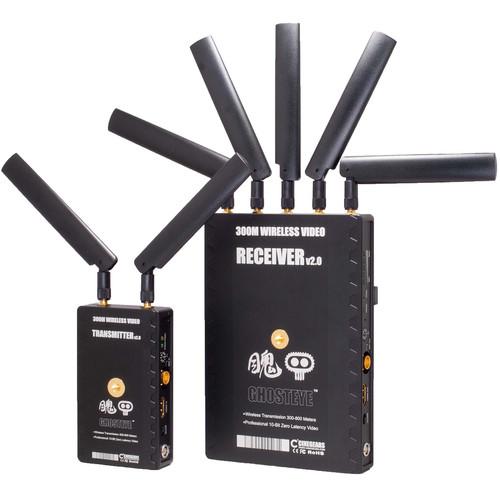

Product description Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,295' with the CINEGEARS Ghost-Eye Kit 300M V2, in a Gold mount version. The kit includes a single transmitter and single receiver but supports up to four receivers simultaneously. Moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.) so you can connect longer/shorter-distance receivers if you'd like.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. A minimum distance of 985' (300 m) line-of-sight is ensured, while the maximum distance is 2,295' line-of-sight. (The kit has even been successfully tested at much longer distances in open spaces.) The set is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm, keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed - auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the set include AES-128/256 signal encryption and timecode.
The receiver features a Gold mount battery plate attached on the back while the transmitter offers a Sony L-series plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,295'
- Cross-compatible with all Ghost Eye models (100M, 150M, etc.)
- Supports 4 receivers simultaneously on each channel
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
- 985' (300 m) line-of-sight to 2,295' max transmission distance
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- AES-128/265 signal encryption
- Plug-and-play installation
- Gold mount battery mount integrated on the back of the receiver
- L-Series battery mount on the back of the transmitter
UPC: 612520356439 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 300M V2 (Gold Mount) Ghost-Eye Wireless HDMI & SDI Video Transmitter 300M V2 Ghost-Eye Wireless HDMI & SDI Video Receiver 300M V2 7 x Paddle Antennas 2 x Four-Pin LEMO to D-Tap Power Cable for 300M Ghost-Eye System (2') Heavy Duty Steel Ball Joint Articulated Arm Steel Mounting Clamp (.5-2.2") Waterproof Foamed Case for Ghost-Eye 300M Wireless Transmission Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 300M V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 6-310 Specs | Interface | Input (Transmitter):
1 x SDI BNC, female
1 x HDMI Type A, female
2 x Antenna ports (PR-SMA male)
Output (Receiver):
1 x SDI BNC, female
1 x HDMI Type A, female
1 x SDI, loop-through out
5 x Antenna ports (PR-SMA male) | | Transmission Distance | 2,295' (700 m) line-of-sight
985' (350 m) minimum line-of-sight ensured | | Video Input/Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Audio Input Format | SDI-embedded 4-channel 24-bit/48 kHz | | Frequency Band | 5.1 - 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Transmission Power | <21 dBm | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 20/40 MHz | | Encryption | AES-128/256 | | Housing | Plastic | | Power | Input Voltage Range: 6.5 - 16.8 VDC
Consumption: 6.5 W (Tx), 6 W (Rx)
DC Input (Transmitter/Receiver): 4-pin LEMO female | | Compliance | FCC, CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | Tx: 4.5 x 2.6 x 0.9" (12 x 7 x 2.5 cm)
Rx: 6 x 3.7 x 0.9" (16 x 11 x 2.5 cm) | | Weight | Tx: 0.84 lb (380 g)
Rx: 1.2 lb (540 g) | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 14.75 x 11.75 x 5.0" |
