Product description Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3280' with the CINEGEARS Ghost-Eye Kit 400M V2, in a Gold mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. Moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.), so you can connect longer/shorter-distance receivers if you'd like.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low-latency rate of less than 1 ms over the license-free 5 GHz frequency band. A minimum distance of 1300' (400 m) line-of-sight is ensured, while the maximum distance is 3280' line-of-sight. (The kit has even been successfully tested at much longer distances in open spaces.) The set is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI or vice-versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm, which keeps your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed — auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the set include AES-128/256 signal encryption, timecode, an LCD status display, plug-and-play installation, and support for professional audio formats. A Gold mount bracket is included for each unit for attaching a Gold mount battery. Both units are encased in a metal housing. - Ghost-Eye 400M V2 HDMI/SDI Transmitter
- Ghost-Eye Wireless Video Transmission 1KM Range Test
- Ghost-Eye Wireless Video Transmission 400M
- Uwe Boll Raw and Cinegears Ghost-Eye Wireless Video Transmission, Rampage 3

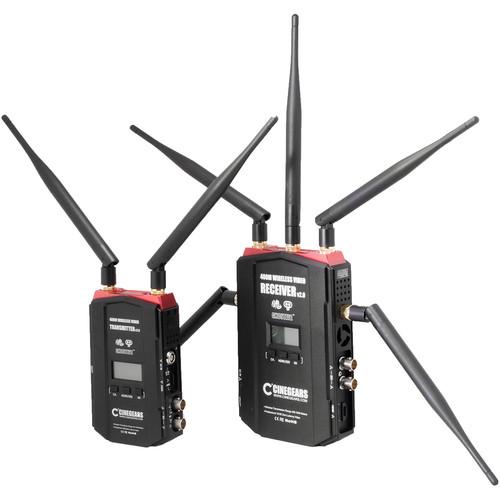

Transmit 1080p60, 4:4:4 HD video up to 3281 feet with the Ghost-Eye 400M V2 Wireless HDMI/SDI Transmitter from CINEGEARS. Using the license-free 5 GHz frequency band, this transmitter supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Transmitter features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.One useful feature of the Ghost-Eye 400M V2 Transmitter is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Transmitter features plug-and-play installation, with firmware upgrades available via its mini-USB port. - Transmission Details
- The transmitter operates on the 5 GHz band using up to four channels simultaneously
- Maximum Range
- Transmits uncompressed 10-bit HD video and audio up to 3281' range
- Latency
- Low-latency rate of <1 millisecond
- Multiple Receivers
- Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
- Cross Compatibility
- Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
- Resolution
- The transmitter handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
- Integrated Cross Conversion
- Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
- Additional Features
-
- AES-128/256 encryption
- Timecode and tally signal support
- Optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included)
- Plug-and-play installation with firmware upgrades via mini-USB port
- Integrated LCD status display
UPC: 714983522267 - Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver The Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver from CINEGEARS receives wireless 1080p60, 4:4:4 HD video at distances up to 3281 feet. Using the license-free 5 GHz frequency band, this receiver supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Receiver features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each coordinating transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.A handy function of the Ghost-Eye 400M V2 Receiver is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Receiver features plug-and-play installation, with firmware upgrades available via its mini-USB port.
- Receiver Details
- The receiver operates on the 5 GHz band, using up to four channels simultaneously
- Maximum Range
- Receives uncompressed 10-bit HD video and audio up to 3281' range
- Latency
- Low-latency rate of <1 millisecond
- Multiple Receivers
- Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
- Cross Compatibility
- Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
- Resolution
- The receiver handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
- Integrated Cross Conversion
- Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
- Additional Features
-
- AES-128/256 encryption
- Timecode and tally signal support
- Optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included)
- Plug-and-play installation with firmware upgrades via mini-USB port
- Integrated LCD status display
UPC: 714983522250 - Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System The Hot Shoe Stand from CINEGEARS allows you to mount the 1/8" thread Ghost-Eye wireless video transmission system units on a hot shoe. UPC: 731236163121

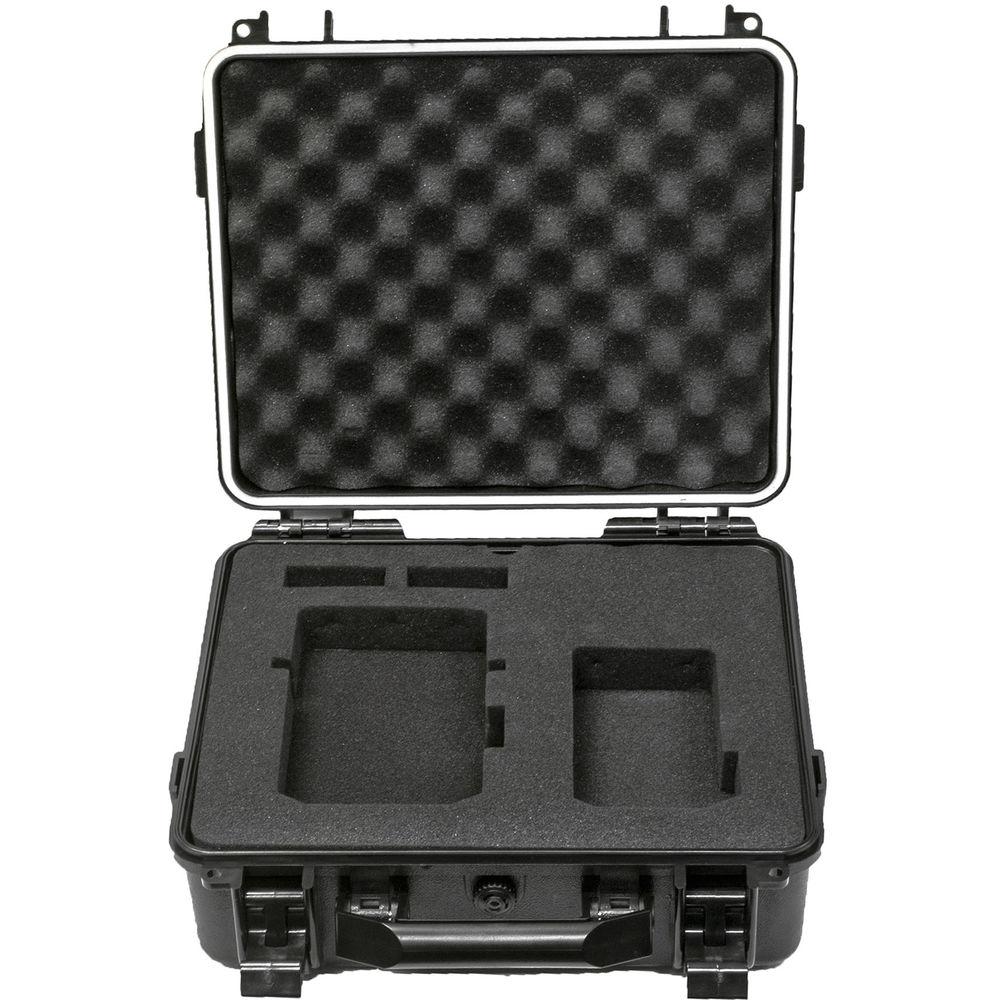

- Waterproof Foamed Case for Ghost-Eye 400M Wireless Transmission Kit The Waterproof Foamed Case from Cinegears is a foam-lined hard case that protects your Ghost-Eye 400M Wireless HDMI & SDI Video Transmission Kit from pressure, jarring drops, and water. The foam inserts are custom-cut to securely fit all the components in your kit.
- Compatibility
- 400M Wireless HDMI & SDI Video Transmission Kit

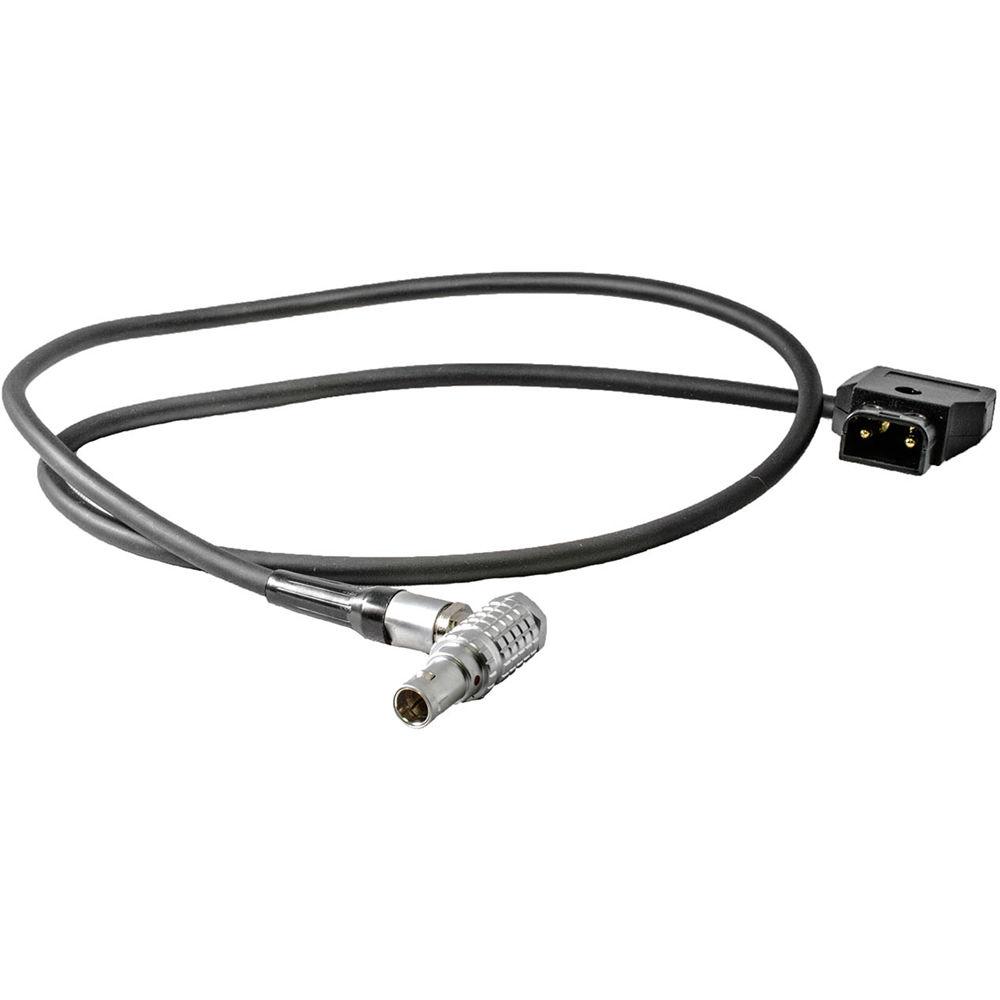

In the Box Bundle Items Ghost-Eye 400M V2 HDMI/SDI Transmitter tqvwbveberyewtazsysrwfczsuys - 2-Pin LEMO to D-Tap Cable
- Limited 3-Year Warranty (North America Only)
Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver - 2-Pin LEMO to D-Tap Cable
- Limited 3-Year Warranty (North America Only)
2 x Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System Waterproof Foamed Case for Ghost-Eye 400M Wireless Transmission Kit tqvwbveberyewtazsysrwfczsuys
Also Includes Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 400M V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 400M V2 can be downloaded in PDF format at the link stated below.
Technical parameters - Ghost-Eye 400M V2 HDMI/SDI Transmitter
| Interface | Input:
1 x SDI BNC, female
1 x HDMI Type A, female
Output:
1 x SDI BNC, loop-through out
Power In
Power On/Off
Antenna: 2 x RP5MA | | Power | Consumption: <6.5 W
Input Voltage Range: 6.5 to 16.8 VDC | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Video Output Format | SDI input loop-through out | | Audio Input Formats | SDI embedded 4-channel 24-bit/48 kHz
PCM
DTS-HD
Dolby TrueHD | | Audio Output Format | SDI embedded audio loop-through out | | Maximum Transmission Distance | 3281' (1000 m) | | Frequency | 5.1 to 5.9 GHz | | Transmission Power | <21 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128/256 | | Temperature | Operating: 5 to 140°F (-15 to 60°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions (LxWxH) | 4.3 x 2.4 x 0.9" (10.9 x 6.1 x 2.3 cm) | | Weight | 12.7 oz (360 g) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 3.0" | - Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver
| Interface | Output:
1 x SDI BNC, female
1 x HDMI Type A, female
1 x SDI, loop-through out
Power In
Power On/Off
Antenna: 5 x RP5MA | | Power | Consumption: <6 W
Input Voltage Range: 6.5 to 16.8 VDC | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Audio Output Format | SDI embedded 4-channel 24-bit/48 kHz
PCM
DTS-HD
Dolby TrueHD | | Maximum Transmission Distance | 3281' (1000 m) | | Frequency Band | 5.1 to 5.9 GHz | | Receiver Sensitivity | -75 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128/256 | | Temperature | Operating: 5 to 140°F (-15 to 60°C)
Storage: -40 to 176°F (-40 to 80°C) | | Dimensions (LxWxH) | 5 x 3 x 1.2" (12.7 x 7.5 x 3.15 cm) | | Weight | 1.1 lb (480 g) | | | | Box Dimensions (LxWxH) | 10.25 x 7.75 x 2.75" | - Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System
| Mounts | Standard 1/8"
Hot shoe | | Dimensions (Ø x L) | 0.98 x 1.97" (2.5 x 5.0 cm) | | Weight | 1 oz (28 g) | | | | Box Dimensions (LxWxH) | 4.1 x 1.0 x 0.5" | - Waterproof Foamed Case for Ghost-Eye 400M Wireless Transmission Kit
