Product description

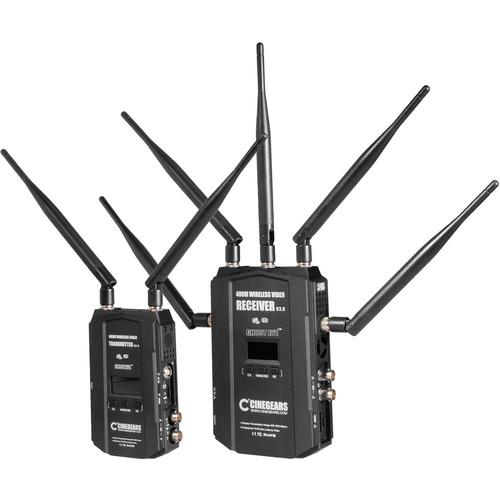

Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 3280 ft with the CINEGEARS Ghost-Eye Kit 400M V2, in a V-Mount version. The kit includes a single transmitter and single receiver, and it safely supports up to four receivers simultaneously on each channel. Moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.), so you can connect longer/shorter-distance receivers if you'd like.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. A minimum distance of 1300 ft line-of-sight is ensured, while the maximum distance is 3280 ft line-of-sight. (The kit has even been successfully tested at much longer distances in open spaces.) The set is also capable of HDMI/SDI cross conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, which keeps your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed — auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the set include AES-128/256 signal encryption, an LCD status display, plug-and-play installation, and support for professional audio formats. A V-Mount bracket is included for each unit for attaching a V-Mount battery. Both units are encased in a metal housing.

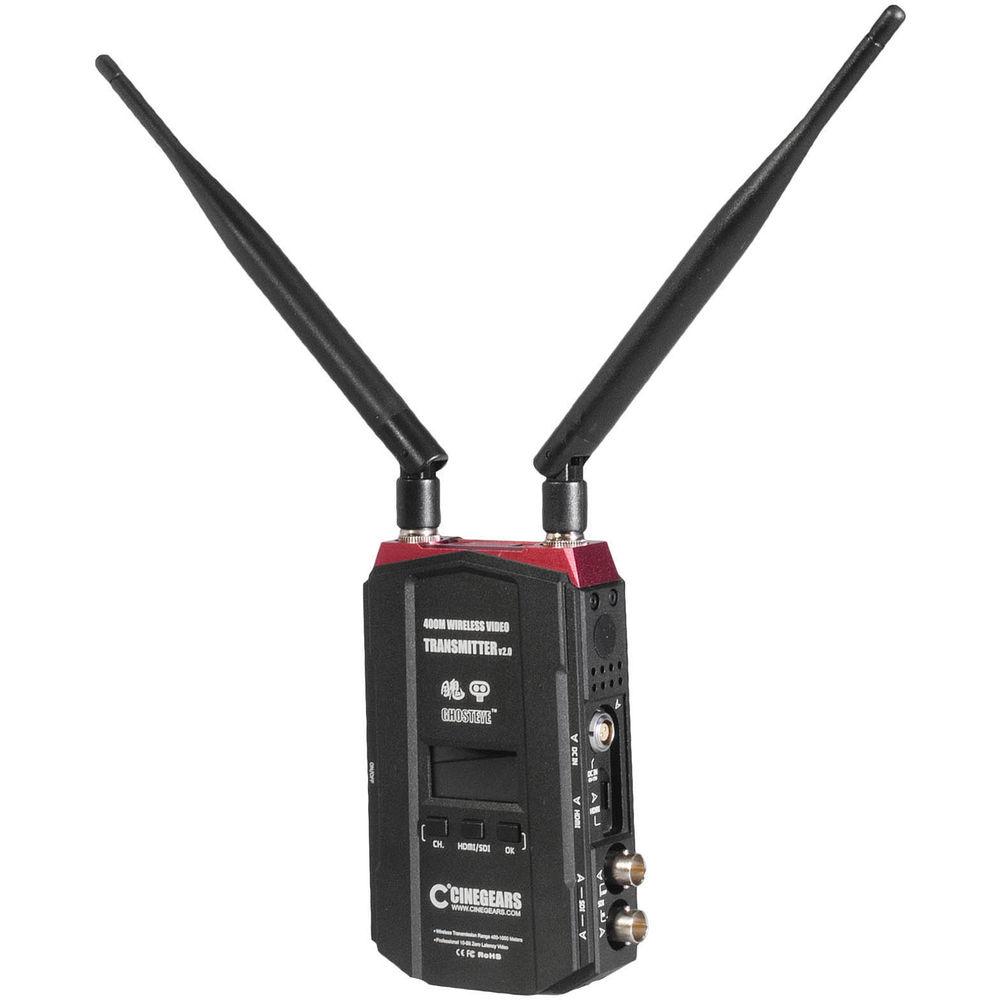

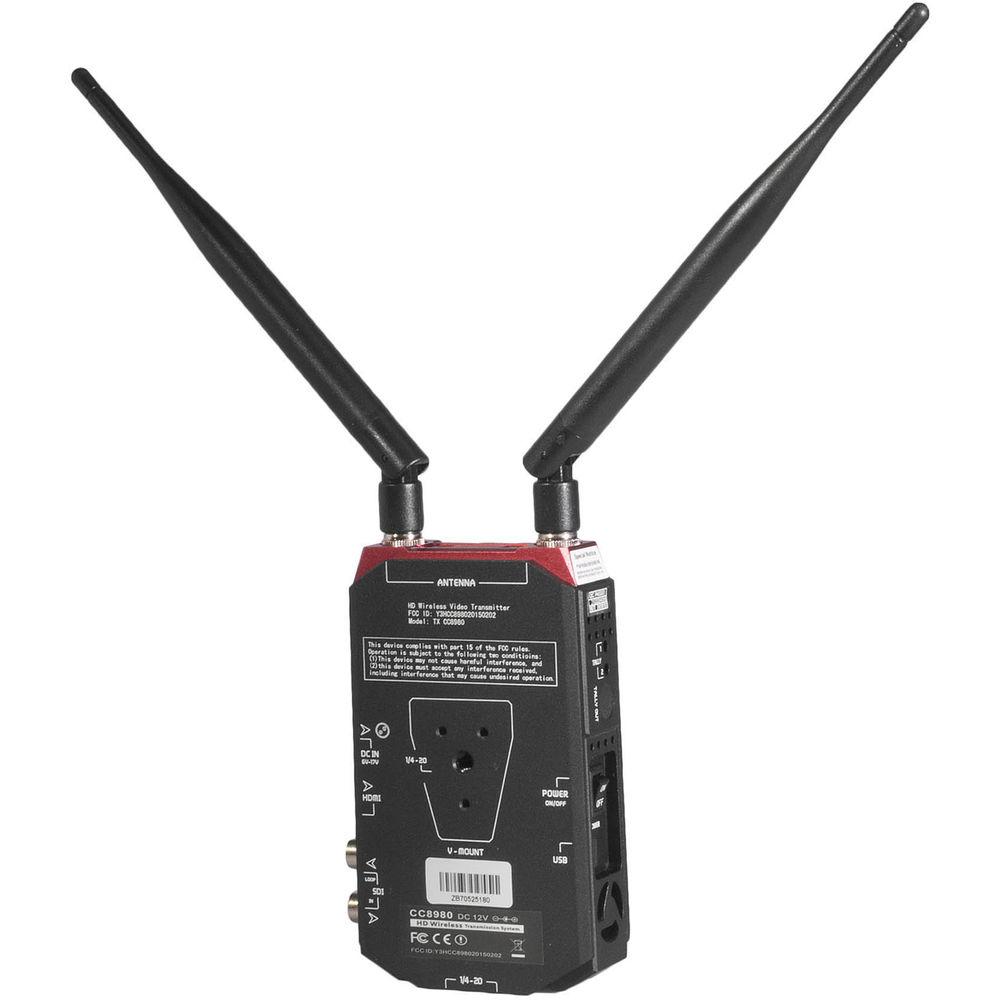

Ghost-Eye 400M V2 HDMI/SDI Transmitter
Uwe Boll Raw and Cinegears Ghost-Eye Wireless Video Transmission, Rampage 3
Cinegears Ghost Eye Wireless Video Transmission Channels Setting for Multiple Receivers
Ghost-Eye Wireless Video Transmission 1KM Range Test
Cinegears Wireless Video System Ghost Eye 150m
CINEGEARS Wireless Video 150M and Blackmagic Micro Studio Camera 4K
Cinegears Wireless HD SDI / HDMI Video transmission system Ghost Eye 400M
Ghost-Eye Wireless Video Transmission 400M
Transmit 1080p60, 4:4:4 HD video up to 3281 feet with the Ghost-Eye 400M V2 Wireless HDMI/SDI Transmitter from CINEGEARS. Using the license-free 5 GHz frequency band, this transmitter supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Transmitter features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.One useful feature of the Ghost-Eye 400M V2 Transmitter is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Transmitter features plug-and-play installation, with firmware upgrades available via its mini-USB port.
Transmission Details
The transmitter operates on the 5 GHz band using up to four channels simultaneously
Maximum Range
Transmits uncompressed 10-bit HD video and audio up to 3281' range
Latency
Low-latency rate of <1 millisecond
Multiple Receivers
Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
Cross Compatibility
Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
Resolution
The transmitter handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
Integrated Cross Conversion
Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
Plug-and-play installation with firmware upgrades via mini-USB port
Integrated LCD status display
UPC: 714983522267

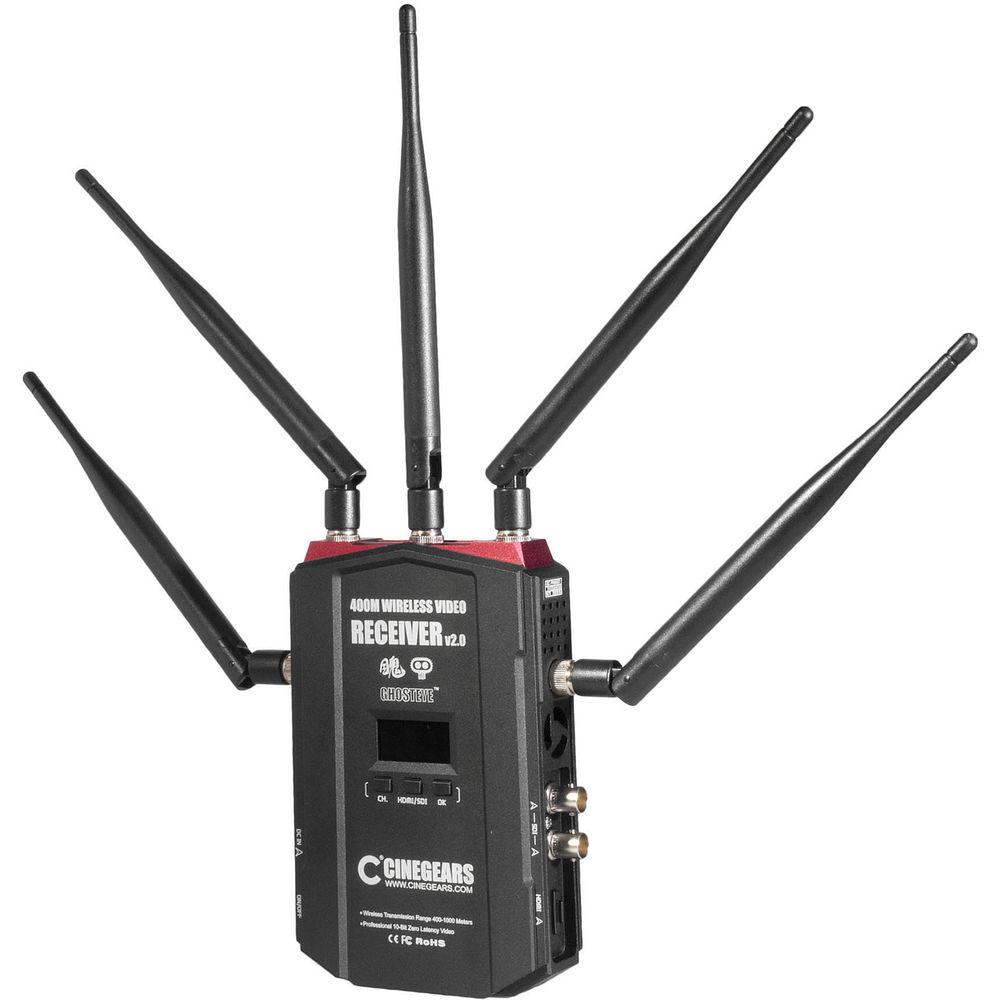

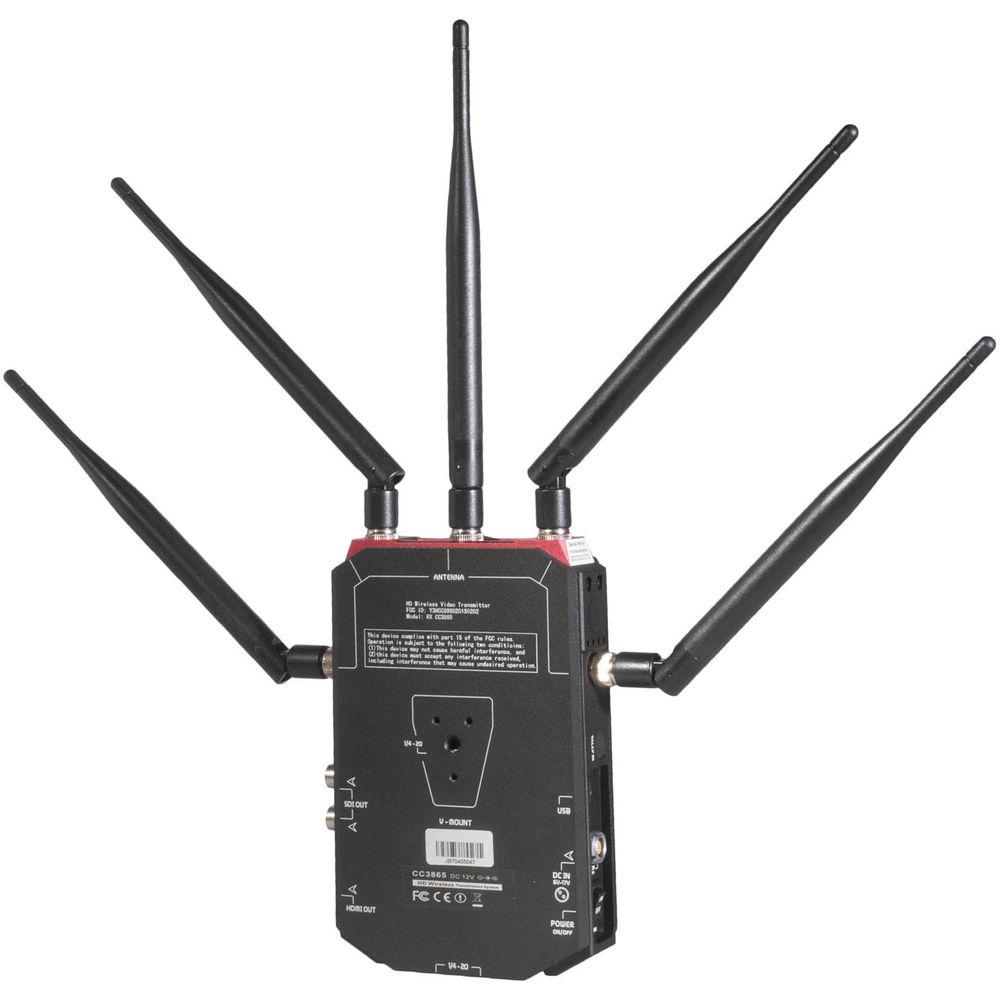

Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver The Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver from CINEGEARS receives wireless 1080p60, 4:4:4 HD video at distances up to 3281 feet. Using the license-free 5 GHz frequency band, this receiver supports up to 1080p60 with under 1 ms latency. The Ghost-Eye 400M V2 Receiver features HDMI and 3G/HD/SD-SDI inputs and outputs with built-in cross conversion. Each coordinating transmitter can support up to four receivers and can be arranged in point-to-point and point-to-multipoint networks.A handy function of the Ghost-Eye 400M V2 Receiver is its cross-compatibility—it will work with any Ghost-Eye 100M, 150M, or 300M transmitter and receiver you may already own. Additional functions include AES-128/256 signal encryption, timecode and tally support, an LCD status display panel, and optional V-Lock, Gold Mount, or 1/4"-20 bolt plate mounting (not included). The Ghost-Eye 400M V2 HDMI/SDI Receiver features plug-and-play installation, with firmware upgrades available via its mini-USB port.
Receiver Details
The receiver operates on the 5 GHz band, using up to four channels simultaneously
Maximum Range
Receives uncompressed 10-bit HD video and audio up to 3281' range
Latency
Low-latency rate of <1 millisecond
Multiple Receivers
Transmitters and receivers can be arranged in point-to-point and point-to-multipoint networks
Cross Compatibility
Mix-and-match the 400M with Ghost-Eye 100M, 150M, and 300M transmitters and receivers
Resolution
The receiver handles resolutions up to 10-bit 4:4:4 color depth, 1080p60 HDMI, and 3G/HD/SD-SDI
Integrated Cross Conversion
Both the transmitters and receivers can send signals via SDI and receive via HDMI, or vice-versa
Plug-and-play installation with firmware upgrades via mini-USB port
Integrated LCD status display
UPC: 714983522250
Waterproof Foamed Case for Ghost-Eye 400M Wireless Transmission Kit The Waterproof Foamed Case from Cinegears is a foam-lined hard case that protects your Ghost-Eye 400M Wireless HDMI & SDI Video Transmission Kit from pressure, jarring drops, and water. The foam inserts are custom-cut to securely fit all the components in your kit.
Compatibility
400M Wireless HDMI & SDI Video Transmission Kit
Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System The Hot Shoe Stand from CINEGEARS allows you to mount the 1/8" thread Ghost-Eye wireless video transmission system units on a hot shoe. UPC: 731236163121
Universal V-Mount Bracket The Universal V-Mount Bracket from CINEGEARS allows for quick-release and a sturdy mount. Constructed from airplane grade aluminum, it is universally compatible with any V-mount system. UPC: 736902394458
In the Box Bundle Items Ghost-Eye 400M V2 HDMI/SDI Transmitter ftwtdfuwefyxtwwdbfxzzwqtbrex

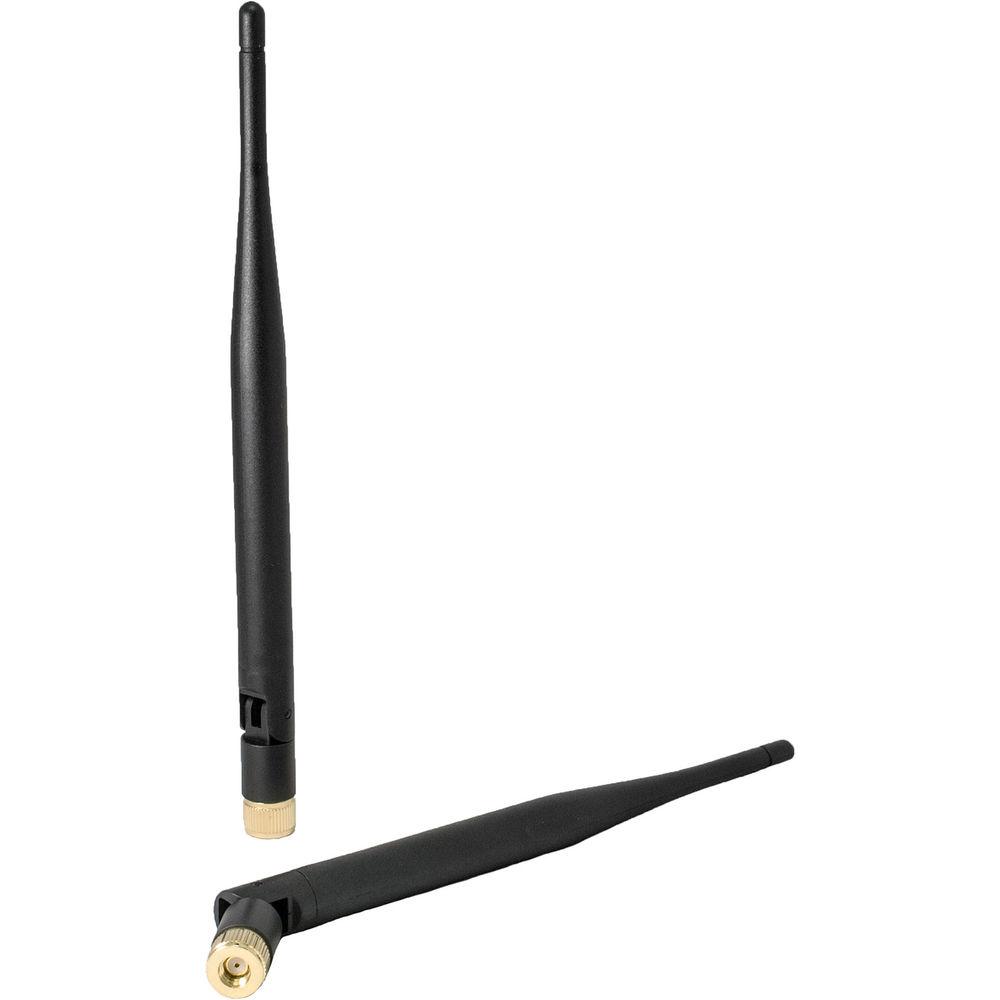

2 x Antennas
2-Pin LEMO to D-Tap Cable
Limited 3-Year Warranty (North America Only)
Ghost-Eye 400M V2 Wireless HDMI/SDI Receiver
5 x Antennas
2-Pin LEMO to D-Tap Cable
Limited 3-Year Warranty (North America Only)
Waterproof Foamed Case for Ghost-Eye 400M Wireless Transmission Kit
Limited 1-Year Warranty
2 x Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System 2 x Universal V-Mount Bracket
Limited 1-Year Warranty
