User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 500M Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

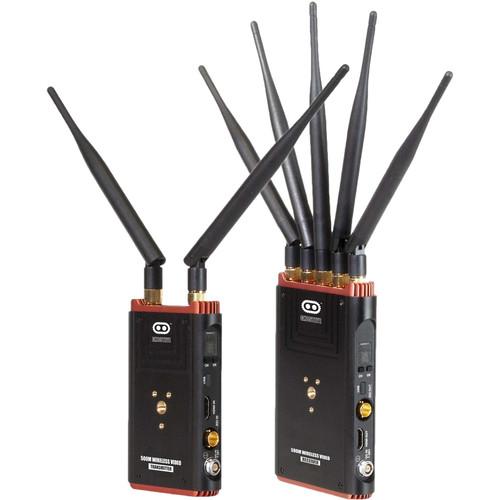

Product description New from CINEGEARS: Ghost-Eye Wireless HDMI and SDI Kit 500M Read More The CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 500M allows you to transmit uncompressed 1080p60, 10-bit, 4:2:2 video up to 1500' with less than 1 ms of latency. An adaptive signal logarithm keeps the signal connected despite small obstacles in the line of sight, while signals dropped due to bigger interference sources or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed.
The kit includes a transmitter and receiver but supports up to four receivers of any Ghost-Eye model simultaneously on each channel. LEMO to D-Tap cables are included for powering both units. The system also features HDMI/SDI cross-conversion capability, allowing you to convert an HDMI input to an SDI output or vice versa. Other features include AES signal encryption and timecode. - Key Features
-
- Transmit uncompressed 1080p60, 10-bit, 4:2:2 video up to 1500'
- Less than 1 ms of latency
- Adaptive signal logarithm
- Auto-relink
- Supports up to four receivers of any Ghost-Eye model simultaneously on each channel
- HDMI/SDI cross conversion
- AES signal encryption
- Timecode
UPC: 714983521833 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 500M Ghost-Eye Transmitter 500M Ghost-Eye Receiver 500M 7 x Extended High-Range Antenna for 5G Large and Outdoor Projects 2 x Two-Pin LEMO to D-Tap Power Cable for 400M Ghost-Eye System (2') Hot Shoe Stand for Ghost-Eye Wireless Video Transmission System Heavy Duty Steel Ball Joint Articulated Arm Waterproof Foamed Case for Ghost-Eye 400M Wireless Transmission Kit Limited 3-Year Warranty User Manual PDF 6.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 500M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

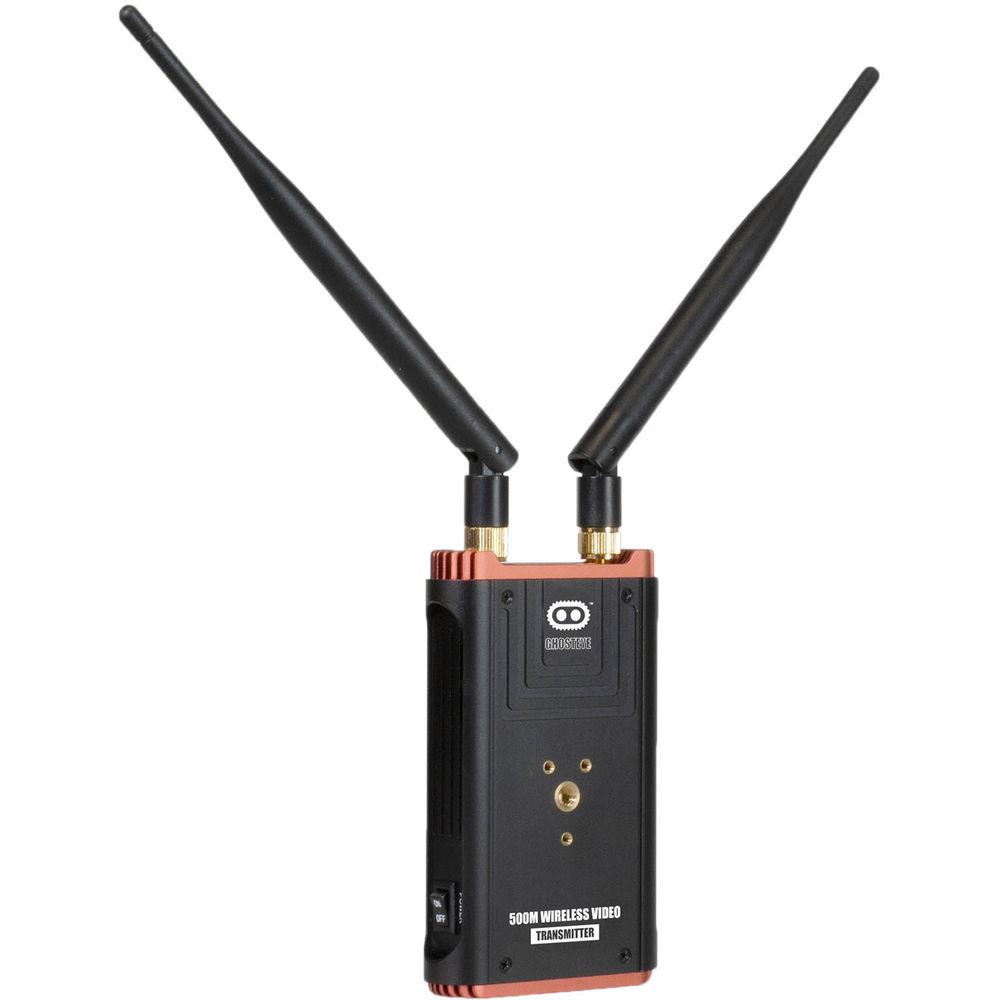

Technical parametersCINEGEARS 6-510 Specs | Frequency Band | 4.9 to 5.9 GHz | | Bandwidth | 40 MHz | | Video Input Formats | Up to 1080p60, 4:2:2, 10-bit | | Connectors | Transmitter:
1 x SDI Input on BNC
1 x HDMI Type A Input
1 x Mini-USB
1 x LEMO 0B/2-Pin
1 x DC In
2 x RP-SMA Antenna

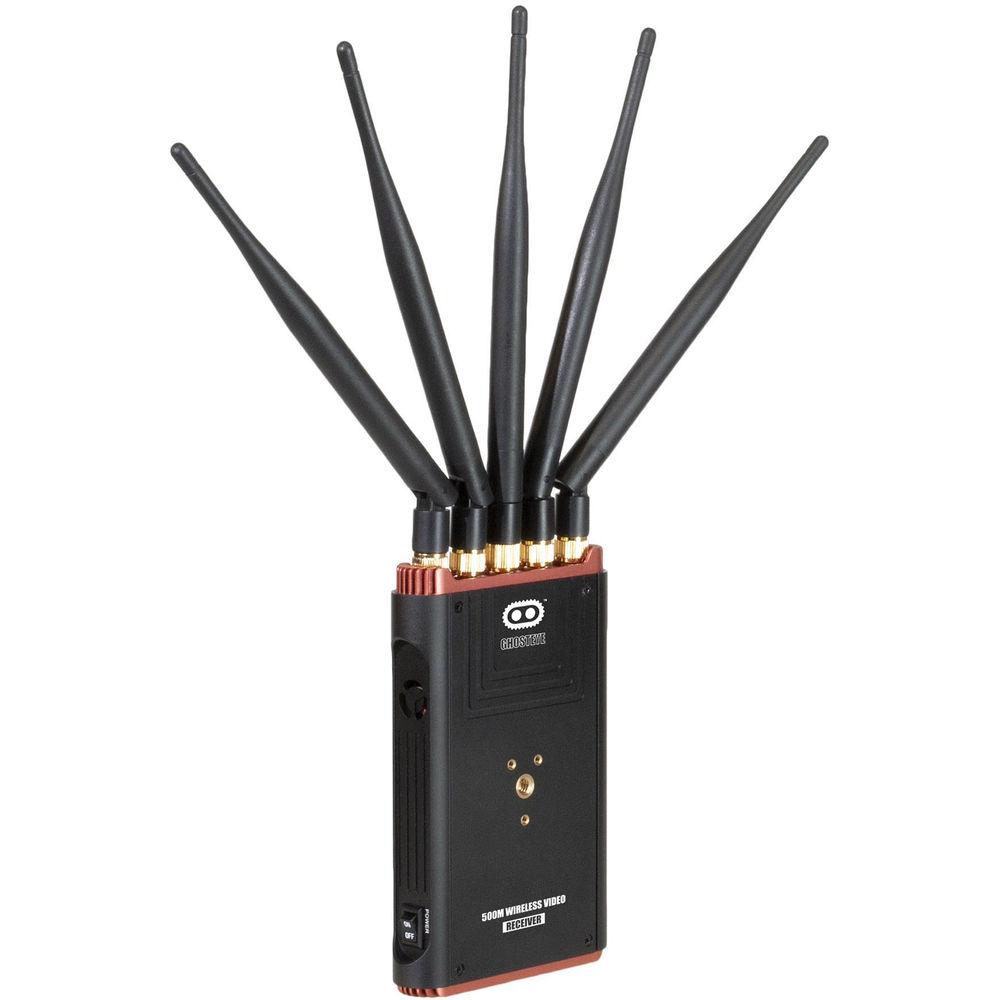

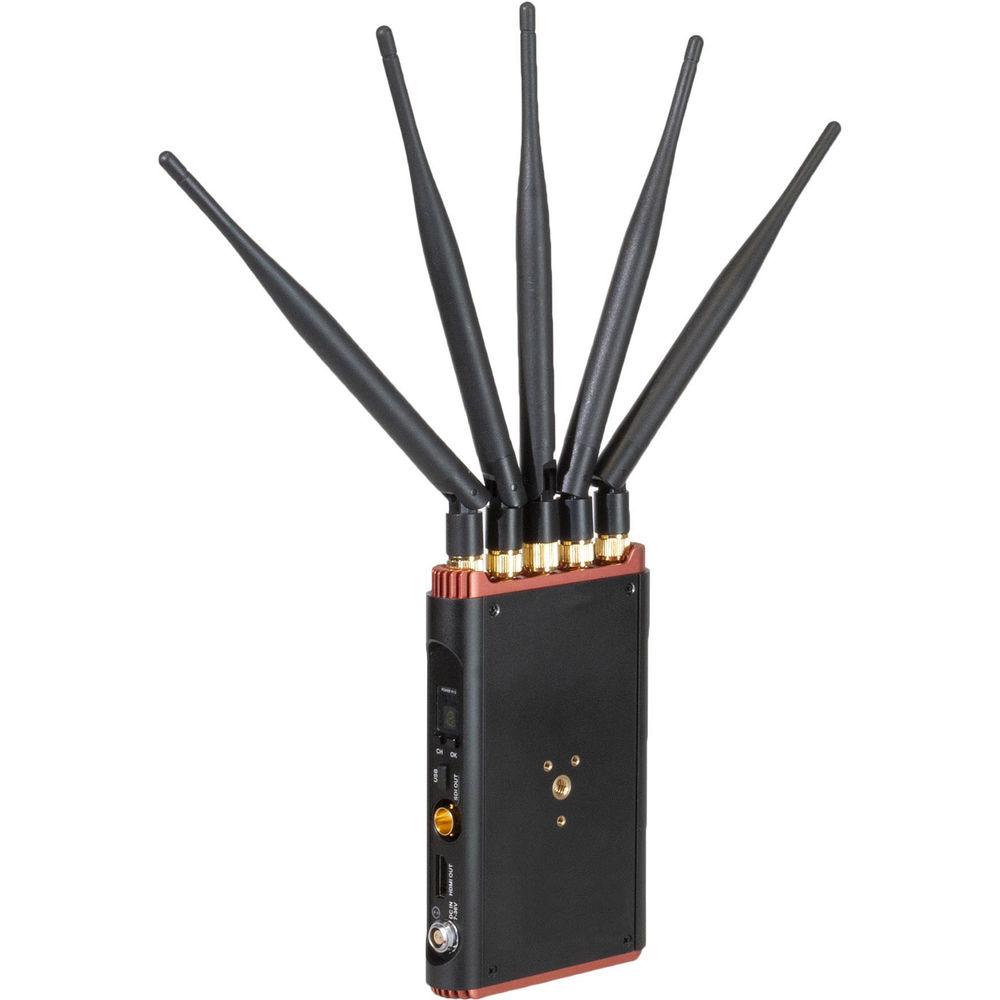

Receiver:
1 x SDI Output on BNC
1 x HDMI Type A Output
1 x Mini-USB
1 x LEMO 2-Pin
1 x DC In
5 x RP-SMA Antenna | | Transmission Range | Up to 1500' / 457 m | | Audio Format | PCM | | Timecode | ATC_VITC, ATC_LTC | | Transmission Power | 17 dBm | | Mount Types | 1/4"-20 Threaded Holes on Each Unit | | Working Voltage | 7-36 V | | Power Consumption | Transmitter:
<8 w
Receiver:
< 7 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -40 to 176°F / -40 to 80°C | | Dimensions | Transmitter:
5 x 3 x 0.9" / 12.6 x 7.8 x 2.3 cm
Receiver:
5.9 x 3.9 x 0.9" / 15 x 9.8 x 2.3 cm | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 15.4 x 13.8 x 5.1" |
