Product description

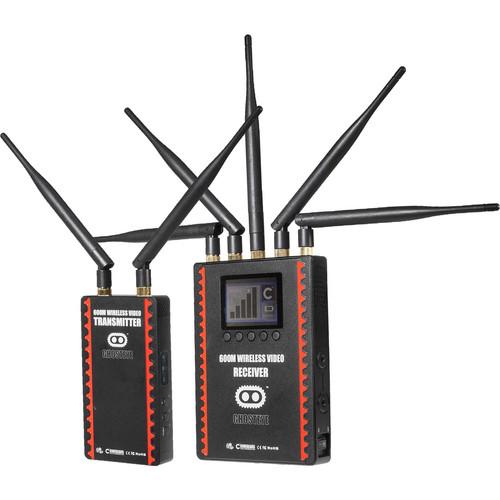

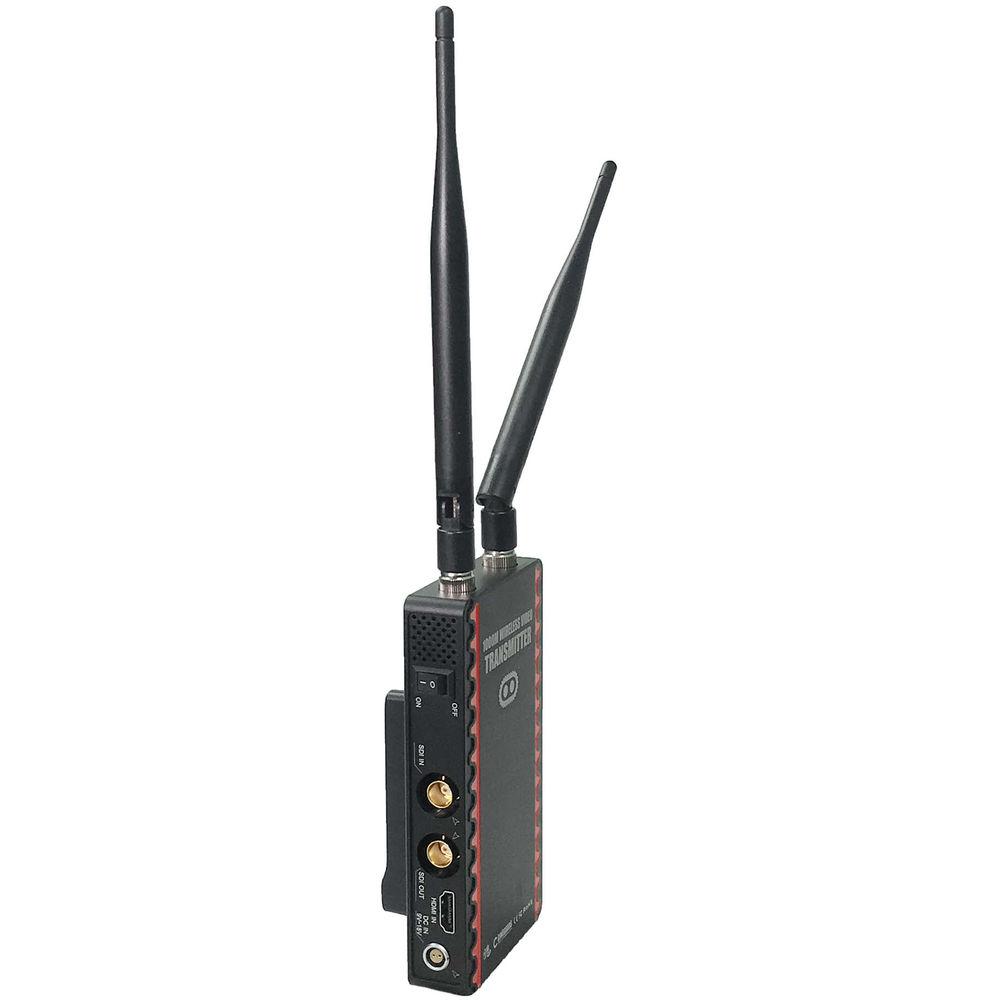

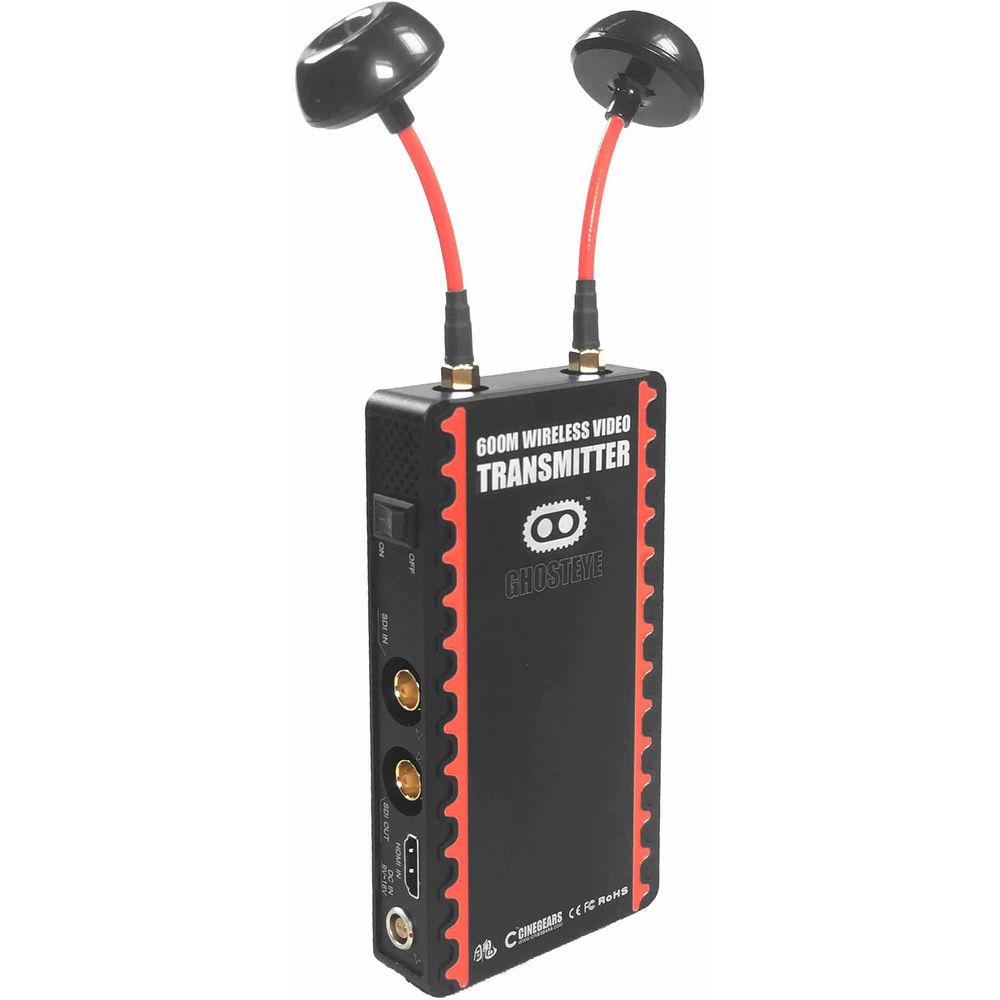

• Ghost-Eye Wireless HDMI & SDI Video Transmitter 600M
  • Cinegears New Ghost Eye Models
  • Cinegears Ghost-Eye Wireless Video Transmission Live Broadcasting for CCTV
  Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2000' with the CINEGEARS Ghost-Eye Transmitter 600M. It safely supports up to four receivers (sold separately) simultaneously on each channel and is cross-compatible with any Ghost-Eye receiver model. (Unlike some of the other Ghost-Eye models in which the "M" figure represents the minimum transmission distance ensured, the 600 meter/2000' distance of the 600M is the max distance supported.)

  Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the optional receiver end or vice-versa.

  Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. Other features include signal encryption and timecode.

  The 600M transmitter comes with two high range antennas and features a Sony L-series battery plate. Batteries are sold separately.
  Key Features
  • • Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2000'
    • Compatible with any Ghost Eye receiver
    • Supports 4 receivers simultaneously on each channel
    • Less than 1 ms of latency
    • Operates on the license-free 5 GHz frequency band
    • HDMI and SDI inputs; SDI loop output; cross-conversion capability with and optional receiver
    • Adaptive signal logarithm compensates for small obstacles in the line-of-sight
    • Auto-relink
    • AES signal encryption
    • Timecode
    • Sony L-series battery plate
  UPC: 612520356095
• Ghost-Eye Wireless HDMI & SDI Video Receiver 600M The CINEGEARS Ghost-Eye Receiver 600M pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2000' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. (Unlike some of the other Ghost-Eye models, in which the "M" figure represents the minimum transmission distance ensured, the 600 meter/2000' distance of the 600M is the max distance supported.)

  The receiver features both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.

  The 600M receiver features AES signal encryption and timecode, and it comes with a V-mount battery plate.
  Key Features
  • • Pairs with any Ghost-Eye transmitter
    • Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2000'
    • Less than 1 ms of latency
    • Operates on the license-free 5 GHz frequency band
    • HDMI and SDI outputs; SDI loop output; cross conversion capability with optional transmitter
    • Adaptive signal logarithm compensates for small obstacles in the line-of-sight
    • Auto-relink
    • AES signal encryption
    • Timecode
    • V-mount battery plate
    • Plug-and-play installation
  UPC: 612520356101

• Heavy Duty Steel Ball Joint Articulated Arm

• 2-Pin LEMO to D-Tap Power Cable

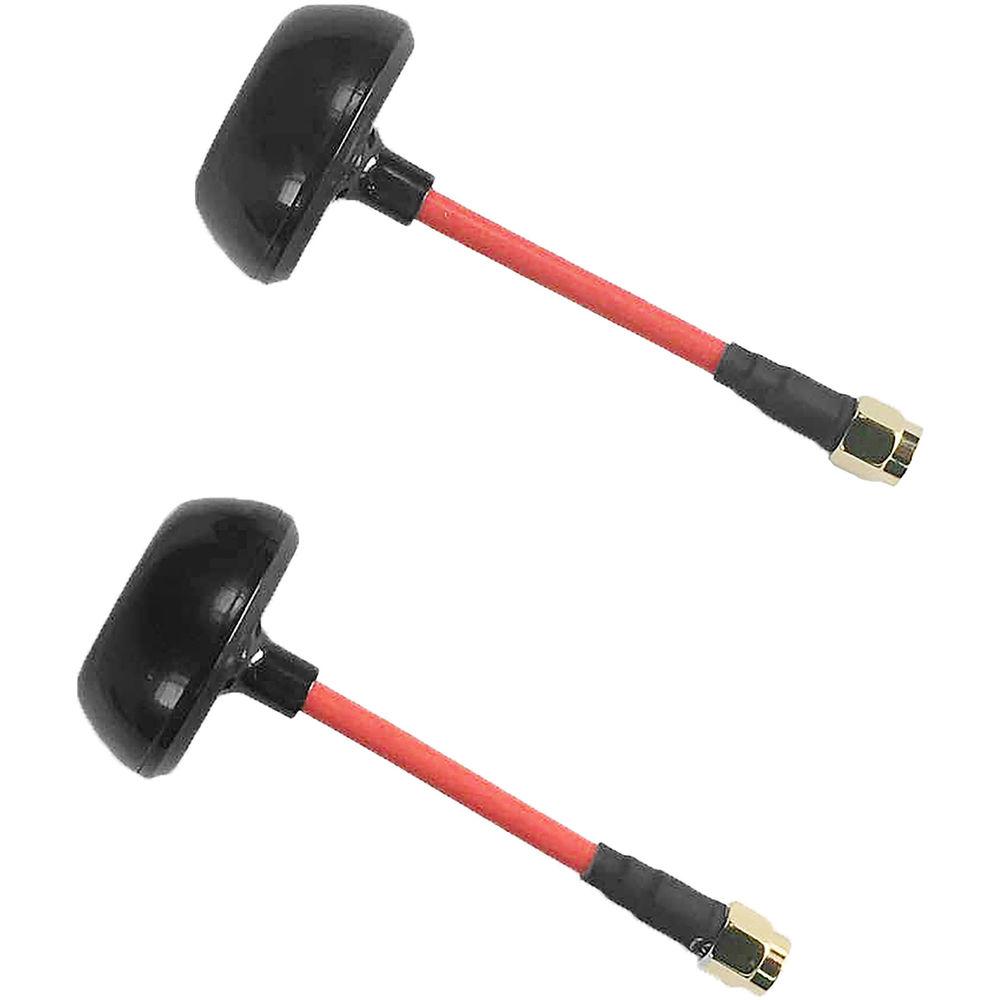

• 2 x Extended High-Range Antennas

• Limited 3-Year Warranty

• 2-Pin LEMO to D-Tap Power Cable

• 5 x Extended High-Range Antennas

• Limited 3-Year Warranty

Also Includes

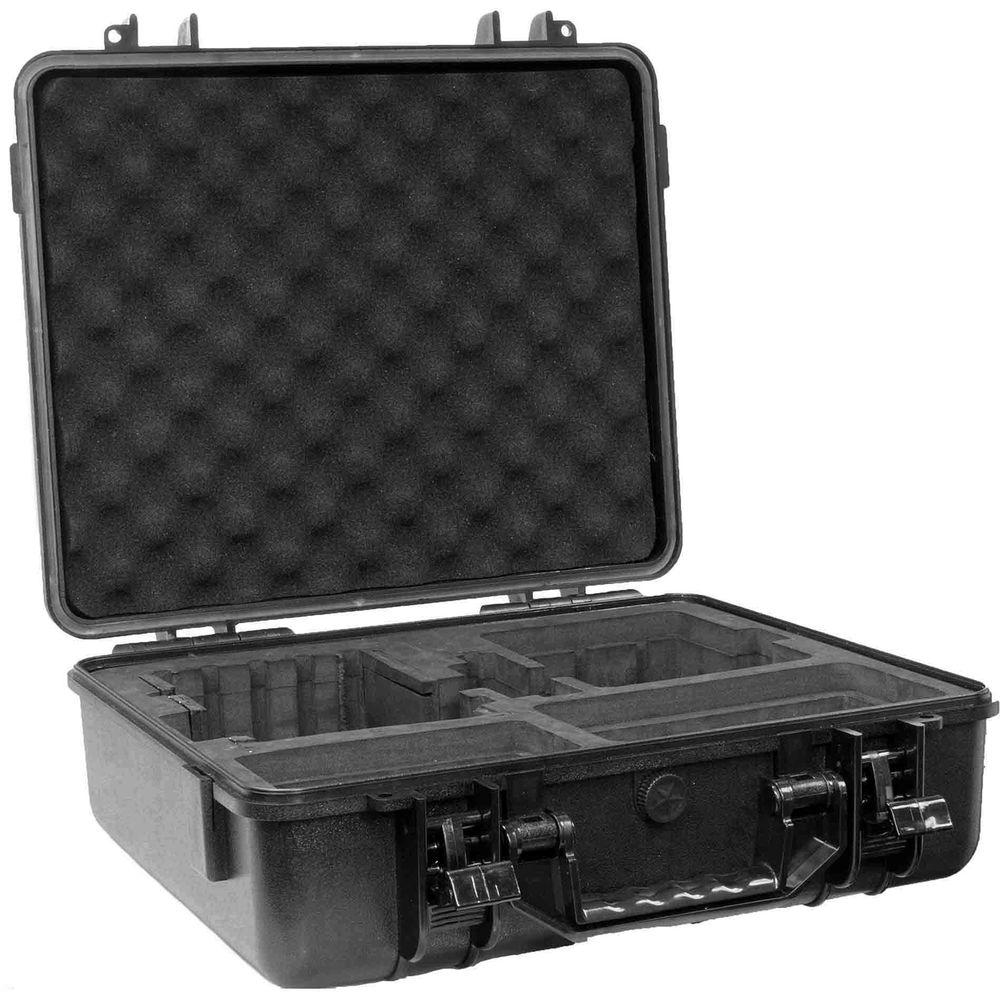

• Waterproof Foamed Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ghost-Eye Wireless HDMI & SDI Video Transmitter 600M

  Interface	Input: 1 x SDI BNC input 1 x SDI BNC loop output 1 x HDMI Type A input
  Transmission Distance	2,000' (600 m) line-of-sight
  Video Input Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Color Depth	8-bit; 10-bit 4:0:0, 4:2:2
  Frequency Band	5.1 to 5.9 GHz

  Box Dimensions (LxWxH)	7.8 x 6.7 x 2.8"

• Ghost-Eye Wireless HDMI & SDI Video Receiver 600M

  Interface	Output: 1 x SDI on BNC 1 x HDMI Type A 1 x SDI loop-output on BNC
  Transmission Distance	2000' (600 m) line-of-sight
  Video Output Formats	3G-SDI, HD-SDI (Auto/Manual): 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 HDMI Type A: 1080p: 60/59.94/50/30/29.9/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 625i: 60/59.94/50 525i: 60/59.94/50 SMPTE: 259/274/292/296/372/424/425
  Color Depth	8-bit; 10-bit 4:0:0, 4:2:2
  Frequency Band	5.1 - 5.9 GHz

  Box Dimensions (LxWxH)	10.25 x 7.75 x 2.5"

• Heavy Duty Steel Ball Joint Articulated Arm
