Product description - Cinegears New Ghost Eye Models
- Cinegears Ghost-Eye Wireless Video Transmission Live Broadcasting for CCTV
Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2000' with the CINEGEARS Ghost-Eye Transmission Kit 600M, in a Gold mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. It's cross-compatible with all other Ghost-Eye versions so you can connect longer/shorter-distance receivers if you'd like. The receiver in this kit features a Gold mount battery plate attached on the back, and the transmitter has a Sony L-series plate. Batteries are sold separately. (Unlike some of the other Ghost-Eye models in which the "M" figure represents the minimum transmission distance ensured, the 600 meter/2000' distance of the 600M is the max distance supported.)
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The set is also capable of HDMI/SDI cross conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. Other features of the set include AES signal encryption and timecode. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2000'
- Up to 4 receivers supported simultaneously on each channel
- Any Ghost Eye receiver supported
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI I/O with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- AES signal encryption
- Timecode
- Transmitter with Sony L-series battery plate
- Receiver with Gold mount plate

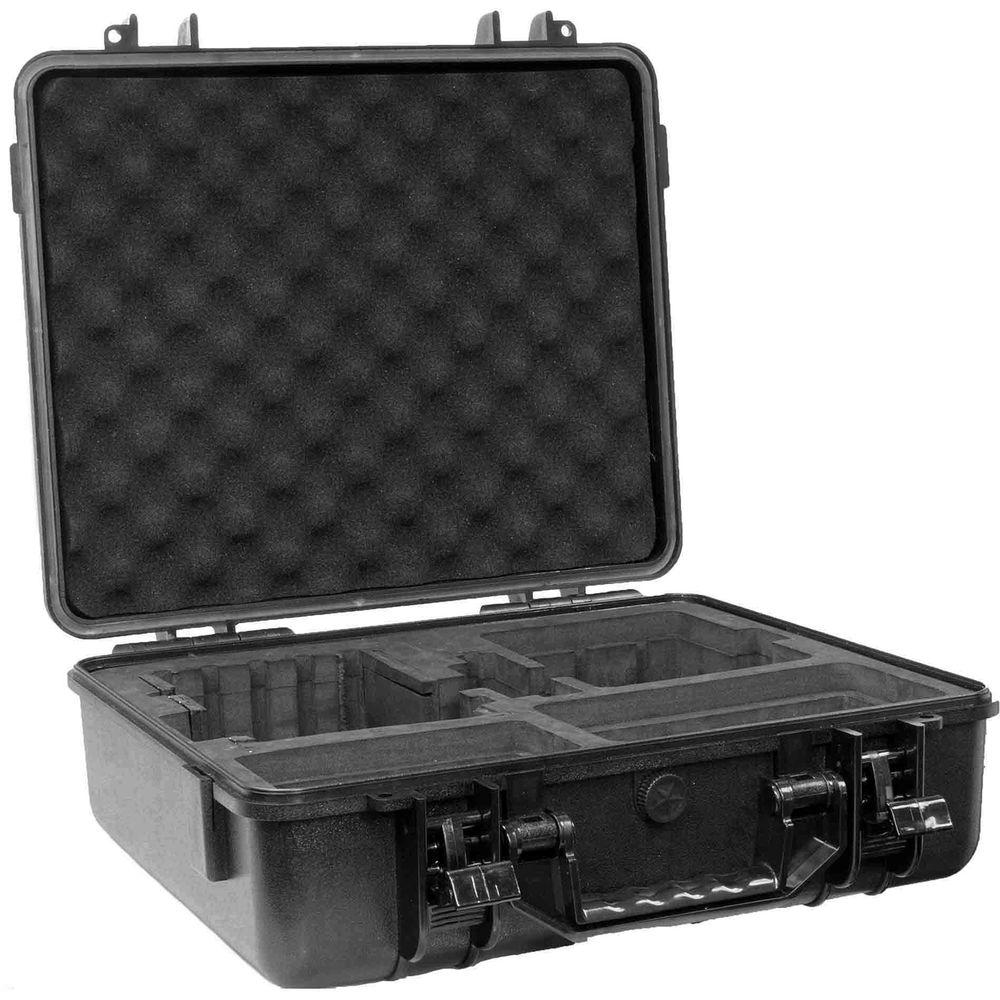

UPC: 612520356453 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 600M (Gold Mount) Ghost-Eye Transmitter 600M with L-Series Battery Plate Ghost-Eye Receiver 600M with Gold Mount Battery Plate 2 x 2-Pin to D-Tap power cables 7 x Extended High Range Antennas 2 x Mushroom Antennas Waterproof Foam Case User Manual PDF 6mbtqvwbveberyewtazsysrwfczsuys Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 600M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

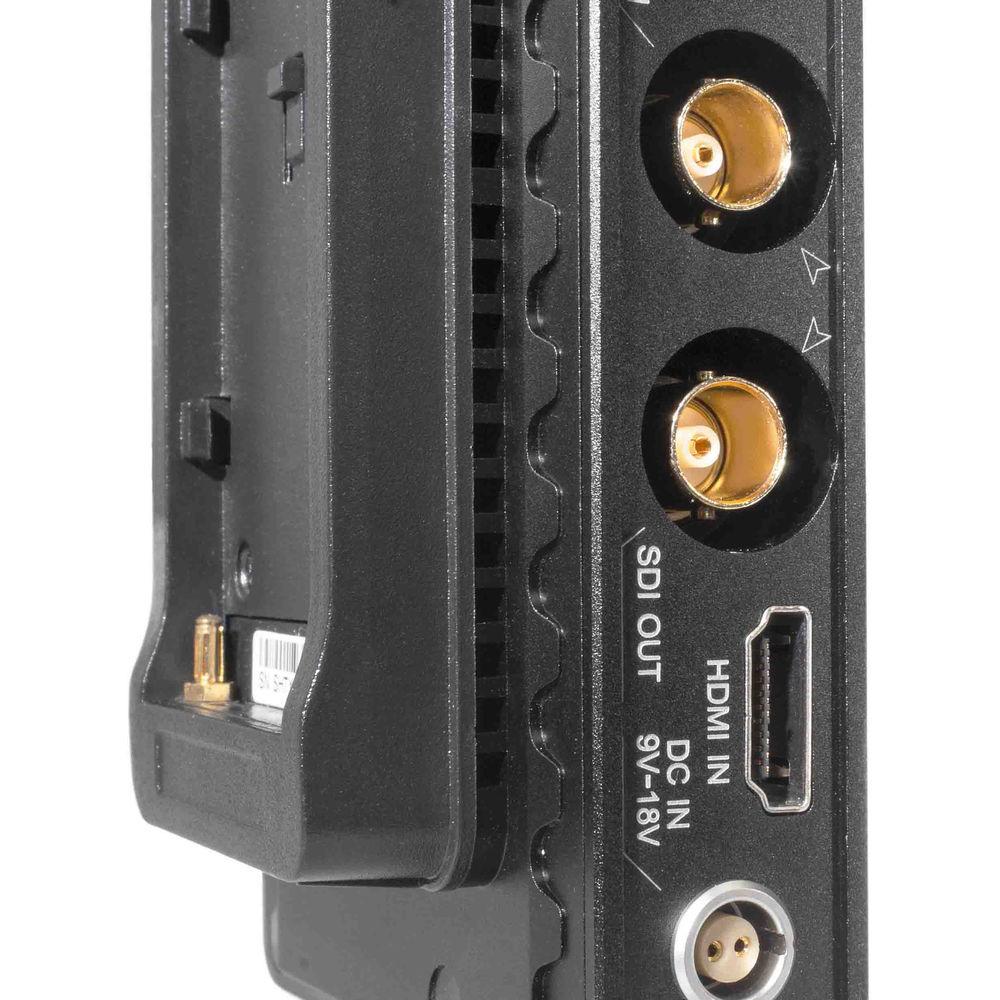

Technical parametersCINEGEARS 6-607 Specs | Input/Output | Transmitter:
1 x SDI BNC input
1 x SDI BNC loop output
1 x HDMI Type A input
Receiver:
1 x SDI output on BNC
1 x HDMI Type A output
1 x SDI loop-output on BNC | | Transmission Distance | 2000' (600 m) line-of-sight | | Video Input/Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 to 5.9 GHz | | | | Package Weight | 8.585 lb | | Box Dimensions (LxWxH) | 14.0 x 13.15 x 5.65" |
