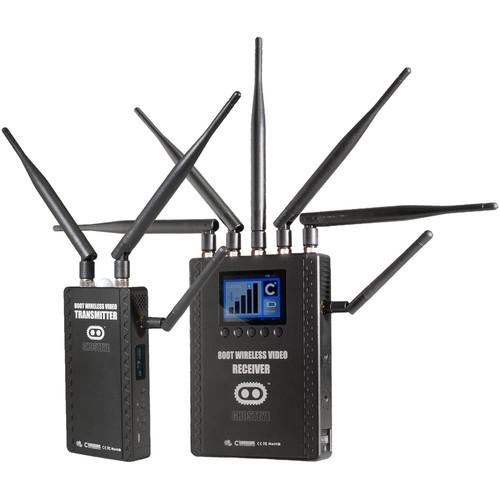

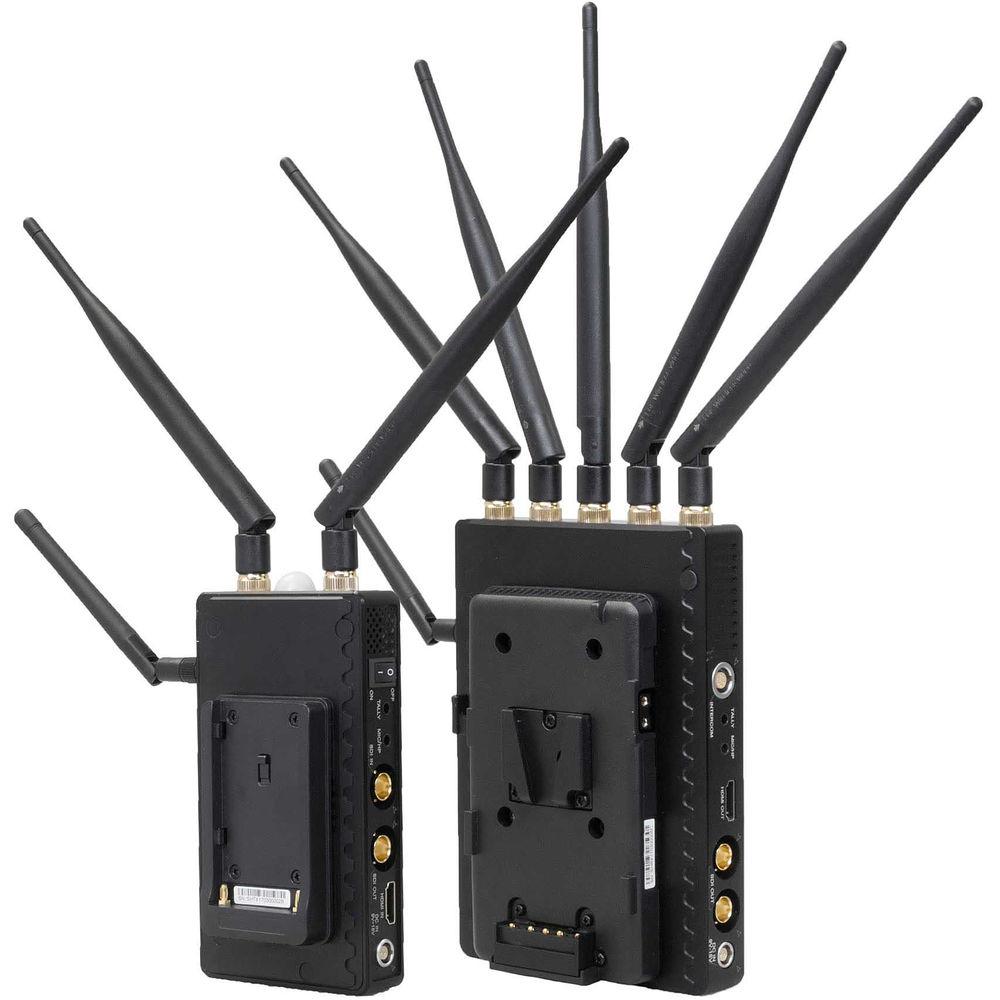

Product description Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600' with the CINEGEARS Ghost-Eye Transmission Kit 800T, in a V-mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. It's cross-compatible with all other Ghost-Eye versions so you can connect longer/shorter-distance receivers if you'd like. The receiver in this kit features a V-mount battery plate attached on the back and the transmitter has a Sony L-series plate. Batteries are sold separately. The 800T system also features tally and talk-back functionality.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The set is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. - Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T
- Ghost-Eye Wireless Video Transmission T-Series Instructions
Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600' with the CINEGEARS Ghost-Eye Transmitter 800T. It safely supports up to four receivers (sold separately) simultaneously on each channel and is cross-compatible with any Ghost-Eye receiver model. It also features tally and talk-back functionality.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the optional receiver end or vice-versa.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. The transmitter features a Sony L-series battery plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600'

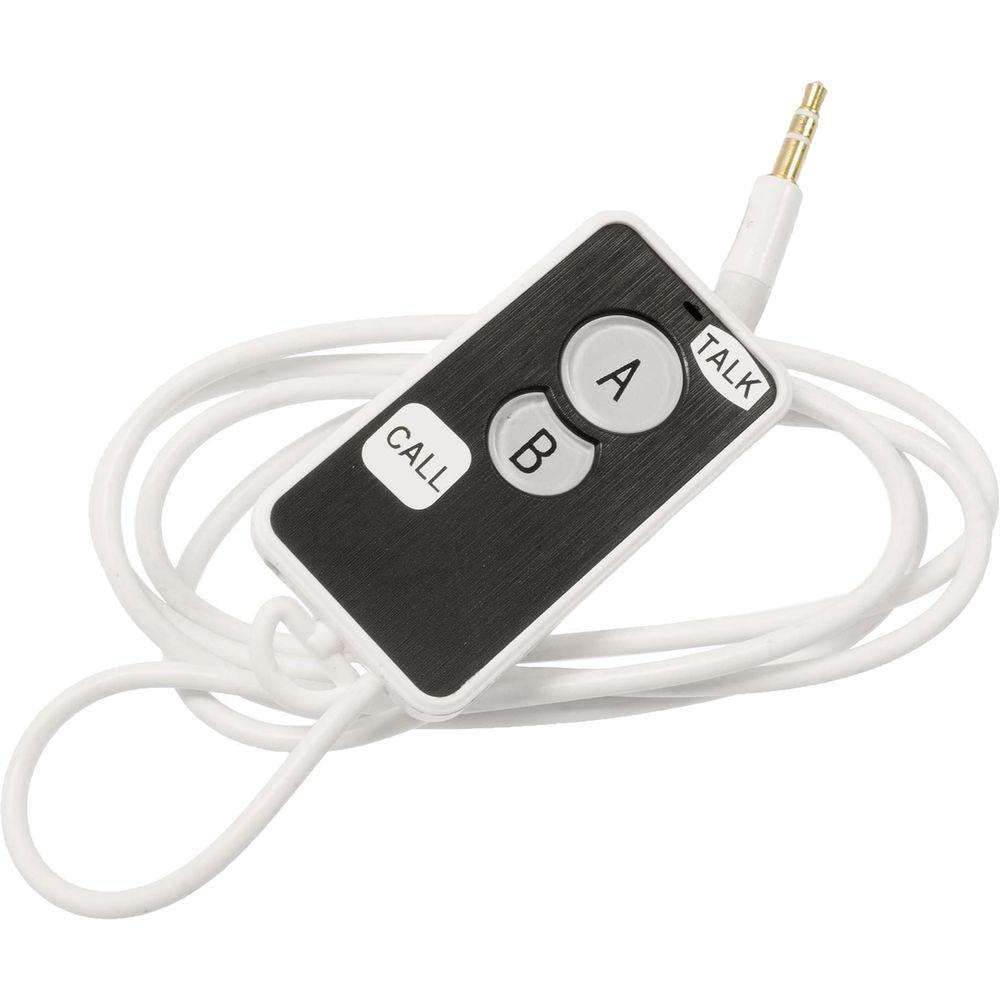

- Tally and talkback
- Supports up to 4 receivers simultaneously on each channel
- Supports any Ghost-Eye receiver
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- Sony L-series battery plate
UPC: 612520356125 - Ghost-Eye Wireless HDMI & SDI Video Receiver 800T The CINEGEARS Ghost-Eye Receiver 800T pairs with any Ghost-Eye transmitter and accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600' away with less than 1 ms of latency (depending on the transmitter). It operates on the license-free 5 GHz frequency band. The 800T also features tally and talk-back functionality.
The receiver features both HDMI and SDI outputs and is capable of cross-conversion, whereby an HDMI input can be output via SDI or vice versa. Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1 ms of the obstacle being removed.
The receiver comes with a V-mount battery plate. - Key Features
-
- Pairs with any Ghost-Eye transmitter
- Accepts uncompressed, 1080p60, 10-bit, 4:2:2 video from up to 2,600'
- Tally and talkback
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- V-mount battery plate
- Plug-and-play installation

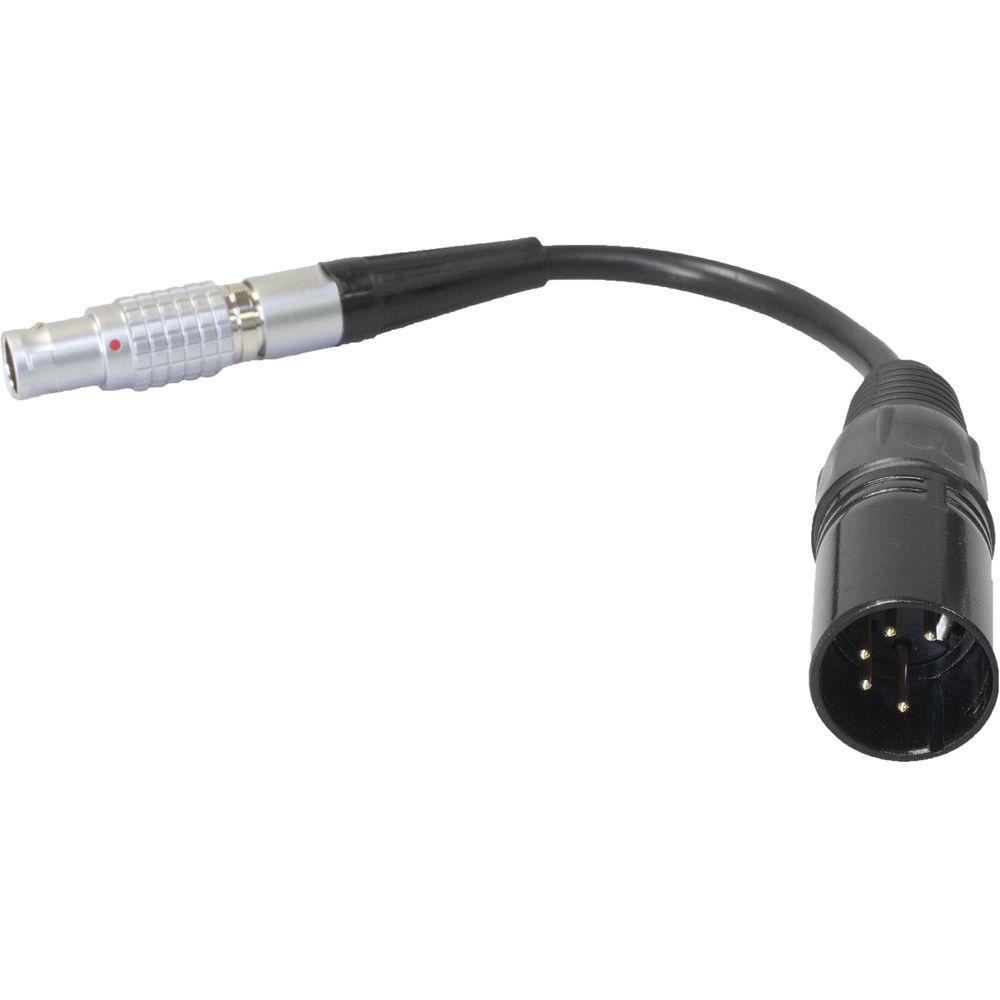

UPC: 612520356132 In the Box Bundle Items Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T bweawstqdasxwyfuqtscztdvdzycrsvvadvyx - 2-Pin LEMO to D-Tap Power Cable
- 2 x Extended High-Range Antennas
Ghost-Eye Wireless HDMI & SDI Video Receiver 800T - 2-Pin LEMO to D-Tap Power Cable
- 5 x Extended High-Range Antennas
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 800T in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 800T can be downloaded in PDF format at the link stated below.
Technical parameters - Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T
| Interface | Input:
1 x SDI BNC, female
1 x HDMI Type A, female | | Transmission Distance | 2,600' (800 m) line-of-sight | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | - Ghost-Eye Wireless HDMI & SDI Video Receiver 800T
| Interface | Output:
1 x HDMI Type A, female
1 x SDI BNC, female
1 x SDI, loop-through out | | Transmission Distance | 2,600' (800 m) line-of-sight
| | Video Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 - 5.9 GHz |
Rating50% users recommend this product to others. And what about you?
