User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 800T Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission T-Series Instructions

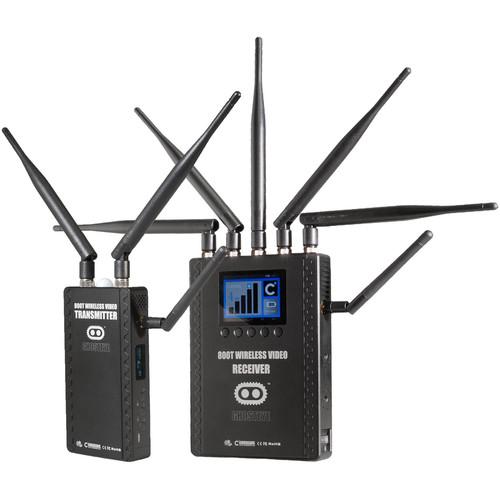

Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600' with the CINEGEARS Ghost-Eye Wireless Transmission Kit 800T, in a Gold mount version. The kit includes a single transmitter and single receiver but safely supports up to four receivers simultaneously on each channel. It's cross-compatible with all other Ghost-Eye versions so you can connect longer/shorter-distance receivers if you'd like. The receiver in this kit features a Gold mount battery plate attached on the back and the transmitter has a Sony L-series plate. Batteries are sold separately. The 800T system also features tally and talk-back functionality.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The set is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI, or vice versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your signal connected. For safety, signals dropped due to interference or loss of line of sight are automatically relinked within 1 ms of the obstacle being removed. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600'
- Tally and talkback
- Supports up to 4 receivers of any Ghost-Eye model simultaneously on each channel
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink

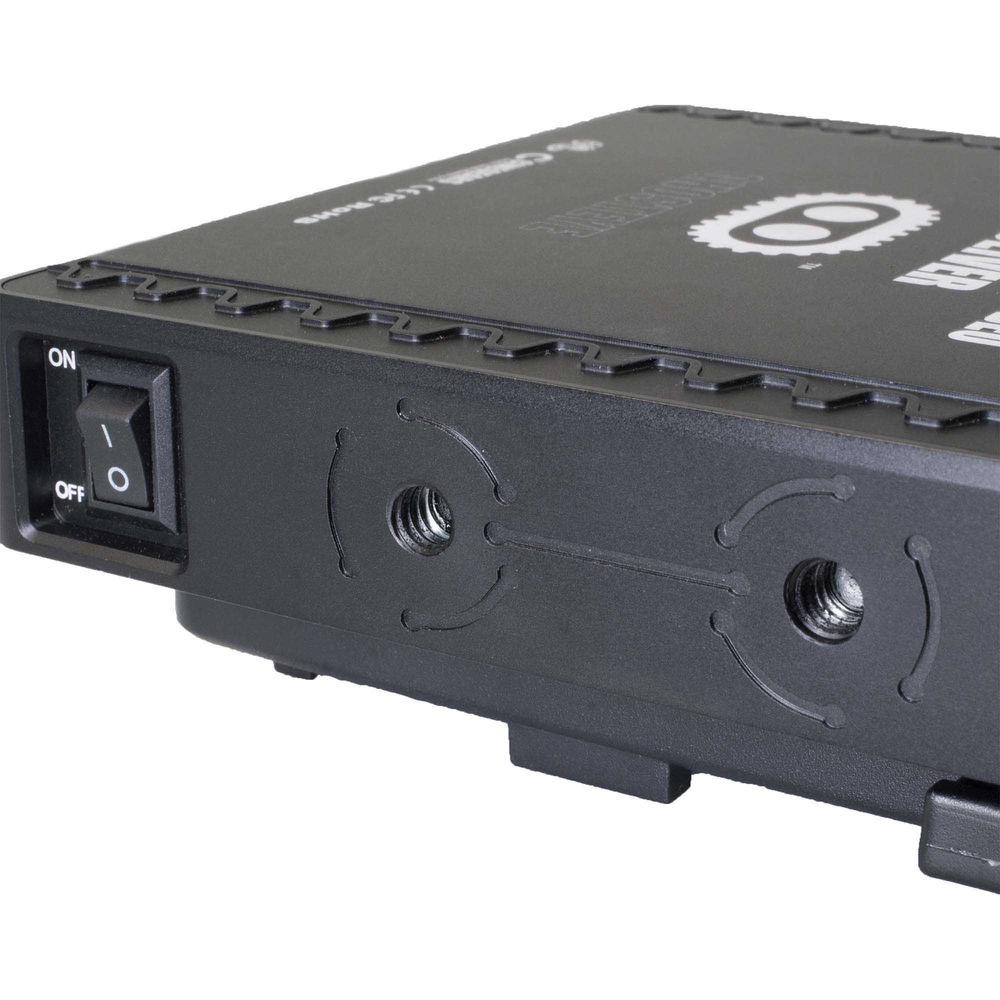

- Transmitter with Sony L-series battery plate

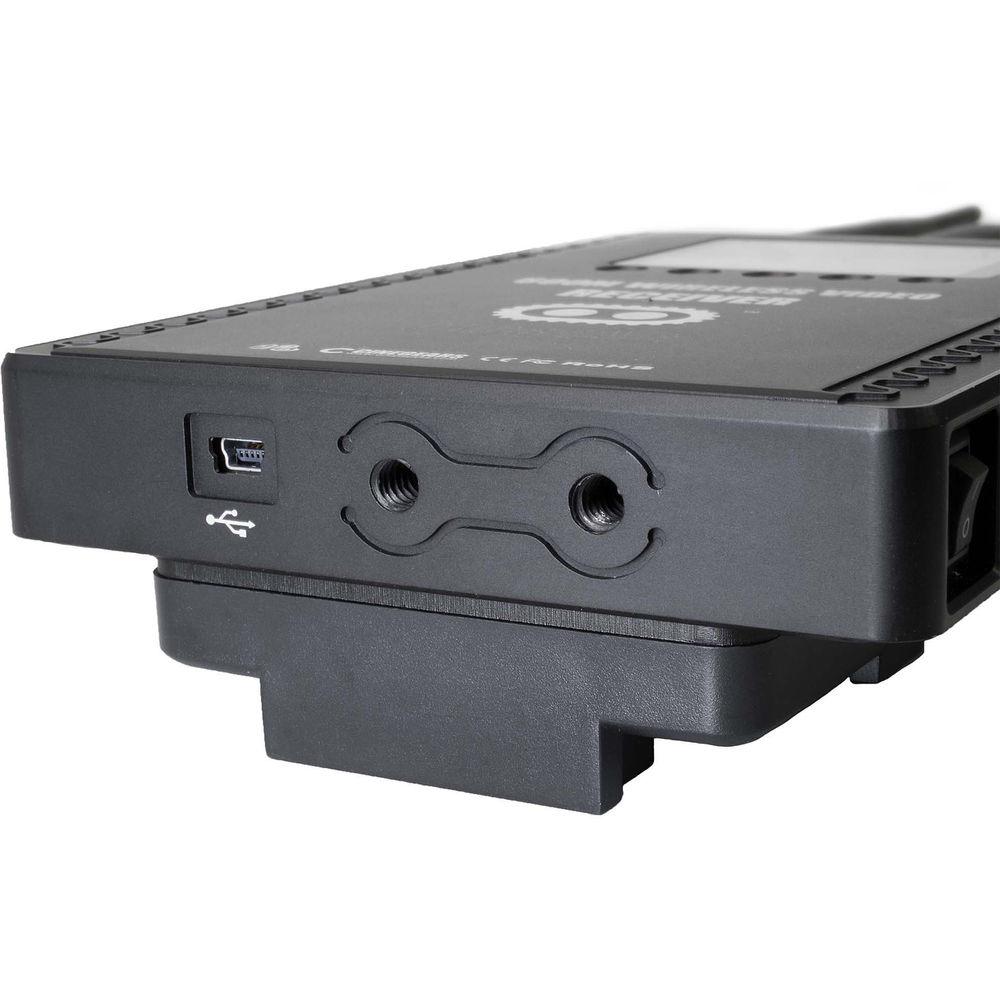

- Receiver with Gold mount plate

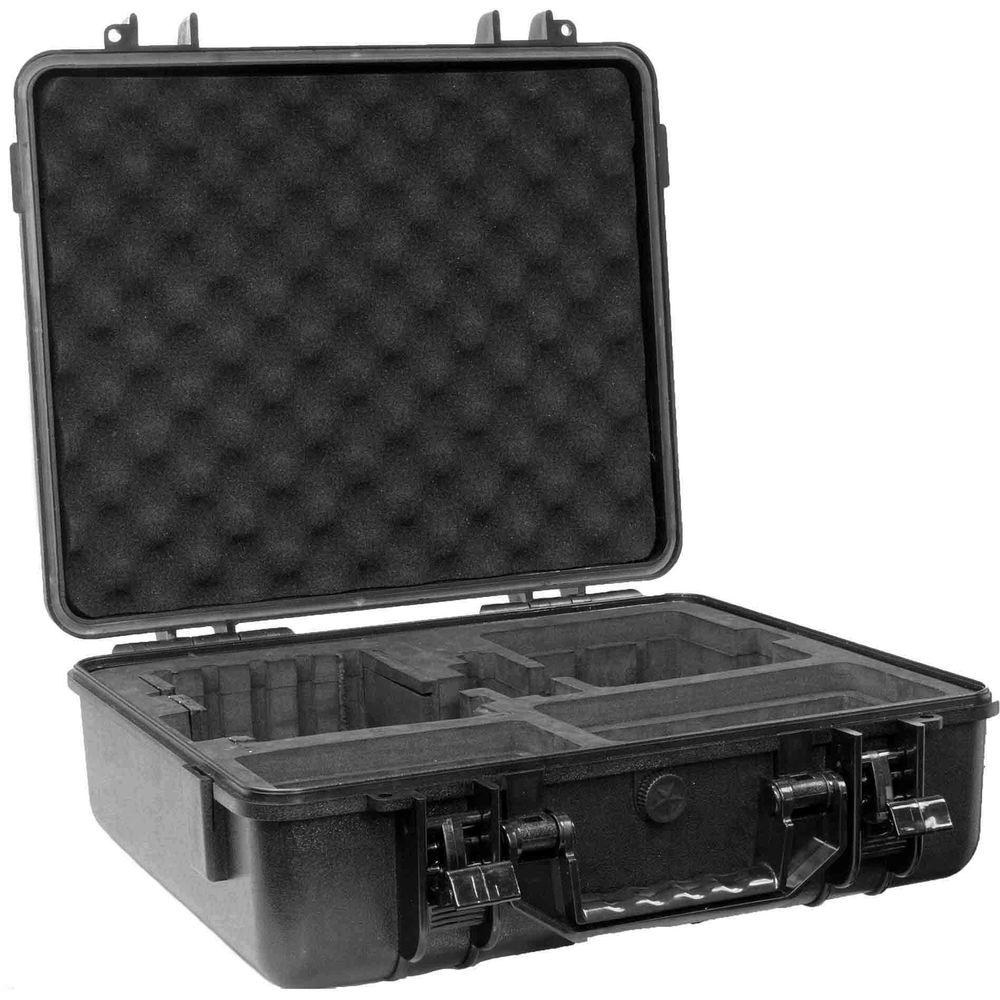

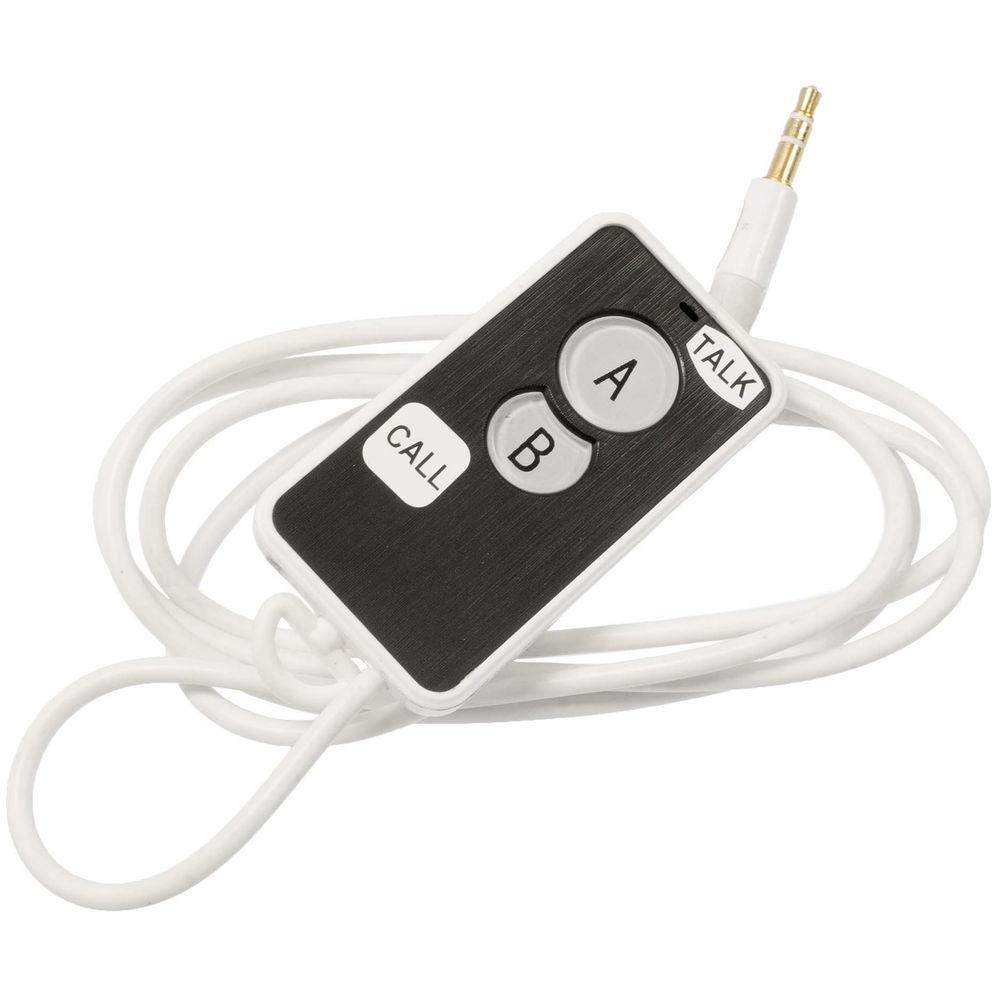

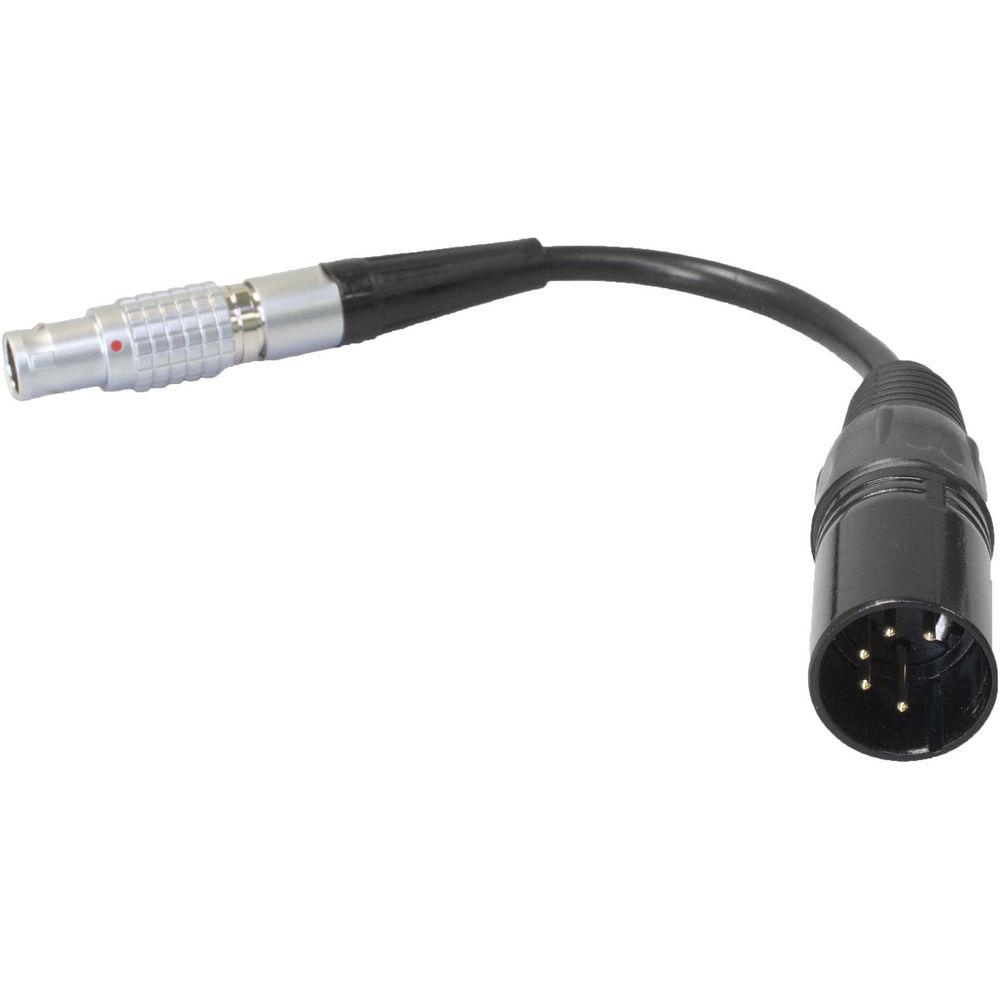

UPC: 612520356460 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 800T (Gold Mount) Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T Ghost-Eye Wireless HDMI & SDI Video Receiver 800T (Gold Mount) Talk-Back Control 5-Pin to XLR Connector Extended High-Range Antennas Standard Antennas Waterproof Foam Case Limited 3-Year Warranty Guides & Manuals eyrsxcsuqzc Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 800T in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 800T can be downloaded in PDF format at the link stated below.
Technical parametersCINEGEARS 6-807 Specs | Input/Output | Transmitter:
1 x SDI BNC input, female
1 x HDMI Type A input, female
1 x SDI, loop-through output
Receiver:
2 x SDI BNC output, female
1 x HDMI Type A output, female | | Transmission Distance | 2,600' (1000 m) line-of-sight | | Video Input/Output Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Frequency Band | 5.1 to 5.9 GHz | | | | Package Weight | 8.94 lb | | Box Dimensions (LxWxH) | 13.3 x 12.25 x 4.9" |
