User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

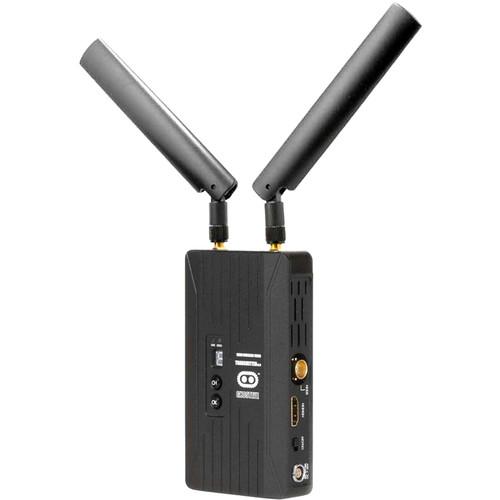

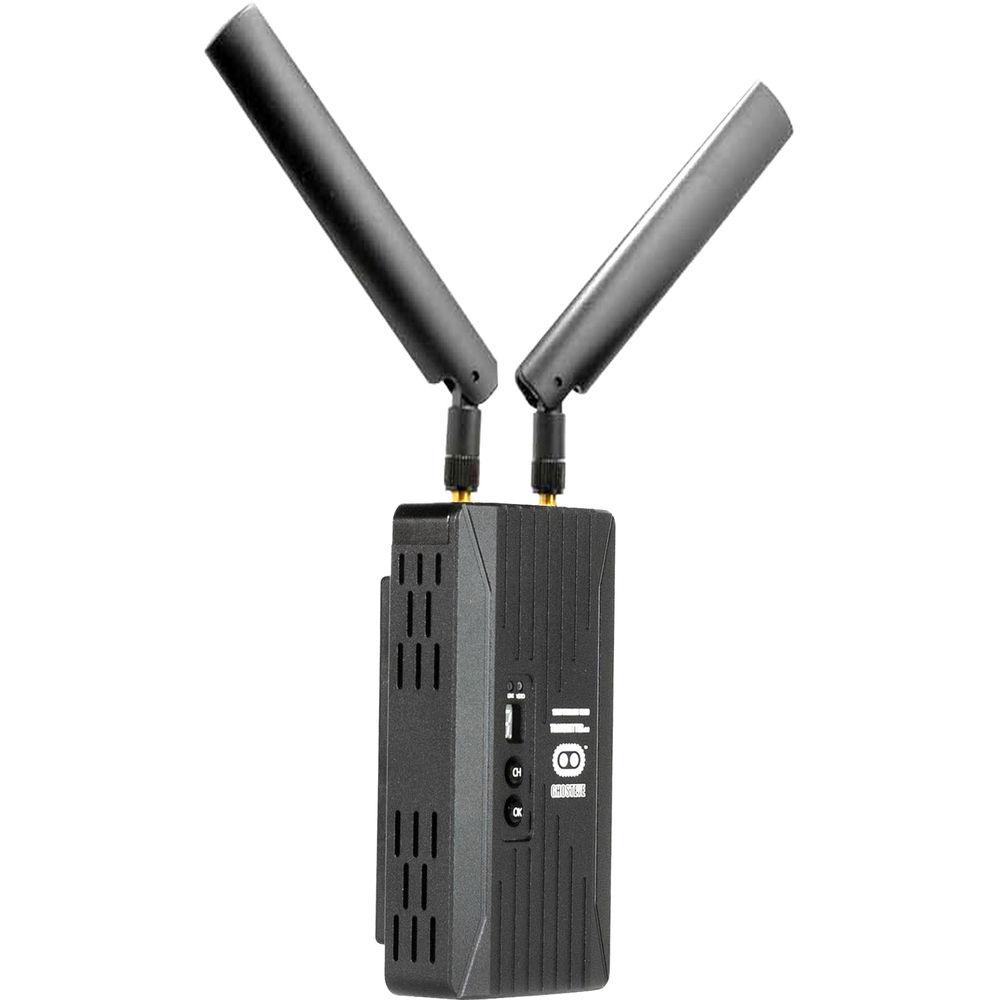

Product description Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 985 ft with the CINEGEARS Ghost-Eye Transmitter 150M V2. It safely supports up to four receivers (sold separately) simultaneously on each channel; moreover, it's cross-compatible with all other Ghost-Eye versions (100M, 150M, etc.), so you can connect to longer/shorter range receivers if you'd like.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1ms in the license-free 5 GHz frequency band. A minimum range of 492 ft (150 m) line-of-sight is ensured, while the maximum range is 985 ft line-of-sight. (It has even been successfully tested at much longer distances in open spaces.) The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the receiver end or vice-versa.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm, keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1ms of the obstacle being removed - auto-relink and improved hardware for a more stable connection are the new features in the V2 version. Other features of the transmitter include AES-128 signal encryption and plug-and-play installation.

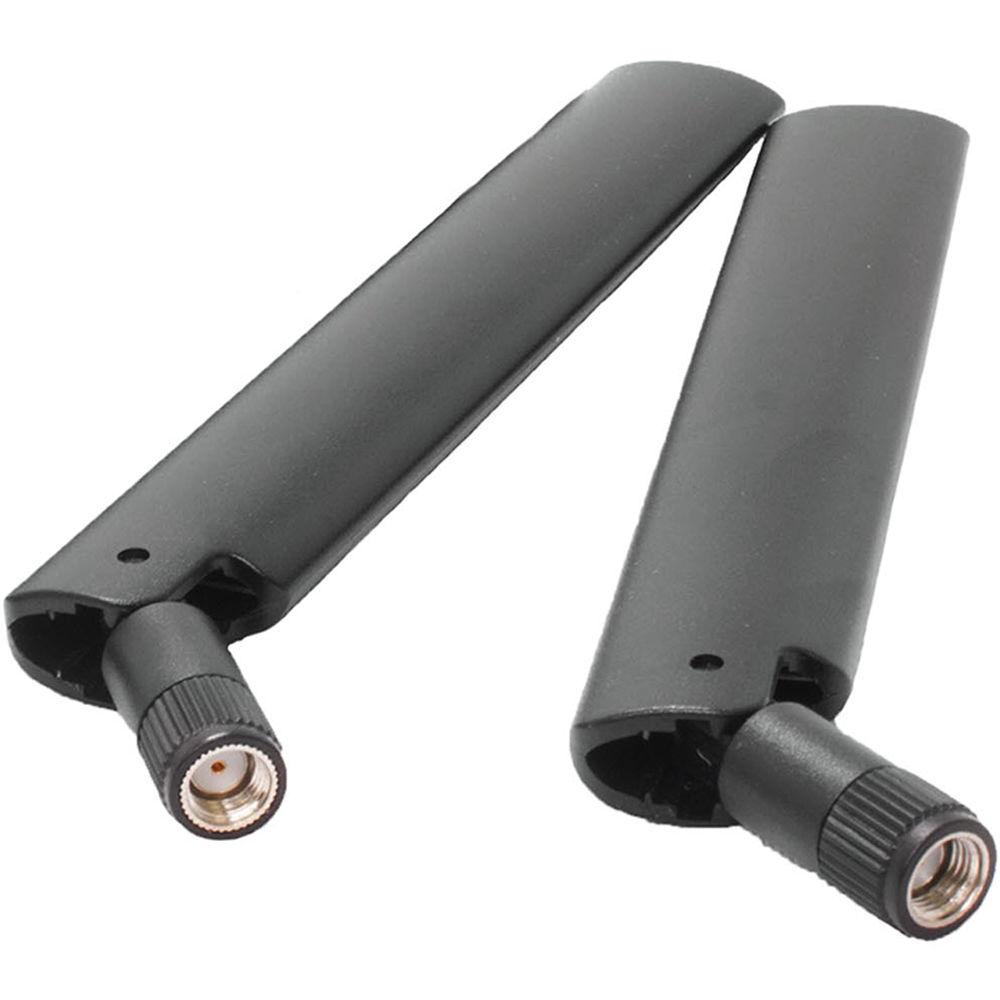

The 150M transmitter comes with two paddle antennas and a Sony L-Series battery plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 985 ft
- Compatible with any Ghost Eye receiver (100M, 150M, etc.)
- Supports 4 receivers simultaneously on each channel
- Less than 1ms of latency
- Operates on the license-free 5 GHz frequency band; coexists with Wi-Fi
- 492 ft (150m) line-of-sight to 985 ft max transmission distance
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line-of-sight
- Auto-relink
- AES-128 signal encryption
- Plug-and-play installation
- Includes two paddle antennas
- Sony F970 L-Series battery plate
UPC: 714983522281 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 (L-Series Plate) 2 x Paddle Antenna for Ghost-Eye 150M & 300M Wireless Video Transmission Systems crwrbryqzsdaxxrs 2-Pin LEMO to D-Tap Cable Limited 3-Year Warranty Guides & Manuals crwrbryqzsdaxxrs Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 150M V2 can be downloaded in PDF format at the link stated below.
Technical parametersCINEGEARS 6-152 Specs | Interface | Input:
1 x SDI BNC, female
1 x HDMI Type A, female

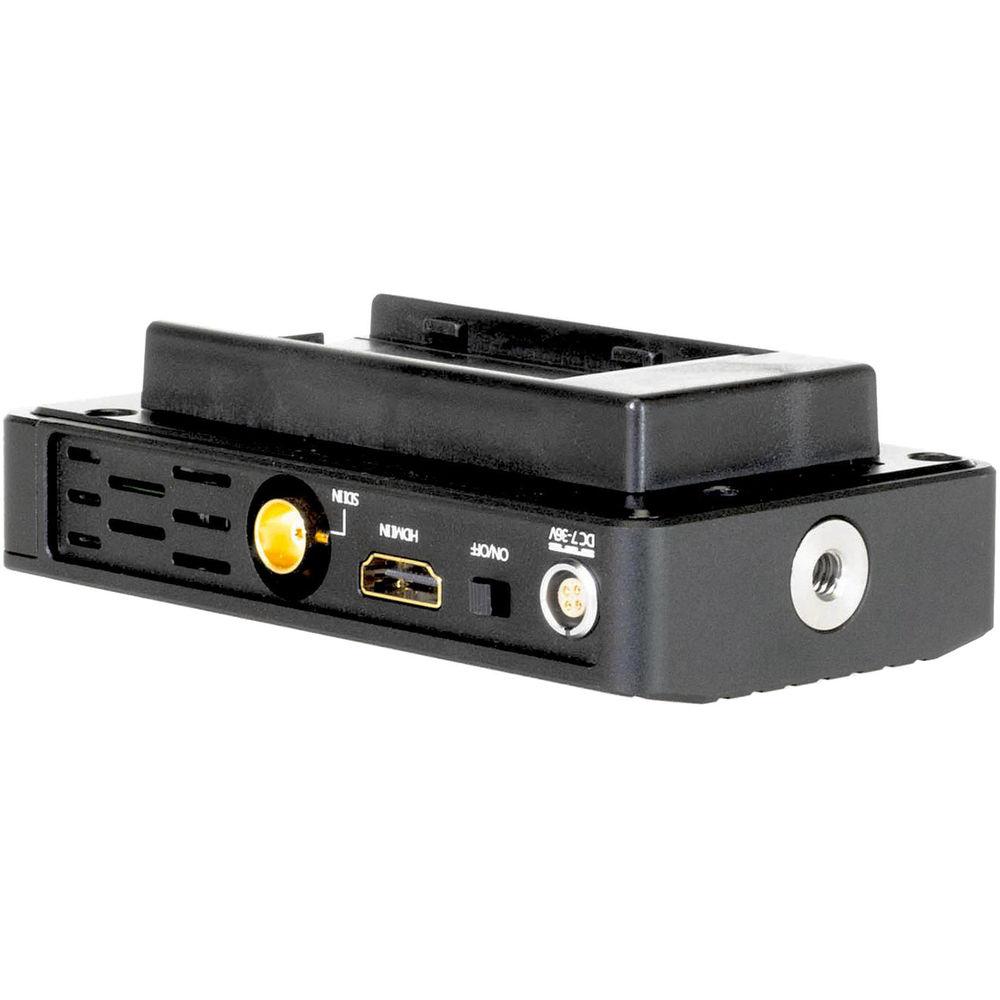

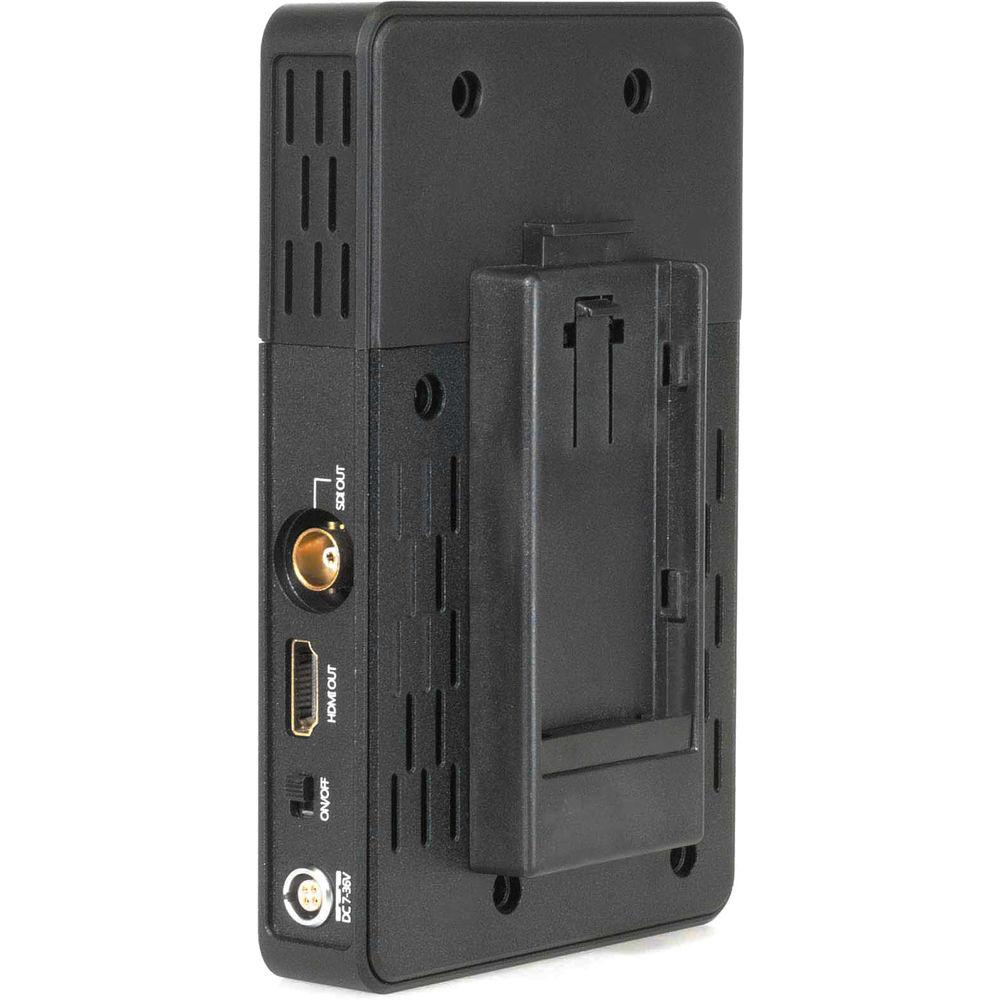

2 x antenna ports (PR-SMA male) | | Transmission Distance | 985 ft (300 m) line-of-sight
492 ft (150 m) minimum line-of-sight ensured | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 | | Audio Input Format | SDI embedded 2-channel 24-bit/48 kHz | | Frequency Band | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Transmission Power | <18 dBm | | Occupied Bandwidth | 40 MHz | | Encryption | AES-128 | | Housing | Plastic | | Power | Input Voltage Range: 6.5 to 16.8 VDC
Consumption: 5.5 W | | Compliance | FCC, CE, RoHS | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm) | | Weight | 0.6 lb (270 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.9 x 4.9 x 2.1" |
