Product description - Ghost-Eye Wireless Video Transmission 200M Review by Doug Johnson

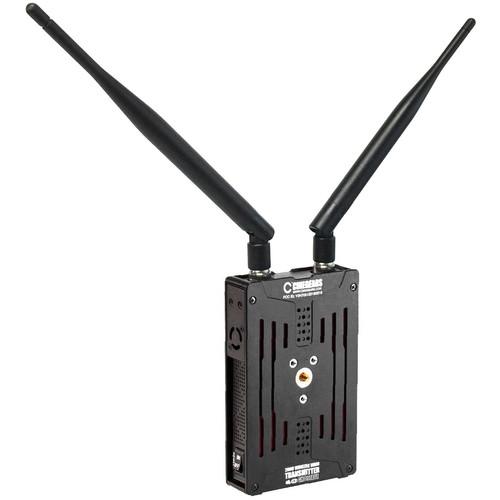

The Cinegears Ghost-Eye Wireless HDMI & SDI Video Transmitter 200M transmits an uncompressed HD or SD video signal up to 656' with near-zero latency to a corresponding Ghost-Eye Receiver 200M, sold separately. It's also cross-compatible with any other Ghost-Eye receiver model. The transmitter features HDMI and SDI inputs and delivers up to 1080p60 resolution at 10-bit, 4:2:2 sampling.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI (or vice-versa) on the optional receiver end.
Small obstacles in the line-of-sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. Other features include signal encryption and timecode. - LED Readout

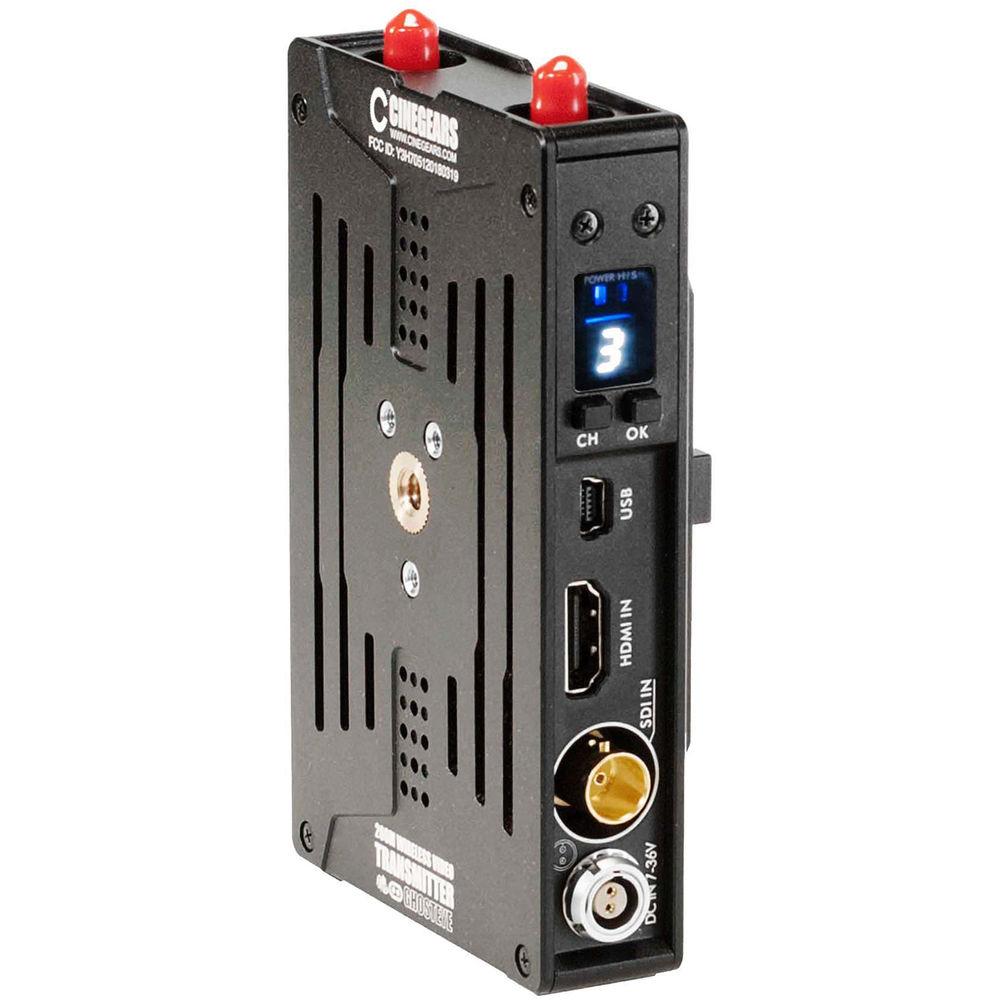

- Check and select your wireless channel using the easy-to-read LED numerical readout. Use one button to select the channel and the second button to confirm selection.
- Power Options

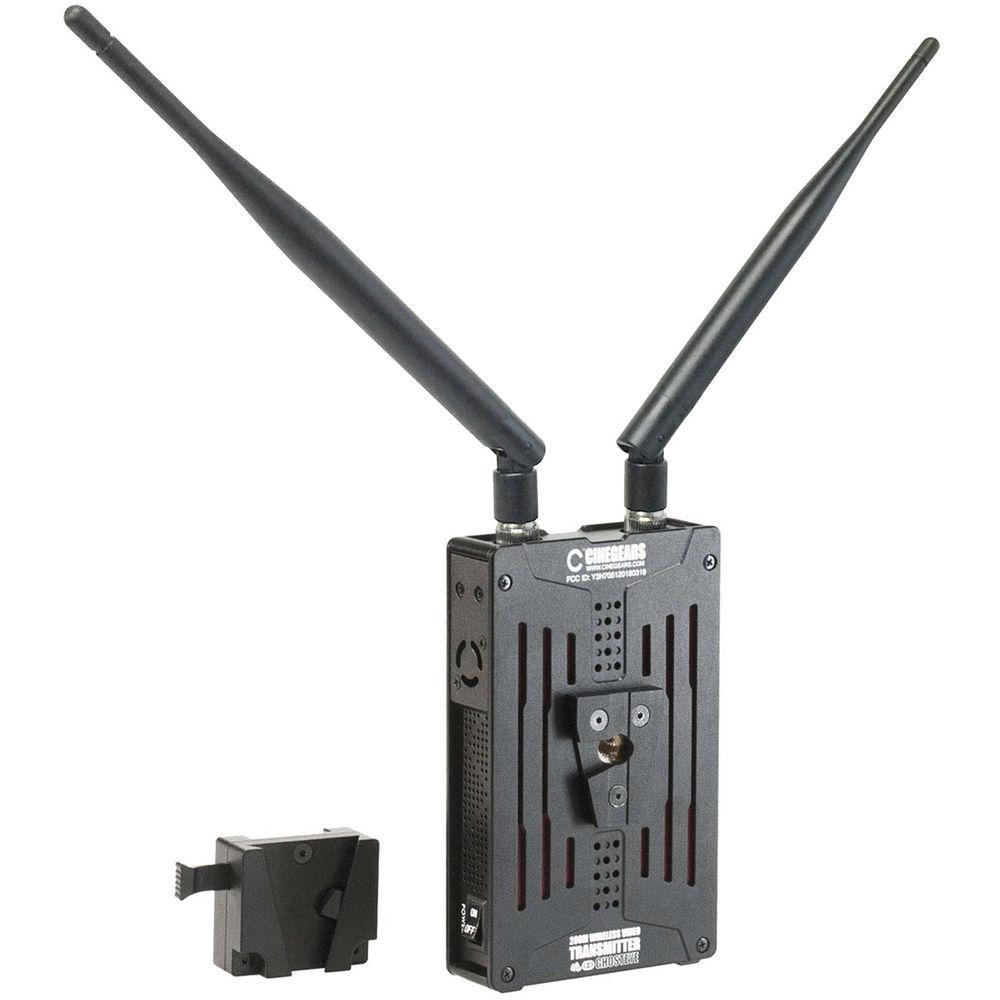

- Conveniently power the transmitter or receiver with widely available L-series batteries. Additionally, the transmitter has a 2-pin LEMO input for external power.
- Input/Output Cross Conversion
- HDMI input from the transmitter can be converted to SDI output (and vice-versa) on the optional receiver. Whether the source is HDMI or SDI, you can connect it to HDMI or SDI equipment without a hitch.
- Auto-Relink
- Lost signals can be recovered quickly once line-of-sight is re-established. Small objects within the line-of-sight will be compensated for automatically.

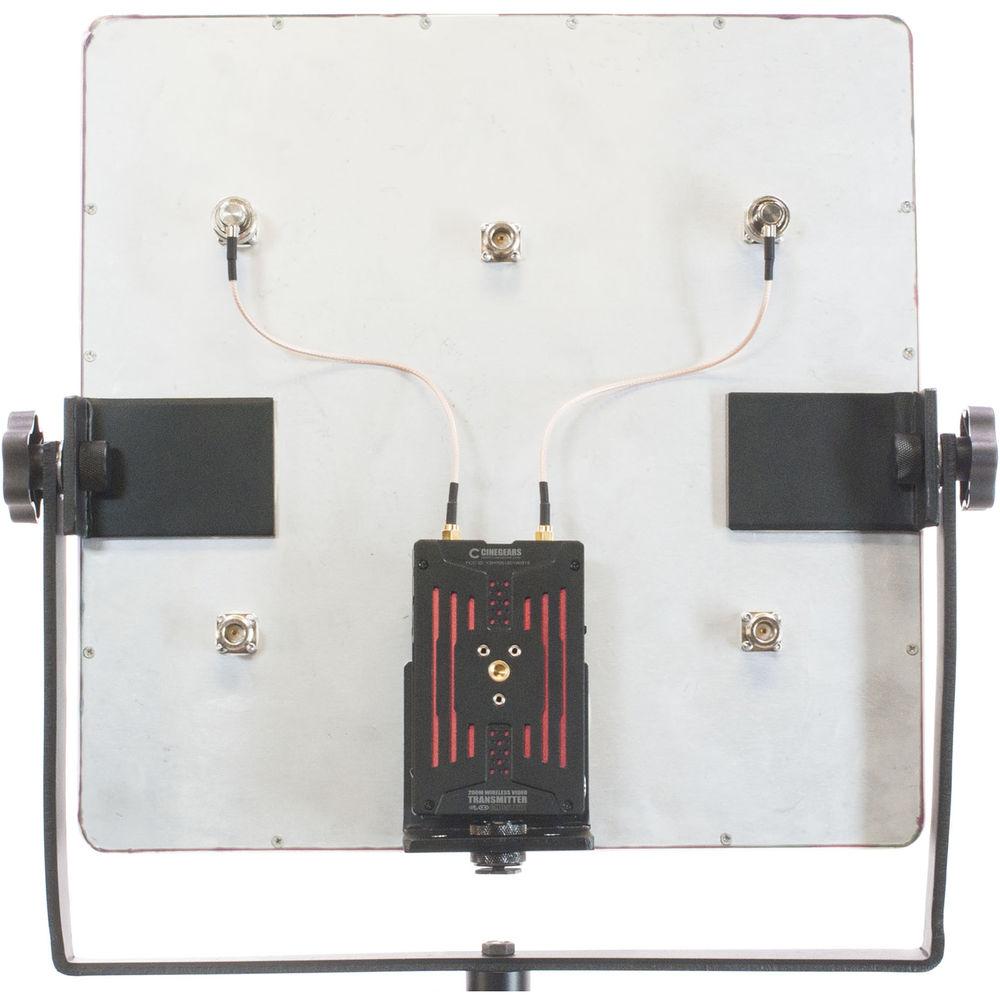

UPC: 610877598021 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 200M Two-Pin LEMO to D-Tap Power Cable for 400M Ghost-Eye System (2') 2 x Extended High-Range Antenna for 5G Large and Outdoor Projects Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 200M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ghost-Eye Specs | Inputs | 1 x HDMI Type A
1 x SDI on BNC | | Resolution | Up to 1080p, 60 fps | | Video Sampling | 10-Bit, 4:2:2 | | Transmission Distance | 656' / 200 m (with Included Antennas) | | Frequency | 5.1 - 5.9 GHz | | Compatible Receivers | Ghost-Eye 100M, 150M, 200M, 300M, 400M | | Antenna Ports | 2 x PR-SMA Male | | Modulation Mode | OFDM 16QAM | | Transmission Power | <18 dBm | | Bandwidth | 40 MHz | | Power | 2-Pin LEMO Input
L-Series Battery Plate | | Supply Voltage | 6.5 - 16.8 VDC | | Power Consumption | 5.5 W (Max) | | Compliance | FCC, CE, RoHS | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 68 to 140°F / 20 to 60°C | | Dimensions | 4.5 x 2.8 x 0.8" / 11.5 x 7 x 2 cm | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.08 lb | | Box Dimensions (LxWxH) | 8.9 x 4.6 x 3.5" |
