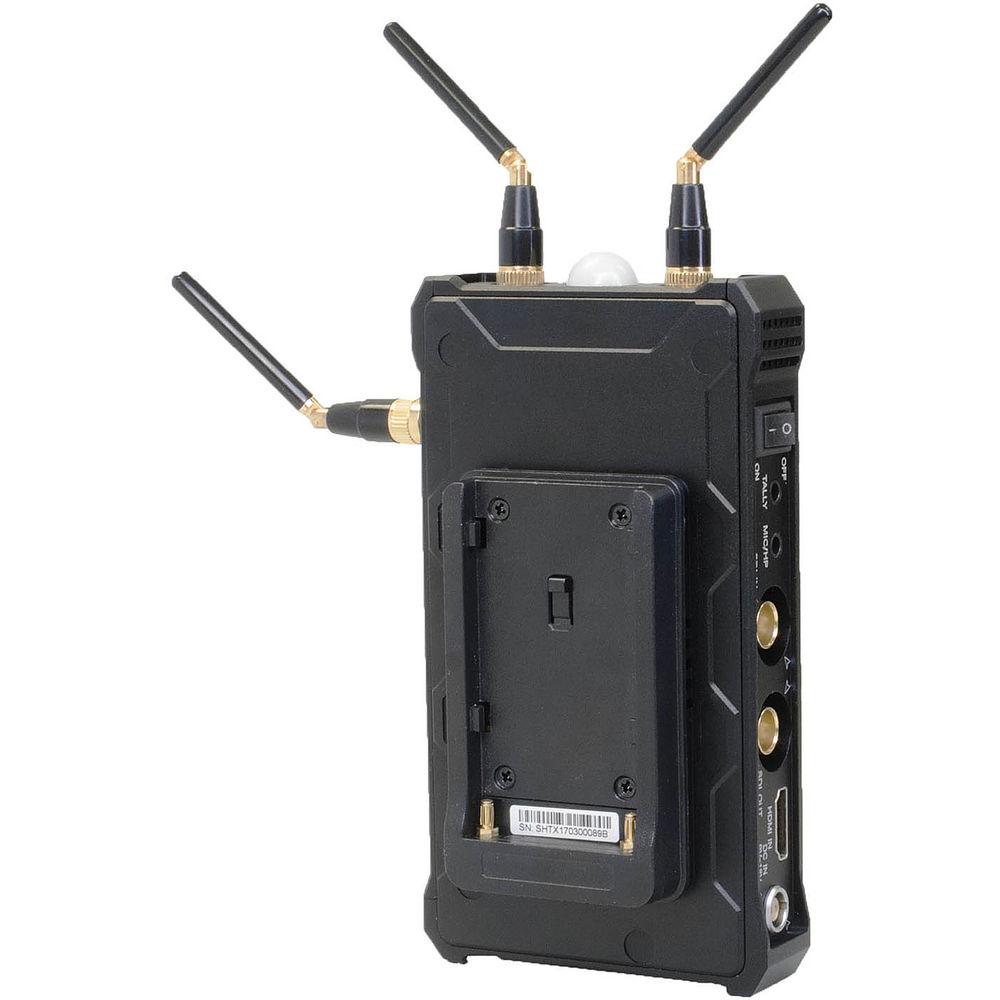

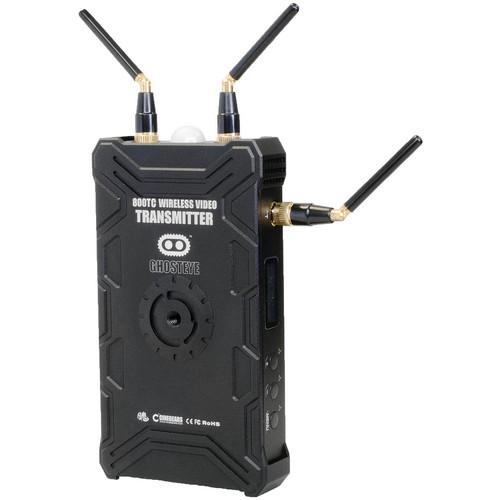

User Manual for CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T.Code Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI
- Product category: Wireless Transmission Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Transmission Systems
 |
User manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Ghost-Eye Wireless Video Transmission T-Series Instructions
Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600' with the CINEGEARS Ghost-Eye Transmitter 800T.Code. It safely supports up to four receivers (sold separately) simultaneously on each channel and is cross-compatible with any Ghost-Eye receiver model. It also features tally and talk-back functionality and timecode support.
Whether in a point-to-point or point-to-multipoint configuration, your HDMI or SDI signal is carried with a low latency rate of less than 1 ms over the license-free 5 GHz frequency band. The transmitter is also capable of HDMI/SDI cross-conversion, so you can input a signal via HDMI and output through SDI on the optional receiver end or vice-versa.
Small obstacles in the line of sight are compensated for by an adaptive signal logarithm keeping your transmitter and receiver connected. For safety, signals dropped due to interference or a loss of line-of-sight are automatically relinked within 1 ms of the obstacle being removed. The transmitter features a Sony L-series battery plate. Batteries are sold separately. - Key Features
-
- Transmit uncompressed, 1080p60, 10-bit, 4:2:2 video up to 2,600'
- Tally, talkback, and timecode
- Supports up to 4 receivers simultaneously on each channel
- Supports any Ghost-Eye receiver
- Less than 1 ms of latency
- Operates on the license-free 5 GHz frequency band
- HDMI and SDI outputs with cross-conversion capability
- Adaptive signal logarithm compensates for small obstacles in the line of sight
- Auto-relink
- Sony L-series battery plate
UPC: 612520356279 In the Box CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T.Code 2-Pin LEMO to D-Tap Power Cable 2 x Extended High-Range Antennas Standard Antenna Limited 3-Year Warranty User Manual PDF 7.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ghost-Eye Wireless HDMI & SDI Video Transmitter 800T.Code in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

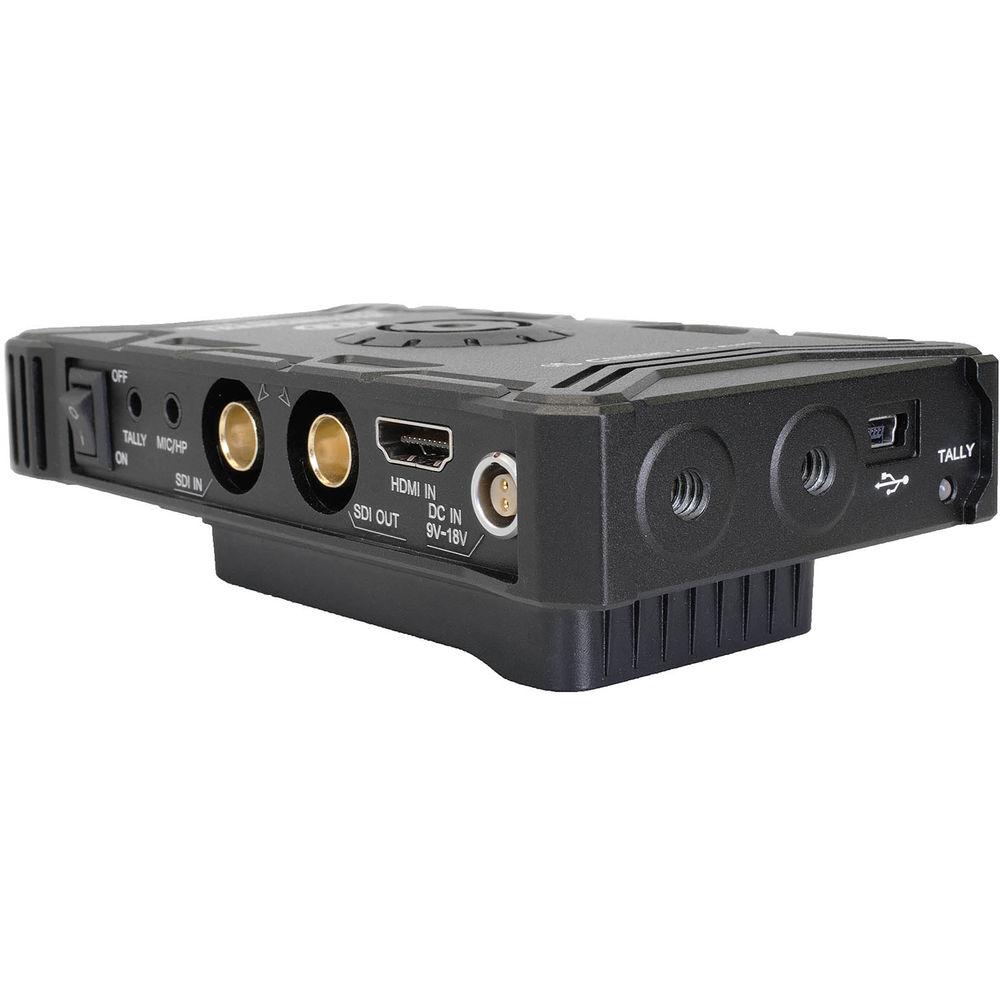

Technical parametersCINEGEARS 6-805 Specs | Interface | 1 x SDI input on BNC
1 x HDMI Type A input
1 x SDI local output on BNC | | Transmission Distance | 2,600' (800 m) line-of-sight | | Video Input Formats | 3G-SDI, HD-SDI (Auto/Manual):
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
HDMI Type A:
1080p: 60/59.94/50/30/29.9/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
625i: 60/59.94/50
525i: 60/59.94/50
SMPTE:
259/274/292/296/372/424/425 | | Color Depth | 8-bit; 10-bit 4:0:0, 4:2:2 |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
