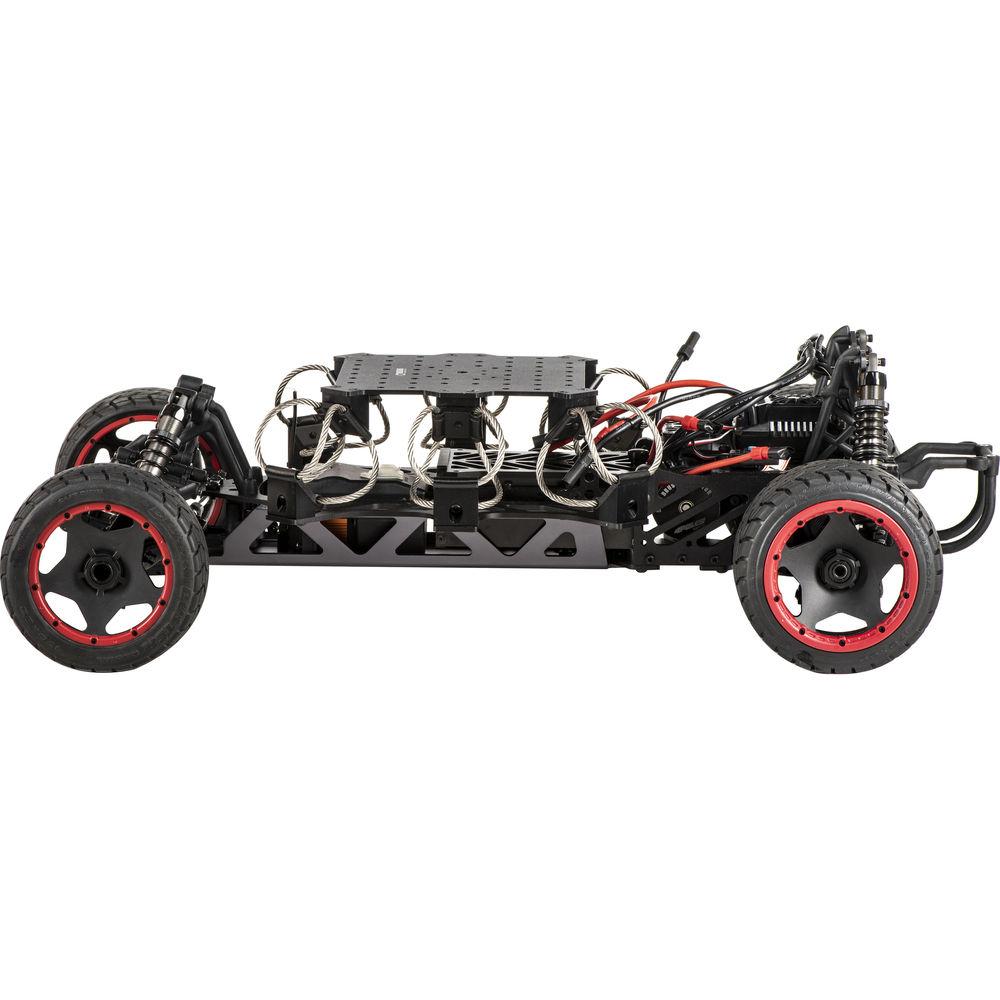

User Manual for CINEGEARS Hi-Speed Racing Gimbal Car Click to enlarge the picture
Contents of the user manual for the CINEGEARS Hi-Speed Racing Gimbal Car
- Product category: Stabilizers & Gimbals CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Stabilizers & Gimbals
 |
User manual for the CINEGEARS Hi-Speed Racing Gimbal Car contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - RC Gimbal Car Battery Installation (All New 2018!)
- Hi-Speed Racing Gimbal Car Ski / Rover Installation (All New 2018!)
- Cinegears New Gimbal Car 2019 Line Up
- RC Gimbal Cars by Cinegears (Brand New 2018 Models!)

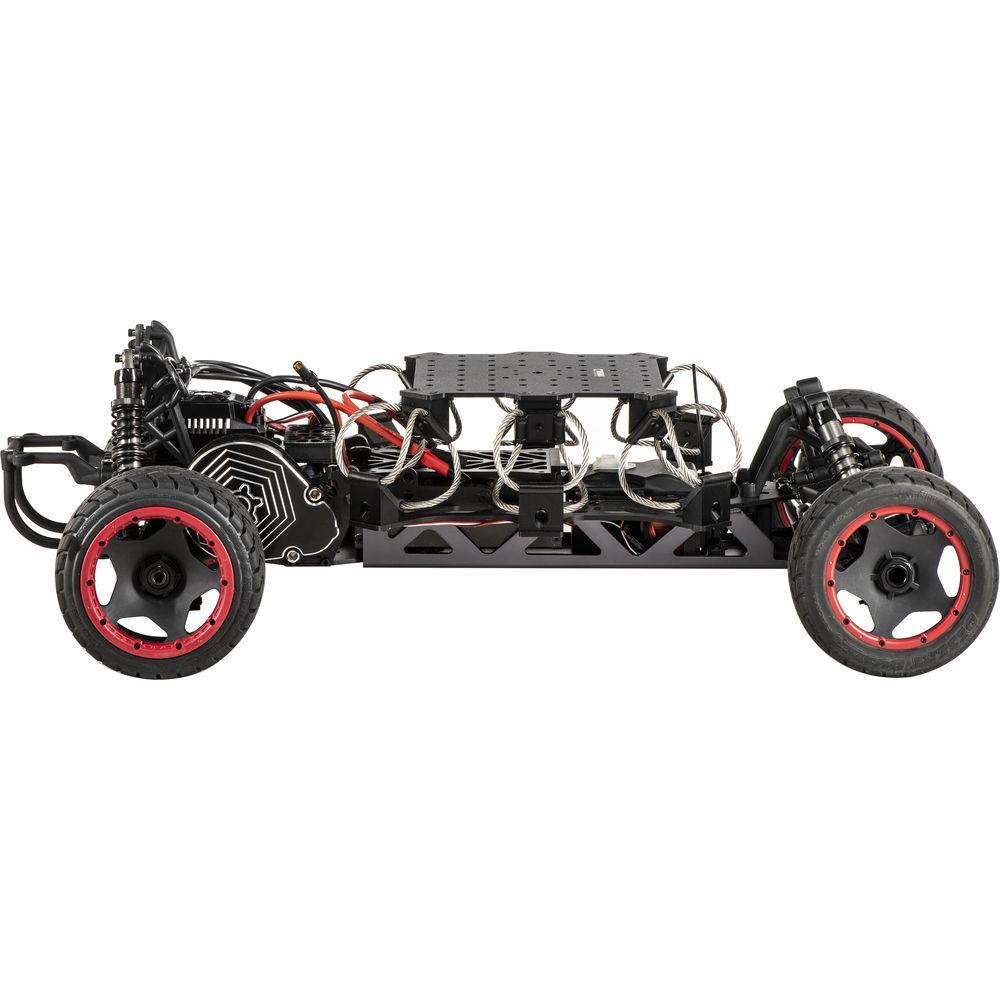

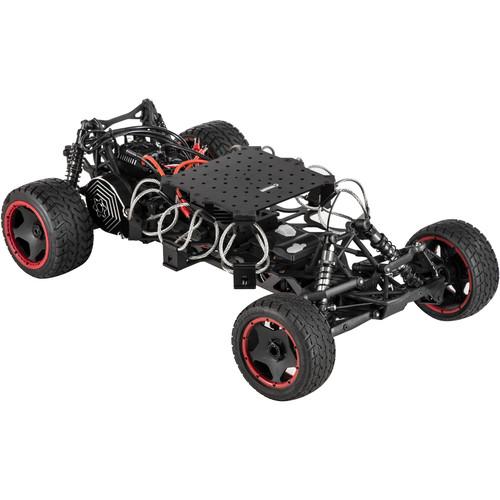

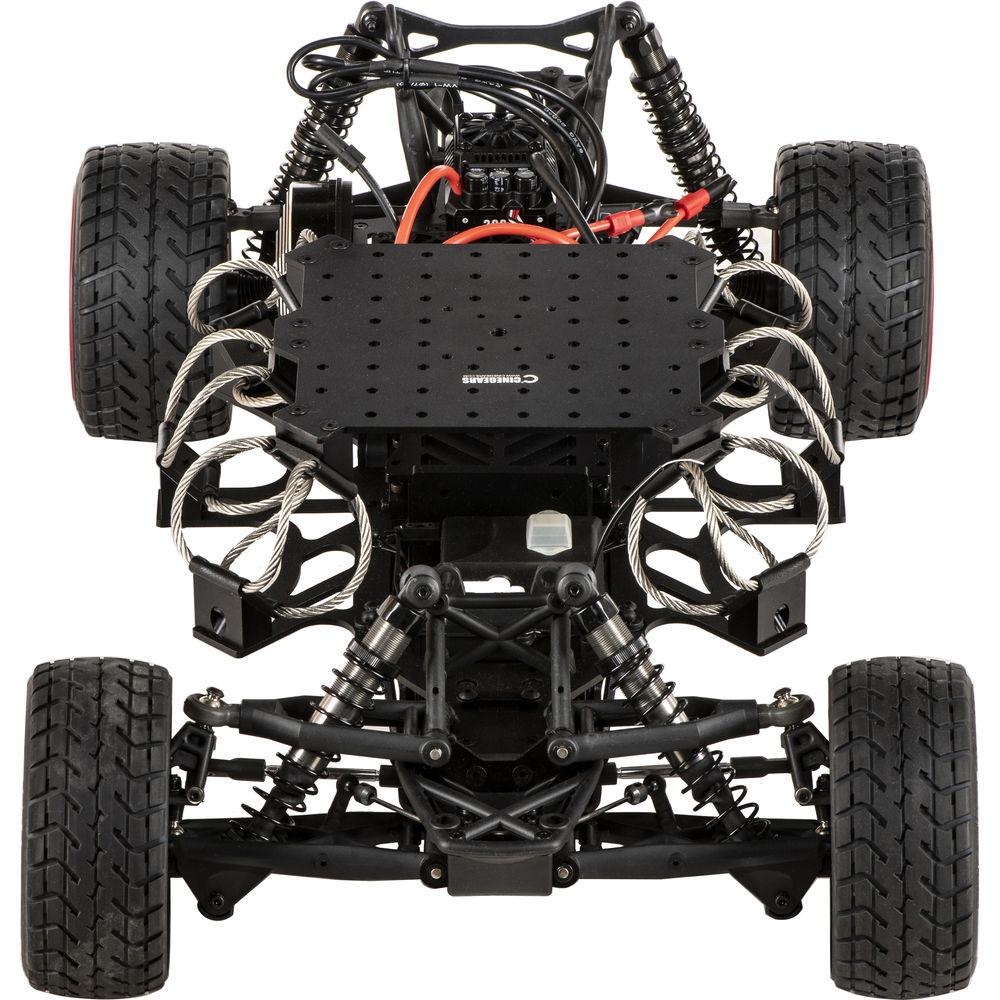

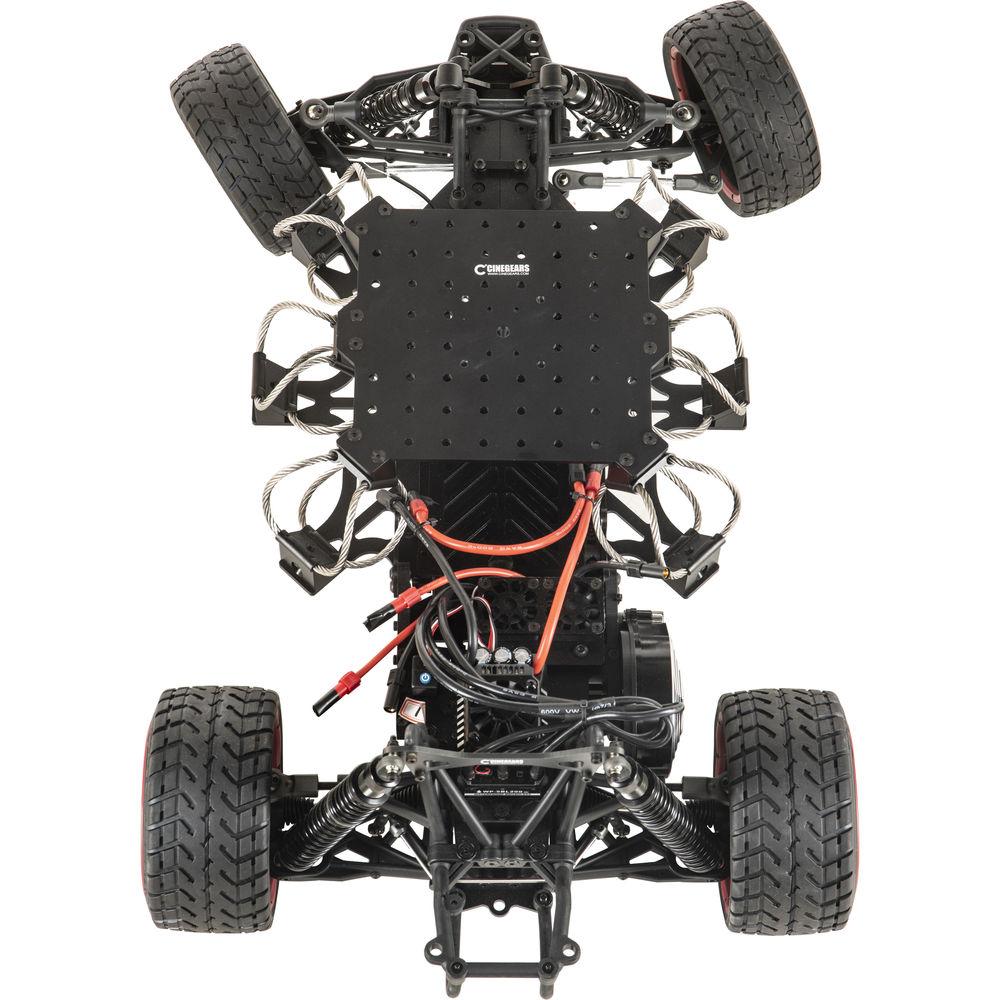

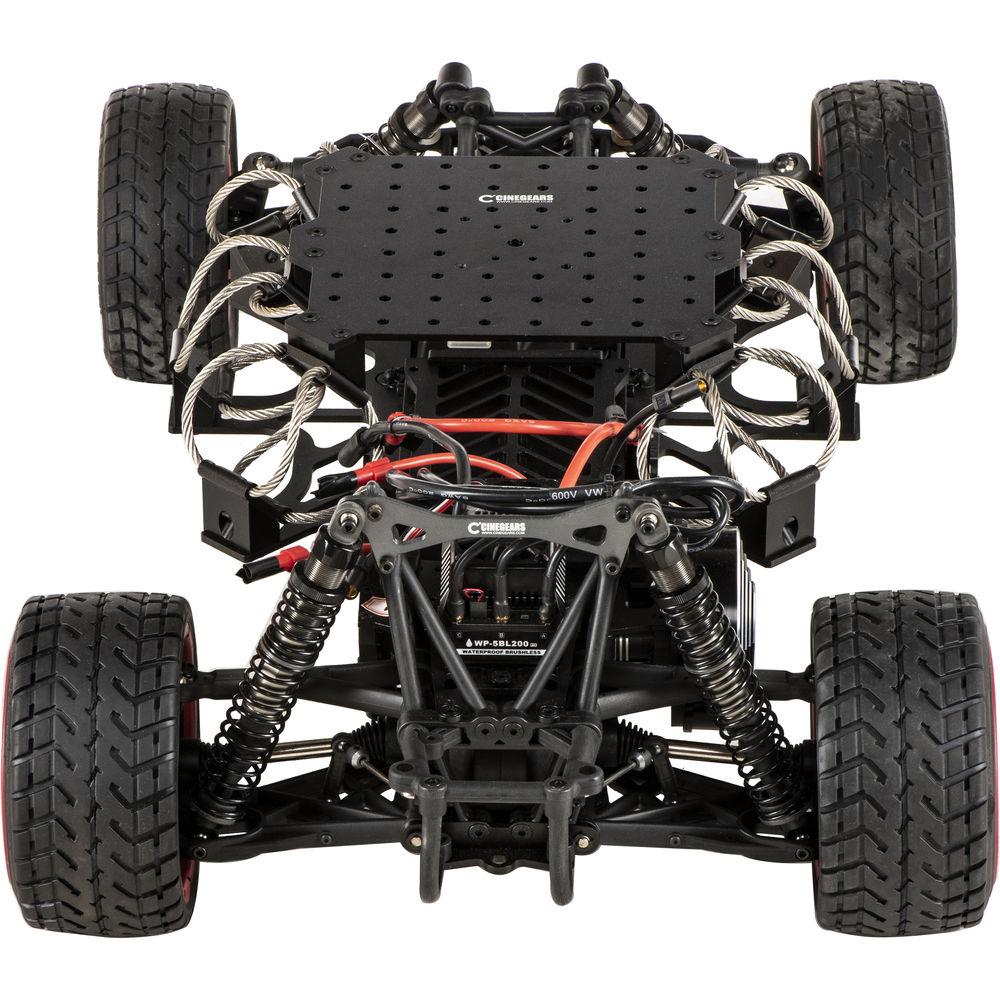

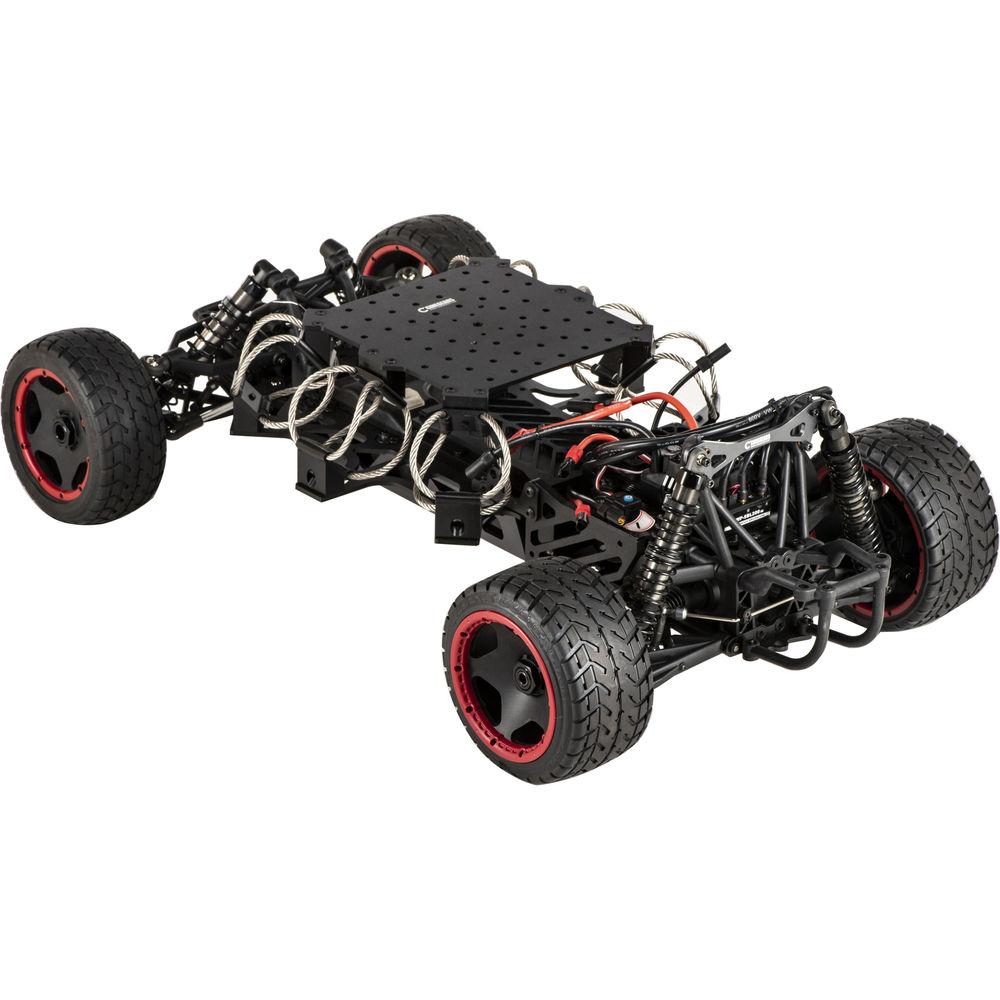

Capture anything from extreme off-road sports to simulated first-person chase scenes with the Hi-Speed Racing Gimbal Car from CINEGEARS. Boasting a top speed of 50 mph and 23.2" wide wheel axles, this high-performance RC vehicle allows for daunting low-angle shots. The gimbal car uses a 486 oz steering servo, weighs under 26.5 lb, and supports up to 21 lb of gear.
Designed to deliver shooting stability, the car is equipped with a three-point suspension system and a universal three-axis mount compatible with DJI and MoVI gimbals. A brushless 960Kv motor with a 200A ESC delivers fluid motion without sacrificing speed or acceleration. Two 5500mAh / 40C / 14.8V lithium batteries (available separately) keep your gimbal car running for up to 24 hours as you venture into areas inaccessible to drones and manned vehicles. - Waterproof and dustproof motor and transmission system
- Powered by dual 4S Li-ion batteries (available separately), 28V maximum power output
- Three-point suspension system including built-in heavy-duty stabilization platform
- Hydraulic spring dampener absorbs low-frequency vibrations while wide rope dampener absorbs high-frequency vibrations
- Aluminum alloy uni-body resilient to warping due to stress, temperature, and other environmental factors
- Heavy-duty wheel rim with separate tire tread and inner tube
- 2.4 GHz remote control range of up to 6.2 miles
- Quick release mount for DJI Ronin gimbals included
- Compatible with MoVI gimbals (MoVI plate available separately)
- Up to 24 hours of battery life with recommended battery options and settings

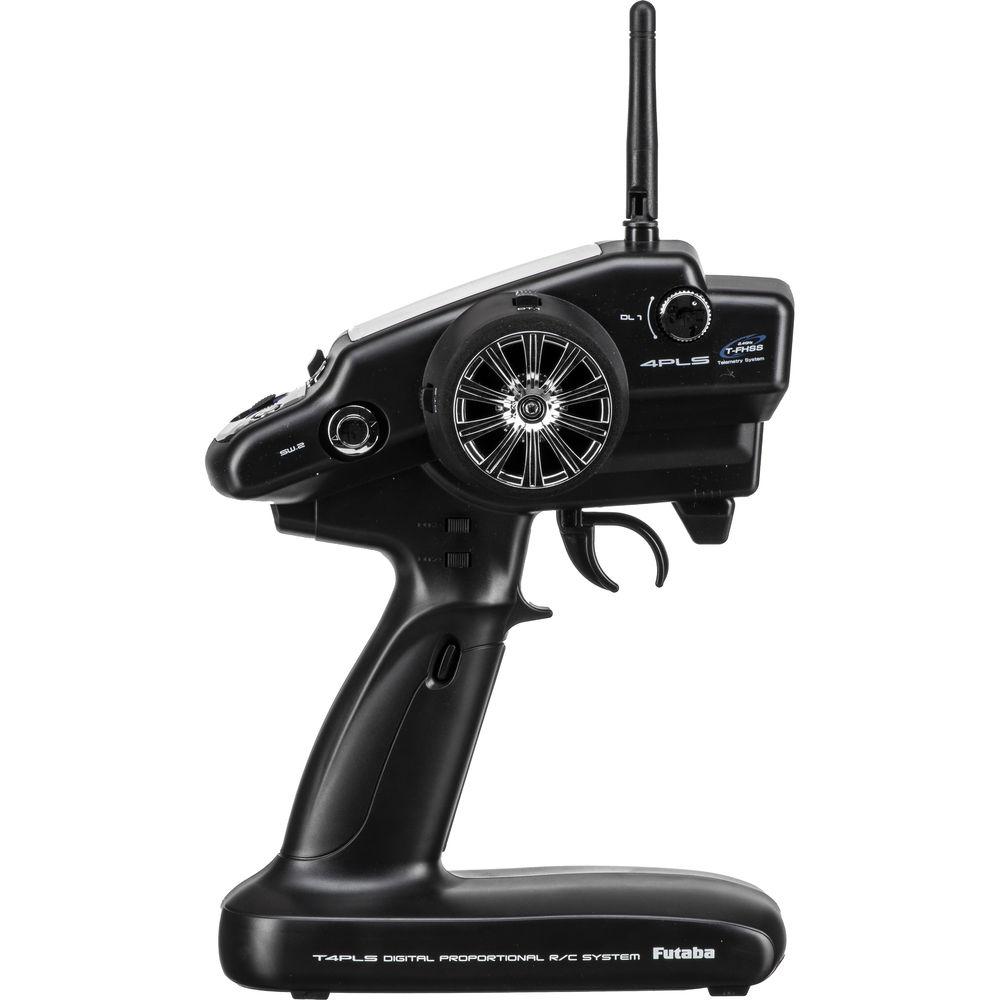

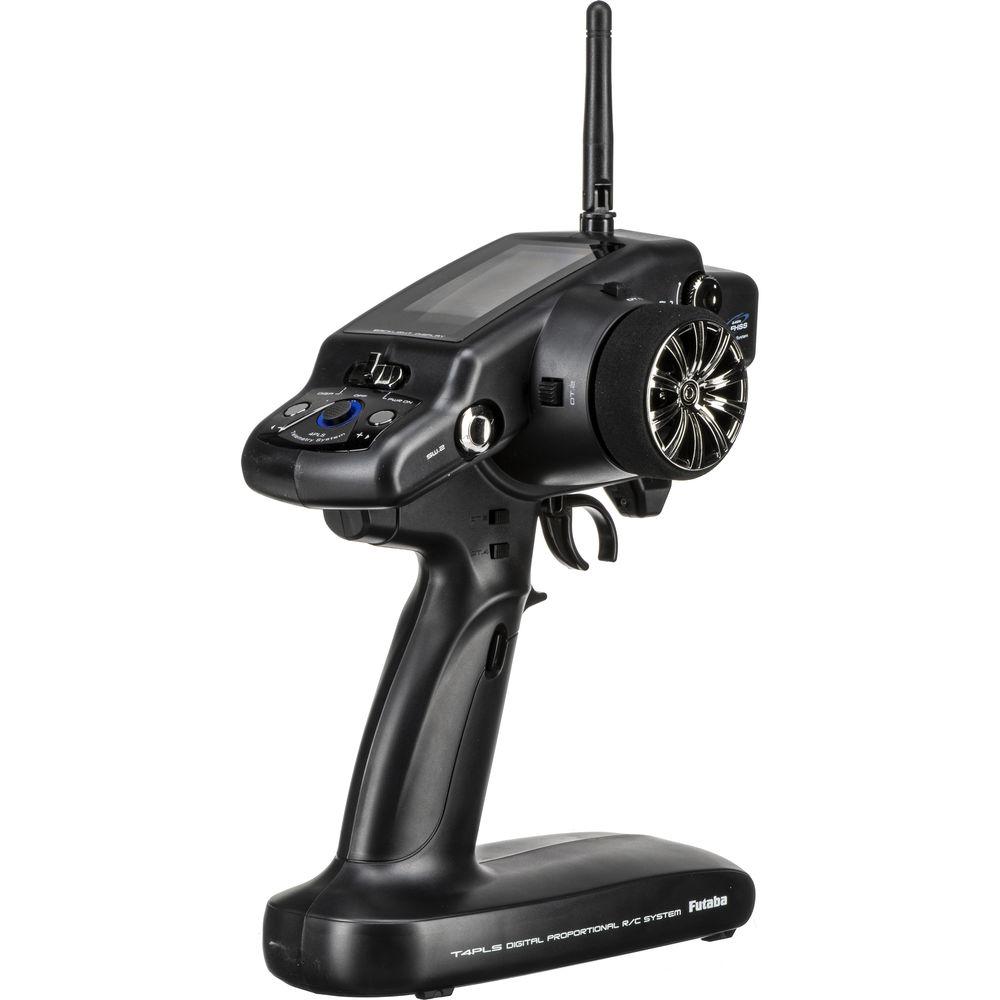

UPC: 611138357807 In the Box CINEGEARS Hi-Speed Racing Gimbal Car 2 x 6.7 x 3.1" Wheels 2 x 6.7 x 3.5" Wheels DJI Ronin Mounting Adapter Gimbal Car Controller Limited 3-Year Warranty User Manual PDF 651kbdruvveryub Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Hi-Speed Racing Gimbal Car in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 3-074 Specs | Speed | Up to 50 mph / 80 km/h | | Wheel | Axle: 23.2" / 590 mm | | Material | Body: Aluminum alloy
Mounting System: Carbon fiber | | Payload | 21 lb / 9.5 kg | | Servo | 486 oz / 35 kg steering servo | | Suspension | 3 separate sets
Hydraulic spring dampener | | Motor | Brushless 960 Kv motor (200 ESC) | | Remote Control | Range: Up to 10 km / 6.2 miles
Frequency: 2.4 GHz | | Batteries | Recommended: 2 x 4S Li-ion batteries with 28 V output
Also Supported: 6S and 8S Li-ion | | Battery Run Time | Up to 24 hours | | Dimensions | 36 x 22 x 12" / 91.4 x 55.9 x 30.5 cm | | Weight | Less than 26.5 lb / 12 kg | | | | Package Weight | 40.5 lb | | Box Dimensions (LxWxH) | 32.25 x 19.75 x 17.25" |
