Product description

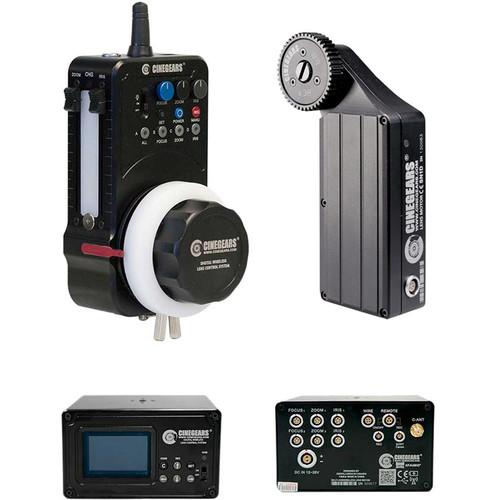

The Multi-Axis Wireless Follow Focus Kit from CINEGEARS allows you to set up a wireless lens control system on your camera equipped with a geared lens and either 15mm or 19mm support rods. It includes a wireless multi-axis hand controller, a wireless receiver, three multi-control motors, as well as mounting accessories and spare gears. The wireless hand controller does not have physical hard stops for lens control, but it does allow you to adjust the end points to program focus stops. The controller also incorporates a zoom control slider and iris adjustment.

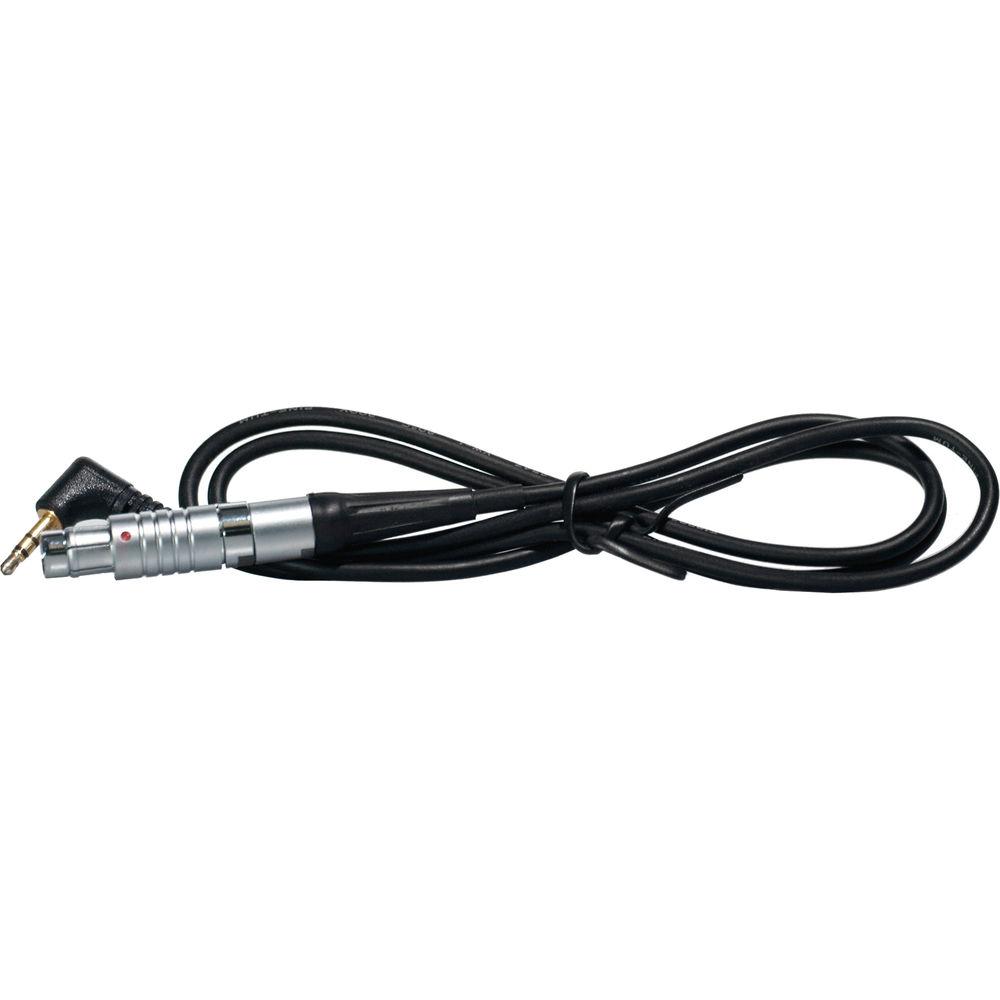

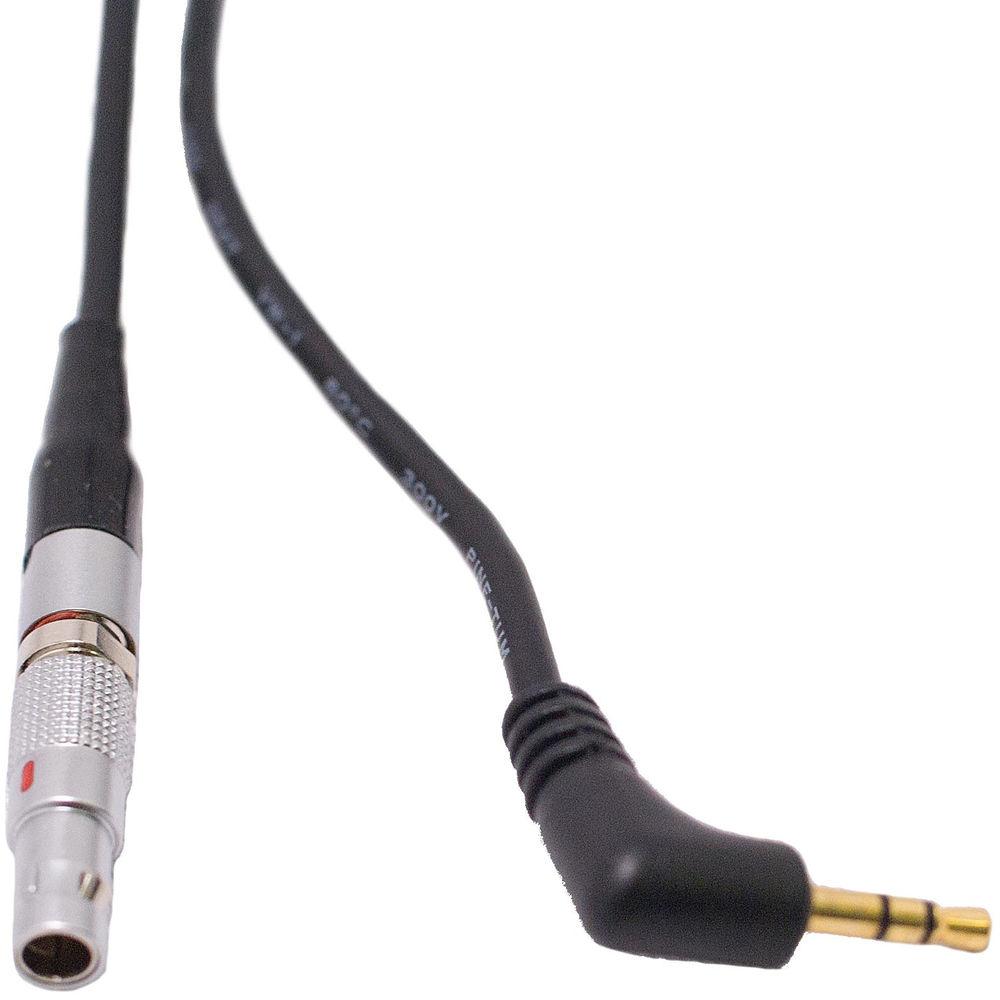

The motors connect via wires to the wireless receiver that mounts to your camera or rig. The wireless receiver can drive up to six motors, making it suitable for controlling focus, zoom, and iris on a single camera or stereoscopic rig. The wireless receiver can also control the start/stop of your camera. Each motor comes with a replaceable steel cinema-style drive gear. Furthermore, the kit includes four different replacement gears with gear MODs of 0.5, 0.6, 0.8, and 1.0 in case you have to drive lenses with non-cine-style gearing or plastic lens gears. The three included gear re-locators allow you to use lenses that feature focus, zoom, or iris adjustment in the opposite direction from standard, without having to alter your focus-pulling technique for those lenses. The kit fits into a waterproof case with foam inserts to protect your equipment during transport and storage.
Multi-Axis Motor
Cinegears Single Axis Standard Wireless Follow Focus Kit Operations Guide
Cinegears Single Axis Standard Wireless Follow Focus Kit Operations Guide
Cinegears Wireless Follow Focus System
Cinegears Wireless Follow Focus Motor Maintenance Tips
Quick Video Instruction of Cinegears Multi Axis Lens Control System
Multi-Axis Wireless Receiver Instructions
Multi-Axis Standard Motor Test on RED 18-85 Zoom Lens
Under the Macro: Cinegears Multi Axis Digital Lens Control System HD
Multi Axis Lens Control System

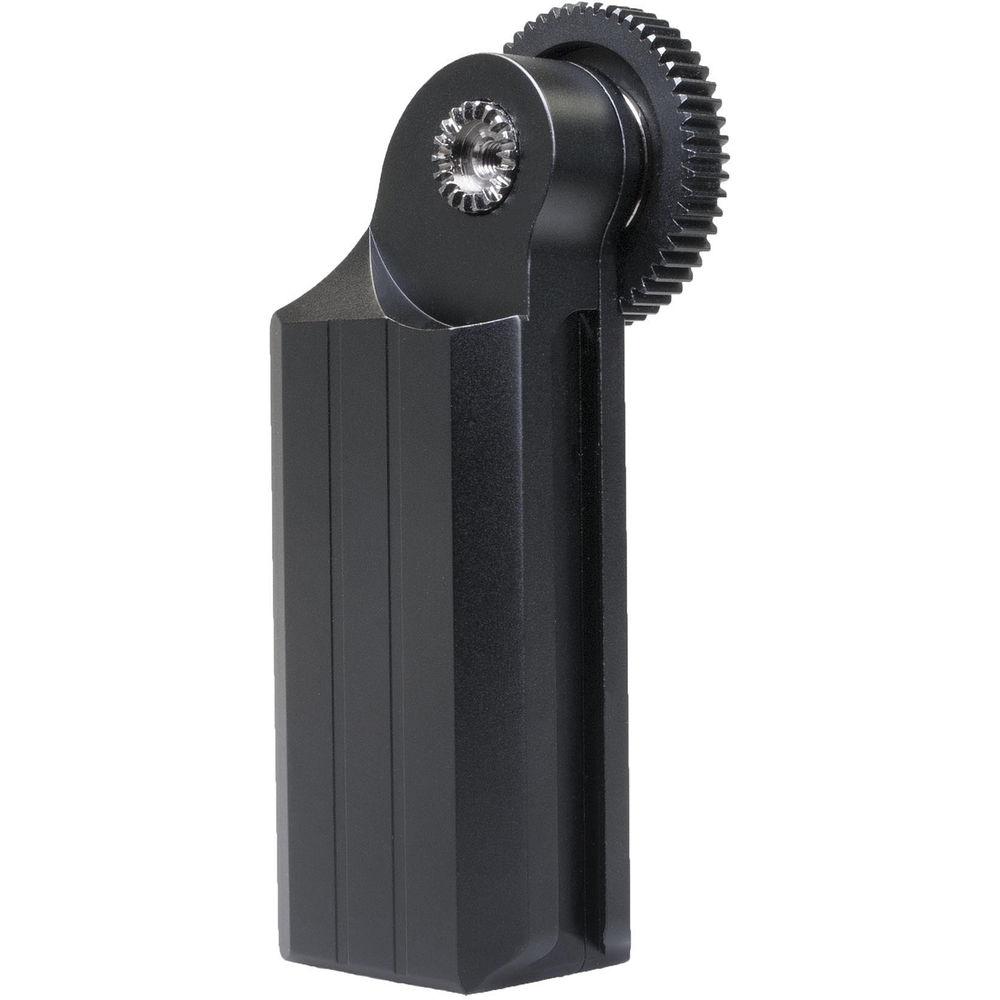

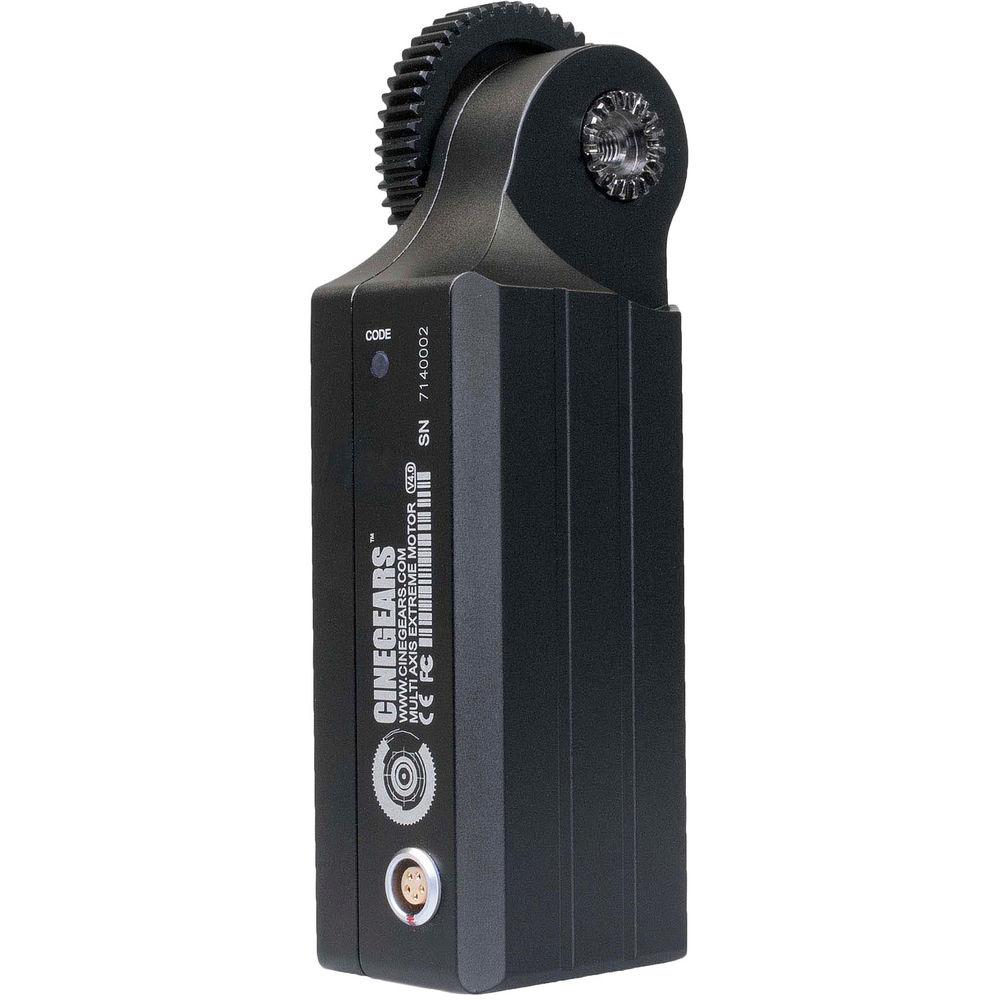

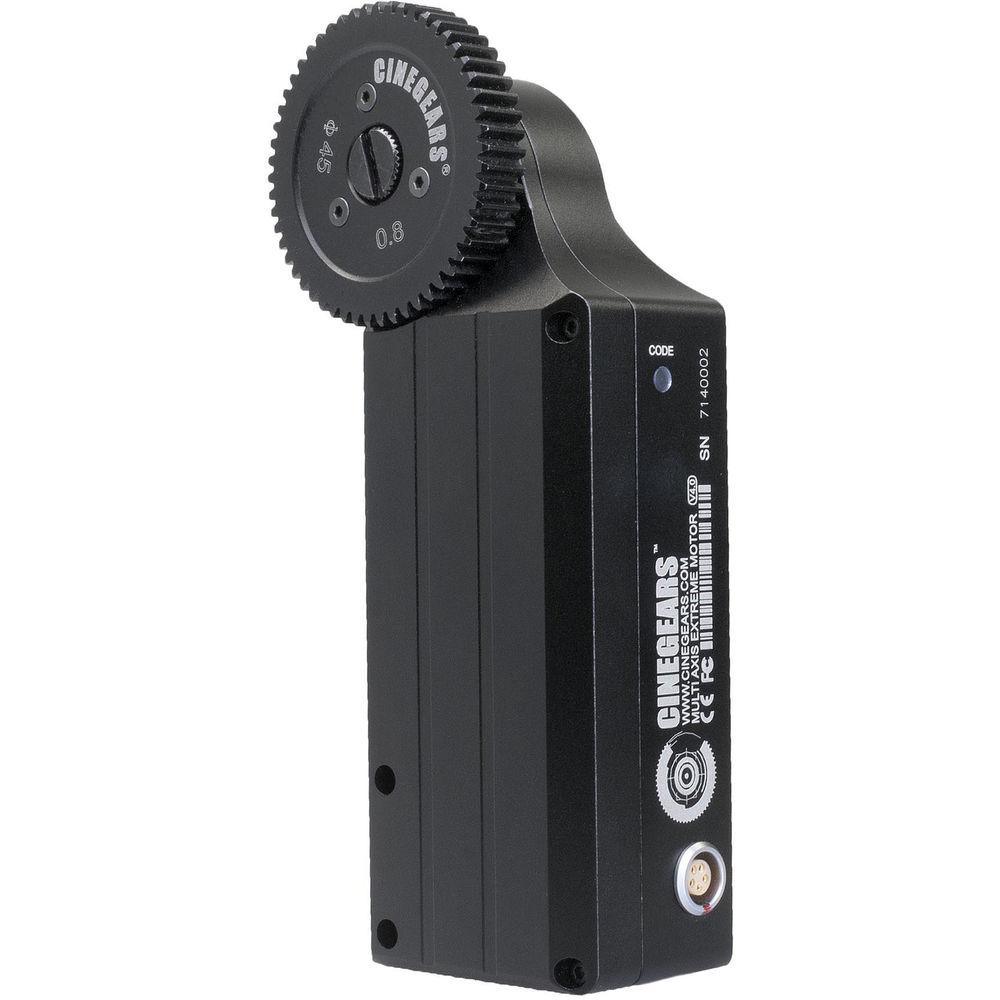

The CINEGEARS Multi-Axis Motor provides precise repeatable control of your focus, zoom, or iris ring, and is suitable for use with both prime lenses and most zooms. It is compatible with an optional CINEGEARS Multi-Axis Wireless Receiver for use with your CINEGEARS Multi-Axis Wireless Controller, and it ships with an interchangeable cine-style 0.8 MOD drive gear. It requires an optional LEMO power / control cable and rod clamp, which are available separately. You may use this motor to drive the focus, zoom, or iris gear ring on your lens. Once mounted, the lens motor will calibrate itself to your lens in a simple process. You can also manually remap your lens with the optional hand controller, and program multiple stops along the lens, simulating either hard stops, or focus positions. The motor direction is electronically reversible if you need to change the orientation of your motor, or are working with a lens that focuses in the opposite direction to standard cine lenses. The motor incorporates a 5-pin LEMO jack for power and motor control.
Wireless Control
The motor requires connection to your CINEGEARS Multi-Axis Wireless Receiver via an optional 5-pin LEMO cable for power and control. The wireless receiver works in conjunction with your CINEGEARS Multi-Axis Wireless Controller allowing you to control your Multi-Axis motor wirelessly.
Metal Drive Gear
The included aluminum 0.8 MOD gear fits cine-style lens gears. The gear is removable, so you can swap it out for optional gears for video lenses and non-standard lens gears. The gear's motor facing surface is made from chrome-plated stainless steel, which matches the facing surface of the motor drive.
Motor Function
The motor will calibrate itself to your lens and also allows you to remap the lens to your controller. You can program multiple stop points, especially useful when working with infinitely rotating lenses, or if you wish the set specific focus points on an optional focus hand-wheel.
Reversible
The motor drive is reversible, which allows you to use lenses that focus in the opposite direction from standard without having to add a physical reversing gear.
UPC: 743724114508

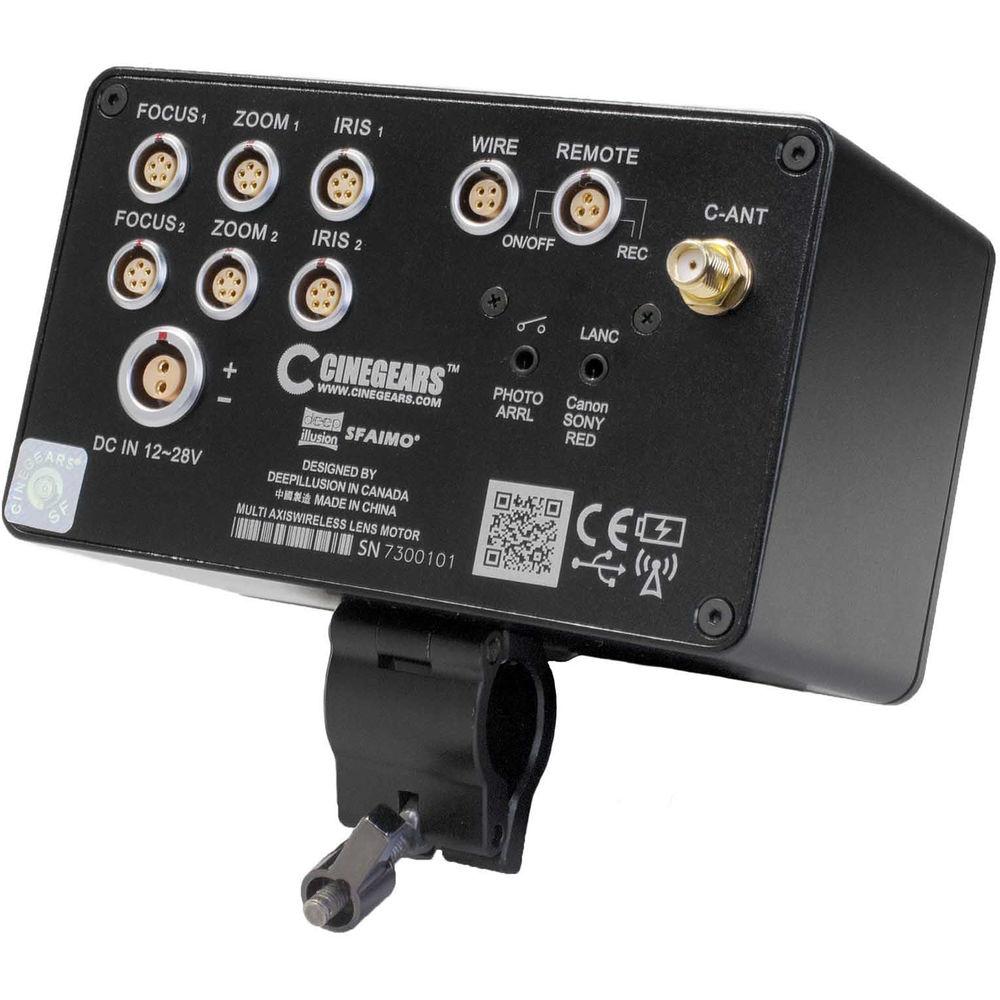

Multi-Axis Wireless Receiver The CINEGEARS Multi-Axis Wireless Receiver provides connection between optional CINEGEARS multi-axis motors and an optional CINEGEARS wireless controller. It supports a total of six axes to control up to six motors, which makes this system suitable for use with a two-camera stereoscopic system. UPC: 743724114522
Multi Axis Wireless Follow Focus Controller The Multi Axis Wireless Follow Focus Controller from Cinegears allows you to control your lens focus, iris, and zoom with precision from up to 328 feet away. The controller works with jibs, Steadicam, MoVI, and gimbaled stabilizer shots, allowing you to perform with precision without sacrificing the mobility of your camera or the integrity of the shot. Four focus presets can be programmed and accessed with the press of a single button, and recording can be controlled with the integrated record button. You can shoot continuously for up to 20 hours on a single charge with lithium battery. UPC: 743724114225
2" Rod Bracket for Lens Control Motors (19mm) The CINEGEARS 2" Rod Bracket for Lens Control Motors mounts on a 19mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris. It features a spring-loaded locking lever that allows you to tighten the bracket on the clamp, while at the same time securing the motor to the clamp.
Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
The 19mm clamp is designed to work specifically with 19mm support rods.
The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
UPC: 743724114102
3.1" Rod Bracket for Lens Control Motors (15mm) The CINEGEARS 3.1" Rod Bracket for Lens Control Motors mounts on a 15mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris ring. It features two spring-loaded locking levers; one that allows you to tighten the bracket on the rod, and a second locking lever that secures the motor to the clamp.
Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
The 15mm clamp is designed to work specifically with 15mm support rods
The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
UPC: 743724114096
Magnetic Beveled Marking Disc for Express Controller The CINEGEARS Magnetic Beveled Marking Disc for Express Controller is specifically made to work with a CINEGEARS Express controller, and only the Express controller. It magnetically mounts on the controller and incorporates a slot for a corresponding index pin, which prevents the marking disk from spinning on the controller, ensuring your marks stay accurate. The disk is made to be used with either dry or wet erase marker for easy cleaning and re-marking. UPC: 743724114058
4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) The CINEGEARS 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors features 4 lightweight plastic gears that allow you to drive most geared cine or ENG-style lenses. The gears can replace the original aluminum drive gears for CINEGEARS lens motors, providing a cost effective solution to handle surprises in the field.
Each gear is only 38mm in diameter, and features a captive mounting screw. The smaller diameter of the replacement gear, as compared to the standard drive gears, may provide smoother movement as you drive the lens with your motor. Each gear is labeled allowing you to easily select the right gear for your lens. The gear marked 0.8 is for cine-style lenses. Gears marked 0.5 and 0.6 are standard for ENG-style lenses. UPC: 743724114126
Motor Gear Re-Locator The CINEGEARS Motor Gear Re-Locator consists of a chrome plated stainless steel spacer that allows you to position your drive gears about 0.5" from the normal gear location when using your CINEGEARS motors. The spacer is made of the same material, chrome-plated stainless steel, as the inside of the CINEGEARS metal gear to prevent gear stripping. Included with the gear spacer is an attachment screw, which is needed to attach your drive gear to your motor with the spacer in place. UPC: 743724114072
Single Axis Wireless Motor Power Cable The CINEGEARS Single Axis Wireless Motor Power Cable provides power to your motor from an optional power source outfitted with a D-tap connector. The cable features a D-tap connector on one end and a 2-pin LEMO connector on the other. The cable features plastic insulation, and it can handle from 12 to 28 VDC.
Approximately 44" long
LEMO connector prevents polarity reversal when use with CINEGEARS motor.
UPC: 743724113969
Power Cable for Multi-Axis Wireless Receiver The CiNEGEARS Power Cable for Multi-Axis Wireless Receiver is a 39" long cable with a D-Tap connector on one end, and a 2-Pin LEMO connector on the other. This allows you to power your Multi-Axis Receiver from any power source with a D-Tap port that provides between 12 and 28 VDC. UPC: 743724114799
Multi Axis Receiver Antenna This CINEGEARS Multi Axis Receiver Antenna is a replacement antenna for your CINEGEARS multi axis wireless receiver, which is removable from the unit for storage and transport. Having a spare/replacement antenna with you can save your shoot if your original antenna becomes lost or damaged beyond usefulness. UPC: 743724113945
In the Box Bundle Items 3 x Multi-Axis Motor edrwrqrawzasbawxys
Lens Drive Gear
Limited 1-Year Warranty
Multi-Axis Wireless Receiver edrwrqrawzasbawxys Multi Axis Wireless Follow Focus Controller
Limited 2-Year Warranty
3 x 2" Rod Bracket for Lens Control Motors (19mm) edrwrqrawzasbawxys
Limited 1-Year Warranty
3 x 3.1" Rod Bracket for Lens Control Motors (15mm)
Limited 1_Year Warranty
2 x Magnetic Beveled Marking Disc for Express Controller
Limited 1-Year North American Warranty
4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) 3 x Motor Gear Re-Locator
Thumb Screw
Limited 1-Year Warranty
Single Axis Wireless Motor Power Cable
Limited 1-Year Warranty
Power Cable for Multi-Axis Wireless Receiver
Limited 1-Year Warranty
Multi Axis Receiver Antenna
Limited 1-Year Warranty
Also Includes
3 x 15mm to 19mm Rod Bushings
Hard Case for Multi-Axis Kit
Guides & Manuals Table of Contents
Upload User Manual
Have you got an user manual for the CINEGEARS Multi-Axis Wireless Follow Focus Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User Manual
The user manual for the CINEGEARS Multi-Axis Wireless Follow Focus Kit can be downloaded in PDF format at the link stated below.
Black anodized CNC machined aluminum and steel alloy
Maximum Peak Torque
0.85 Nm
Maximum Speed
2.8 rev/sec
Connectors
1 x 5-pin LEMO jack
Power Input
12 to 28 VDC
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 122°F / -20 to 50°C
Dimensions
4.5 x 1.3 x 2.0" / 11.4 x 3.2 x 5.1 cm
Weight
0.8 lb / 350 g

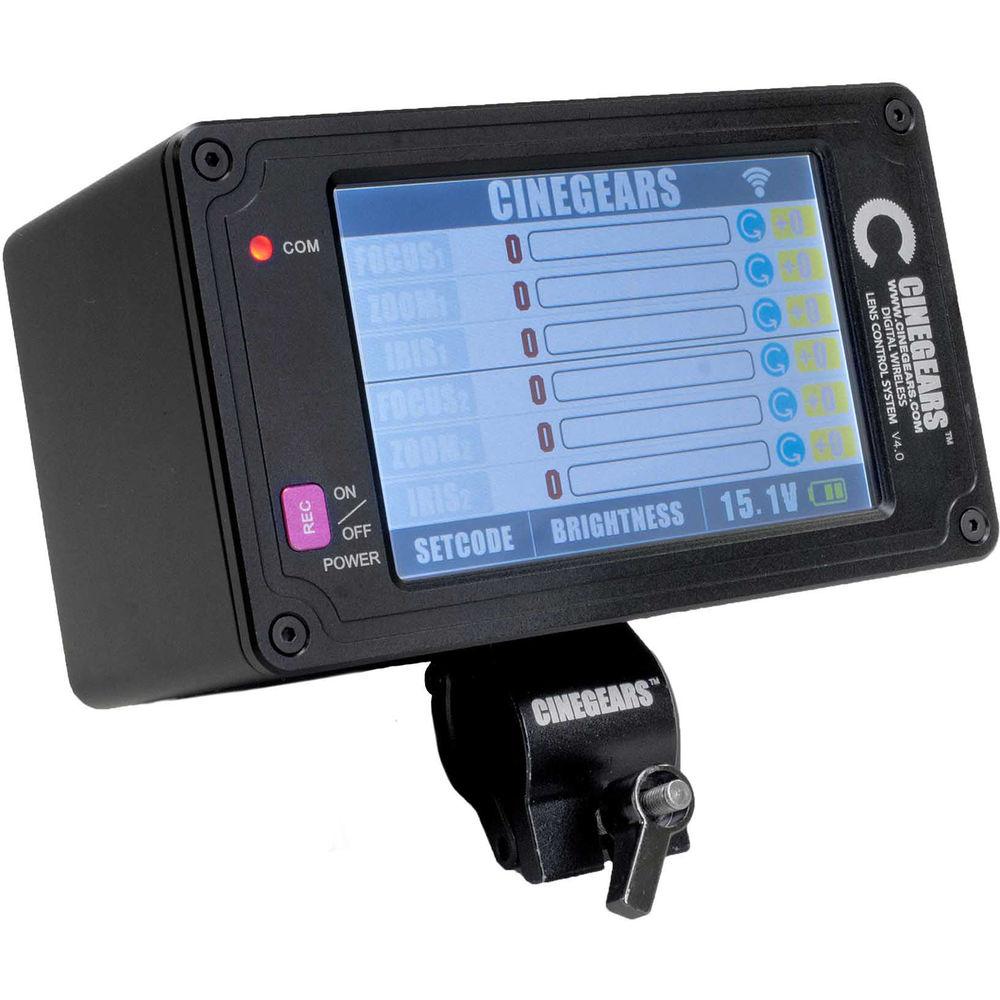

Multi-Axis Wireless Receiver
Material of Construction
CNC Machined aluminum and Steel
Finish
Black anodized
Frequency
433 MHz (RF Band)
Input Voltage
12 to 28 VDC
Operating Temperature
32 to 104° / 0 to 40°C
Storage Temperature
-4 to 122°F / -20 to 50°C
Dimensions
5.5 x 4.5 x 3.5" / 13.5 x 11.5 x 8.5 cm
Weight
0.88 lb / 0.40 kg

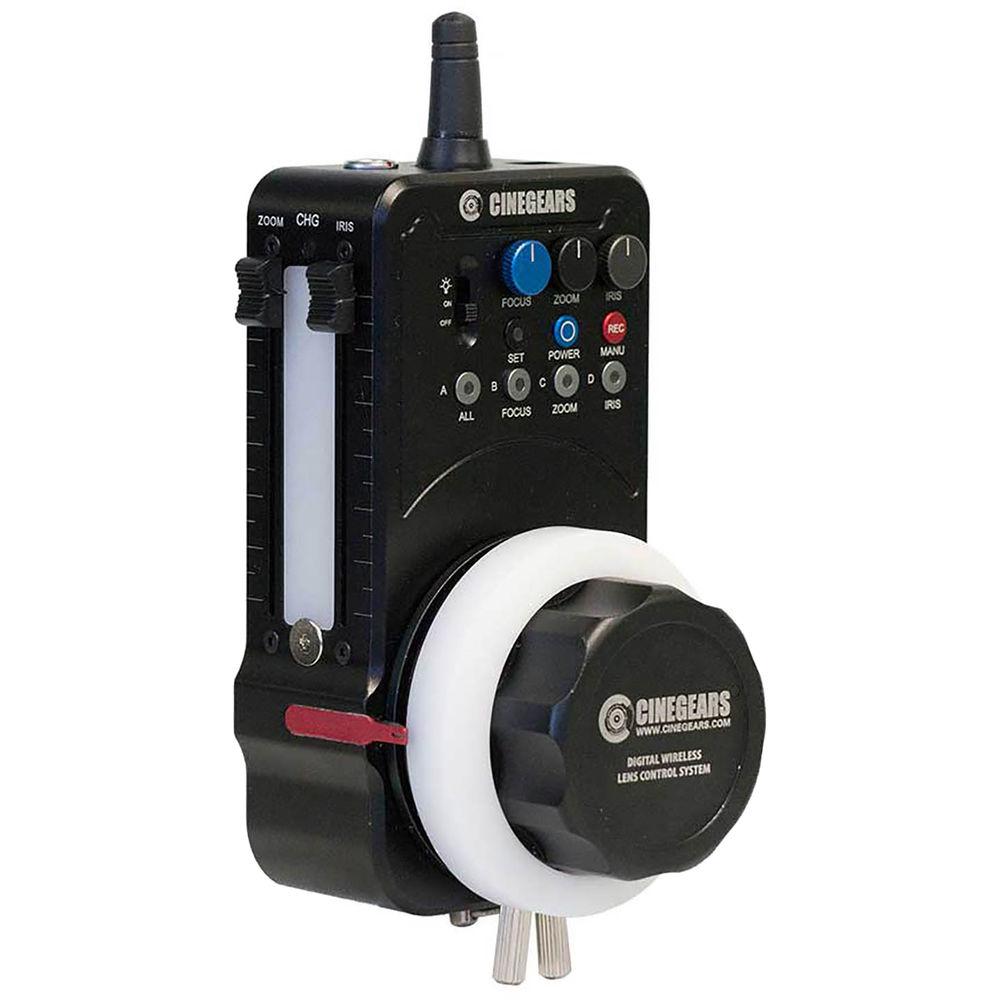

Multi Axis Wireless Follow Focus Controller
Frequency
433 MHz RF
Operating Distance
328' (100 m)
Supported Battery Types
Lithium-ion battery, 5 V
Required Battery
1 x Internal
Construction
CNC machined
Coating
Black anodized coating
Material
Aluminum and steel alloy
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 122°F (-20 to 50°C)
Dimensions (H x W x D)
5.8 x 2.8 x 2.8" (14.6 x 6.9 x 6.9 cm)
Weight
20 oz (570 g)
Box Dimensions (LxWxH)
7.1 x 4.3 x 3.3"
2" Rod Bracket for Lens Control Motors (19mm)
Material of Construction
Hard anodized aluminum Steel slide
Length
2" / 5 cm
Rod Clamp Type
19mm
Box Dimensions (LxWxH)
3.95 x 1.95 x 1.15"
3.1" Rod Bracket for Lens Control Motors (15mm)
Material of Construction
Hard anodized aluminum Steel slide
Length
3.1" / 8 cm
Rod Clamp Type
15mm
Box Dimensions (LxWxH)
2.992 x 1.024 x 0.551"
Magnetic Beveled Marking Disc for Express Controller
Material of Construction
PVC
Dimensions
Internal Diameter: 2.4" / 6.0 cm External Diameter: 2.8" / 7.0 cm Height: 0.5" / 1.2 cm
Weight
1.1 oz / 30.0 g
Box Dimensions (LxWxH)
2.7 x 2.6 x 0.8"
4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0)
Gear Standard
Gear 1 MOD: 0.5
Gear 2 MOD: 0.6
Gear 3 MOD: 0.8 Pitch: 32
Gear 4 MOD: 1.0
Diameter
1.5" / 38 mm
Box Dimensions (LxWxH)
3.1 x 3.1 x 0.3"
Motor Gear Re-Locator
Material of Construction
Chrome plated stainless steel
Width
0.5" / 12.7 mm
Single Axis Wireless Motor Power Cable
Connector 1
P-Tap/D-Tap
Connector 2
2-pin LEMO
Length
44" / 113 cm
Weight
1.1 oz / 30 g
Box Dimensions (LxWxH)
4.65 x 2.4 x 1.5"

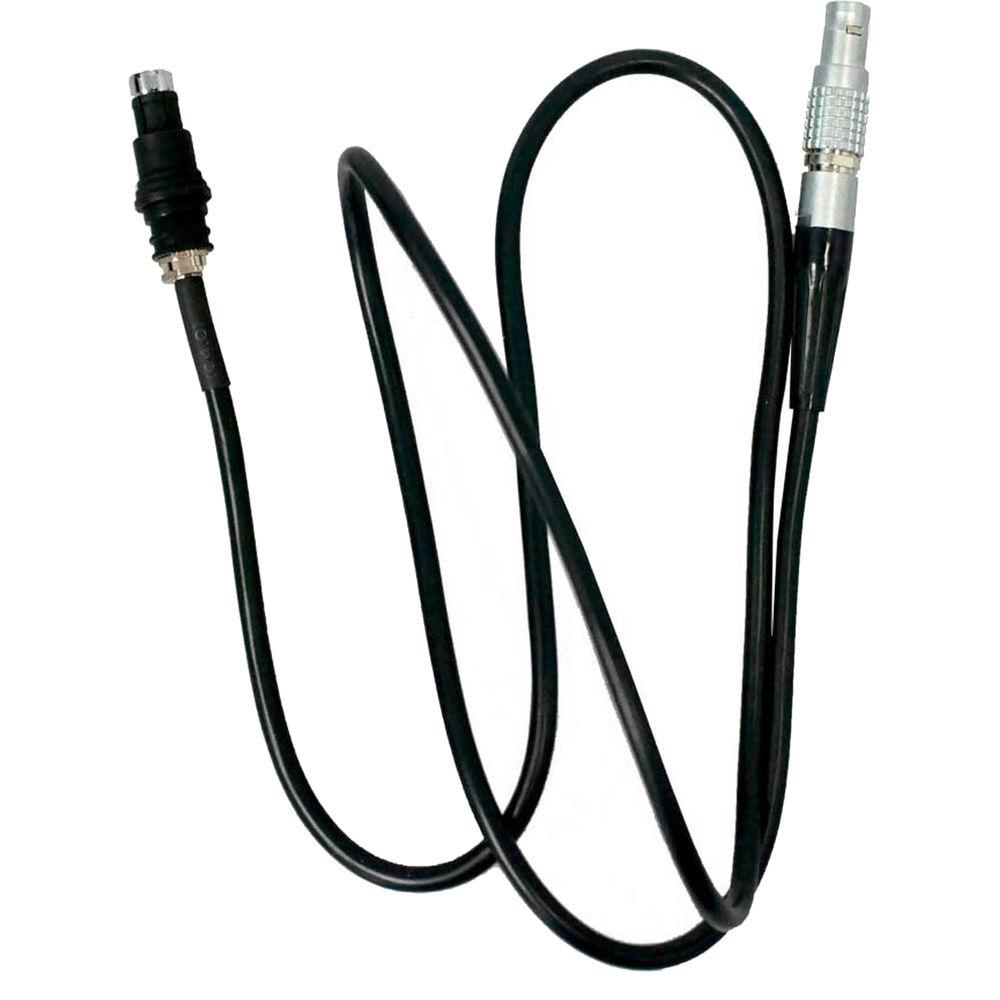

Power Cable for Multi-Axis Wireless Receiver
Length
39.4" / 100 cm
Connector 1
D-Tap
Connector 2
5-pin LEMO
Box Dimensions (LxWxH)
5.0 x 1.9 x 0.7"
Multi Axis Receiver Antenna
