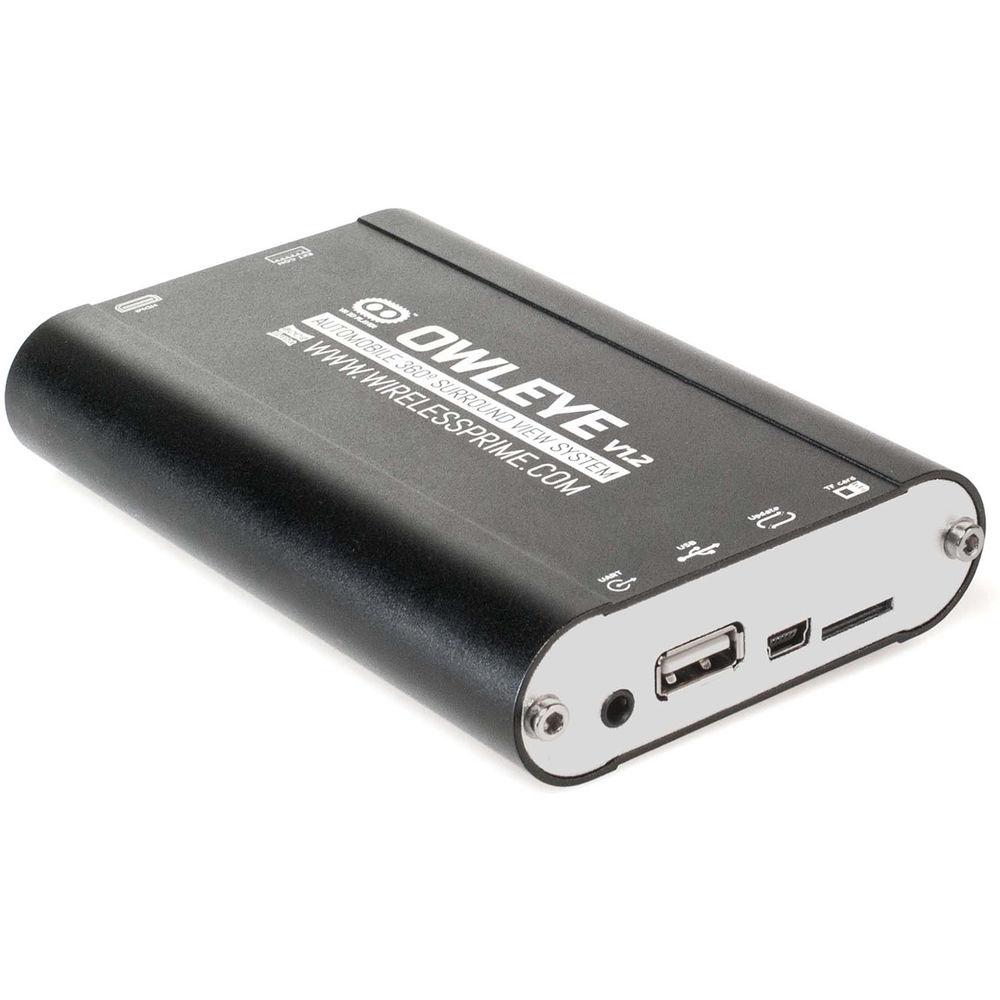

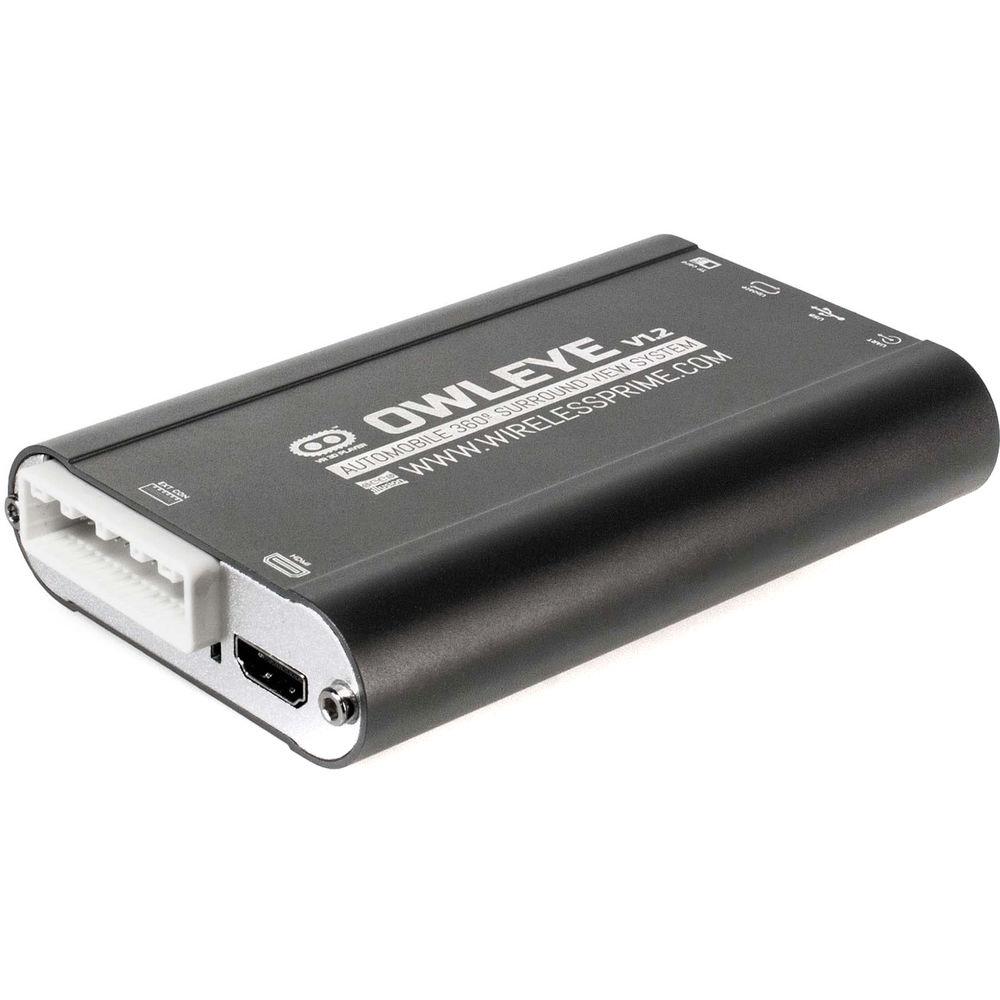

User Manual for CINEGEARS OWLEYE Automobile VR 360° DVR Surround View System for Commercial Vehicles V1.2 Click to enlarge the picture
Contents of the user manual for the CINEGEARS OWLEYE Automobile VR 360° DVR
- Product category: Back-Up Cameras CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Back-Up Cameras
 |
User manual for the CINEGEARS OWLEYE Automobile VR 360° DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Wireless Prime 360 Surround View System Unboxing
- Wireless Prime 360 Bird-eye View System with 2018 Sprinter 170 4x4
The OWLEYE Automobile VR 360° DVR Surround View System for Commercial Vehicles V1.2 from CINEGEARS offers an unobstructed 360° view of your vehicle and everything around it at a resolution of 1440 x 960 resolution at 30 fps. Four included 360° fisheye cameras facilitate multi-directional, real-time recording. A built-in G-sensor will detect vibration in standby and power off mode to trigger recording, ensuring that video footage is captured subsequent to the vibration. This device supports USB disk and TF cards (available separately) up to 32GB. - Suitable for buses, trucks, limousines, tanks, and jumbo jets
- User modes include silent driving, driving/parking, standby, and power off
- Four 360° ultra-wide fisheye cameras
- Pixel statistic engine for brightness balance across four camera channels in real time
- Independent fisheye calibration parameter and algorithm for each camera
- Multi-directional real-time recording
- 3D VR modelling in real time
- Seamless video merging thanks to dual-core ARM CPU and hardware high-efficiency acceleration engine
- Indicator lights include an optional high beam, a left/right turning blinker, and a reversing lamp
- 3D video deinterlacing and noise reduction for CVBS signal decoding
- Smart power management for conserving vehicle battery
UPC: 610877598120 In the Box CINEGEARS OWLEYE Automobile VR 360° DVR Surround View System for Commercial Vehicles V1.2 4 x OWLEYE 360° Individual Cameras OWLEYE Central Control Unit OWLEYE Remote Control OWLEYE IR Sensor 4 x OWLEYE Wire Connection Cables 3 x OWLEYE Calibration Tape Limited 3-Year Warranty User Manual PDF 837.7kbefavbsaxsw Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS OWLEYE Automobile VR 360° DVR Surround View System for Commercial Vehicles V1.2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS OWLEYE 360 Specs | Resolution | 1440 x 960 at 30 fps | | Compression | H.264 Baseline at L3.1 | | Bit Rates | 5 Mb/s, 3 GB/hour | | Video Interface | Mini plug connector | | I/O Impedance | 75 Ohms | | Amplitude | Typical: 1 V p-p
Maximum: 1.2 V p-p | | Bandwidth | 8 MHz | | Sampling Frequency | 13.5 MHz | | Differential Phase | <0.8° TYP | | Differential Gain | <3% TYP | | S/N Ratio | 70 dB | | Indicator Lights | Optional high beam
Left/right turning blinker
Reversing lamp | | G-Sensor | BM250E (Bosch) | | Recording Media | USB disk (high priority), TF card | | Disk Capacity | USB Disk: 32 GB (USB 2.0)
TF Card: 32 GB SDIO 3.0/ SDIO 2.0 | | Operating Temperature | -4 to 185°F / -20 to 85°C | | Storage Temperature | -40 to 221°F / -40 to 105°C | | Relative Humidity | 0 to 95% | | Voltage Tolerance | Working Voltage: 9.5 to 36 V | | Power Consumption | 4-Channel DVR + SVM Mode: 600 mA
4-Channel DVR Mode: 440 mA
Sleep Mode: <10 mA | | Dimensions (L x W x H) | 4.8 x 3.2 x 1" / 123 x 81 x 25 mm (host metal box) | | Weight | 7.8 oz / 220 g | | | | Package Weight | 7.025 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 4.4" |
