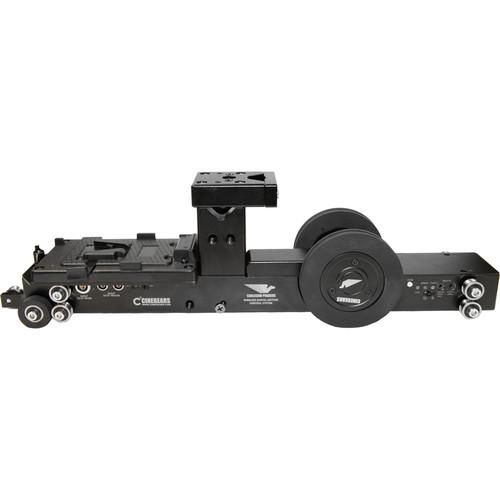

User Manual for CINEGEARS Pegasus Cable Cam Body Click to enlarge the picture
Contents of the user manual for the CINEGEARS Pegasus Cable Cam Body
- Product category: Stabilizers & Gimbals CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Stabilizers & Gimbals
|
User manual for the CINEGEARS Pegasus Cable Cam Body contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Pegasus Cable Cam and Dolly Car
The Pegasus Cable Cam Body from CINEGEARS is the core of the Pegasus high-payload cable cam system. Add the necessary controller, wheels, mounting plates, and other components, all sold separately, and mount cameras or entire gimbal setups up to 17.5 lb. The Pegasus can be used as a cable cam as well as a dolly on flat surfaces, remotely controlled in both modes. The Pegasus supports up to two cables, one on each side, or you can loop just one around to serve as two cables supporting the same 17.5 lb. The maximum travel speed is 25" per second in cable mode and 39" in dolly mode. The maximum incline in cable mode is 35°. The maximum control range is 0.62 miles (3280') and there's no limit to the length of the cable that you can use. Multiple controllers can be synced to the same Pegasus unit. In dolly mode, the travel route can be programmed in various ways, including at an arc angle.
The Pegasus is designed with a highly responsive ultrasonic safety mechanism. Collision sensors trigger a complete stop instantly upon detection of physical interference along the travel path.
The Pegasus comes with a V-mount battery plate with a D-Tap port attached on top. It also features three onboard LEMO ports: a large 12-18 VDC, 8A input and two standard-size 12-18 VDC, 3.5A outputs. Between the D-Tap and LEMO ports, the Pegasus offers the flexibility to power most or all of your accompanying gear. - Key Features
-
- 17.5 lb payload
- Works as a cable cam system and as a dolly (optional components required)
- 25" per second max travel speed in cable mode
- 39" per second max travel speed in dolly mode
- 35° maximum incline
- Ultrasonic safety mechanism / highly responsive collision detection sensors
- Stainless steel and aluminum construction
- V-mount plate with D-Tap port
- 2-pin LEMO input/output ports
In the Box CINEGEARS Pegasus Cable Cam Body V-Mount Battery Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Pegasus Cable Cam Body in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Pegasus Specs | Payload | 17.5 lb / 8 kg | | Travel Speed | Cable Mode: 25" / 63.5 cm per second max
Dolly Mode: 39" / 99 cm per second max | | Maximum Incline | 35° | | Control Range | 0.62 miles / 3280' / 1 km (supported using optional controller) | | Power | 1 x V-mount plate with D-Tap port
1 x Large 2-pin LEMO input, 12-18 VDC/8 A
2 x Standard size 2-pin LEMO outputs, 12-18 VDC/3.5 A | | Dimensions | 17 x 3 x 5" / 43 x 7.6 x 12.7 cm | | Weight | 4.4 lb / 2 kg |
