User Manual for CINEGEARS Pegasus Wireless Cable Cam Kit Click to enlarge the picture
Contents of the user manual for the CINEGEARS Pegasus Wireless Cable Cam Kit
- Product category: Stabilizers & Gimbals CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Stabilizers & Gimbals
 |
User manual for the CINEGEARS Pegasus Wireless Cable Cam Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Pegasus Cable Cam and Dolly Car
- Programmable Wireless Cable-cam/Dolly-Car
- Pegasus Wireless Cablecam

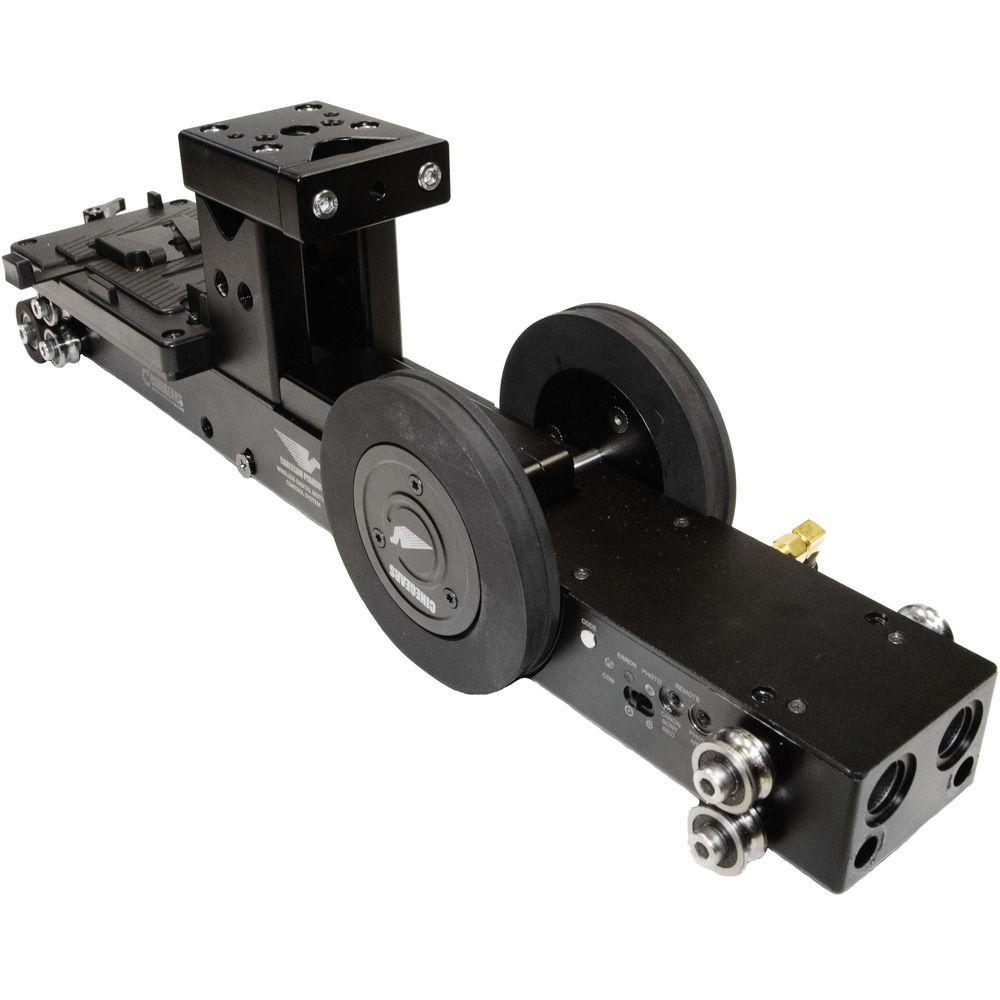

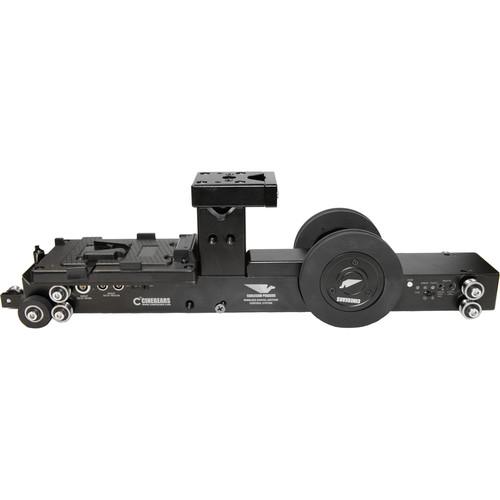

The Pegasus Wireless Cable Cam Kit from CINEGEARS can be used as a high-payload cable cam as well as a dolly on flat surfaces. In both modes, it's operated by a remote controller that's highly programmable and has a joystick among its controls. The Pegasus supports up to 17.5 lb loads and comes with the mounting plates and adapters to support direct attachment of cameras as well as entire gimbal rigs, such as the DJI Ronin gimbal. The Pegasus supports two cables but the included 98' steel braided cable can simply be looped around the Pegasus pulley to serve as two cables (at half the length), supporting the same 17.5 lb. The maximum travel speed is 25" per second in cable mode and 39" in dolly mode. The maximum incline in cable mode is 35°. The maximum control range is 0.62 miles (3280') and there's no limit to the length of the cable that you can use. Multiple controllers can be synced to the same Pegasus unit.
The Pegasus is designed with a highly responsive ultrasonic safety mechanism. Collision sensors trigger a complete stop instantly upon detection of physical interference along the travel path.

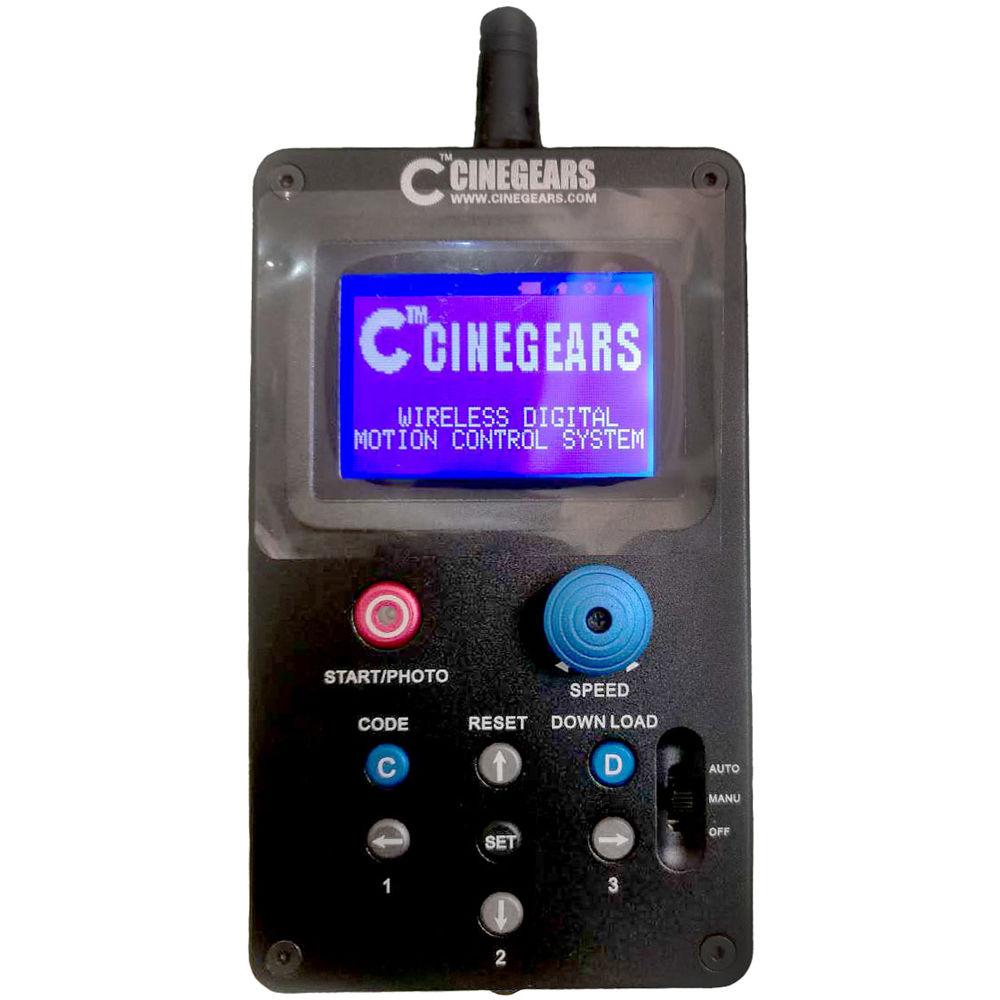

The included wireless remote offers manual and automatic modes. It runs for up to 48 hours on a single charge and is rechargeable via a USB port. The controller controls the Pegasus in dolly mode and the dolly travel route can be programmed in various ways, including at an arc angle.

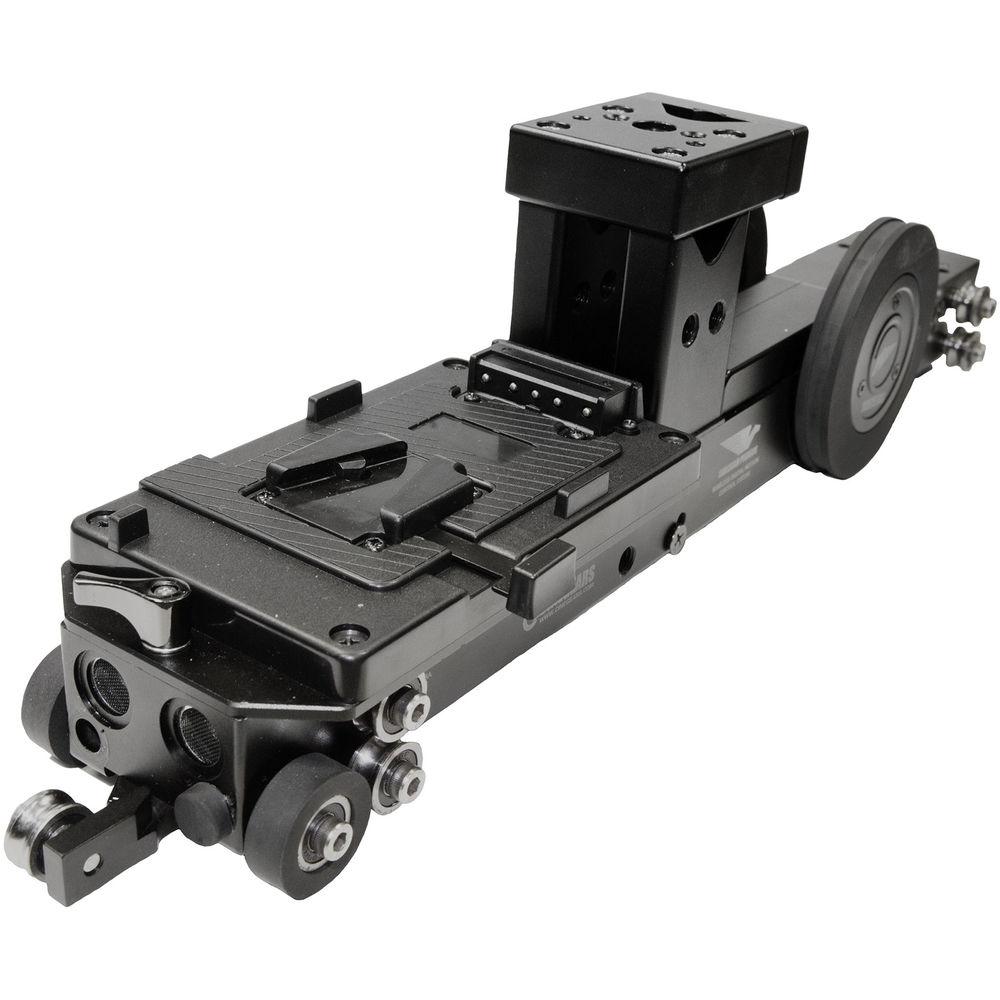

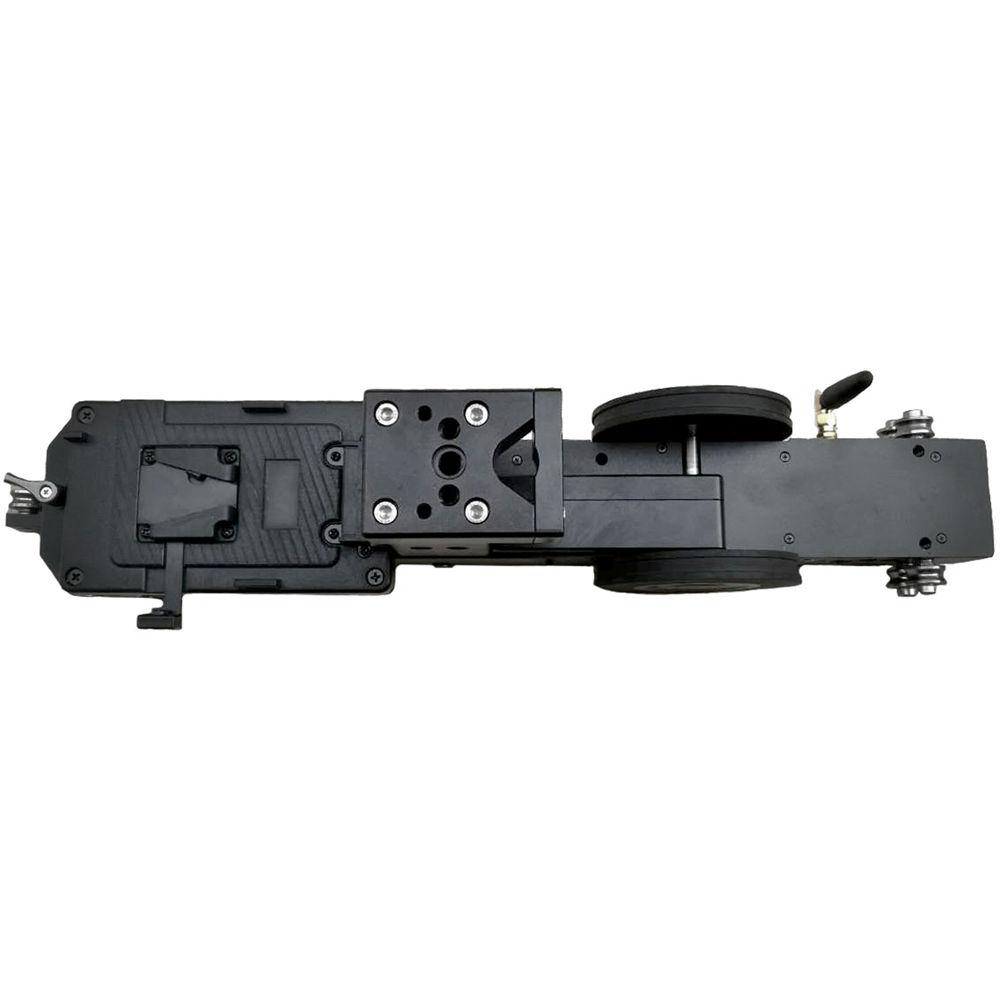

Almost all the components of the Pegasus system, including the main wheels, are made of stainless steel and aluminum. The Pegasus comes with a V-mount battery plate with a D-Tap port attached on top. It also features three onboard LEMO ports: a large 12-18 VDC, 8A input and two standard-size 12-18 VDC, 3.5A outputs. Between the D-Tap and LEMO ports, the Pegasus offers the flexibility to power most or all of your accompanying gear. A wheeled hard carry case with an equalization valve is also included among many other accessories. - Key Features
-
- 17.5 lb payload
- Works as a cable cam system and as a dolly, remote controlled in either mode
- Includes mounting plates and adapters for supporting direct attachment of cameras or entire gimbal rigs, such as the DJI Ronin gimbal
- Included 98' steel braided cable can be looped to serve as two cables
- 25" per second max travel speed in cable mode
- 39" per second max travel speed in dolly mode
- 35° maximum incline
- Ultrasonic safety mechanism / highly responsive collision detection sensors
- 48-hour remote control battery life on a single charge
- Stainless steel and aluminum construction
- V-mount plate with D-Tap port
- 2-pin LEMO input/output ports

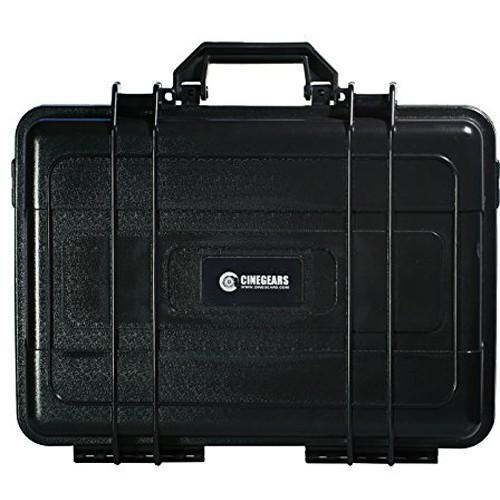

- Wheeled hard carry case with an equalization valve

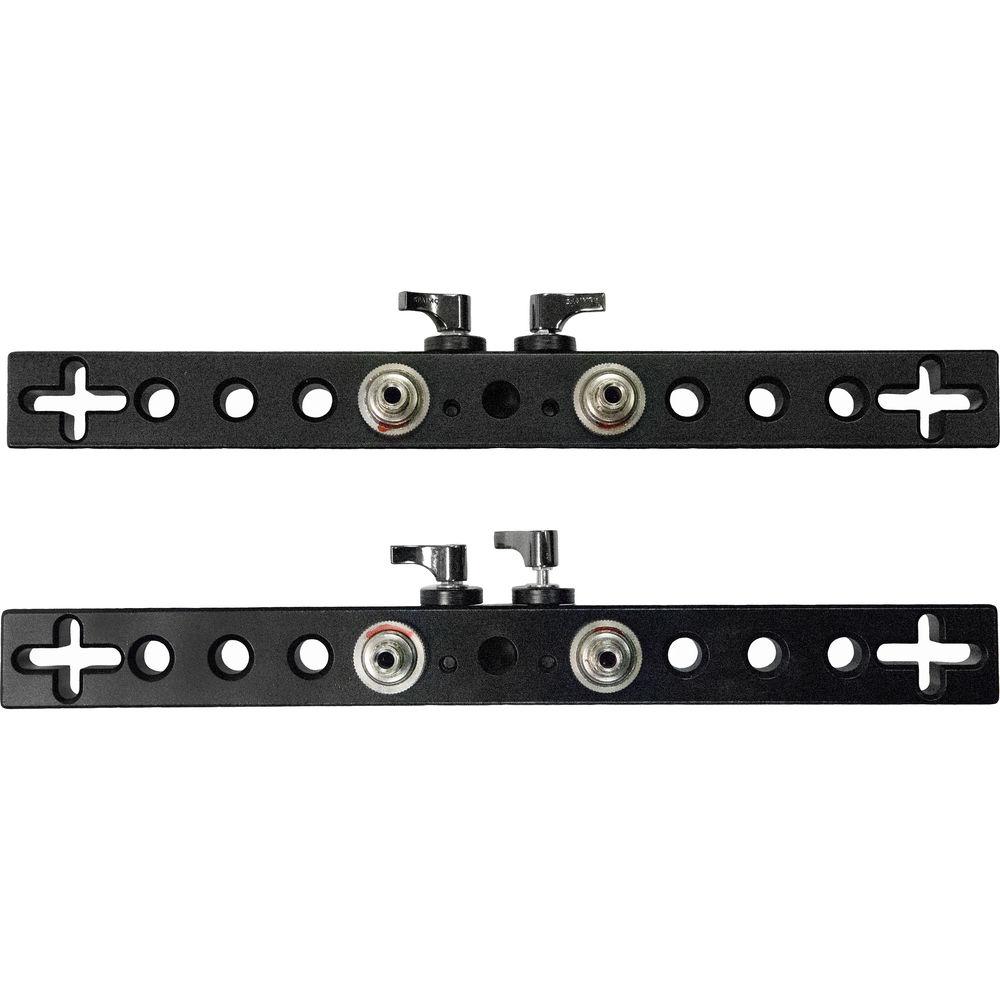

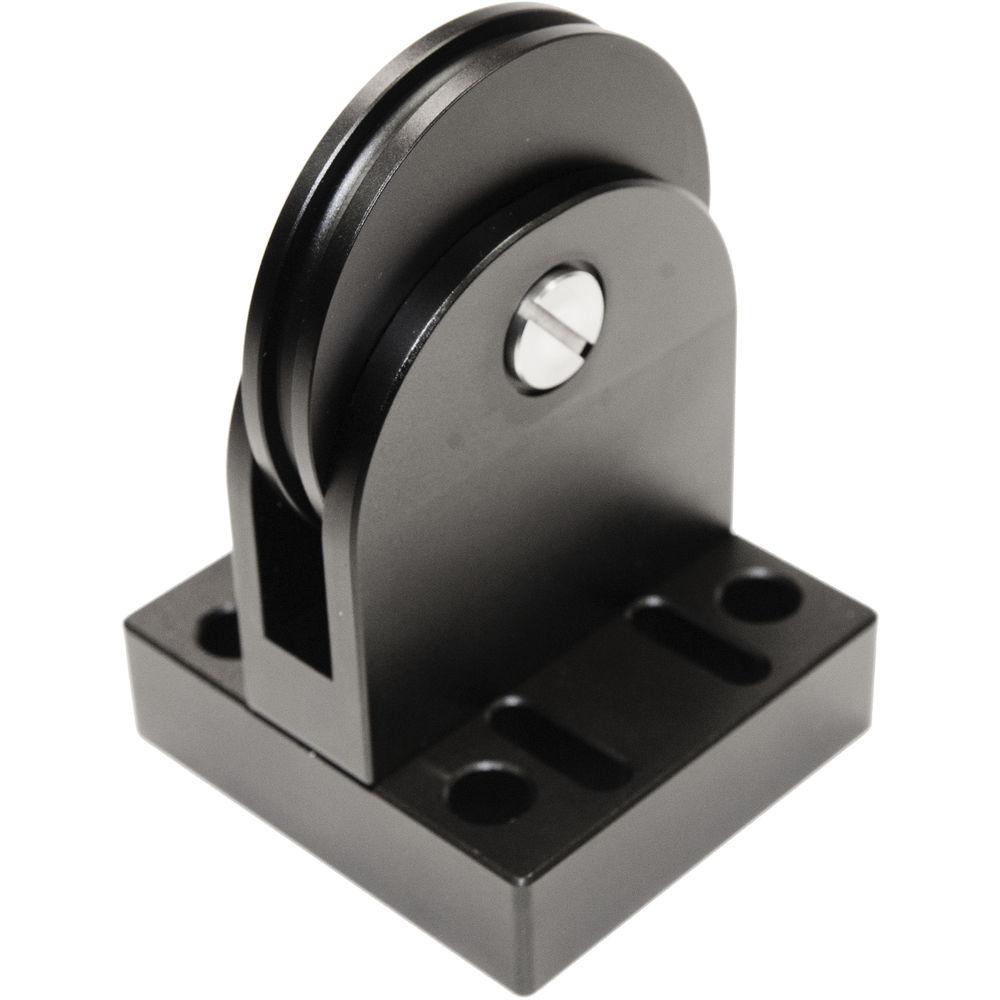

UPC: 736902393802 In the Box CINEGEARS Pegasus Wireless Cable Cam Kit Pegasus Cable Cam Body Pegasus Cable Cam Wireless Controller 2 x Stability Arm with Ground Balancing Wheel 2 x Balance Extension Arm 4 x Ultra-Friction Rubber Ground Wheel 4 x Ultra-Friction Rubber Cable Wheel 8 x Ultra-Friction Rubber Ground Balancing Wheel V-Mount Battery Plate Universal Mounting Plate Start/Stop Trigger Cable ARRI Start/Stop Trigger Cable for RED Start/Stop Trigger Cable for Sony Heavy-Duty Cable Pulley 2 x Dual-Lock Cable Mounting Plate Ronin Quick Release Bracket Flexible Braided Steel Cable (98') Waterproof/Weatherproof Hard Case Limited 3-Year Warranty User Manual PDF 24.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Pegasus Wireless Cable Cam Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Pegasus Specs | Payload | 17.5 lb / 8 kg | | Travel Speed | Cable Mode: 25" per second max
Dolly Mode: 39" per second max | | Maximum Incline | 35° | | Control Range | 0.62 miles / 3280' / 1 km | | Power | 1 x V-mount plate with D-Tap port
1 x Large 2-pin LEMO input, 12-18 VDC/8 A
2 x Standard size 2-pin LEMO outputs, 12-18 VDC/3.5 A | | Dimensions | 17 x 3 x 5" / 43 x 7.6 x 12.7 cm (body only) | | Weight | 4.4 lb / 2 kg (body only) | | | | Package Weight | 27.5 lb | | Box Dimensions (LxWxH) | 22.5 x 17.0 x 8.5" |
