Product description - Rattlesnake Follow Focus Instructions

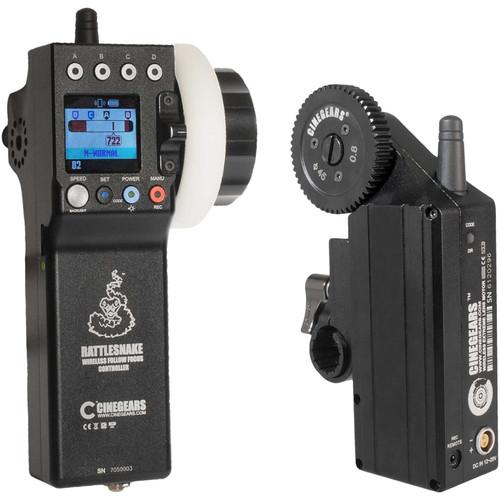

The CINEGEARS Rattlesnake Complete Kit with Extreme Motor allows you to accurately control focus, iris, and zoom from up to 650 ft away, and provides up to 20 hours of operational runtime per charge. The kit includes the Rattlesnake controller, Extreme motor with 0.8 MOD gear and 1.7 Nm torque, all the accessories required for attaching and connecting the motor, and a waterproof carry case. Additionally, the kit includes extra gears and other accessories.

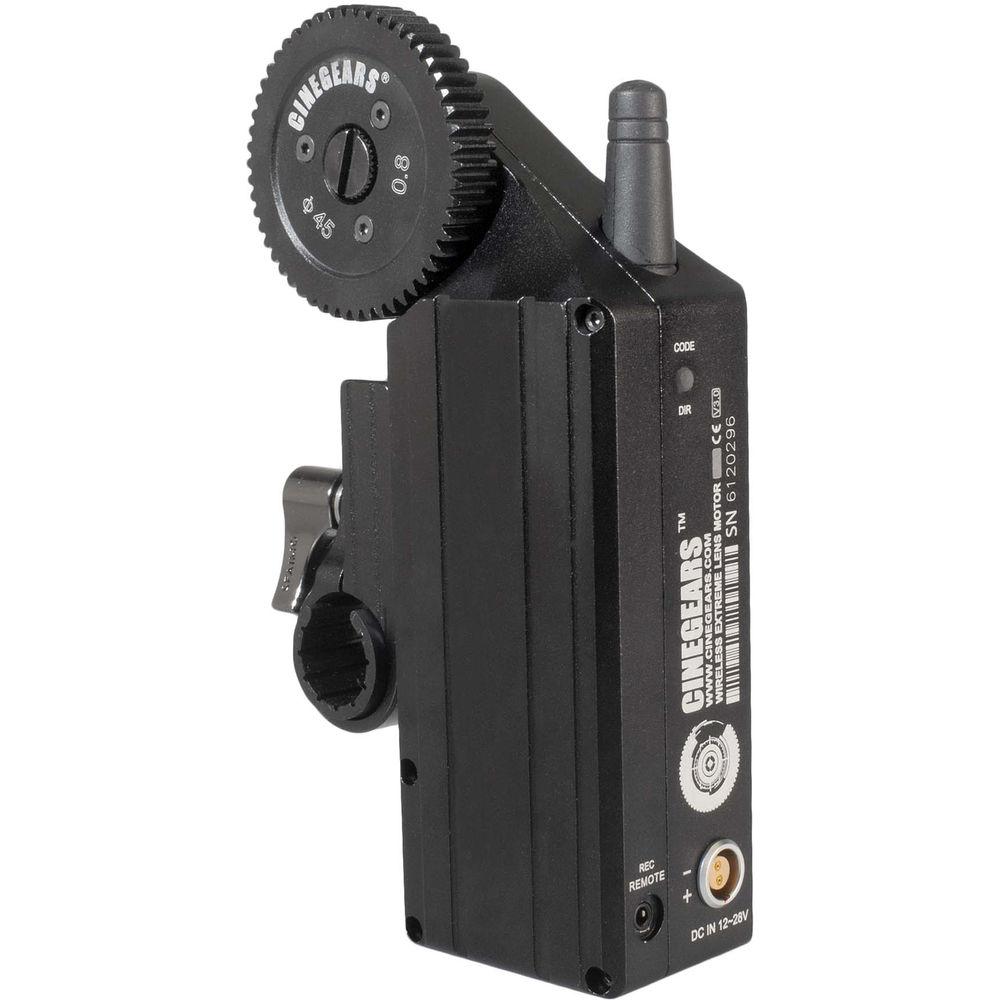

The Extreme motor attaches to your rig via a supplied 15mm/19mm single rod clamp bracket. It can be mounted on either side of the rig and tightened at the desired height. The motor also offers a remote record start/stop trigger port for ARRI, Sony, Canon, and Blackmagic cameras.

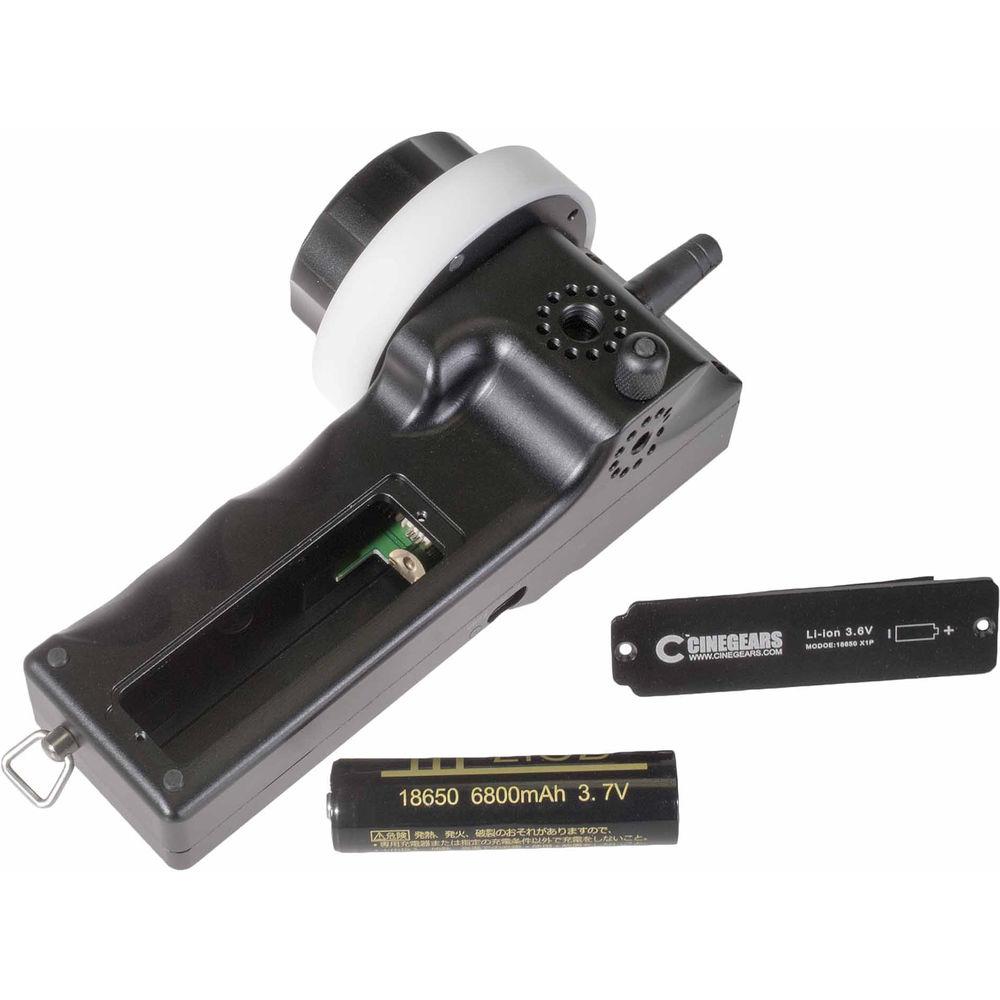

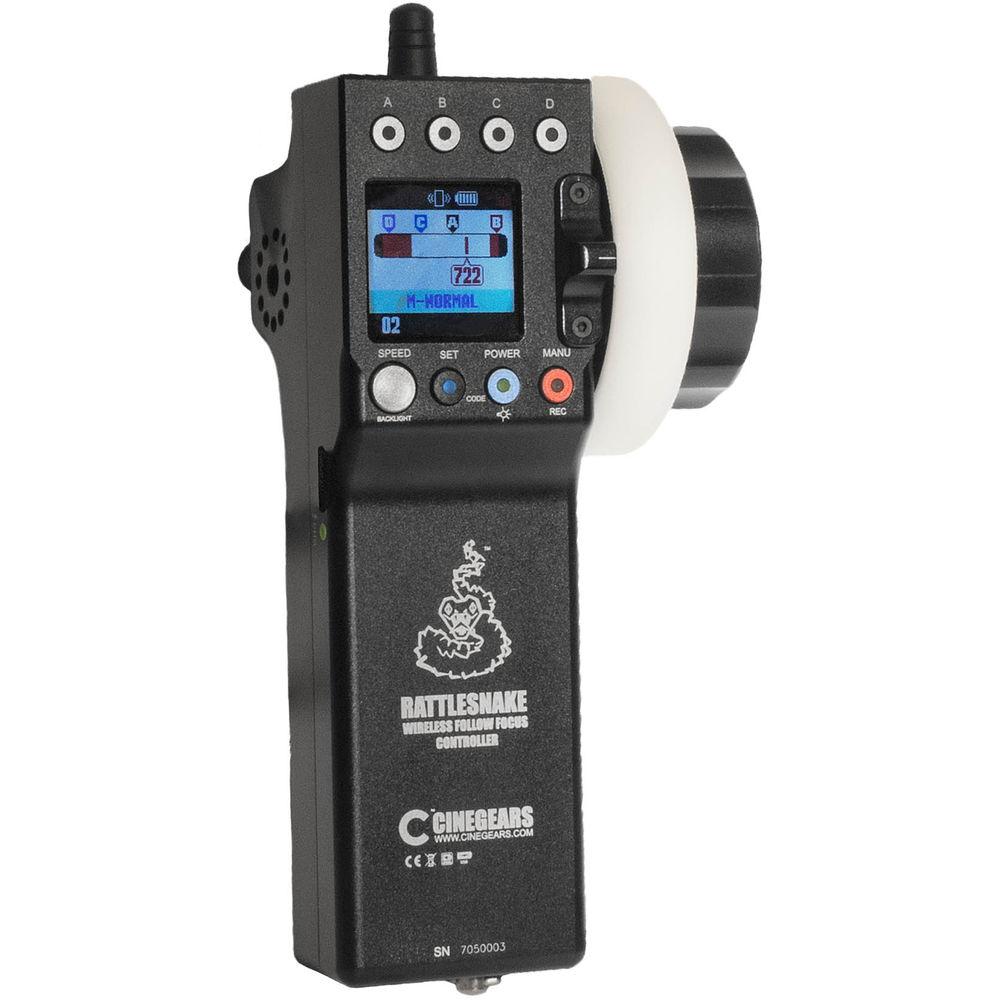

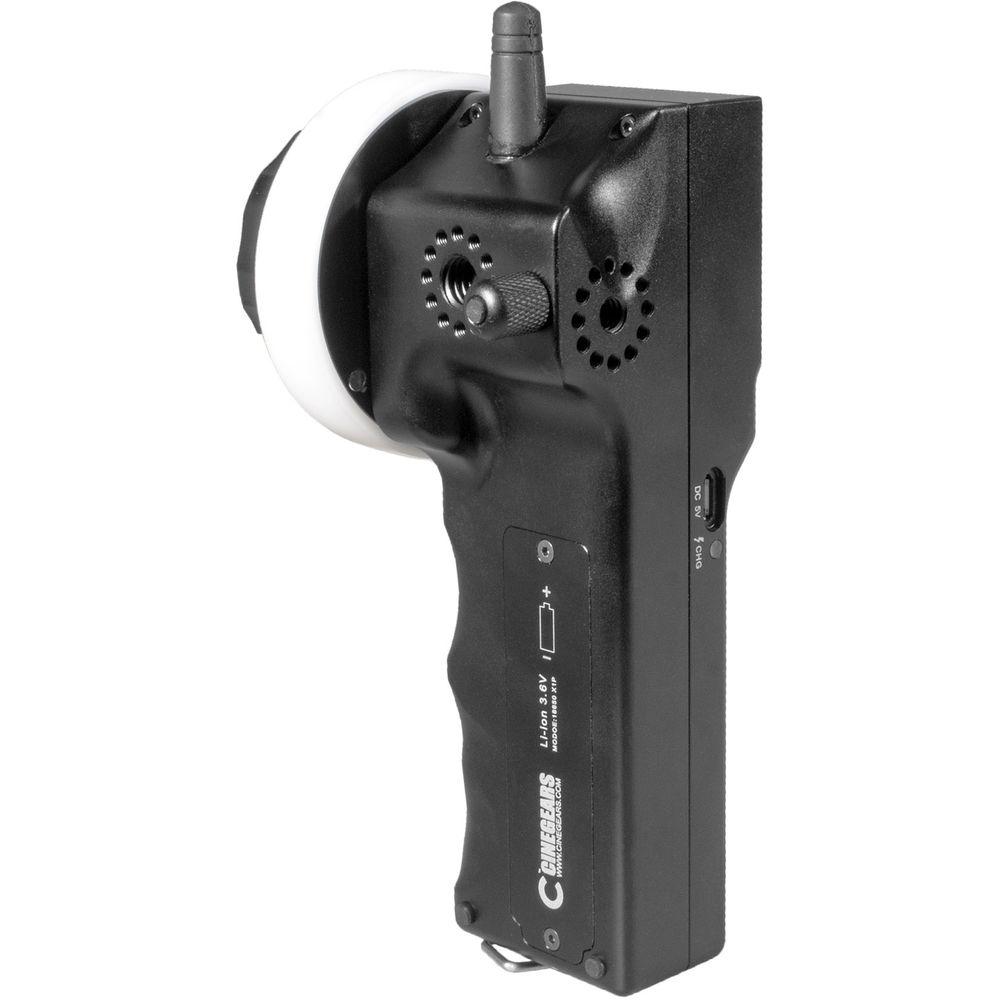

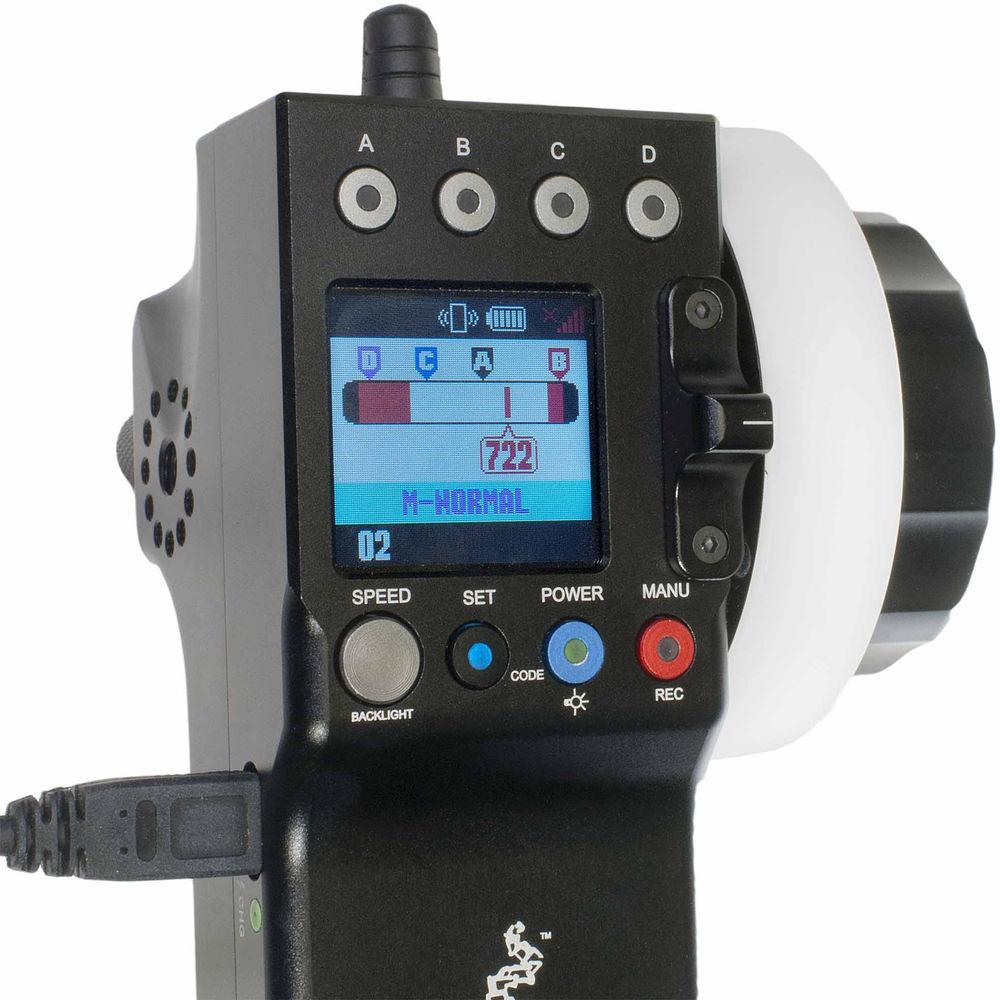

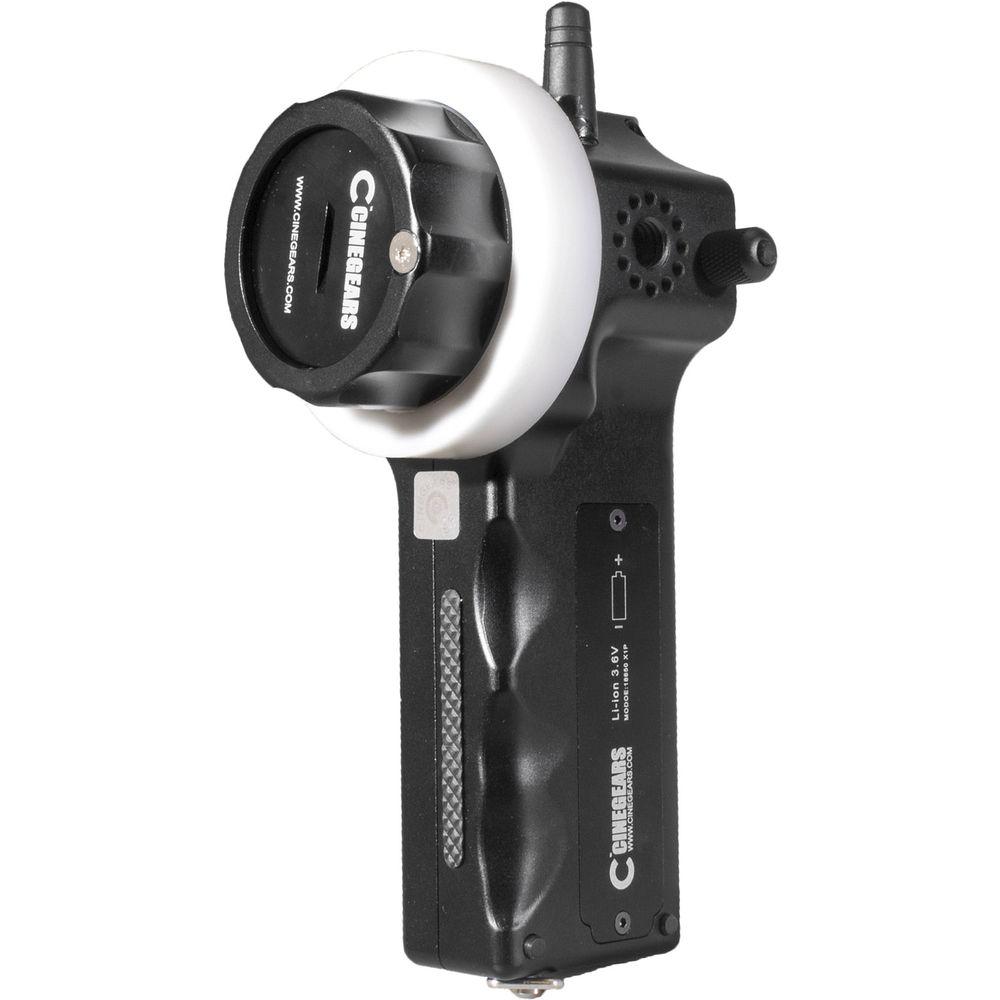

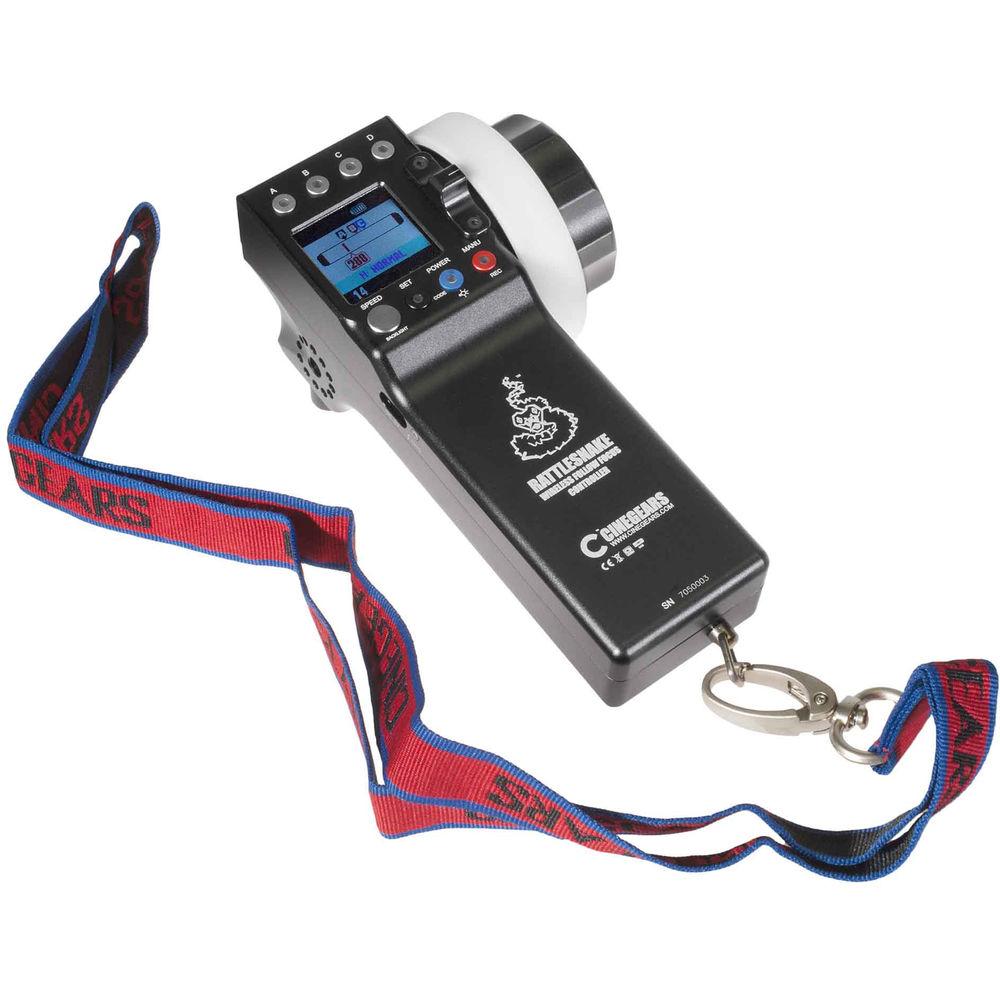

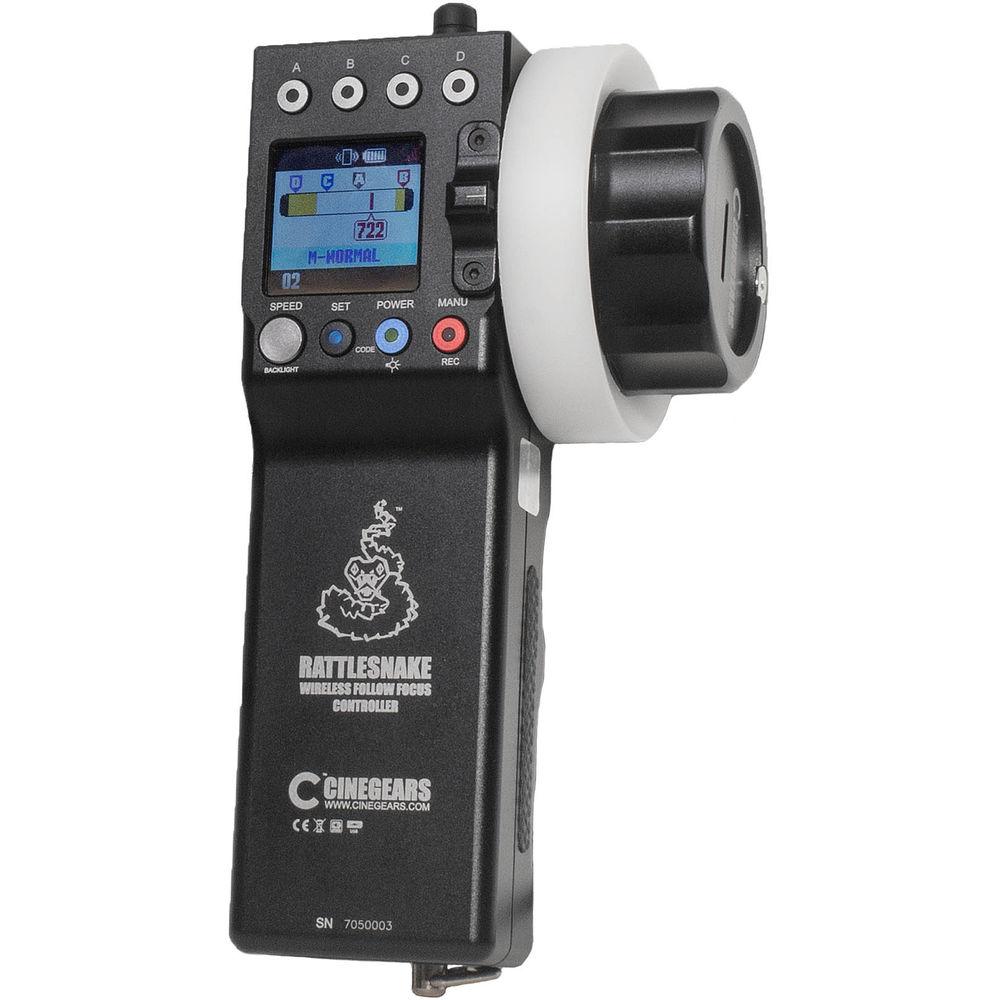

The Rattlesnake controller features a large focus wheel that provides for comfortable and more precise control. It also lets you set adjustable speeds and up to four focal points on a built-in LCD, and vibrates as you approach a focal point.
The controller also comes with two magnetic marking discs. The included motor power cable has a right-angle connector that helps you keep your wiring neat. - Key Features
-
- Control focus, iris, and zoom from up to 650 ft away
- Up to 20 hours of operational runtime per charge
- Rattlesnake controller
- Extreme motor with a 0.8 MOD gear and 1.7 Nm torque
- Right-angle motor power cable
- 15mm/19mm single rod clamp bracket

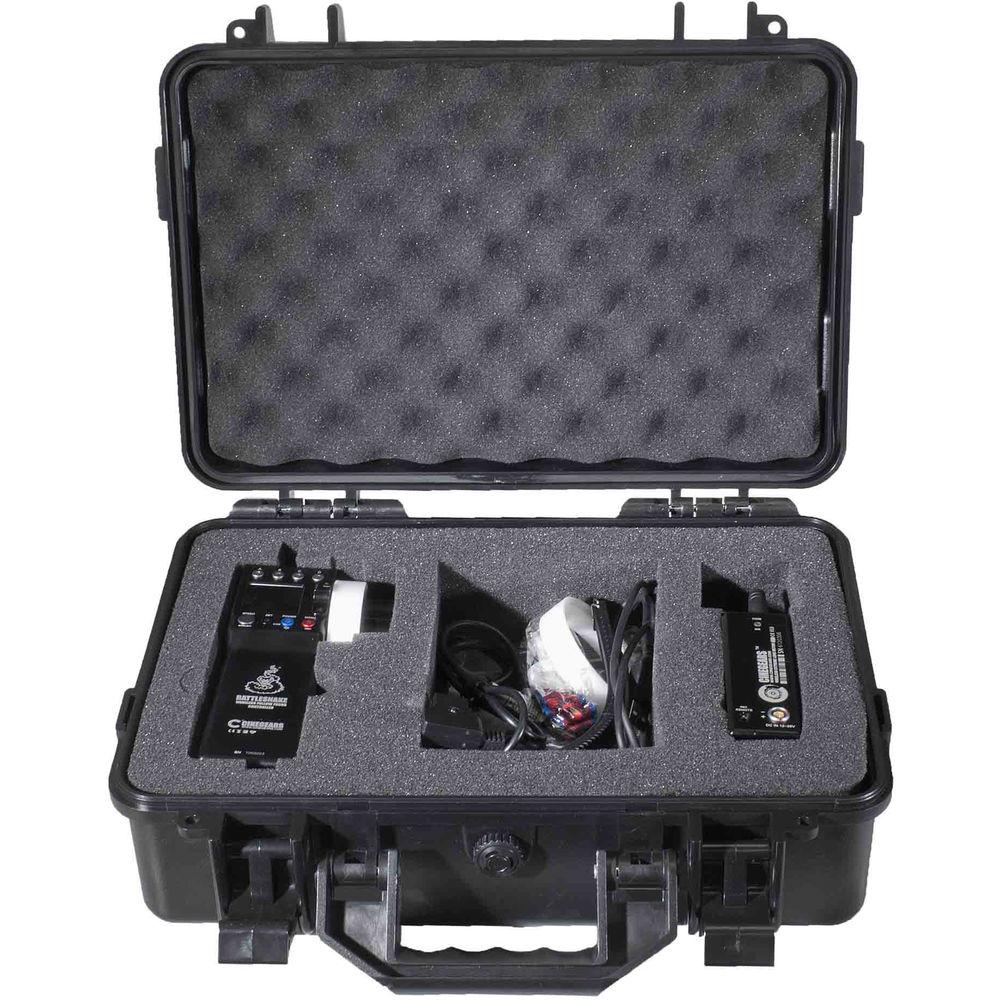

- Waterproof carry case
- Remote record start/stop trigger port for ARRI, Sony, Canon, and Blackmagic cameras
- Four adjustable focal points
- Adjustable speed
- Controller vibrates as you approach a focal point
- Removable focus ring
- Built-in LCD screen
UPC: 612520356361 In the Box CINEGEARS Rattlesnake Complete Kit with Extreme Motor Single-Axis Extreme Motor cyutbeszry Wireless Rattlesnake Controller 2 x Marking Discs 2 x Motor Mounting Brackets (19mm/15mm) 15mm-to-19mm Rod Bushing D-Tap Converter Cable Gear with 0.5 Pitch and Teeth Gear with 0.6 Pitch and Teeth Gear with 0.8 Pitch and Teeth Gear with 1.0 Pitch and Teeth Mini-USB Cable for Battery Charge Gear Relocator Rubber Ring Extended Bracket for 15mm Rod Side Bracket for Controller Waterproof Foamed Production Case Limited 3-Year Warranty User Manual PDF 9.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Rattlesnake Complete Kit with Extreme Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Rattlesnake Specs | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 13.4 x 9.9 x 4.3" |
