Product description
Cinegears Single Axis Standard Wireless Follow Focus Kit Operations Guide
Cinegears Single Axis Standard Wireless Follow Focus Kit Operations Guide
Cinegears Wireless Follow Focus System
Wireless Follow Focus Motor Maintenance Tips
Espresso Rocker Wireless Follow Focus System Review
A single-axis lens control system with room for expansion, the Rocker Controller Basic Kit from CINEGEARS allows you to set up a wireless lens control system on your camera system, equipped with either a cine-style geared lens or lens that does not feature a focus gear. The Rocker Controller features a built-in rechargeable battery with approximately eight working hours of power per charge, offers 16 selectable speeds, 15 selectable transition speeds, and allows you to program up to two focus presets. It incorporates a start/stop record trigger button and small LED screen that shows focus depth. The kit comes with a 19mm rod clamp bracket and 19mm to 15mm adapter bushing, so you can mount the motor on either 15mm or 19mm support rods. The lens controller does not have physical hard stops; however, it does allow you to program focus stops, which you can use to define the end points of your lens.
Included with the kit is a customizable rubber gear that you can mount on a lens that lacks the necessary cine-style focus gear. The motor comes with a cine-style drive gear that can be swapped out when using ENG-style lenses with either Canon or Fuji-style gearing (replacement gears not included). This basic kit fits into a waterproof case with foam inserts to protect your equipment during transport and while in storage.
Rocker Controller
The wireless controller features an internal battery that can run the controller for approximately eight hours on a single charge.
The controller supports auto calibration, manual calibration, and lens remapping.
You can program focus pre-sets into the controller and then transition between the focus points at the push of a button with adjustable transition speed.
Manual calibration allows you to set close and far distance stops when using an infinitely rotating lens.
Wireless Motor
Wireless Control
The motor incorporates a wireless receiver that allows you to control it via your Cinegears Single-Axis Wireless Controller. An optional LANC cable/remote trigger is required for camera start/stop. An optional 2-pin LEMO cable is required to provide power to the motor.
Metal Drive Gear
The included aluminum 0.8 MOD gear fits cine-style lens gears. The gear is removable, so you can swap it out for optional gears for video lenses and non-standard lens gears. The gear's motor-facing surface is made from chrome-plated stainless steel, which matches the facing surface of the motor drive.
Motor Function
The motor will calibrate itself to your lens and allow you to remap the lens to your controller. You can program multiple stop points, which is especially useful when working with infinitely rotating lenses, or if you wish the set specific focus points on an optional focus handwheel.
Reversible
The motor drive is reversible, which allows you to use lenses that focus in the opposite direction from standard without having to add a physical reversing gear.
2" Rod Bracket
Provides height adjustment when used with an optional Cinegears Lens Control Motor.
The 19mm clamp is designed to work specifically with 19mm support rods.
The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and then lower it to continue tightening or loosening it.
Customizable Geared Lens Ring
The strip comes pre-scored for accurate trimming and with pre-formed holes for the metal clip that turns the rubber strip into lens gear.
The 0.8 MOD gear teeth interface with industry standard 32-pitch cine-style follow focus drive gears.
You customize the flexible rubber strip to fit your lens. After cutting the strip to length, you butt the ends together and insert the metal clip to form the lens gear.

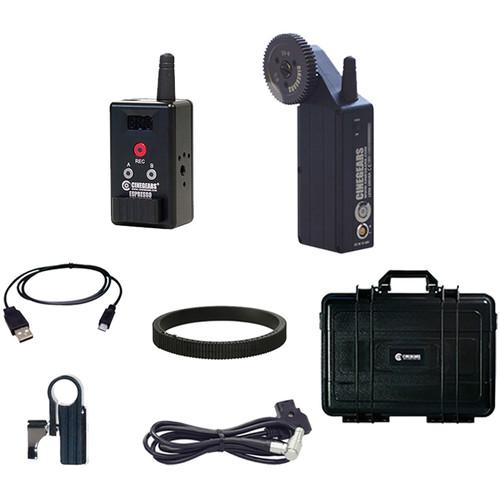

UPC: 731236162445 In the Box CINEGEARS Rocker Controller Basic Kit
Rocker Switch Controller
Single-Axis Wireless Motor
Customizable Geared Focus Ring bafqtqrxsefszeds
Single Axis Wireless Motor Power Cable
4-Pin Start/Stop Cable for Sony F5/F55
Hard Case with Foam Inserts for Single-Axis Kit
2" Rod Bracket for Lens Control Motors (19mm)
19mm to 15mm Adapter Bushing
Limited 3-Year Warranty on Controller and Motor
Limited 1-Year Warranty on Cables, Bracket, Bushing, Marking Discs, Lens Gear, and Case
Table of Contents
Upload User Manual
Have you got an user manual for the CINEGEARS Rocker Controller Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
CINEGEARS Rocker Specs
Construction
CNC machined aluminum alloy, black anodized coating
Dimensions
10.8 x 8.9 x 5.1" / 27.5 x 22.5 x 13.0 cm
Weight
Approximately 56.1 oz / 1,590 g
Material of Construction
Black anodized CNC machined aluminum and steel alloy
Maximum Peak Torque
0.85 Nm
Maximum Speed
2.8 rev/sec
Connectors
1 x 2-pin LEMO jack 1 x LANC jack
Power Input
12 to 28 VDC
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 122°F / -20 to 50°C
Dimensions
5.5 x 1.3 x 2.0" / 14.0 x 3.2 x 5.1 cm
Weight
0.8 lb / 350 g
Material of Construction
Hard anodized aluminum Steel slide
Length
2" / 5 cm
Rod Clamp Type
19 mm
Material of Construction
PVC
Dimensions
10.8 x 8.9 x 5.1" / 27.5 x 22.5 x 13.0 cm
Weight
3.5 lb / 1.6 kg
Package Weight
3.9 lb
Box Dimensions (LxWxH)
11.2 x 9.5 x 4.2"
