User Manual for CINEGEARS Ruige 24.1" 10-Bit Cinema Color Grading Monitor Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ruige 24.1" 10-Bit Cinema Color
- Product category: Production Monitors CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Production Monitors
 |
User manual for the CINEGEARS Ruige 24.1" 10-Bit Cinema Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

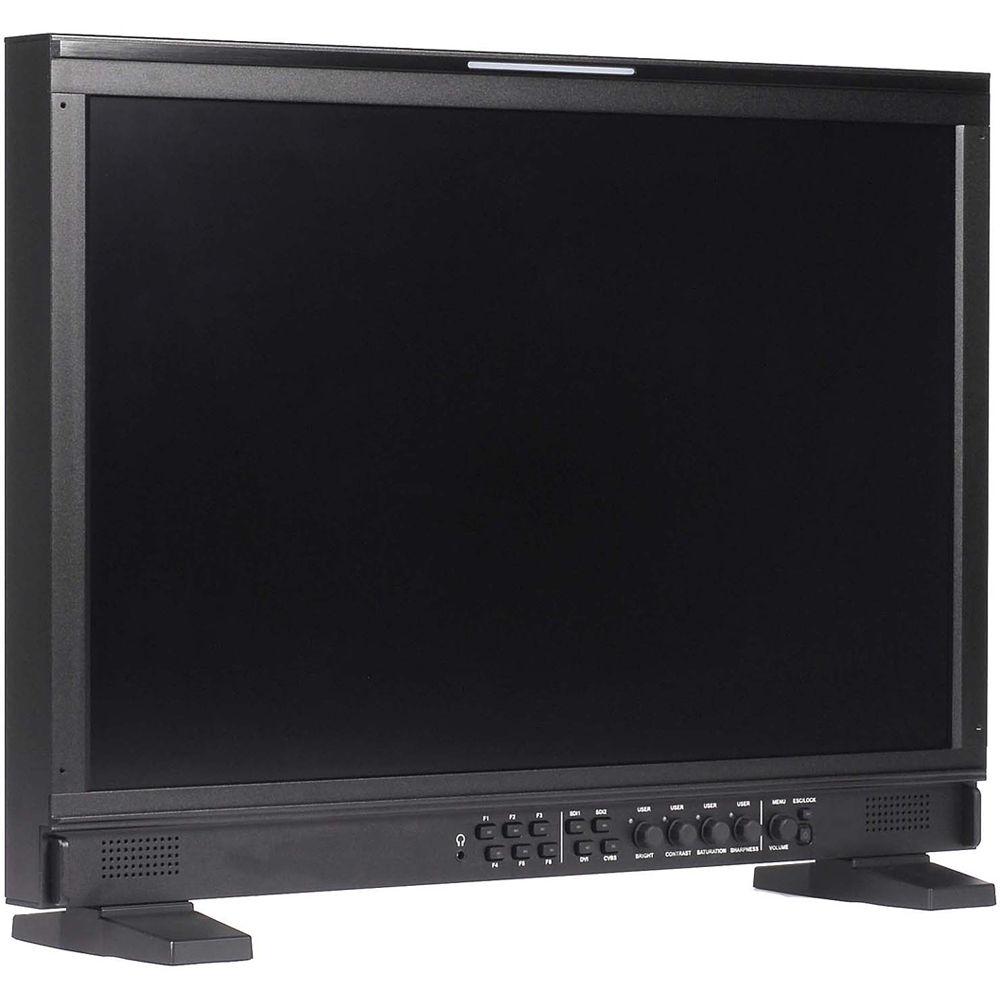

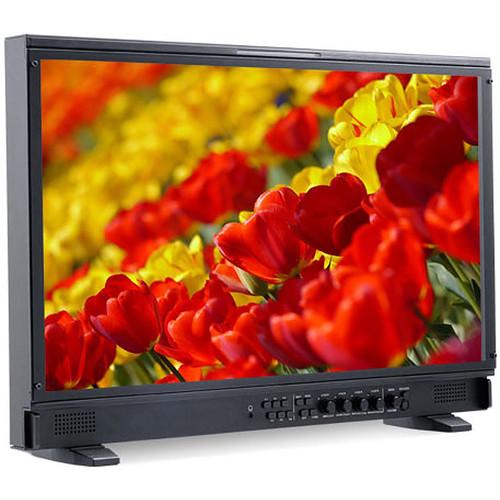

Product description The Ruige 24.1" 10-Bit Cinema Color Grading Monitor from CINEGEARS features a 1920 x 1200 resolution and a 1500:1 contrast ratio. It also features a keylock function, timecode display, safety marker, 8-channel audio meter display, frame freeze function, and a battery checking meter. This monitor also supports 3D-LUT color calibration (DCI-P3). - Monochrome (blue only), H/V delay, fast keys (user define), and Tally functions
- Supports dynamic UMD (TSL3.1TSL4.0)
- Built-in S-LOG1/S-LOG2/S-LOG3/C-LOG curve graph
- Luminance waveform/vector/RGB
- Peaking focus and step false color
- SDI 1/1.001 frame rate compatible
- Supports 3D-LUT color calibration (DCI-P3/Rec709/SMPTE-C/EBU)
UPC: 612520356569 In the Box CINEGEARS Ruige 24.1" 10-Bit Cinema Color Grading Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ruige 24.1" 10-Bit Cinema Color Grading Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

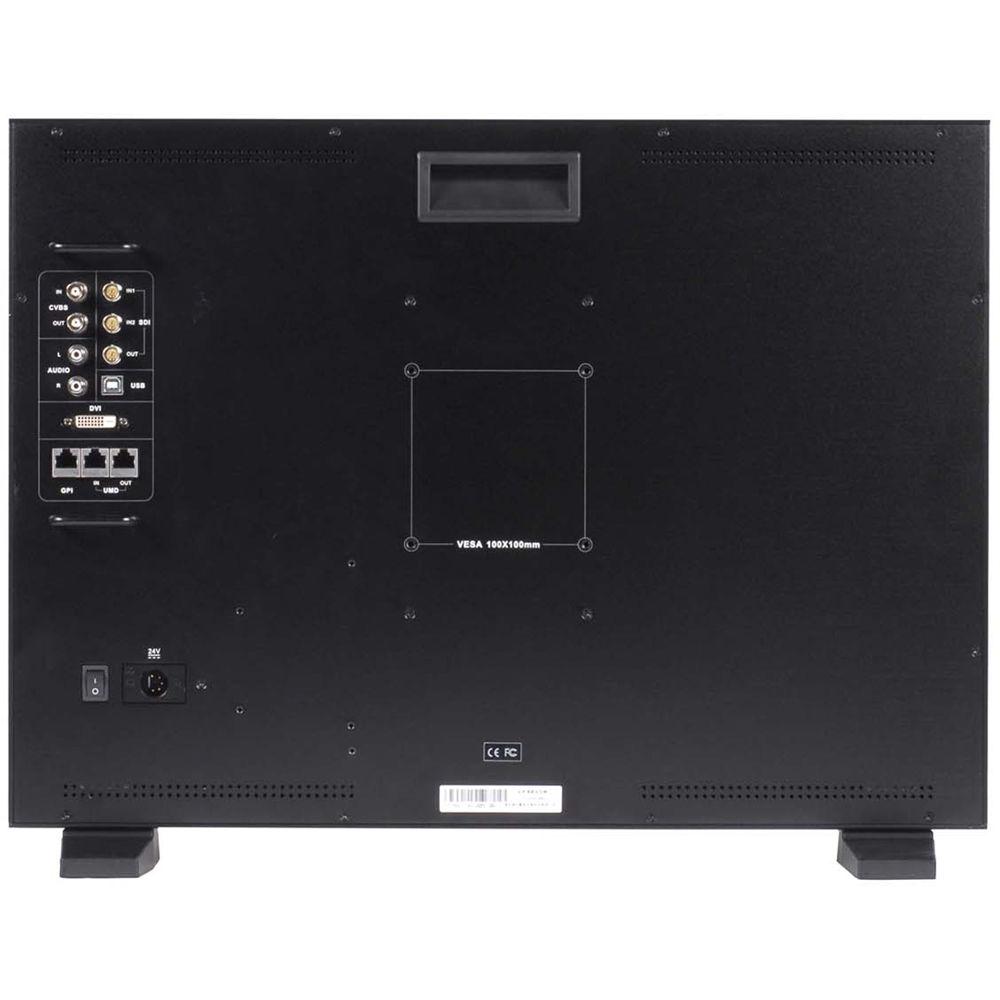

Technical parametersCINEGEARS Ruige Specs | Screen Size | 24.1" (61.2 cm) | | Resolution | 1920 x 1200 | | Color Depth | 10 bits | | Viewing angle (L/R/T/B) | 178°/178°/178°/178° | | Brightness | 400 cd/m2 | | Contrast Ratio | 1500:1 | | Response Time | 8 ms | | Dot Pitch | 0.27 x 0.27 mm | | Aspect Ratio | 4:3/16:9 (switchable) | | HDCP | 1.1 | | Inputs/Outputs | 1 x Composite input/output
2 x 3G-SDI input/output
1 x DVI input
2 x Audio input (speaker and earphone jack) | | Power Voltage | Input: 100 to 240 VAC
Output: 12 VDC | | Power Consumption | 45 W | | Dimensions | 22.2 x 17 x 1.9" (56.5 x 43.1 x 4.8 cm) | | Weight | 16 lb (7.3 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
