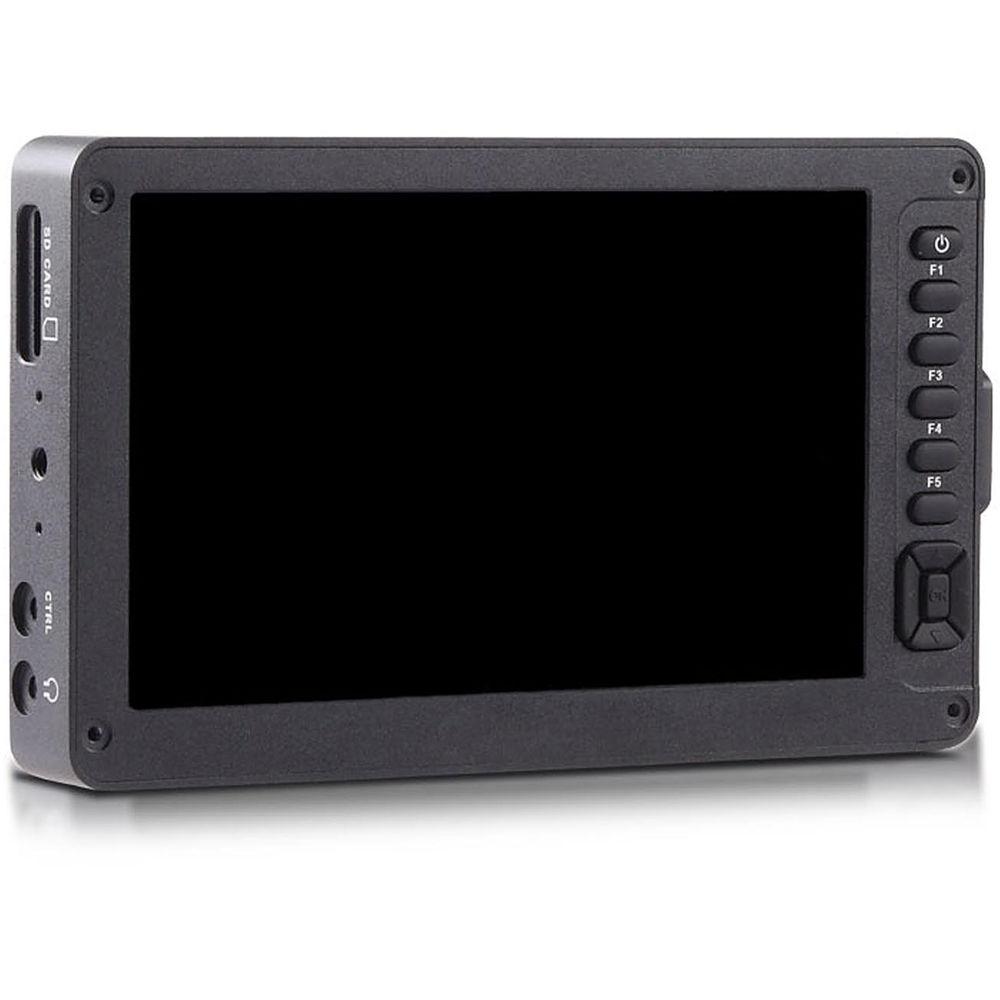

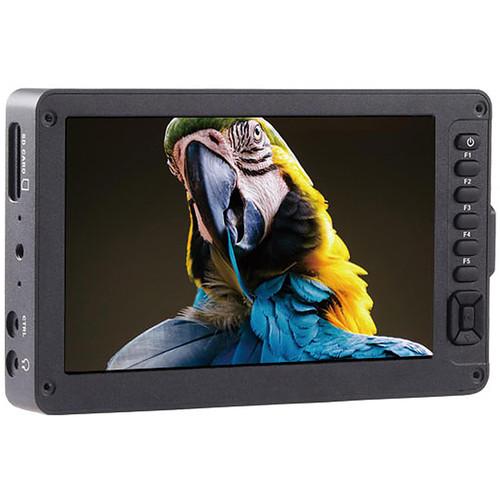

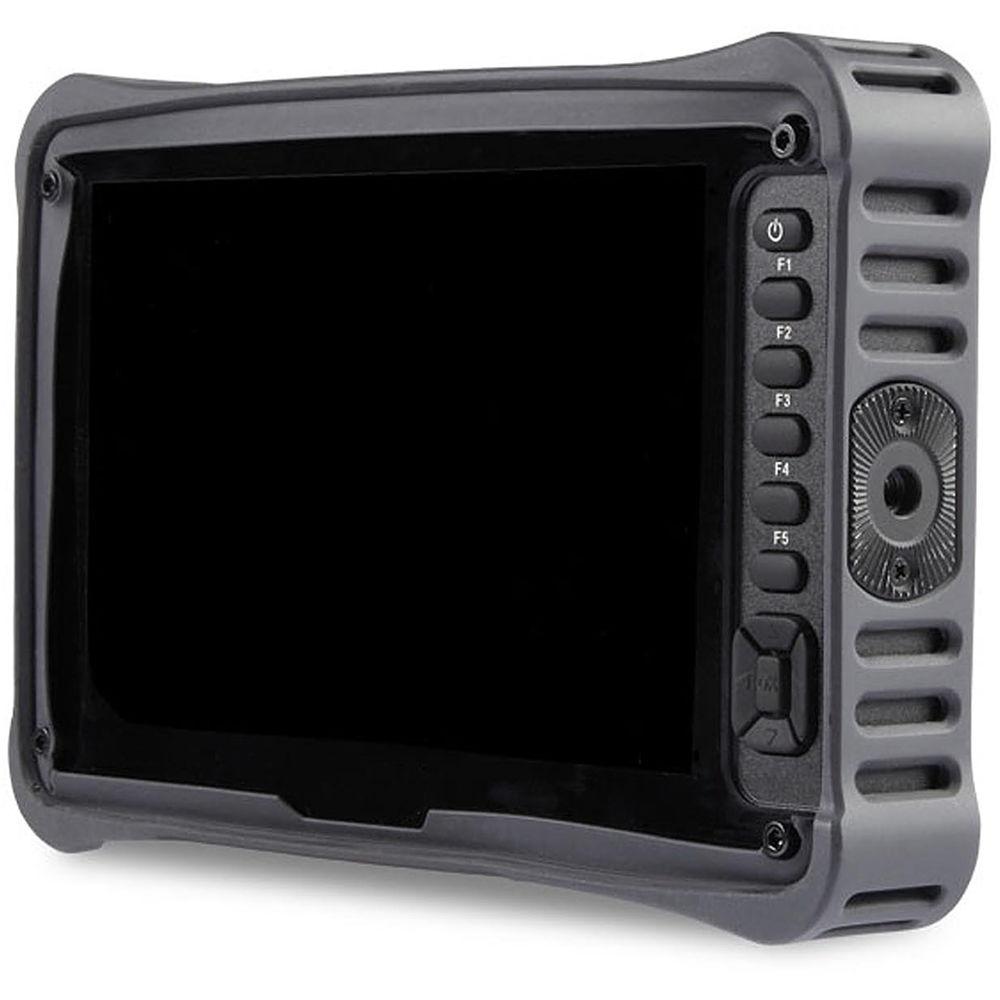

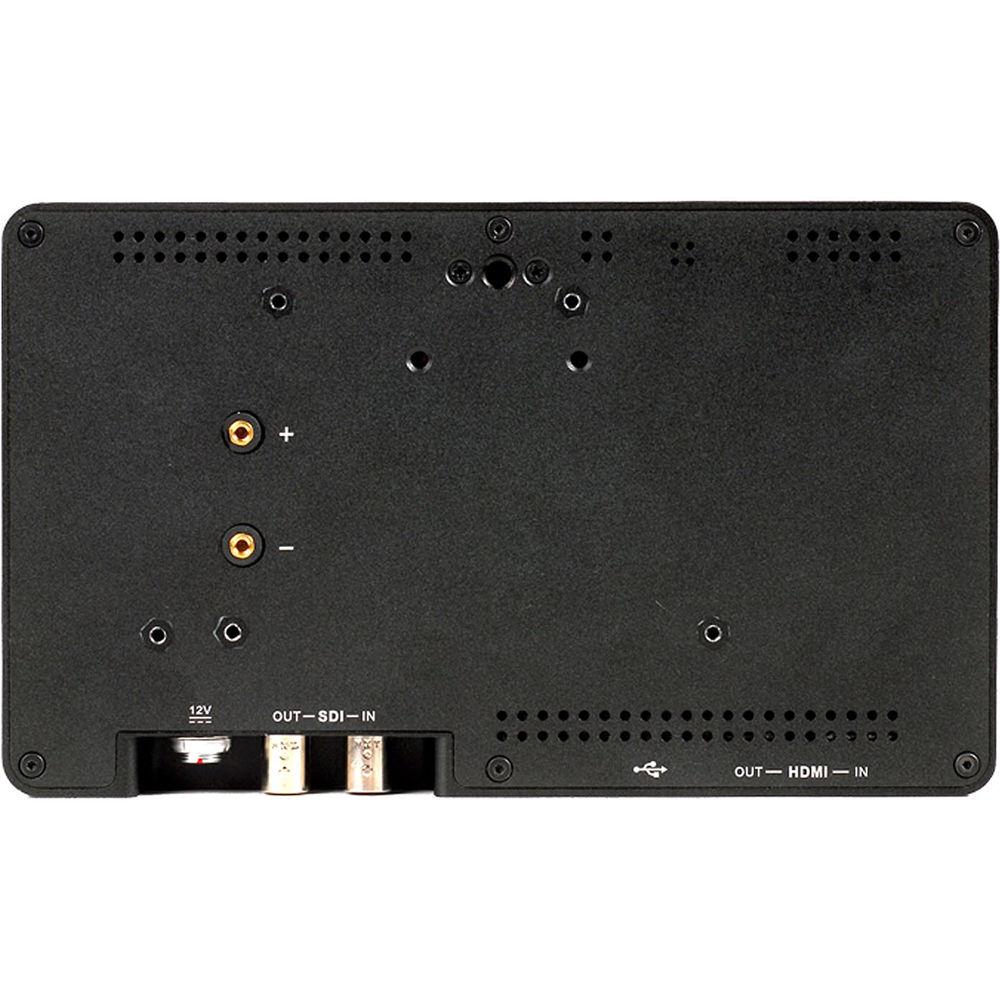

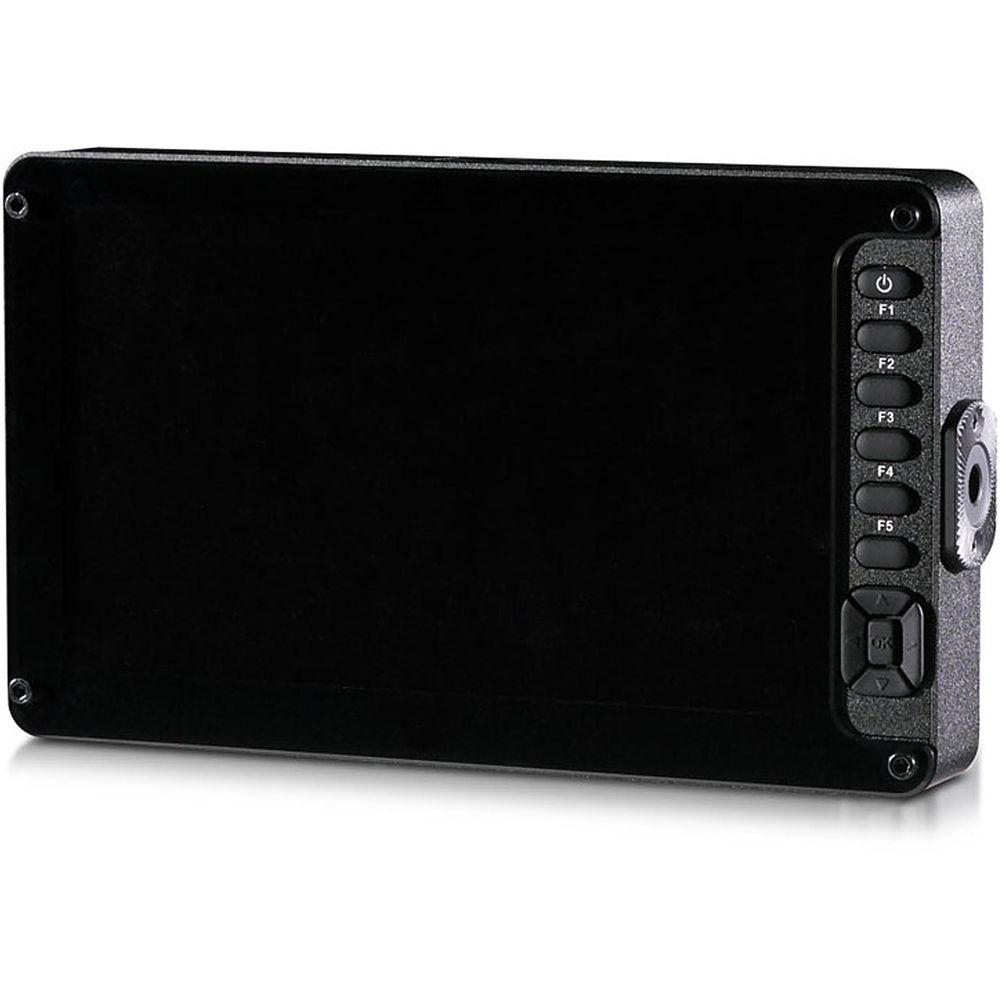

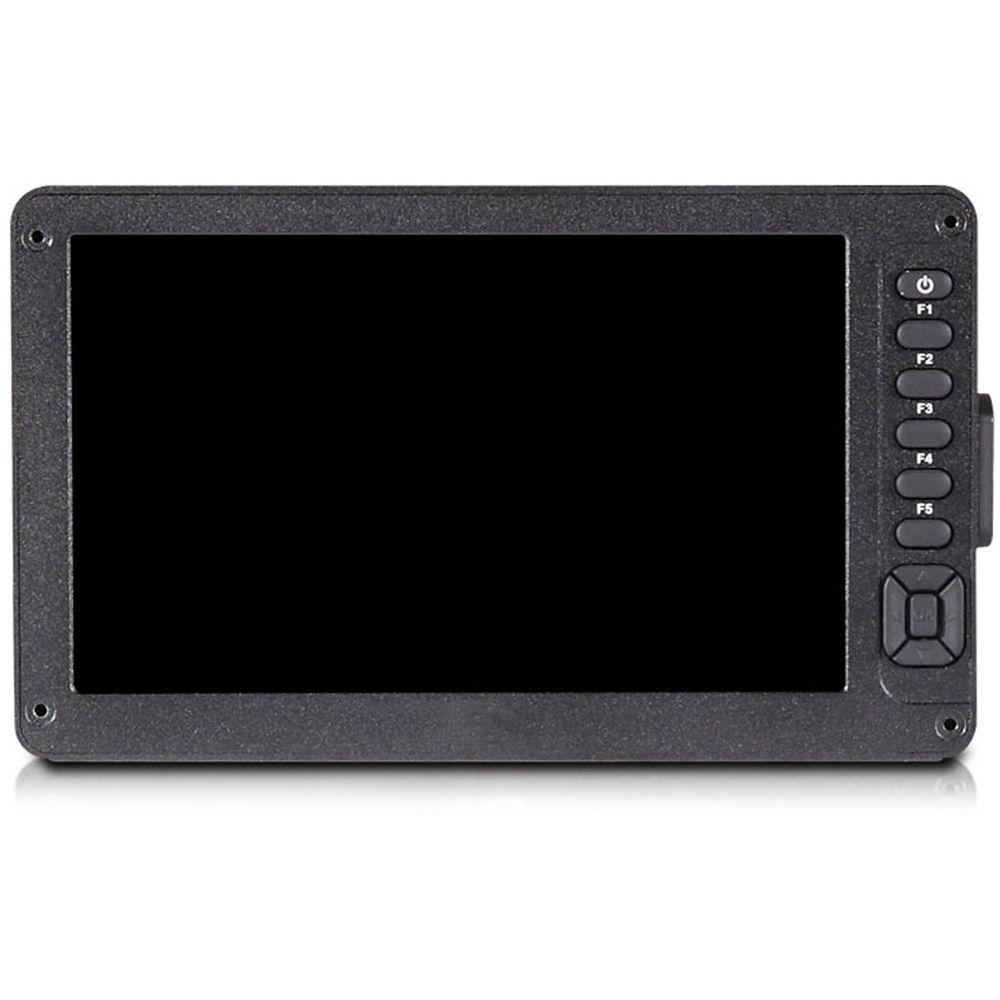

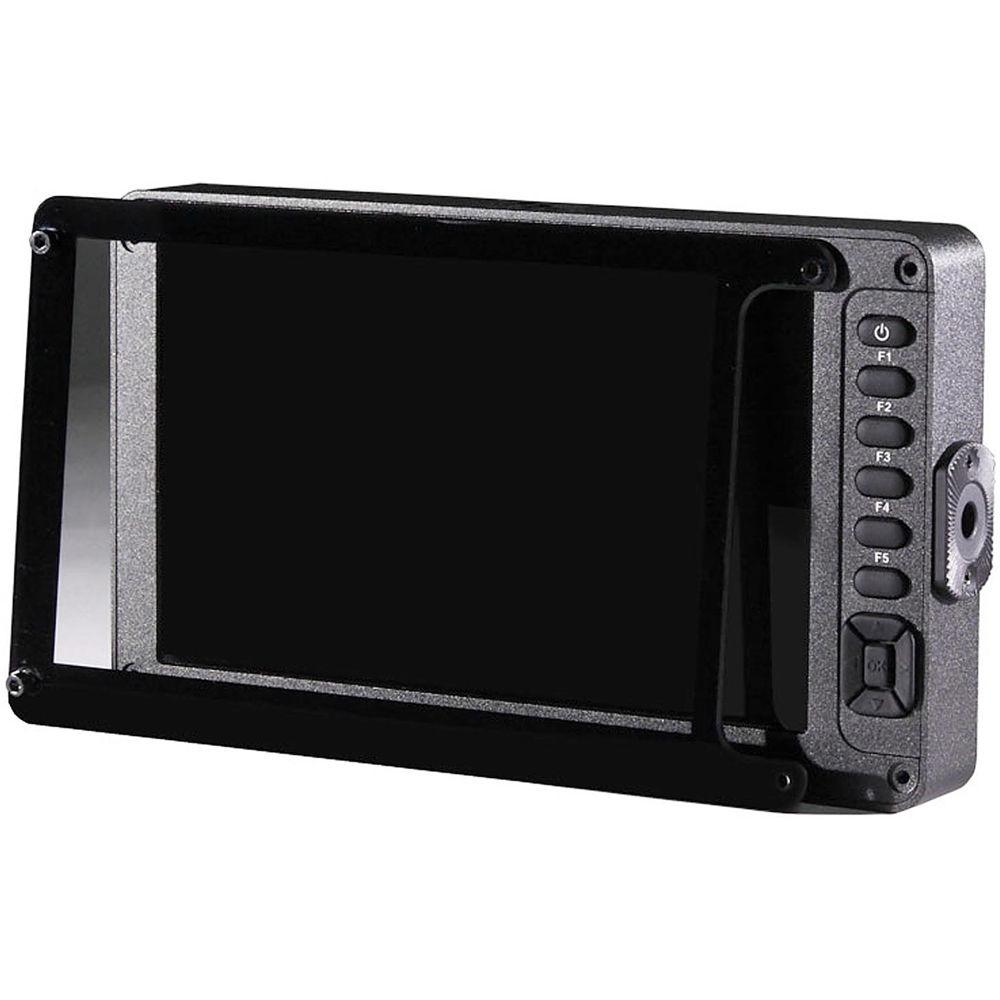

User Manual for CINEGEARS Ruige 7" HD On-Camera 3G-SDI HDMI LCD Monitor Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ruige 7" HD On-Camera 3G-SDI
- Product category: On Camera Monitors CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS On Camera Monitors
 |
User manual for the CINEGEARS Ruige 7" HD On-Camera 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description The Ruige 7" HD On-Camera 3G-SDI/HDMI LCD Monitor from CINEGEARS supports interlaced and progressive signal formats and 3D-LUT color calibration. It features luminance waveform, headroom and footroom waveform, false color, and rapid positioning of out of luminance range. This 7" monitor is capable of loading six 1D or 3D-LUT color calibration. It also features self-defined safety markers, embedded audio, and anamorphic de-squeeze function (1.3x, 2.0x). -
- HD-SD SDI and loopthrough
- Cross converts HDMI to SDI
- Earphone jack
- Peaking focus and zebra function
- B&W mode
- Monochrome (blue only)
- SDI 1/1.001 frame rate compatible
- HDCP 1.1/HDMI 1.4 (can monitor 4K signal from video source)
- 16-channel audio meter
- Operational keylock function
- Timecode
- Image film (automatic)
- Frame grabbing
UPC: 612520356538 In the Box CINEGEARS Ruige 7" HD On-Camera 3G-SDI/HDMI LCD Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ruige 7" HD On-Camera 3G-SDI HDMI LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Ruige Specs | Screen Size | 7" (17.8 cm) | | Display Type | LCD | | Resolution | 1024 x 600 | | Viewing Angle (H/V) | 150°/145° | | Brightness | 1000 cd/m2 | | Contrast Ratio | 850:1 | | Response Time | 10 ms | | HDCP | 1.1 | | HDMI | 1.4 (can monitor 4K signal from video source) | | Backlight | WLED | | Battery Voltage | 14.4 V lithium battery | | Input Voltage | 100 to 240 VAC 50/60 Hz | | Output Voltage | 12 VDC | | Power Consumption | 20 W | | Dimensions | 7.7 x 4.6 x 0.9" (19.5 x 11.6 x 2.4 cm) | | Weight | 1.3 lb (0.6 kg) |
