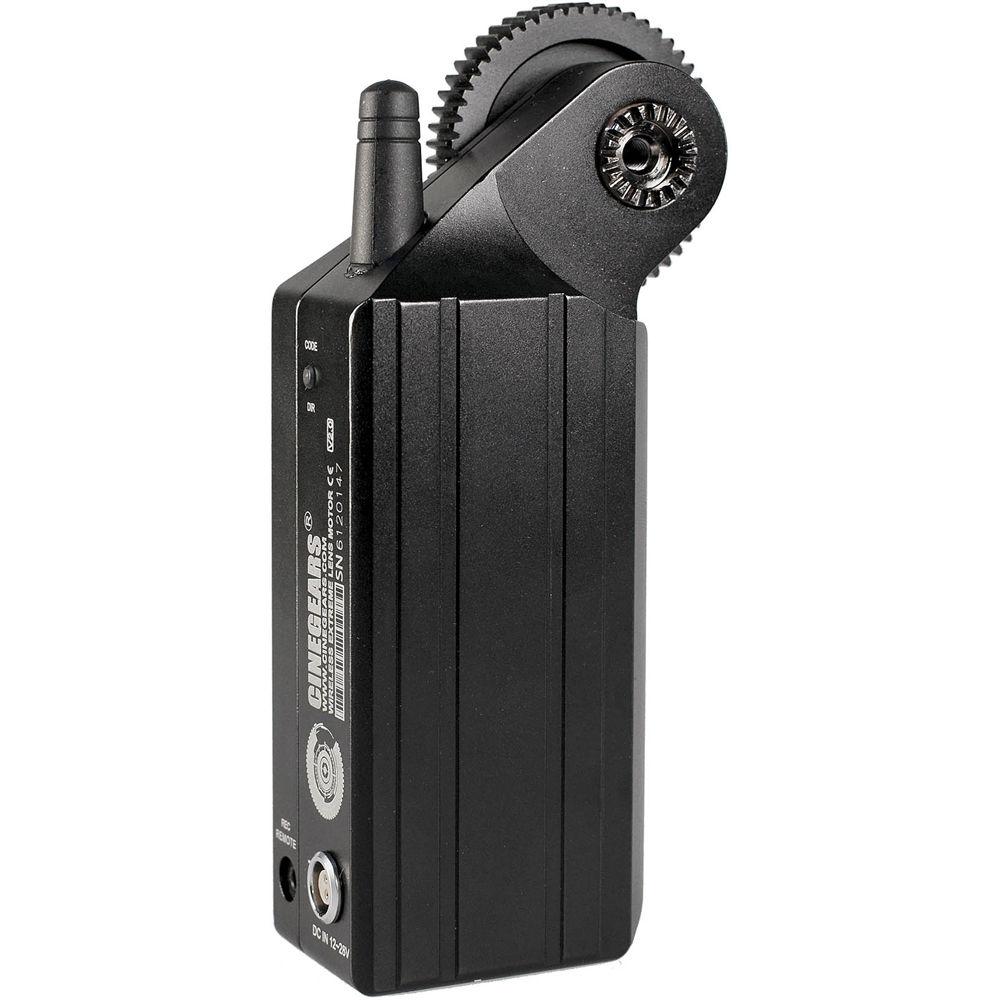

The CINEGEARS Single-Axis Extreme Motor provides precise repeatable control of your focus, zoom, or iris ring, and it provides twice the torque as the Single-Axis motor and is suitable for use with prime lenses and even stiff zooms. It is compatible with an optional CINEGEARS controller, Single, Multi, Rocker, or Espresso, and ships with an interchangeable cine-style 0.8 MOD drive gear. It requires an optional power cable and rod clamp, which are available separately. You may use this motor to drive the focus, zoom, or iris gear ring on your lens. Once mounted, the lens motor will calibrate itself to your lens in a simple process. You can also manually remap your lens with the optional hand controller, and program multiple stops along the lens, simulating either hard stops, or focus positions. The motor direction is electronically reversible if you need to change the orientation of your motor, or are working with a lens that focuses in the opposite direction to standard cine lenses. The motor incorporates a LEMO jack for power and a LANC jack for camera start / stop.
Wireless Control
The motor incorporates a wireless receiver that allows you to control it via your CINEGEARS Single-Axis Wireless Controller. An optional LANC cable / remote trigger is required for camera start / stop. An optional 2-pin LEMO cable is required to provide power to the motor.
Metal Drive Gear

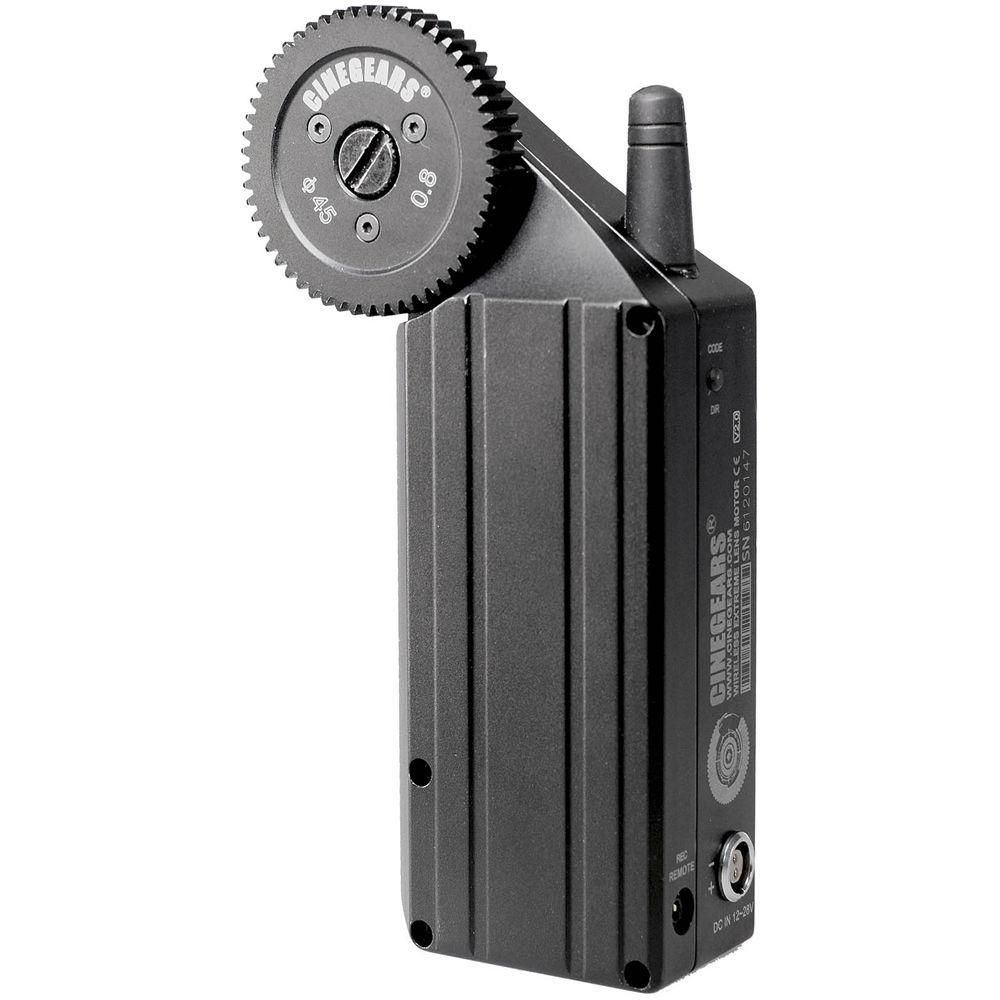

The included aluminum 0.8 MOD gear fits cine-style lens gears. The gear is removable, so you can swap it out for optional gears for video lenses and non-standard lens gears. The gear's motor facing surface is made from chrome-plated stainless steel, which matches the facing surface of the motor drive.
Motor Function
The motor will calibrate itself to your lens and also allows you to remap the lens to your controller. You can program multiple stop points, especially useful when working with infinitely rotating lenses, or if you wish the set specific focus points on an optional focus hand-wheel.
Reversible
The motor drive is reversible, which allows you to use lenses that focus in the opposite direction from standard without having to add a physical reversing gear.
UPC: 743724114485 In the Box CINEGEARS Single-Axis Extreme Motor
Lens Drive Gear
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the CINEGEARS Single-Axis Extreme Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
CINEGEARS 1-131 Specs
Material of Construction
Black anodized CNC machined aluminum and steel alloy
Maximum Peak Torque
1.7 Nm
Maximum Speed
2.8 rev/sec
Connectors
1 x 2-pin LEMO jack 1 x LANC jack
Power Input
12 to 28 VDC
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 122°F / -20 to 50°C
Dimensions
5.5 x 1.3 x 2.0" / 14.0 x 3.2 x 5.1 cm
Weight
1.1 lb / 500 g
Package Weight
1.05 lb
Box Dimensions (LxWxH)
5.6 x 3.9 x 1.4"
