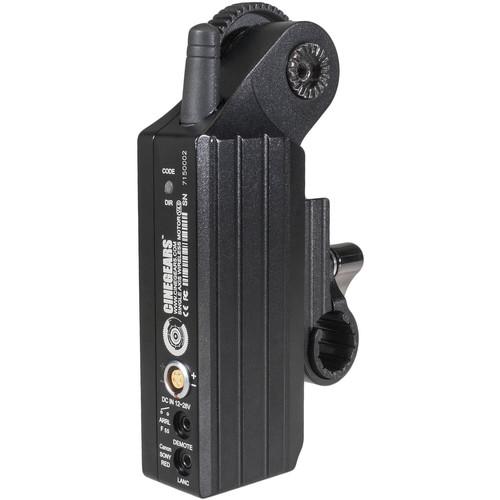

User Manual for CINEGEARS Single-Axis Standard Motor Click to enlarge the picture
Contents of the user manual for the CINEGEARS Single-Axis Standard Motor
- Product category: Wireless Lens Control Accessories CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Lens Control Accessories
|
User manual for the CINEGEARS Single-Axis Standard Motor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Motor, Extreme and Standard test on RED 18 - 85 Zoom Lens
- Wireless Follow Focus Motor Maintenance Tips
- Wireless Follow Focus Kit Gear Re - locator
The CINEGEARS Single Axis Wireless Motor V3 is a standard lens motor compatible with all CINEGEARS wireless focus controller models.
The Wireless Motor V3 features a built-in wireless receiver that interacts with the optional controller, and has a 0.8 MOD gear head compatible with cine lenses (as well as DSLR lenses outfitted with matching gear rings). The gear head is also interchangeable with other CINEGEAR gear heads available sold separately (model # 1-129). More than one of these motors can be attached on your rig for wireless focus, iris, and zoom control.
The motor attaches to your rig via a removable single rod clamp bracket. The bracket fits 19mm rods directly and 15mm rods using a supplied bushing. It can be mounted on either side of the rig, and the motor then slides onto the bracket in swing-away fashion and can be tightened at the desired height.
The motor also offers a remote record start/stop trigger port for ARRI, Sony, Canon, and Blackmagic cameras. - Key Features
-
- Standard lens motor compatible with all CINEGEARS wireless focus controller models
- Built-in wireless receiver
- 0.8 MOD gear head (optional other ones supported)
- 19mm/15mm compatible removable single rod clamp bracket
- Swing-away attachment
- Height adjustable
UPC: 612520356040 In the Box CINEGEARS Single-Axis Standard Motor Single Rod Clamp Bracket 19mm to 15mm Rod Bushing Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Single-Axis Standard Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 1-221 Specs | Maximum Peak Torque | 0.85 Nm | | Drive Gear | 0.8 MOD / 32 pitch | | Rod Compatibility | 19 mm (and 15 mm via included bushing) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
