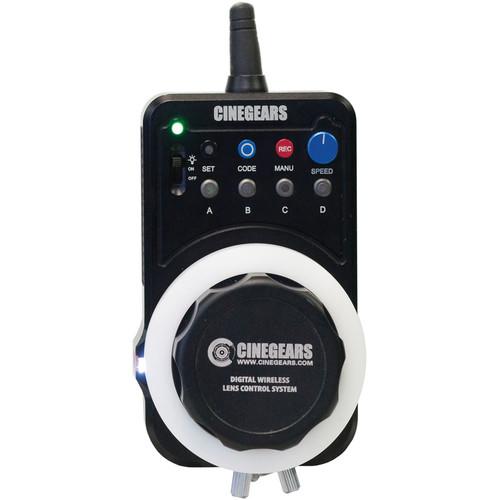

User Manual for CINEGEARS Single Axis Wireless Express Plus Controller Click to enlarge the picture
Contents of the user manual for the CINEGEARS Single Axis Wireless Express Plus
- Product category: Wireless Lens Control Accessories CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Lens Control Accessories
 |
User manual for the CINEGEARS Single Axis Wireless Express Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|
Product description - Cinegears Single Axis Standard Wireless Follow Focus Kit Operations Guide
- Cinegears Single Axis Standard Wireless Follow Focus Kit Operations Guide
- Cinegears Wireless Follow Focus System
- Cinegears Wireless Follow Focus Motor Maintenance Tips
The CINEGEARS Single Axis Wireless Express Plus Controller is a wireless follow focus controller that easily pairs with a CINEGEARS wireless motor. You can use the controller for focus, zoom, or iris. The controller operates on a frequency of 433 MHz, providing a range of up to 320' line of sight. The wireless controller and optional motor combination provide simple auto lens calibration and manual lens remapping for easy lens changes.
The Express Plus Controller features a removable marking disc, a side mounted index marker with an illuminating LED for pulling focus in dim lighting conditions, and allows you to program up to four stop / positions. Adjustable physical hard stops on the controller are useful when working with lenses that do not have physical hard stops. You can adjust the transition speed for programmed presets, and with optional cables connected to your motor, you can control start/ stop for ARRI, RED, Sony, and Canon professional camcorders. LED indicator lights show you the status of the controller. - The wireless controller features an internal LiPo battery that can run the controller for approximately 20 hours on a single charge. You can operate the controller while simultaneously charging it. Charging is via a mini USB connector, and it supports input voltage range of 12 to 30 VDC.
- The controller supports auto-calibration, manual calibration, and lens remapping.
- After calibration, the end stops are automatically slightly shortened, preventing you from pinning the lens.
- You can program focus pre-sets into the controller and then transition between the focus points at the push of a button with adjustable transition speed.
- Manual calibration allows you to set close and far distance stops when using an infinitely rotating lens
- The Express Plus Controller features adjustable hard stops that you can use to match the end stops of your calibrated lens. You can also adjust the stops to reflect the positions of the start and stop of your focus pull, so you can pull focus without looking at the controller.
- The Express Plus Controller features a built-in LED that illuminates the area of the removable marking disk around the index mark, allowing you to more easily see your marks in dim or dark conditions.
UPC: 743724113983 In the Box CINEGEARS Single Axis Wireless Express Plus Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Single Axis Wireless Express Plus Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 1-115 Specs | Material of Construction | Aluminum and steel alloy | | Construction | CNC machined, black anodized coating | | Frequency | 433 MHz (RF) | | Battery | LiPo | | Charging Voltage | Input: 12 to 30 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 5.8 x 2.8 x 2.8" / 14.6 x 7.0 x 7.0 cm | | Weight | Approximately 1.0 lb / 0.5 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 4.2 x 3.2 x 2.1" |
