User Manual for CINEGEARS Single-Axis Wireless Follow Focus Express Basic Extreme Kit Click to enlarge the picture
Contents of the user manual for the CINEGEARS Single-Axis Wireless Follow Focus Express
- Product category: Wireless Lens Control Systems CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Wireless Lens Control Systems
 |
User manual for the CINEGEARS Single-Axis Wireless Follow Focus Express contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

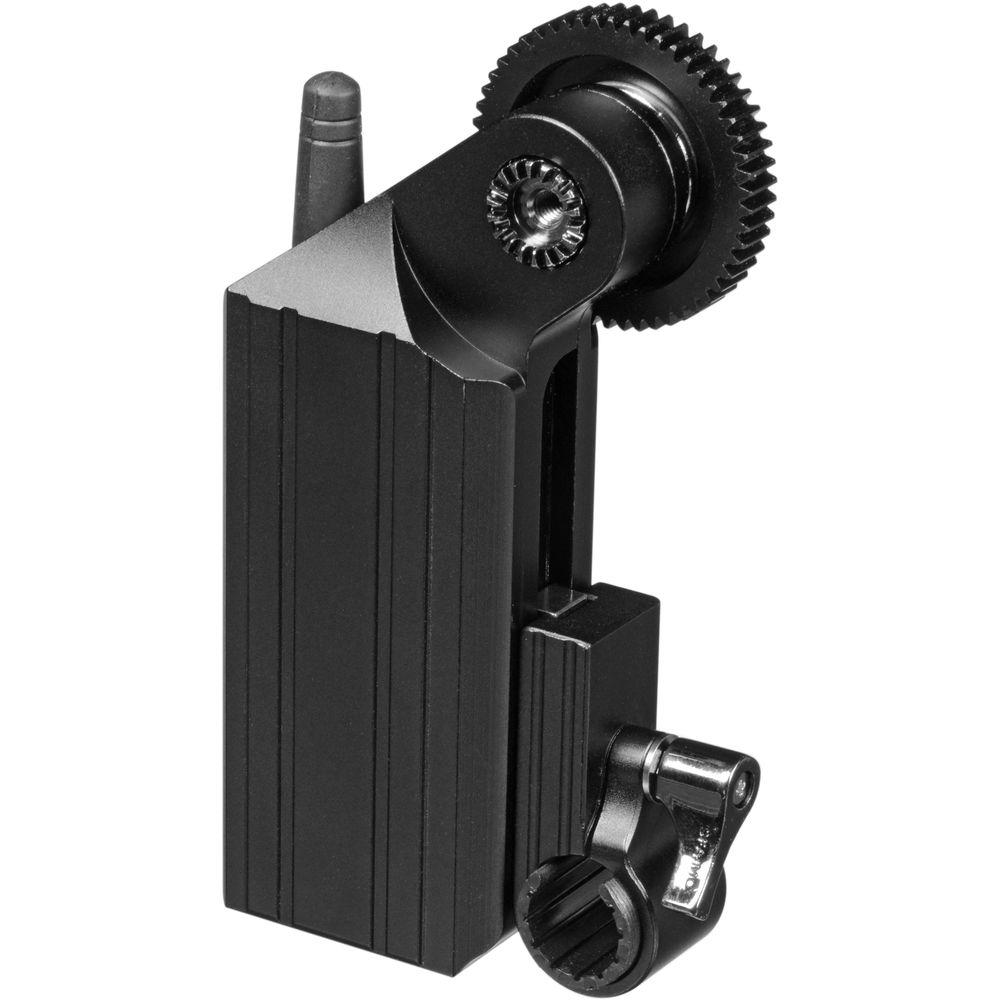

Product description A single-axis lens control system with room for expansion, the Single-Axis Wireless Follow Focus Express Basic Extreme Kit from Cinegears allows you to set up a wireless lens control system on your camera system, equipped with either a cine-style geared lens or lens that does not feature a focus gear. The kit comes with a 19mm rod clamp bracket and 19mm to 15mm adapter bushing, so you can mount the motor on either 15mm or 19mm support rods. The lens controller does not have physical hard stops; however, it does allow you to program focus stops, which you can use to define the end points of your lens.

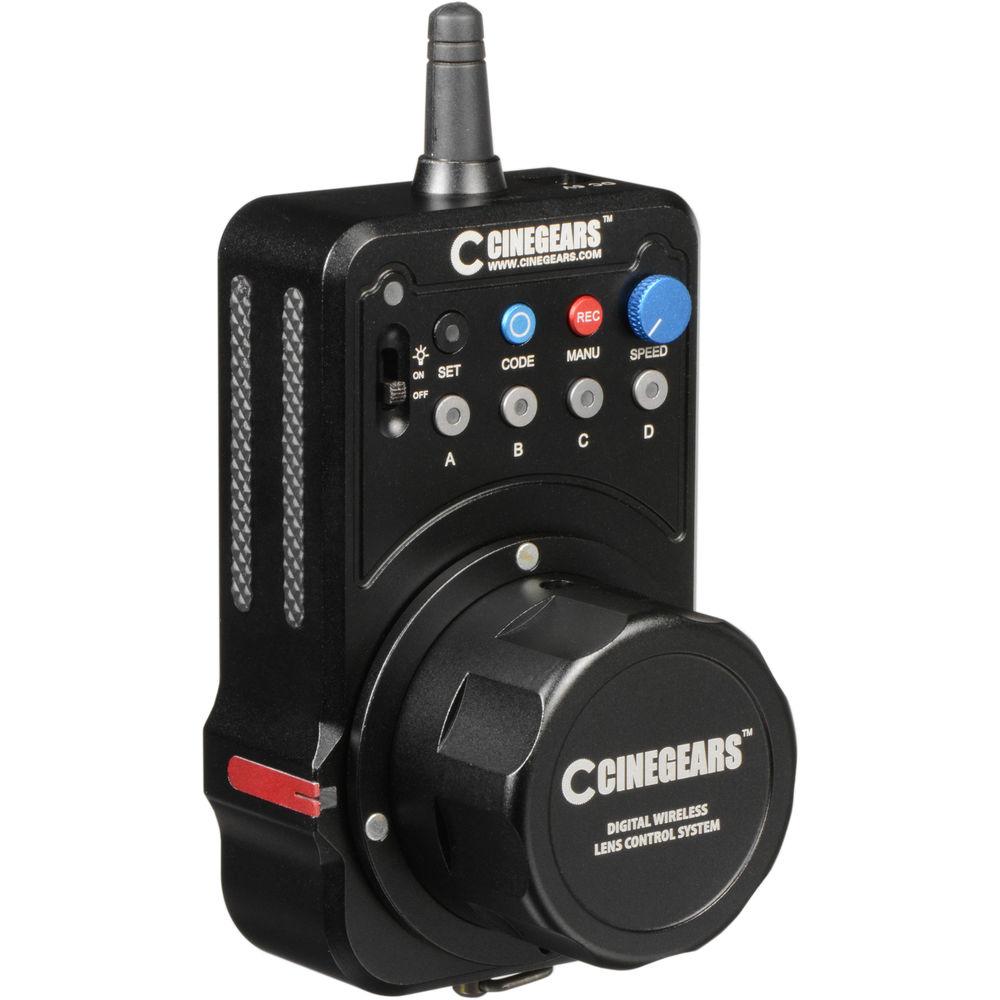

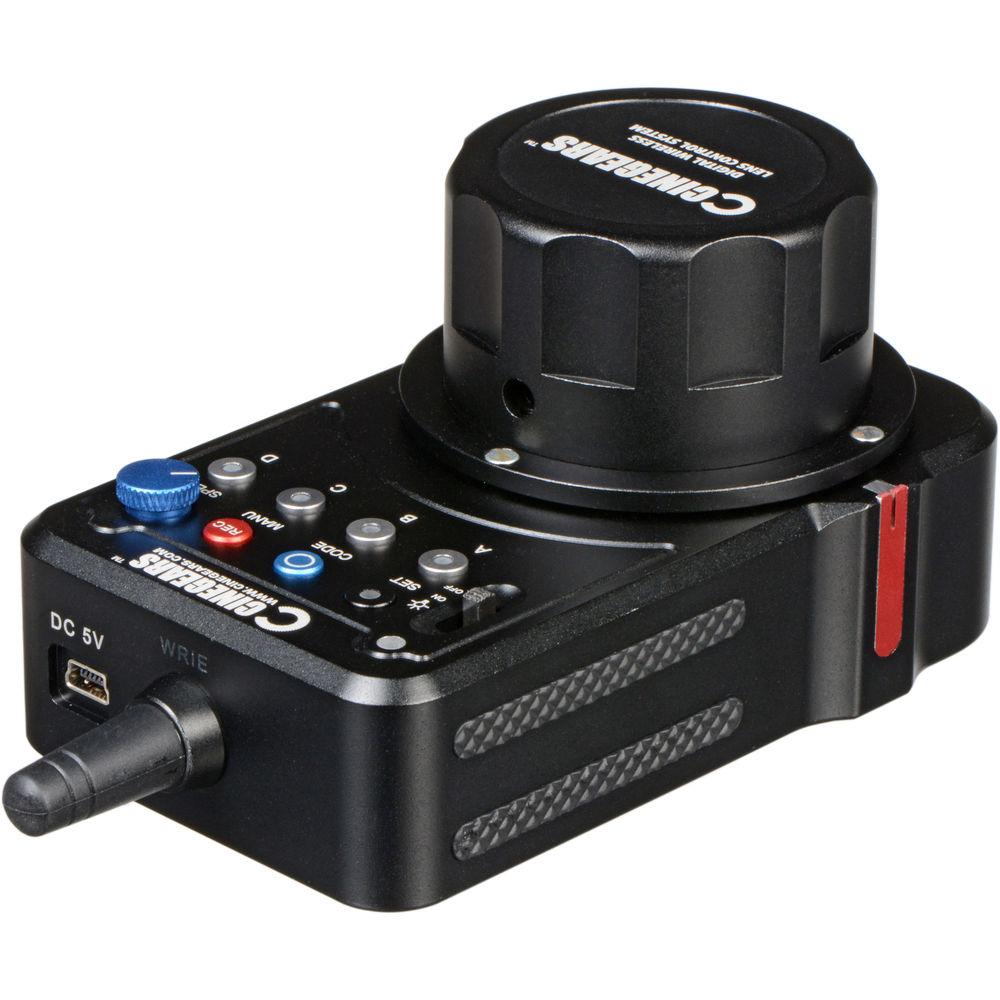

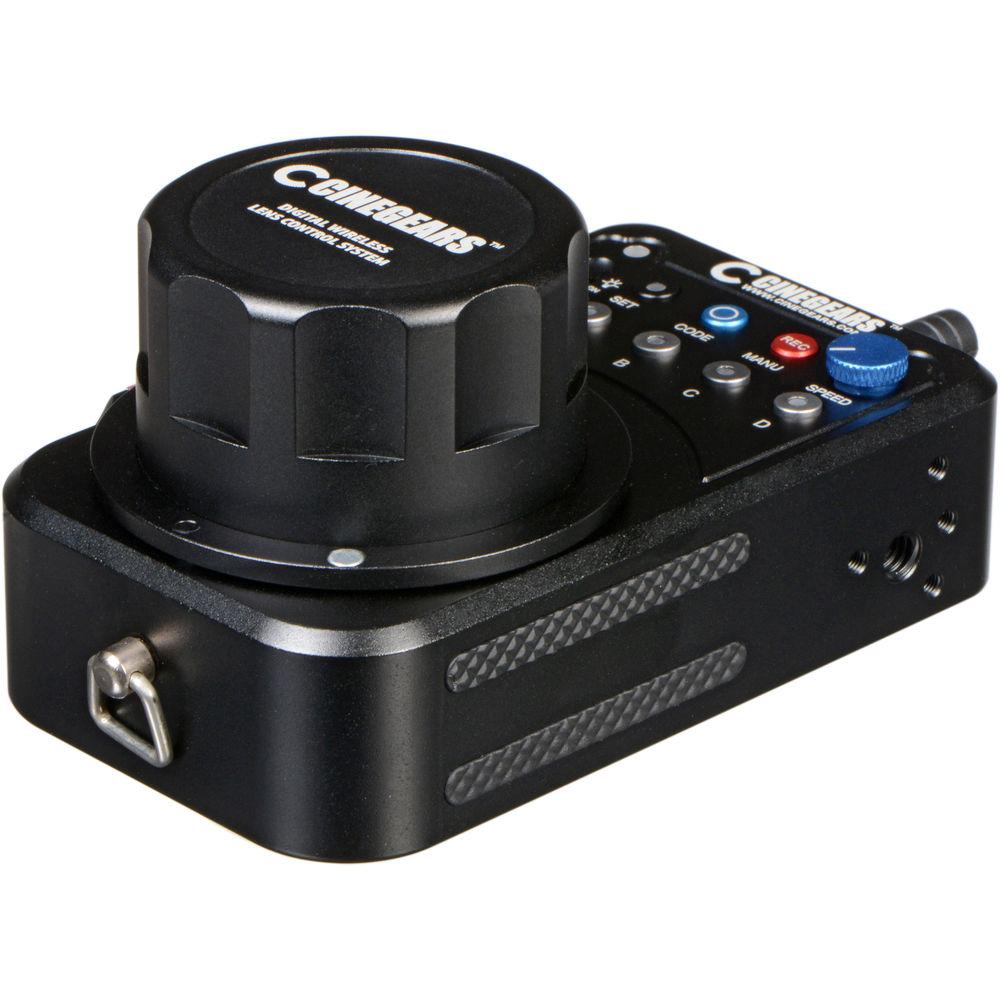

Included with the kit is a customizable rubber gear that you can mount on a lens that lacks the necessary cine-style focus gear. The high-torque motor is suitable for use with large zoom lenses that require a powerful motor. It comes with a cine-style drive gear that can be swapped out when using ENG-style lenses with either Canon or Fuji-style gearing (replacement gears not included). The handwheel features a removable marking disc, and there are two marking discs in the kit. This basic kit fits into a waterproof case with foam inserts to protect your equipment during transport and while in storage. Single-Axis Wireless Express Controller - The wireless controller features an internal LiPo battery that can run the controller for approximately 20 hours on a single charge. You can operate the controller while simultaneously charging it. Charging is via a Mini USB connector, and supported input voltage ranges from 12 to 30 VDC.
- The controller supports auto calibration, manual calibration, and lens remapping.
- After calibration, the end stops are automatically slightly shortened, preventing you from pinning the lens.
- You can program focus pre-sets into the controller and then transition between the focus points at the push of a button with adjustable transition speed.
- Manual calibration allows you to set close and far distance stops when using an infinitely rotating lens.

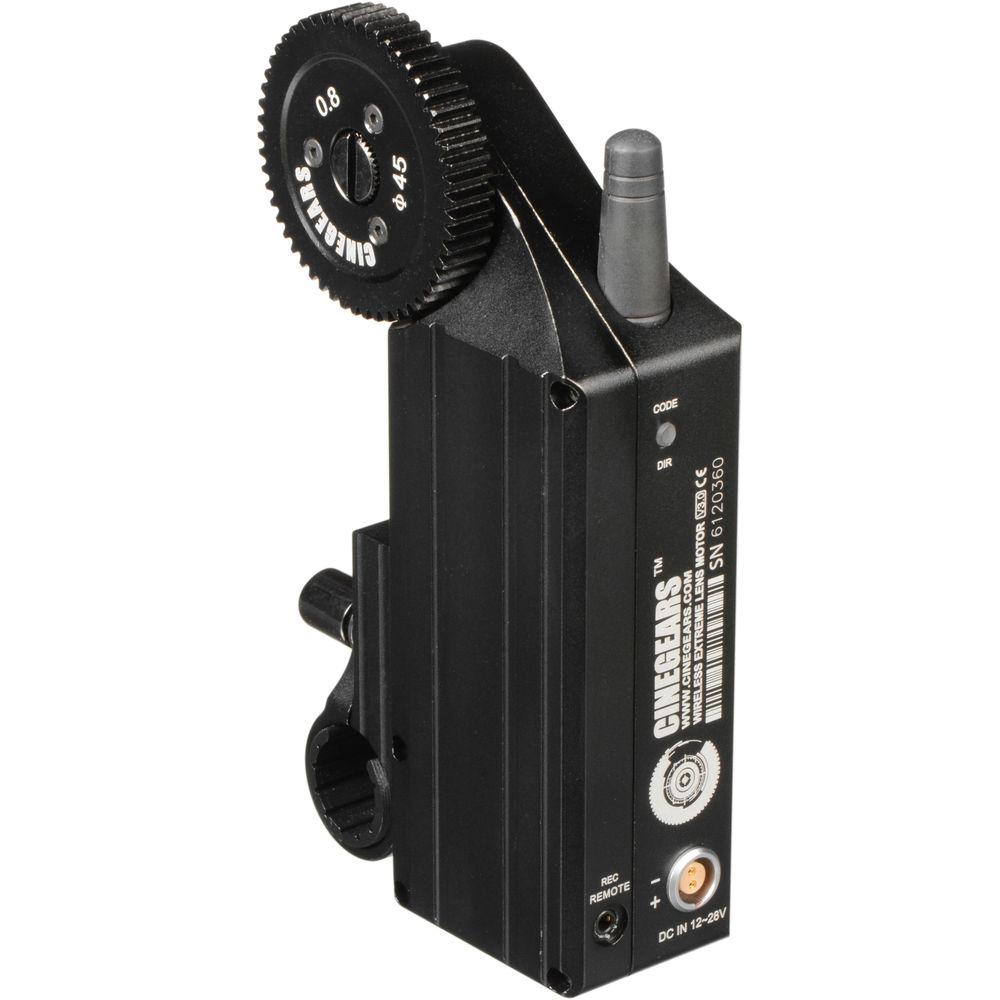

Extreme Motor - High-Torque Motor
- The motor is twice as strong as the Cinegears standard motor. This increased torque makes the motor suitable for driving large lenses. However, the increased torque does not result in a sacrifice of control, precision, or safety when using the motor.
- Wireless Control

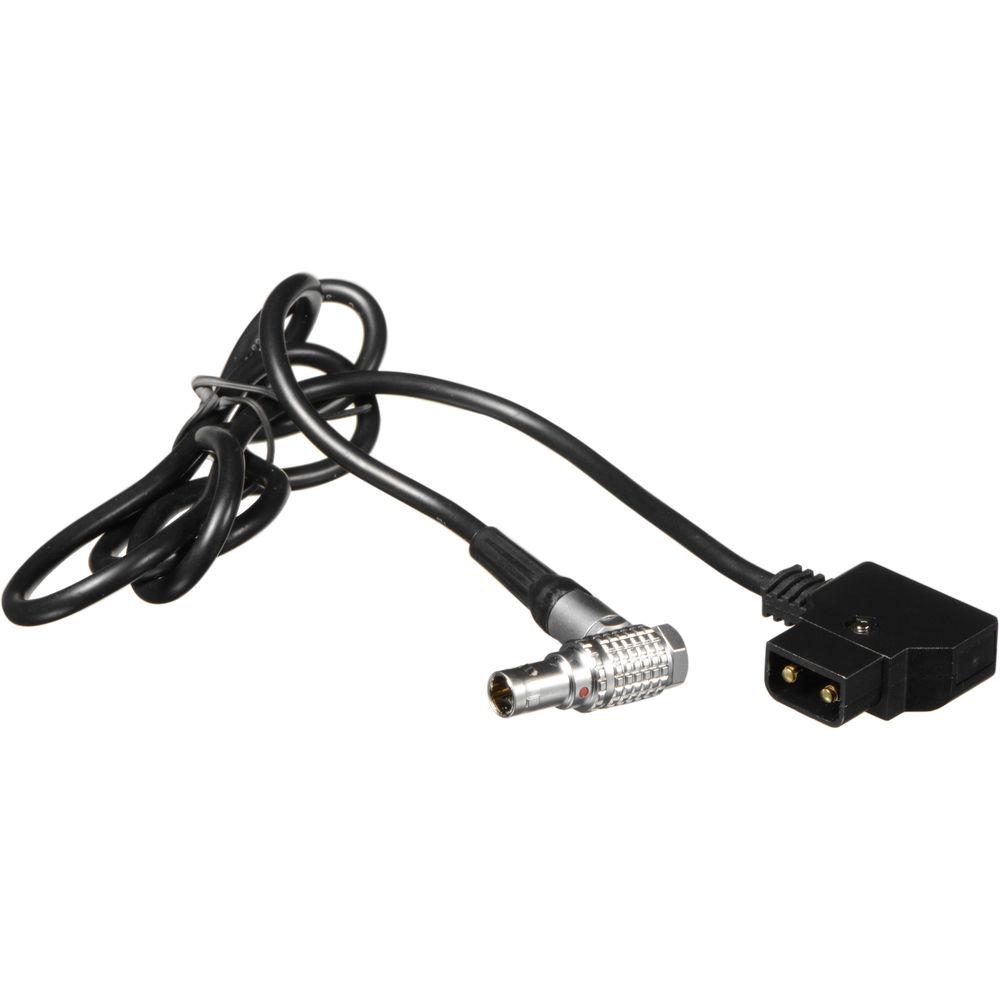

- The motor incorporates a wireless receiver that allows you to control it via your Cinegears Single-Axis Wireless Controller. An optional LANC cable/remote trigger is required for camera start/stop. An optional 2-pin LEMO cable is required to provide power to the motor.
- Metal Drive Gear
- The included aluminum 0.8 MOD gear fits cine-style lens gears. The gear is removable, so you can swap it out for optional gears for video lenses and non-standard lens gears. The gear's motor-facing surface is made from chrome-plated stainless steel, which matches the facing surface of the motor drive.
- Motor Function
- The motor will calibrate itself to your lens and allow you to remap the lens to your controller. You can program multiple stop points, which is especially useful when working with infinitely rotating lenses, or if you wish the set specific focus points on an optional focus handwheel.
- Reversible
- The motor drive is reversible, which allows you to use lenses that focus in the opposite direction from standard without having to add a physical reversing gear.

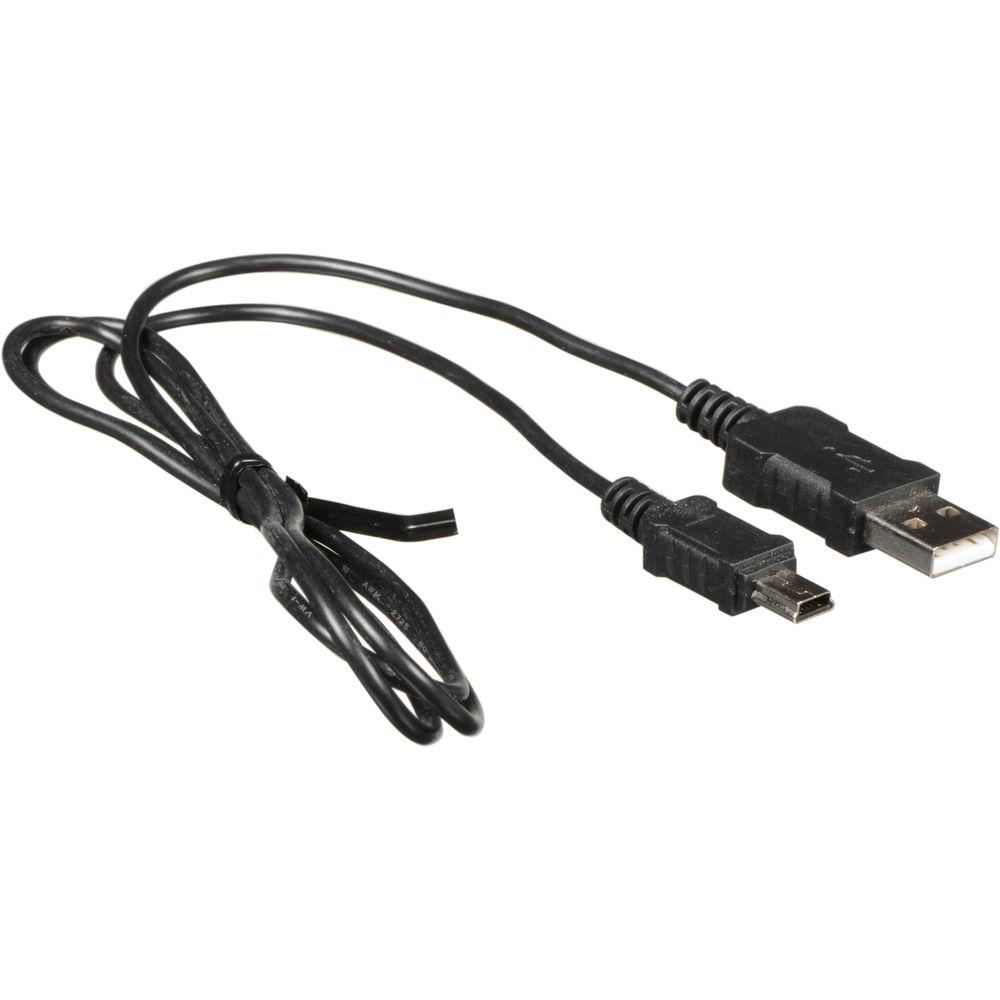

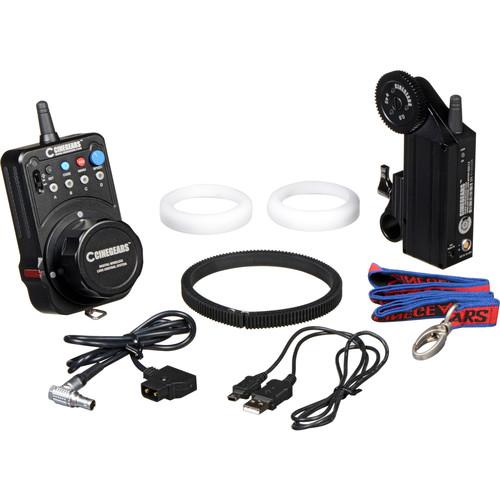

UPC: 731236162643 In the Box CINEGEARS Single-Axis Wireless Follow Focus Express Basic Extreme Kit Single-Axis Wireless Express Controller Single-Axis Extreme Motor Customizable Geared Focus Ring Single Axis Wireless Motor Power Cable 4-Pin Start/Stop Cable for Sony F5/F55 Hard Case with Foam Inserts for Single-Axis Kit Thick Focus Ring for Express Controller 2" Rod Bracket for Lens Control Motors (19mm) 19 to 15mm Adapter Bushing Limited 3-Year Warranty on Controller and Motor Limited 1-Year Warranty on Cables, Bracket, Bushing, Marking Discs, Lens Gear, and Case Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Single-Axis Wireless Follow Focus Express Basic Extreme Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS Cinegears Specs | | | Material of Construction | Aluminum and steel alloy | | Construction | CNC machined, black anodized coating | | Frequency | 433 MHz (RF) | | Battery | LiPo | | Charging Voltage | Input: 12 to 30 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 5.8 x 2.8 x 2.8" / 14.6 x 7.0 x 7.0 cm | | Weight | Approximately 1 lb / 0.5 kg | | | | Material of Construction | Black anodized CNC machined aluminum and steel alloy | | Maximum Peak Torque | 1.7 Nm | | Maximum Speed | 2.8 rev/sec | | Connectors | 1 x 2-pin LEMO jack
1 x LANC jack | | Power Input | 12 to 28 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 5.5 x 1.3 x 2.0" / 14.0 x 3.2 x 5.1 cm | | Weight | 1.1 lb / 500 g | | | | Material of Construction | Hard anodized aluminum
Steel slide | | Length | 2" / 5 cm | | Rod Clamp Type | 19 mm | | | | Material of Construction | PVC | | Dimensions | 10.8 x 8.9 x 5.1" / 27.5 x 22.5 x 13.0 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.73 lb | | Box Dimensions (LxWxH) | 11.7 x 9.85 x 4.3" |
