Product description

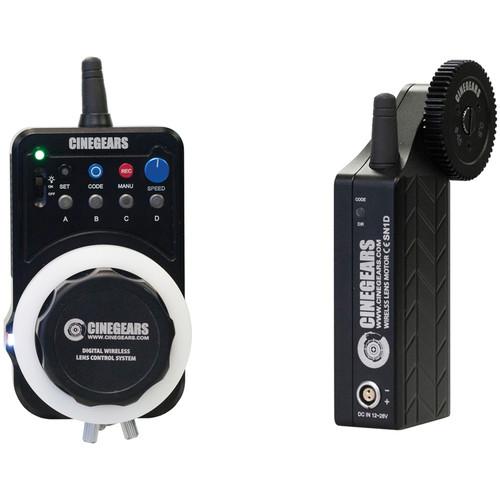

• Single Axis Wireless Express Plus Controller The CINEGEARS Single Axis Wireless Express Plus Controller is a wireless follow focus controller that easily pairs with a CINEGEARS wireless motor. You can use the controller for focus, zoom, or iris. The controller operates on a frequency of 433 MHz, providing a range of up to 320' line of sight. The wireless controller and optional motor combination provide simple auto lens calibration and manual lens remapping for easy lens changes.

  The Express Plus Controller features a removable marking disc, a side mounted index marker with an illuminating LED for pulling focus in dim lighting conditions, and allows you to program up to four stop / positions. Adjustable physical hard stops on the controller are useful when working with lenses that do not have physical hard stops. You can adjust the transition speed for programmed presets, and with optional cables connected to your motor, you can control start/ stop for ARRI, RED, Sony, and Canon professional camcorders. LED indicator lights show you the status of the controller.
  • The wireless controller features an internal LiPo battery that can run the controller for approximately 20 hours on a single charge. You can operate the controller while simultaneously charging it. Charging is via a mini USB connector, and it supports input voltage range of 12 to 30 VDC.
  • The controller supports auto-calibration, manual calibration, and lens remapping.
  • After calibration, the end stops are automatically slightly shortened, preventing you from pinning the lens.
  • You can program focus pre-sets into the controller and then transition between the focus points at the push of a button with adjustable transition speed.
  • Manual calibration allows you to set close and far distance stops when using an infinitely rotating lens
  • The Express Plus Controller features adjustable hard stops that you can use to match the end stops of your calibrated lens. You can also adjust the stops to reflect the positions of the start and stop of your focus pull, so you can pull focus without looking at the controller.
  • The Express Plus Controller features a built-in LED that illuminates the area of the removable marking disk around the index mark, allowing you to more easily see your marks in dim or dark conditions.
  UPC: 743724113983
• 2" Rod Bracket for Lens Control Motors (15mm) The CINEGEARS 2" Rod Bracket for Lens Control Motors mounts on a 15mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris. It features a spring-loaded locking lever that allows you to tighten the bracket on the clamp, while at the same time securing the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 15mm clamp is designed to work specifically with 15mm support rods.
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114089
• 2" Rod Bracket for Lens Control Motors (19mm) The CINEGEARS 2" Rod Bracket for Lens Control Motors mounts on a 19mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris. It features a spring-loaded locking lever that allows you to tighten the bracket on the clamp, while at the same time securing the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 19mm clamp is designed to work specifically with 19mm support rods.
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114102
• 3.1" Rod Bracket for Lens Control Motors (15mm) The CINEGEARS 3.1" Rod Bracket for Lens Control Motors mounts on a 15mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris ring. It features two spring-loaded locking levers; one that allows you to tighten the bracket on the rod, and a second locking lever that secures the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 15mm clamp is designed to work specifically with 15mm support rods
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114096
• Magnetic Beveled Marking Disc for Express Controller The CINEGEARS Magnetic Beveled Marking Disc for Express Controller is specifically made to work with a CINEGEARS Express controller, and only the Express controller. It magnetically mounts on the controller and incorporates a slot for a corresponding index pin, which prevents the marking disk from spinning on the controller, ensuring your marks stay accurate. The disk is made to be used with either dry or wet erase marker for easy cleaning and re-marking. UPC: 743724114058
• 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) The CINEGEARS 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors features 4 lightweight plastic gears that allow you to drive most geared cine or ENG-style lenses. The gears can replace the original aluminum drive gears for CINEGEARS lens motors, providing a cost effective solution to handle surprises in the field.

  Each gear is only 38mm in diameter, and features a captive mounting screw. The smaller diameter of the replacement gear, as compared to the standard drive gears, may provide smoother movement as you drive the lens with your motor. Each gear is labeled allowing you to easily select the right gear for your lens. The gear marked 0.8 is for cine-style lenses. Gears marked 0.5 and 0.6 are standard for ENG-style lenses. UPC: 743724114126
• Motor Gear Re-Locator The CINEGEARS Motor Gear Re-Locator consists of a chrome plated stainless steel spacer that allows you to position your drive gears about 0.5" from the normal gear location when using your CINEGEARS motors. The spacer is made of the same material, chrome-plated stainless steel, as the inside of the CINEGEARS metal gear to prevent gear stripping. Included with the gear spacer is an attachment screw, which is needed to attach your drive gear to your motor with the spacer in place. UPC: 743724114072
• Single Axis Wireless Motor Power Cable The CINEGEARS Single Axis Wireless Motor Power Cable provides power to your motor from an optional power source outfitted with a D-tap connector. The cable features a D-tap connector on one end and a 2-pin LEMO connector on the other. The cable features plastic insulation, and it can handle from 12 to 28 VDC.
  • Approximately 44" long
  • LEMO connector prevents polarity reversal when use with CINEGEARS motor.
  UPC: 743724113969
• Hard Case with Foam Inserts for Single-Axis Kit The CINEGEARS Hard Case with Foam Inserts for Single-Axis Kit is a waterproof case that provides protection to your equipment from damage from falls and impact. The custom cut foam interior allows you to keep the components of your single axis wireless kit snug and secure during transport and storage. UPC: 743724114720

Also Includes

• Single-Axis Wireless Motor
Single Axis Wireless Express Plus Controller tvafquqxfurc
• Limited 3-Year Warranty
2" Rod Bracket for Lens Control Motors (15mm) tvafquqxfurc
• Limited 1-Year Warranty
2" Rod Bracket for Lens Control Motors (19mm)
• Limited 1-Year Warranty
3.1" Rod Bracket for Lens Control Motors (15mm)
• Limited 1_Year Warranty
2 x Magnetic Beveled Marking Disc for Express Controller
• Limited 1-Year North American Warranty
4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) Motor Gear Re-Locator
• Thumb Screw
• Limited 1-Year Warranty
Single Axis Wireless Motor Power Cable
• Limited 1-Year Warranty
Hard Case with Foam Inserts for Single-Axis Kit
• Limited 1-Year Warranty
