CINEGEARS Single Axis Wireless Follow Focus

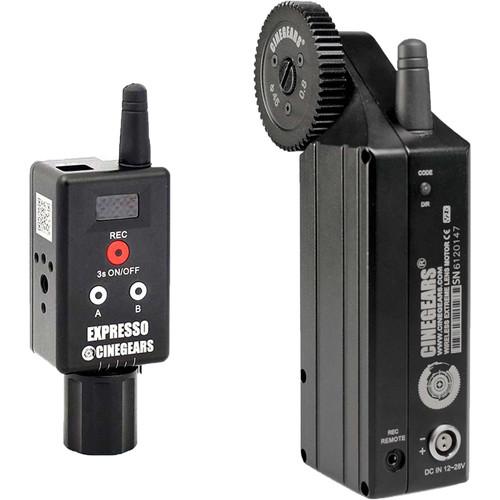

User Manual for CINEGEARS Single Axis Wireless Follow Focus Mini Controller Kit with Extreme High Torque Motor

• Product category: Wireless Lens Control Systems CINEGEARS
• Brand: CINEGEARS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CINEGEARS Wireless Lens Control Systems

Product description

• Single Axis Wireless Mini Controller The CINEGEARS Single Axis Wireless Mini Controller is a wireless follow focus controller that easily pairs with a CINEGEARS wireless motor. You can use the controller for focus, zoom, or iris. The controller operates on a frequency of 433 MHz, providing a range of up to 198' line of sight. The wireless controller and optional motor combination provide simple auto lens calibration and manual lens remapping for easy lens changes.

  The Mini Controller features a removable full sized marking disc, a built-in rechargeable battery with approximately eight working hours of power per charge, 15 selectable speeds, and allows you to program up to two focus presets. It incorporates a start/stop record trigger button and small LED screen that shows focus depth.
  • The wireless controller features an internal battery that can run the controller for approximately 8 hours on a single charge.
  • The controller supports auto-calibration, manual calibration, and lens remapping.
  • You can program focus pre-sets into the controller and then transition between the focus points at the push of a button with adjustable transition speed.
  • Manual calibration allows you to set close and far distance stops when using an infinitely rotating lens
  • The mini controller features a small fingerwheel for controlling focus. The included full-sized focus knob and focus indicator can be mounted on the fingerwheel, providing you a full-sized handwheel with index point.
  UPC: 743724114645
• 2" Rod Bracket for Lens Control Motors (19mm) The CINEGEARS 2" Rod Bracket for Lens Control Motors mounts on a 19mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris. It features a spring-loaded locking lever that allows you to tighten the bracket on the clamp, while at the same time securing the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 19mm clamp is designed to work specifically with 19mm support rods.
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114102
• 3.1" Rod Bracket for Lens Control Motors (15mm) The CINEGEARS 3.1" Rod Bracket for Lens Control Motors mounts on a 15mm support rod and allows you to mount your CINEGEARS lens control motor on your rods and drive your lens's geared focus, zoom, or iris ring. It features two spring-loaded locking levers; one that allows you to tighten the bracket on the rod, and a second locking lever that secures the motor to the clamp.
  • Provides height adjustment when used with an optional CINEGEARS Lens Control Motor.
  • The 15mm clamp is designed to work specifically with 15mm support rods
  • The spring-loaded locking levers allow you to tighten or loosen the clamps, even when you do not have room to rotate the lever through 360° of rotation. If the lever becomes blocked, you gently pull up on the lever, rotate it back, and lower the lever to continue tightening or loosening it.
  UPC: 743724114096
• 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) The CINEGEARS 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors features 4 lightweight plastic gears that allow you to drive most geared cine or ENG-style lenses. The gears can replace the original aluminum drive gears for CINEGEARS lens motors, providing a cost effective solution to handle surprises in the field.

  Each gear is only 38mm in diameter, and features a captive mounting screw. The smaller diameter of the replacement gear, as compared to the standard drive gears, may provide smoother movement as you drive the lens with your motor. Each gear is labeled allowing you to easily select the right gear for your lens. The gear marked 0.8 is for cine-style lenses. Gears marked 0.5 and 0.6 are standard for ENG-style lenses. UPC: 743724114126
• Motor Gear Re-Locator The CINEGEARS Motor Gear Re-Locator consists of a chrome plated stainless steel spacer that allows you to position your drive gears about 0.5" from the normal gear location when using your CINEGEARS motors. The spacer is made of the same material, chrome-plated stainless steel, as the inside of the CINEGEARS metal gear to prevent gear stripping. Included with the gear spacer is an attachment screw, which is needed to attach your drive gear to your motor with the spacer in place. UPC: 743724114072
• Single Axis Wireless Motor Power Cable The CINEGEARS Single Axis Wireless Motor Power Cable provides power to your motor from an optional power source outfitted with a D-tap connector. The cable features a D-tap connector on one end and a 2-pin LEMO connector on the other. The cable features plastic insulation, and it can handle from 12 to 28 VDC.
  • Approximately 44" long
  • LEMO connector prevents polarity reversal when use with CINEGEARS motor.
  UPC: 743724113969
• Hard Case with Foam Inserts for Single-Axis Kit The CINEGEARS Hard Case with Foam Inserts for Single-Axis Kit is a waterproof case that provides protection to your equipment from damage from falls and impact. The custom cut foam interior allows you to keep the components of your single axis wireless kit snug and secure during transport and storage. UPC: 743724114720

Also Includes

• Single-Axis Wireless Motor
Single Axis Wireless Mini Controller vwywabbyez
• Full-Size Focus Knob
• Focus Indicator Disk
• Limited 3-Year Warranty
2" Rod Bracket for Lens Control Motors (19mm)
• Limited 1-Year Warranty
3.1" Rod Bracket for Lens Control Motors (15mm)
• Limited 1_Year Warranty
4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0) Motor Gear Re-Locator
• Thumb Screw
• Limited 1-Year Warranty
Single Axis Wireless Motor Power Cable
• Limited 1-Year Warranty
Hard Case with Foam Inserts for Single-Axis Kit
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Single Axis Wireless Mini Controller

  Construction	CNC machined aluminum alloy, black anodized coating
  Frequency	433 MHz (RF)
  Dimensions	4.5 x 1.6 x 1.1" / 11.5 x 4.0 x 2.7 cm
  Weight	Approximately 6.3 oz / 180.0 g

  Box Dimensions (LxWxH)	11.26 x 9.606 x 4.252"

• 2" Rod Bracket for Lens Control Motors (19mm)

  Material of Construction	Hard anodized aluminum Steel slide
  Length	2" / 5 cm
  Rod Clamp Type	19mm

  Box Dimensions (LxWxH)	3.95 x 1.95 x 1.15"

• 3.1" Rod Bracket for Lens Control Motors (15mm)

  Material of Construction	Hard anodized aluminum Steel slide
  Length	3.1" / 8 cm
  Rod Clamp Type	15mm

  Box Dimensions (LxWxH)	2.992 x 1.024 x 0.551"

• 4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0)

  Gear Standard	Gear 1 MOD: 0.5 Gear 2 MOD: 0.6 Gear 3 MOD: 0.8 Pitch: 32 Gear 4 MOD: 1.0
  Diameter	1.5" / 38 mm

  Box Dimensions (LxWxH)	3.1 x 3.1 x 0.3"

• Motor Gear Re-Locator

  Material of Construction	Chrome plated stainless steel
  Width	0.5" / 12.7 mm

• Single Axis Wireless Motor Power Cable

  Connector 1	P-Tap/D-Tap
  Connector 2	2-pin LEMO
  Length	44" / 113 cm
  Weight	1.1 oz / 30 g

  Box Dimensions (LxWxH)	4.65 x 2.4 x 1.5"

• Hard Case with Foam Inserts for Single-Axis Kit

  Material of Construction	PVC
  Dimensions	10.8 x 8.9 x 5.1" / 27.5 x 22.5 x 13.0 cm
  Weight	3.5 lb / 1.6 kg
