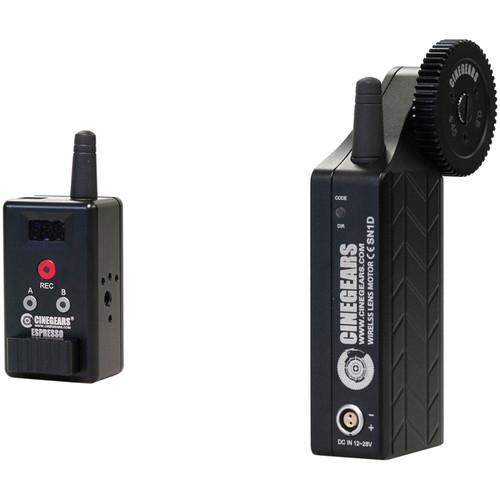

Providing a complete single-axis lens control system with a standard torque motor packed in a hard case, the Single Axis Wireless Mini Rocker Controller Kit with Standard Torque Motor and Hard Case from CINEGEARS features a small-sized wireless controller that uses a mini rocker-style switch. It allows you to set up a wireless lens control motor and controller system on your camera system equipped with a geared lens and either 15mm or 19mm support rods. The rocker-style controller is most suitable to control your zoom. However, you may choose to use it to control your focus or iris instead. The controller does not have physical hard stops, but it does allow you to adjust the end points to program stops. The kit includes 15mm and 19mm rod clamps with mounting brackets, allowing you to mount the included lens control motor on either size rod. An extended rod clamp for a 15mm rod is also included, and is approximately 3" long.
In addition to the replaceable cinema-style drive gear that comes with the lens control motor, the kit includes four different replacement gears with a gear mod of 0.5, 0.6, 0.8, and 1.0 respectively, in case you have to drive lenses with non-cine-style gearing or plastic lens gears. The included gear re-locator allows you to use lenses that focus in the opposite direction from standard, without having to alter your focus-pulling technique for those lenses. The side bracket allows you to mount the controller onto a 19mm support rod, or 15mm rod with optional bushing, if you wish. The kit fits into a waterproof case with foam inserts to protect your equipment during transport and storage.
Wireless Control
The motor incorporates a wireless receiver that allows you to control it via your CINEGEARS Single-Axis Wireless Controller. An optional LANC cable / remote trigger is required for camera start / stop. An optional 2-pin LEMO cable is required to provide power to the motor.
Metal Drive Gear
The included aluminum 0.8 MOD gear fits cine-style lens gears. The gear is removable, so you can swap it out for optional gears for video lenses and non-standard lens gears. The gear's motor-facing surface is made from chrome-plated stainless steel, which matches the facing surface of the motor drive.
Motor Function
The motor will calibrate itself to your lens, and it also allows you to remap the lens to your controller. You can program multiple stop points, especially useful when working with infinitely rotating lenses, or if you wish to set specific focus points on an optional focus hand-wheel.
Reversible
The motor drive is reversible, which allows you to use lenses that focus in the opposite direction from standard without having to add a physical reversing gear.
UPC: 743724114690 In the Box CINEGEARS Single Axis Wireless Mini Rocker Controller Kit with Standard Torque Motor and Hard Case
Single-Axis Wireless Motor
Single Axis Wireless Mini Rocker Switch Controller
2" Rod Bracket for Lens Control Motors (19mm)
3.1" Rod Bracket for Lens Control Motors (15mm)
3.1" Rod Bracket for Lens Control Motors (19mm)
4 x 38mm Diameter Replacement Gear Set for CINEGEARS Lens Motors (0.5, 0.6, 0.8, 1.0)
Motor Gear Re-Locator
Single Axis Wireless Motor Power Cable
Hard Case with Foam Inserts for Single-Axis Kit
Controller Side Bracket
19 to 15mm Rod Clamp Bushing
Mini-USB Cable for Charging Batteries
Table of Contents
Upload User Manual
Have you got an user manual for the CINEGEARS Single Axis Wireless Mini Rocker Controller Kit with Standard Torque Motor and Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
CINEGEARS 2-105 Specs
Transmission Distance
328' / 100 m
Dimensions (L x W x H)
10.8 x 8.9 x 5.1" / 27.5 x 22.5 x 13.0 cm
Weight
55.7 oz / 1580 g
Material of Construction
Black anodized CNC machined aluminum and steel alloy
Maximum Peak Torque
0.85 Nm
Maximum Speed
2.8 rev/sec
Connectors
1 x 2-pin LEMO jack 1 x LANC jack
Power Input
12 to 28 VDC
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 122°F / -20 to 50°C
Dimensions
5.5 x 1.3 x 2.0" / 14.0 x 3.2 x 5.1 cm
Weight
0.8 lb / 350 g
Package Weight
4.2 lb
Box Dimensions (LxWxH)
11.6 x 9.3 x 4.1"
Rating
