User Manual for CINEGEARS Ski Rover Gimbal Car Click to enlarge the picture
Contents of the user manual for the CINEGEARS Ski Rover Gimbal Car
- Product category: Stabilizers & Gimbals CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS Stabilizers & Gimbals
 |
User manual for the CINEGEARS Ski Rover Gimbal Car contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

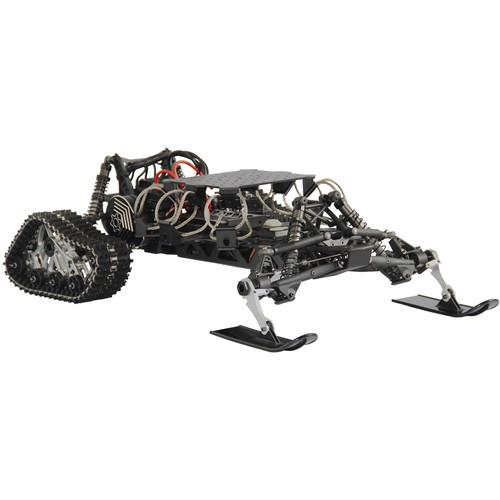

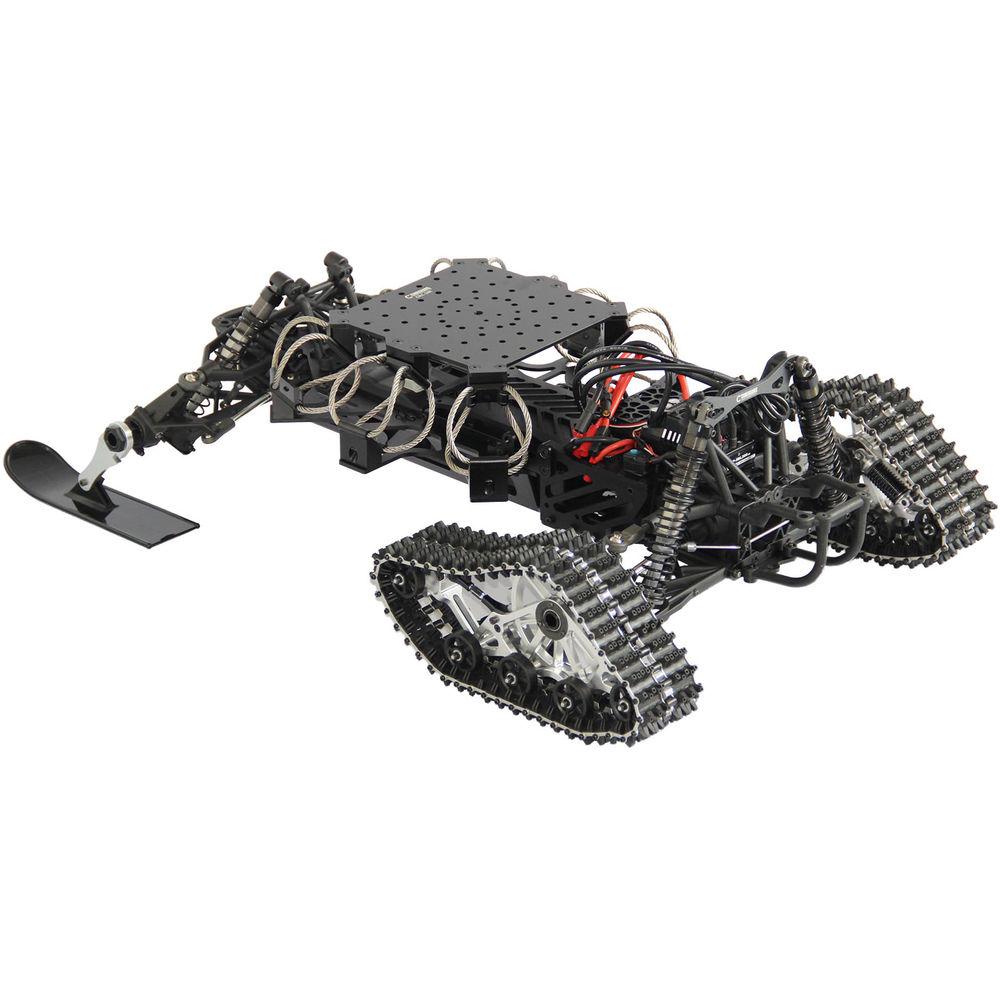

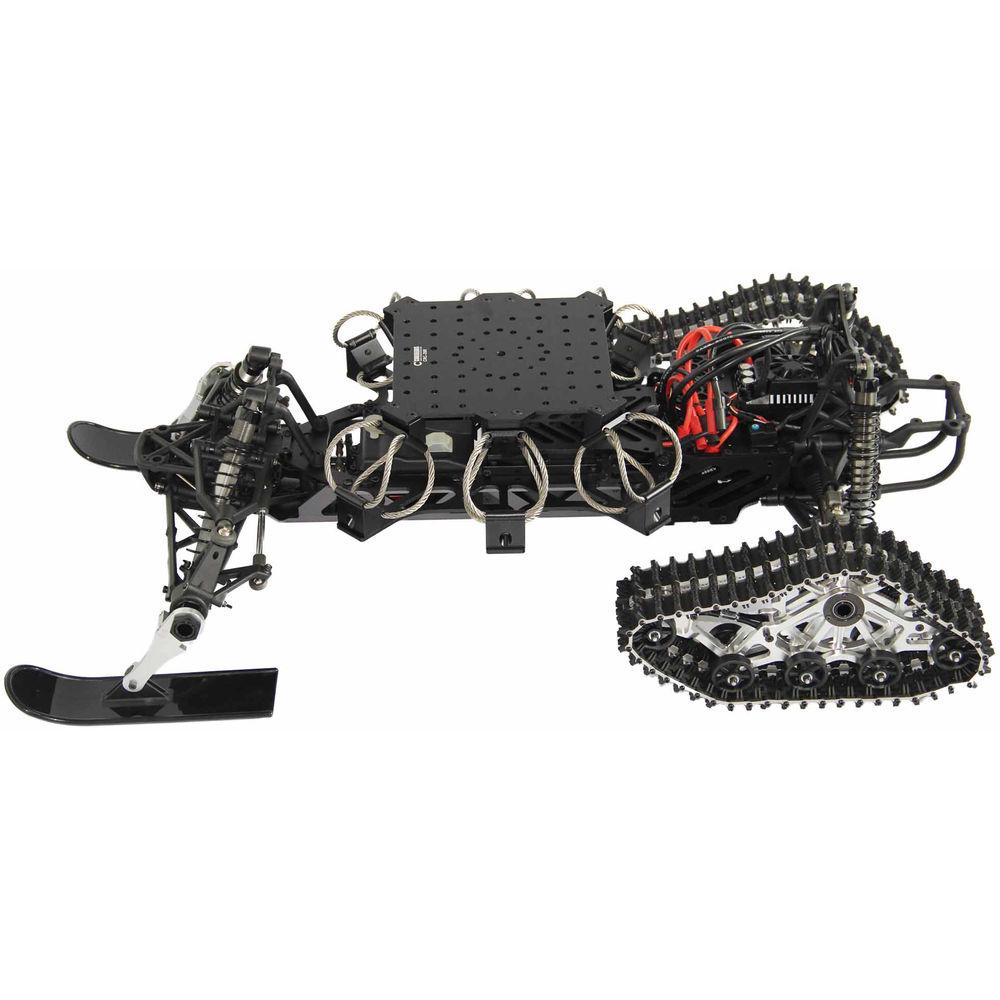

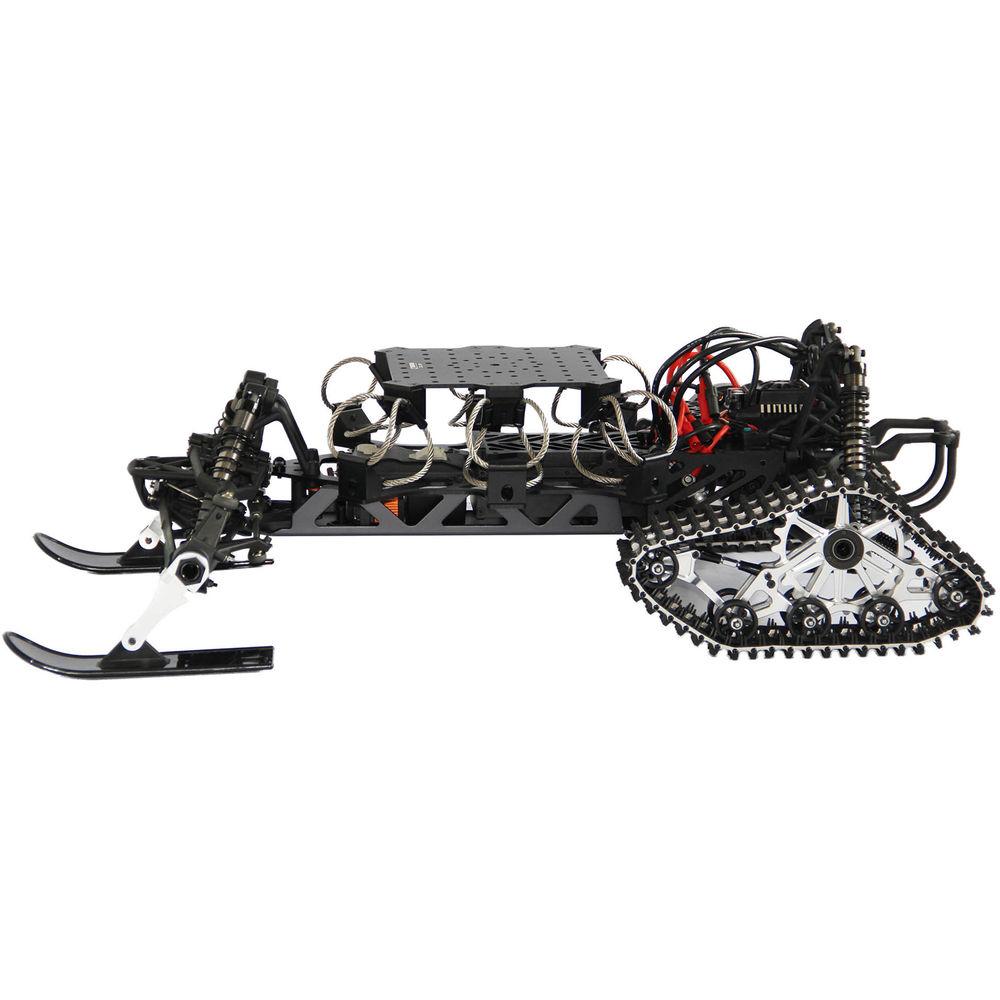

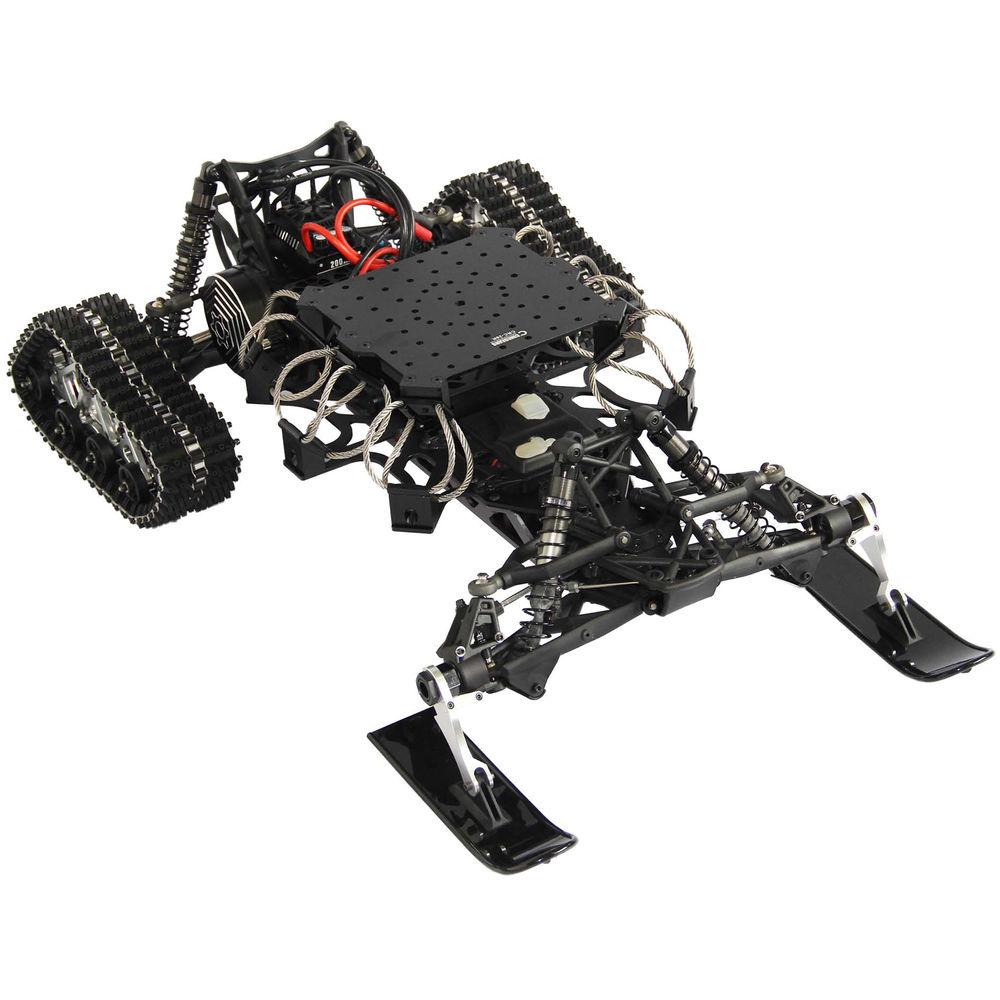

Product description Chase the action without putting yourself in peril with the Ski/Rover Gimbal Car from CINEGEARS. This package includes a Hi-Speed Racing Gimbal Car with its four standard wheels, plus a pair of rear treads and a pair of front skis for driving on snow-, gravel-, or sand-covered ground. Switch between wheels, treads, and skis for optimum stability and control on almost any terrain. - Hi-Speed Racing Gimbal Car
- RC Gimbal Cars by Cinegears (Brand New 2018 Models!)
- RC Gimbal Car Battery Installation (All New 2018!)
- Hi-Speed Racing Gimbal Car Ski / Rover Installation (All New 2018!)
- Cinegears New Gimbal Car 2019 Line Up
Capture anything from extreme off-road sports to simulated first-person chase scenes with the Hi-Speed Racing Gimbal Car from CINEGEARS. Boasting a top speed of 50 mph and 23.2" wide wheel axles, this high-performance RC vehicle allows for daunting low-angle shots. The gimbal car uses a 486 oz steering servo, weighs under 26.5 lb, and supports up to 21 lb of gear.
Designed to deliver shooting stability, the car is equipped with a three-point suspension system and a universal three-axis mount compatible with DJI and MoVI gimbals. A brushless 960Kv motor with a 200A ESC delivers fluid motion without sacrificing speed or acceleration. Two 5500mAh / 40C / 14.8V lithium batteries (available separately) keep your gimbal car running for up to 24 hours as you venture into areas inaccessible to drones and manned vehicles. - Waterproof and dustproof motor and transmission system
- Powered by dual 4S Li-ion batteries (available separately), 28V maximum power output
- Three-point suspension system including built-in heavy-duty stabilization platform
- Hydraulic spring dampener absorbs low-frequency vibrations while wide rope dampener absorbs high-frequency vibrations
- Aluminum alloy uni-body resilient to warping due to stress, temperature, and other environmental factors
- Heavy-duty wheel rim with separate tire tread and inner tube
- 2.4 GHz remote control range of up to 6.2 miles
- Quick release mount for DJI Ronin gimbals included
- Compatible with MoVI gimbals (MoVI plate available separately)
- Up to 24 hours of battery life with recommended battery options and settings
UPC: 611138357807 - Arctic Explorer Treads & Skis Rover Package for Yota Scout into snow-, gravel-, and sand-covered terrain with your Yota using the Arctic Explorer Rover Package from CINEGEARS. Including a pair of rear treads and a pair of front skis, the Rover Package expands the potential of your gimbal car by giving it unhindered access to nearly any type of terrain. Use it to shoot scenic snowy panoramas, follow downhill skiers, film runs in the snowboard park, or capture volleyball matches at the beach. The treads help disperse weight and keep your Yota moving at top speed even under the load of heavy camera setups.
- Travel across snow, gravel, sand, and uneven terrain
UPC: 611138357821 In the Box Bundle Items Hi-Speed Racing Gimbal Car reduxaywxsxzdfctrv - DJI Ronin Mounting Adapter
Arctic Explorer Treads & Skis Rover Package for Yota
Also Includes - Plastic Wheel Rim Remover
User Manual PDF 651kb Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Ski Rover Gimbal Car in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Hi-Speed Racing Gimbal Car
| Speed | Up to 50 mph / 80 km/h | | Wheel | Axle: 23.2" / 590 mm | | Material | Body: Aluminum alloy
Mounting System: Carbon fiber | | Payload | 21 lb / 9.5 kg | | Servo | 486 oz / 35 kg steering servo | | Suspension | 3 separate sets
Hydraulic spring dampener | | Motor | Brushless 960 Kv motor (200 ESC) | | Remote Control | Range: Up to 10 km / 6.2 miles
Frequency: 2.4 GHz | | Batteries | Recommended: 2 x 4S Li-ion batteries with 28 V output
Also Supported: 6S and 8S Li-ion | | Battery Run Time | Up to 24 hours | | Dimensions | 36 x 22 x 12" / 91.4 x 55.9 x 30.5 cm | | Weight | Less than 26.5 lb / 12 kg | | | | Box Dimensions (LxWxH) | 32.25 x 19.75 x 17.25" | - Arctic Explorer Treads & Skis Rover Package for Yota
| Compatibility | Yota gimbal car | | Material | Industrial-grade CNC-cut aluminum and steel
Treads: High-grade rubber | | Dimensions | 9.25 x 2.25 x 5.00" / 23.50 x 5.72 x 12.70 cm approx. | | Weight | Under 2.2 lb / 1 kg |
