User Manual for CINEGEARS Wireless Prime VGA Encrypted Kit Click to enlarge the picture
Contents of the user manual for the CINEGEARS Wireless Prime VGA Encrypted Kit
- Product category: PC to TV CINEGEARS
- Brand: CINEGEARS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CINEGEARS PC to TV
 |
User manual for the CINEGEARS Wireless Prime VGA Encrypted Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CINEGEARS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CINEGEARS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CINEGEARS product will considerably shorten its lifespan!
|

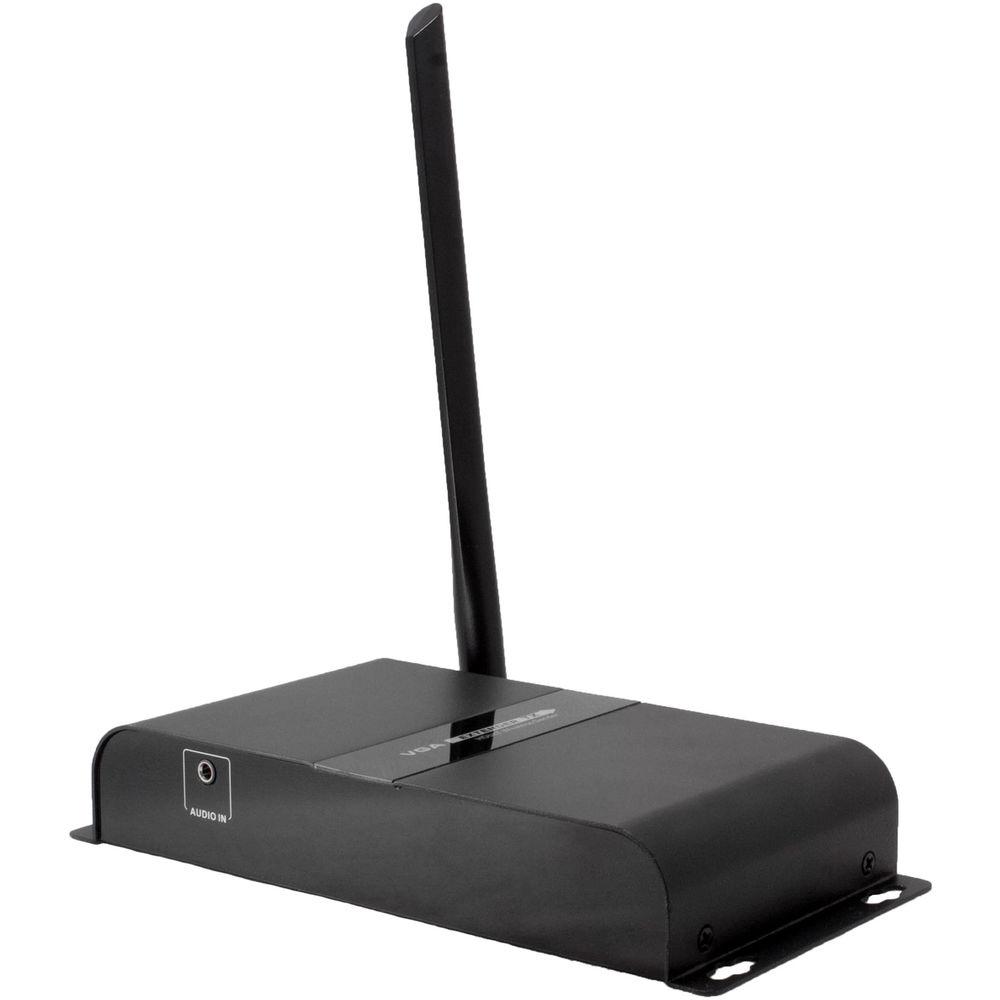

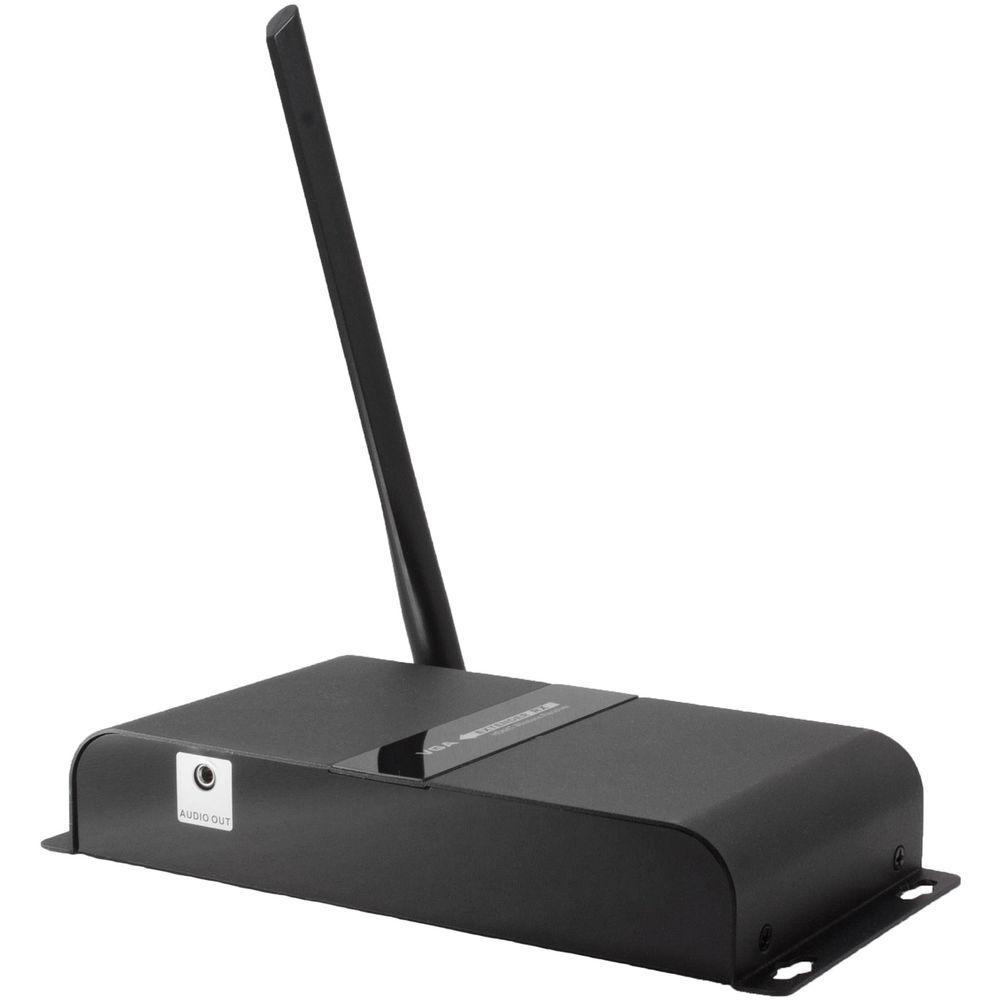

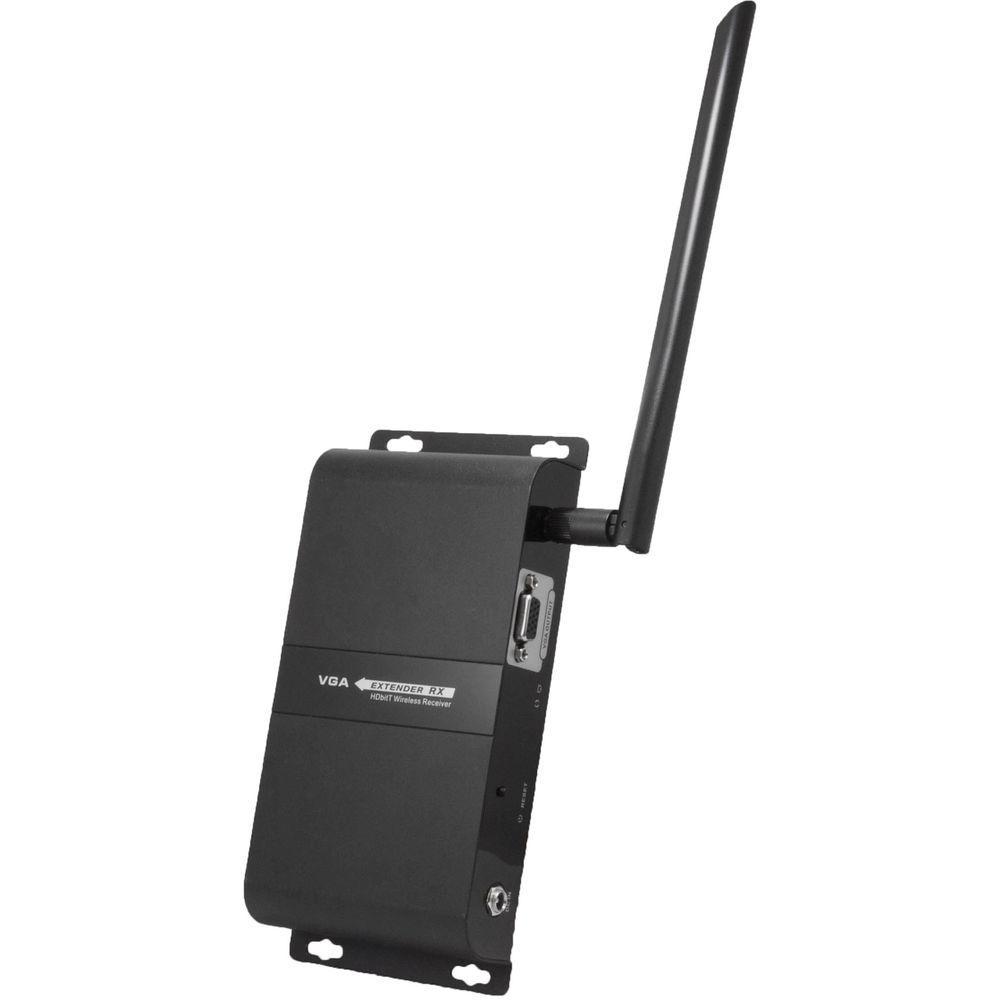

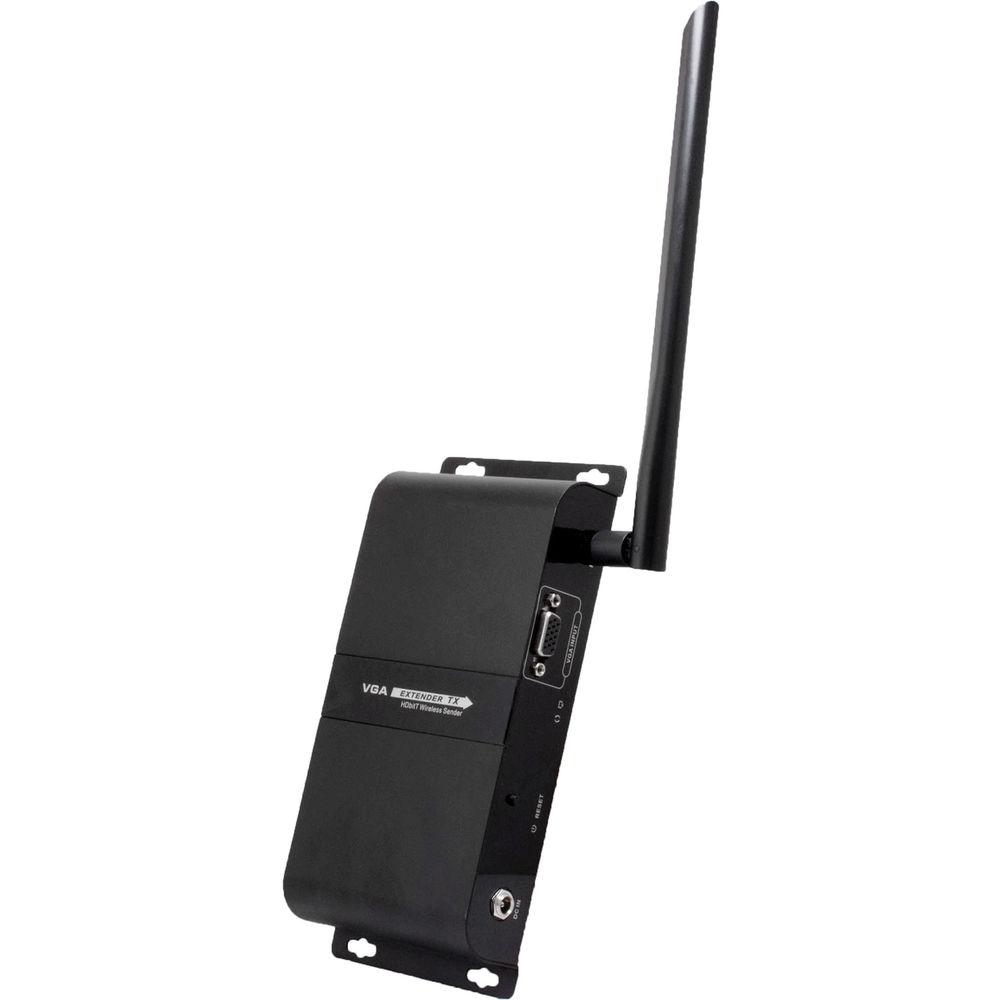

Product description The Wireless Prime VGA Encrypted Kit from CINEGEARS includes plug-and-play transmitter and receiver units. This kit allows you to wirelessly stream and broadcast digital content up to 656'. Each supports resolutions up to 1920 x 1080 at 60 Hz with low latency and is compatible with 3D signals. The transmitter and receiver unit also support IR frequencies ranging from 20 to 60 kHz and allow you to remotely control your playback device using IR pass-through. This kit is suitable for applications like video conferencing, digital signages, surveillance systems, and more. - Compatible With
- Blu-Ray, Blu-Ray 3D, Windows, Mac, Apple TV, PS4, Xbox One, WiiU, Nintendo Switch, and more
- Supports wireless transmission of VGA signals up to 656'
- Supports resolutions up to 1080p at 60 Hz
- Supports up to 7.1 HD surround sound
- Pairing encryption protects your signal
- Plug-and-play operation, no set-up or software required
- Supports IR frequency range of 20 to 60 kHz
- Supports IR pass-back function to remotely control your playback device
- You can use multiple Wireless Prime kits without interference
UPC: 612520354688 In the Box CINEGEARS Wireless Prime VGA Encrypted Kit Wireless Prime Receiver Wireless Prime Transmitter 2 x High-Power Antennas 2 x Power Supplies IR Transmitter and IR Receiver Set Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CINEGEARS Wireless Prime VGA Encrypted Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCINEGEARS 5-325 Specs | Signals Supported | VGA and RGBHV signals | | Resolutions Supported | 1920 x 1080 at 60 Hz
1680 x 1050 at 60 Hz
1440 x 900 at 60Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 960 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz | | Audio Interface | 3.5 mm audio jack on each unit | | Transmission Distance | 656' (200 m) | | Power Supply | 5 VDC / 3 A (power supply units included for both receiver and transmitter) | | Power Consumption | Transmitter: 9 W
Receiver: 6.5 W | | Working Temperature | 32 to 140°F (0 to 60°C) | | Enclosure Material | Metal | | Dimensions | Each Unit: 7.7 x 5.5 x 1.3" (195.5 x 138.5 x 32 mm) | | Weight | Each Unit: 20.3 oz (575 g) |
