User Manual for CinemizerOLED Video Glasses Click to enlarge the picture
Contents of the user manual for the CinemizerOLED Video Glasses
- Product category: Video Headsets CinemizerOLED
- Brand: CinemizerOLED
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CinemizerOLED Video Headsets
 |
User manual for the CinemizerOLED Video Glasses contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CinemizerOLED product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CinemizerOLED user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CinemizerOLED product will considerably shorten its lifespan!
|

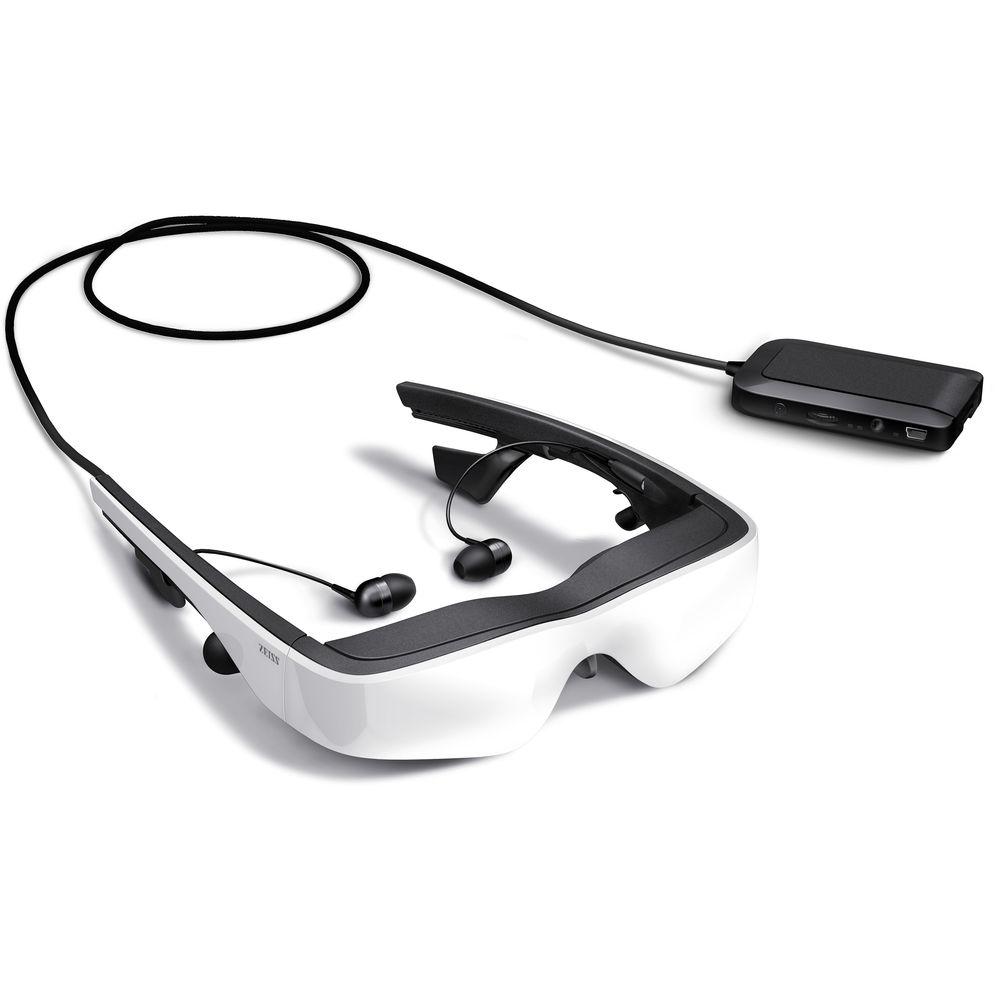

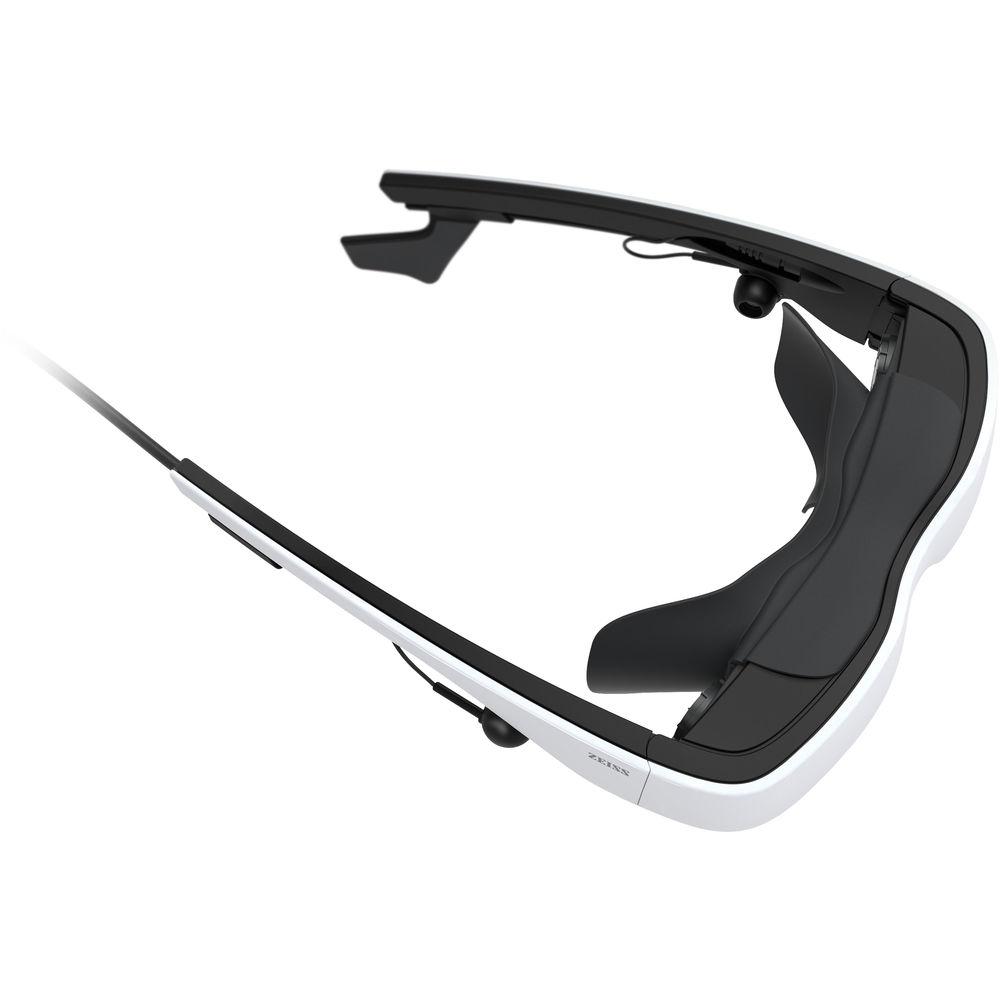

Product description Using the Zeiss Cinemizer OLED 3D Glasses Read More Watch all of your movies on the go with the CinemizerOLED Video Glasses. This headset was designed by Zeiss and uses Zeiss Optics. It's equipped with dual OLED displays that simulate a 40-inch screen being viewed from approximately 6' away. It accepts video from HDMI and AV sources, as well as select Apple devices (required adapter sold separately). Built-in speakers allow you to enjoy your content in stereo sound with the included headphones. In case you wear eyeglasses, you can still enjoy movies on the CinemizerOLED, as it can be configured for prescriptions ranging from -5 to +2 diopters in each eye. The CinemizerOLED comes equipped with an integrated rechargeable battery for up to six continuous hours of use.
With only 75g of weight placed upon your nose, it's easy to forget you're even wearing the CinemizerOLED. The soft silicone nose pads allow the glasses to sit comfortably and stay in place, and the soft rubber ear clips guarantee a good, comfortable fit.
The CinemizerOLED is compatible with a variety of devices, including smartphones, HDMI devices, Blu-ray players, game consoles, PCs, and more. Optional adapters may be required. - Mobility
- The CinemizerOLED is designed for mobile use. The integrated rechargeable battery provides power for up to six hours of viewing enjoyment even when away from the confines of your home. Use it while on a flight, in the passenger seat of a car, or even on the train—with the CinemizerOLED you can get a home theater experience no matter where you are.
- Diopter Adjustment
- Eyeglass wearers can configure their prescription from -5 to +2 diopters in each eye via the setting wheel.
- Wearing Comfort
- The CinemizerOLED's soft silicone nose pad allows the glasses to sit comfortably on your nose. The two soft rubber ear clips guarantee a good, comfortable fit, allowing you to use the CinemizerOLED for hours at a time.
- Versatile Connectivity
- The CinemizerOLED can be connected to smartphones with HDMI or analog A/V interfaces, Blu-ray players, gaming consoles, PCs, laptops, and more.
In the Box CinemizerOLED Video Glasses HDMI Adapter Nose Pad 2 x Nose Pad Adapters USB Cable AV Cable Headphones Travel Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CinemizerOLED Video Glasses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinemizerOLED T18000259-00 Specs | Display | 2 x OLED displays | | Image Size | Simulated 40" (1 m) screen as seen from a distance of 79" (2 m) away | | Aspect Ratio | 16:9 | | Image Resolution | 870 x 500 (each display) | | Field of view (FOV) | 30° | | 3D Support | Yes | | Diopter Range | -5 to +2 diopters | | Pupil Distance | Supports pupil distance of 59 to 69 mm | | Compatibility | HDMI: 640x480p 60 Hz
720x576p 50 Hz
720x480p 60 Hz
1280x720p 50/60 Hz
1920x1080i 50/60 Hz
1920x1080p 50/60 Hz
1920x1080p 24 Hz
HDMI 1.4 3D 1080p 24 Hz
HDMI 1.4 3D 720p 60 Hz
AV-In: 3.5 mm/4-pin slot for audio & video (PAL/NTSC) | | External Connectors | 1 x Mini-USB (charging)
1 x 3.5 mm audio port for external stereo headphones | | Audio | Stereo sound | | Light Source | LED Class 1 | | Battery | Rechargeable lithium-ion battery | | Battery Life | Apple Device/AV-In: Up to 6 hours
HDMI: Up to 2.5 hours | | Charging Time | 2.5 hours | | Power Input | Via USB: 5 V / 450 mA | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Storage Temperature | 4 to 113°F (-20 to 45°C) | | Humidity | 10-80%, non-condensing | | Dimensions | 1.4 x 6.3 x 2.6-7.5" (36 x 160 x 65-190 mm) | | Weight | Battery Box: 60 g (2.1 oz)
HDMI Adapter: 30 g (1.1 oz)
Weight on Nose: 75 g (2.6 oz)
Video Glasses: 120 g (4.2 oz) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 3.2" |
