User Manual for Cineo Lighting HS2 RP 4300K 1-Light Kit Click to enlarge the picture
Contents of the user manual for the Cineo Lighting HS2 RP 4300K 1-Light
- Product category: LED Lights Cineo Lighting
- Brand: Cineo Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cineo Lighting LED Lights
|
User manual for the Cineo Lighting HS2 RP 4300K 1-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cineo Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cineo Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cineo Lighting product will considerably shorten its lifespan!
|
Product description The HS2 RP 4300K 1-Light Kit from Cineo Lighting builds on the foundation of their popular HS fixture offering cross-compatibility with all legacy HS and LS fixtures, accessories, phosphor panels, and cabling. The kit includes an HS2 RP lamphead, yoke, TVMP stand adapter, 4300K panel set, locking AC power cord, and a 10' lamphead cable that allows you to keep the power supply separate from the fixture. Color fidelity is the prime mover in the design of the HS2. Two distinct mixing chambers allow custom color mixing while the use of Remote Phosphor Technology permits high CRI and TCLI ratings of 97 and 98. A top-hinged access panel makes it easy to swap out any of the light's optional RPI panels from 2700 to 6500K. Accurate control is also extended to the light intensity which is variable from 0-100% free of flicker either locally or via DMX. There's also fine-tuning of dimming available via DMX. The HS2's multi-voltage power supply has been redesigned and reduced in size and weight while its digital display has been made even more user-friendly. It can be attached modular-style with optional rails or used remotely up to 300' from the lamphead. - Fixture Benefits
-
- Utilizes Remote Phosphor Technology (RPT) for accurate, consistent output
- Fully compatible with all legacy HS and LS power supplies, accessories, phosphor panels, and cabling
- Local and DMX 0-100% dimming with no color shift
- 80/20 mounting slots on both sides and back
- Two mixing chambers provides custom CCT mixing
- Hinged top access panel for easy operation
- Power Supply Benefits
-
- Completely re-designed electronics improves reliability
- Smaller, lighter weight than previous power supplies
- Improved digital display and control
- Remote DMX address programming via RDM
- Operates up to 300' from fixture
- Optionally attaches directly to the HS2 head
- Smooth Dimming (0-100%) and strobe capability
- Fine dimming mode available on DMX
- Flicker-free completely silent operation

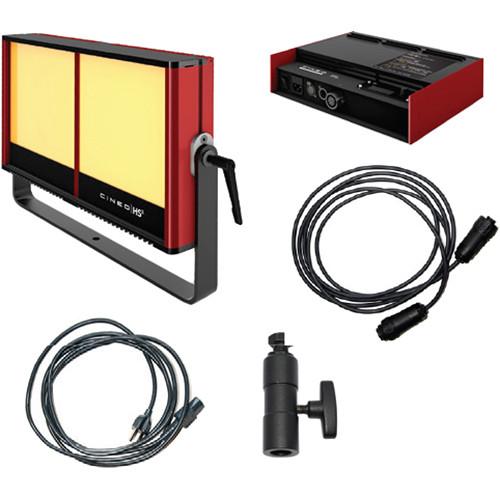

In the Box Cineo Lighting HS2 RP 4300K 1-Light Kit HS2 Lamphead Yoke Panel Set: 4300K RDM450 Power Supply Unit Cable for HS/LS Lamp Head (10') Locking AC Power Cable TVMP Connector for Maverick LED Light Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineo Lighting HS2 RP 4300K 1-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineo Lighting HS2 Specs | | | Beam Angle | 160° | | Color Temperature | 4300K | | Color Accuracy Standard | CRI 97
TLCI 98 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 35,000 Hours (L70) | | Fixture Dimensions | 12.0 x 21.0 x 3.8" / 290.0 x 532.0 x 96.5 mm | | Fixture Weight | 22 lb / 9.9 kg | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 500 W | | | | Power Supply Dimensions | 3.0 x 13.0 x 9.5" / 76.0 x 330.0 x 241.0 mm | | Power Supply Weight | 11 lb / 4.9 kg | | | | Certifications | RoHS, as per Manufacturer | | IP Rating | IP20 | | Operating Temperature | -4 to 122°F / -20 to 50°C |
