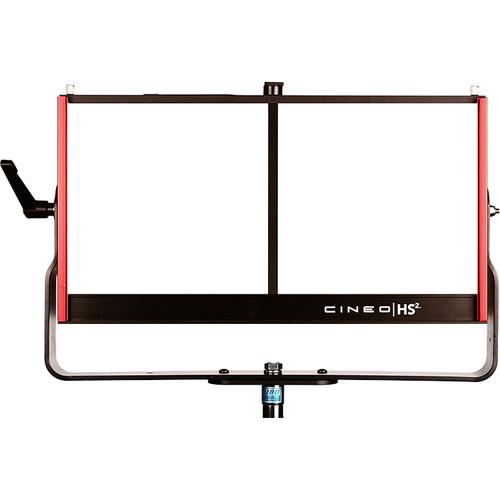

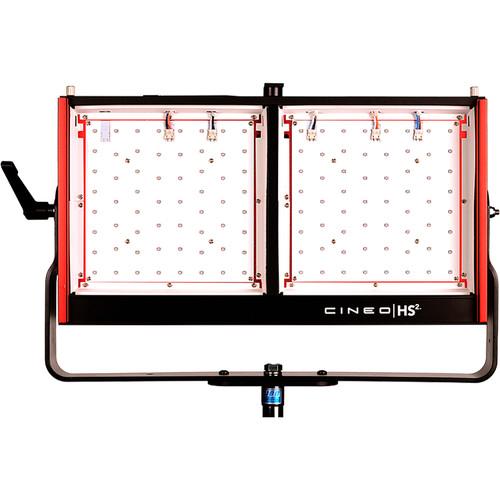

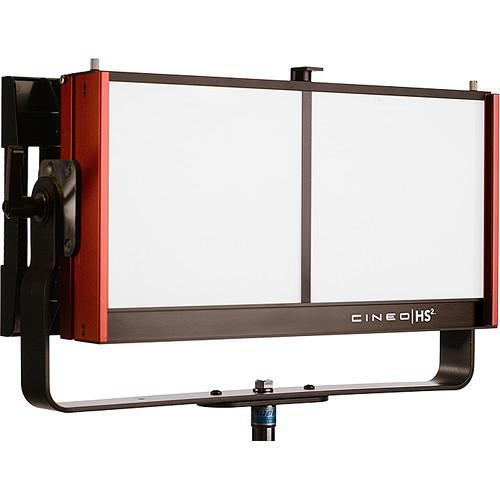

Product description The HS2 Wave Remote Phosphor Lamphead with HS Wave Power Supply from Cineo Lighting is the ideal choice for photographers, videographers and film makers who require the most accurate and faithful color rendition possible. The included lamphead comes with a yoke and TVMP connector for stand mounting. Its onboard power supply comes mounted to the light fixture but can be separated and controlled remotely. The HS2 Wave head requires the separate purchase of a phosphor panel for use. Panels with Kelvin temperatures of 2700, 3200, 4300 5600, and 6500K are available. There are also Chroma Blue and Green panels for Chroma Key work. - HS2 Remote Phosphor LED Lamp Head (with Yoke) The 12 x 21 x 3.8" HS2 Remote Phosphor LED Lamp Head from Cineo Lighting uses RPT (Remote Phosphor Technology) to achieve extremely high CRI/TLCI color accuracy. Instead of applying the phosphors to the LEDs, they are applied to a panel in front of the LEDs. Panels are available for separate purchase in 2700K, 3200K, 4300K, 5600K and 6500K color balance. Blue screen and green screen panels are also available for chroma key work. The HS2 requires an RDM450 power supply for operation. Used with the power supply, remote DMX addressing via RDM and 0-100% flicker-free dimming with a fine DMX dimming mode are possible. The HS2 can operate up to 300' away from the power supply but alternatively can also be directly mounted to it.
- Benefits
-
- Utilizes Remote Phosphor Technology (RPT) for accurate, consistent output
- Fully compatible with all legacy HS power supplies, accessories, phosphor panels, and cabling
- Local and DMX dimming 0-100% with no color shift
- 80/20 mounting slots on both sides and back
- Two mixing chambers provides custom CCT mixing
- Hinged top access panel for easy operation
- Output is identical to legacy HS fixture
UPC: 850526006808 - HS2 Wave Standalone Power Supply for HS2 Wave Lamphead The HS2 Wave Standalone Power Supply for HS2 Wave Lamphead from Cineo Lighting provides mains power to the HS2 remote phosphor fixture. The power supply features LumenRadio wireless DMX support for remote DMX addressing via RDM and 0 to 100% flicker-free dimming. There's also a fine dimming mode via DMX. The HS2 power supply can operate up to 300' away from the HS2 fixture, or can alternatively, be mounted directly on the back of the fixture. The power supply measures 10.5 x 19.25 x 3.75" and weighs 11 lb. It accepts 100 to 240 VAC mains power for worldwide use, and comes with a power cable with an Edison plug.
In the Box Bundle Items HS2 Remote Phosphor LED Lamp Head (with Yoke) HS2 Wave Standalone Power Supply for HS2 Wave Lamphead frxbbfusybduyutxzbyevxecdz - AC Power Cord for Maverick LED Light (6', Edison Plug)
- Limited 2-Year Warranty Extension after Product Registration
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineo Lighting HS2 Wave Remote Phosphor Lamphead with HS Wave Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Cineo Lighting HS2 Wave Remote Phosphor Lamphead with HS Wave Power Supply can be downloaded in PDF format at the link stated below.
Technical parameters - HS2 Remote Phosphor LED Lamp Head (with Yoke)
| Light Source | LED, 35,000 hr lamp life, L70 rated | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 500 W, max. | | Dimming | 0-100% via power supply | | Color Temperature | Depends on separately purchased 2700K, 3200K, 4300K, 5600K, 6500K panel in use | | CRI / TCLI | 94 to 99 Depending on which remote phosphor panel is used | | Light Intensity | 25,000 Lumens, max. | | Compliance and Standards | ETL, FCC, CE, ROHS | | Operating Conditions | -4 to 122°F (-20 to +50°C)
Max temperature rise: 113°F (45°C) | | Yoke | With yoke | | Dimensions | 12 x 21 x 3.8" (290 x 532 x 96.5 mm) | | Weight | 14 lb (6.4 kg) | | | | Box Dimensions (LxWxH) | 25.9 x 19.3 x 10.6" | - HS2 Wave Standalone Power Supply for HS2 Wave Lamphead
| | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Draw | 500.00 W | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Certifications | CE, ETL, FCC, RoHS, as per Manufacturer | | | | Dimensions | 19.25 x 10.5 x 3.75" / 48.9 x 26.7 x 9.5 cm | | Weight | 11 lb / 5 kg |
