Cineo Lighting Maverick Bi-Color LED Light

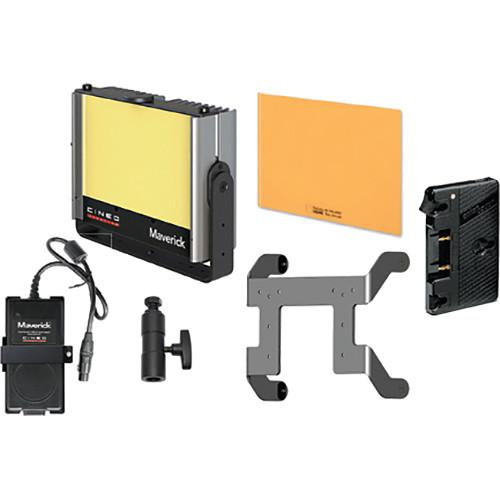

User Manual for Cineo Lighting Maverick Bi-Color LED Light 150W Portable Gold Mount Kit

• Product category: LED Lights Cineo Lighting
• Brand: Cineo Lighting
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cineo Lighting LED Lights

Product description

• Maverick LED Light Utilizing Remote Phosphor Technology, the portable Maverick LED Light from Cineo allows users to very quickly switch between different color temperatures using phosphor panels, which are available separately, while maintaining a good output and color accuracy. It offers an excellent CRI of over 95 and accepts various phosphor panels to achieve different color temperatures from 2700-6500K or chroma colors. Also, it is quite powerful with an output of 8000 lumens while a wide coverage of 160° allows users to light a whole scene with ease.

  In order to meet the demands of field usage, the 9.4 x 7.3 x 3.0" panel is able to run on DC power and has a weather-resistant construction. Also, it has both local and DMX dimming from 0-100% along with a 4-pin XLR power input. Further enhancing usability are 80/20 T-slot mounting slots for versatility. Users can also use an optional AC adapter to run the unit.
  Photometrics
  • 2700K: 22 fc (324 lux) at 10' (3 m)
    3200K: 30 fc (346 lux) at 10' (3 m)
    4300K: 35 fc (367 lux) at 10' (3 m)
    5600K: 28 fc (378 lux) at 10' (3 m)
    6500K: 27 fc (356 lux) at 10' (3 m)
• Yoke Assembly for Maverick LED Light This replacement Cineo Lighting Yoke Assembly for Maverick LED Light allows the light to be stand mounted.
• Phosphor Panel for Maverick LED Light (3200K) This Cineo Lighting 3200K Phosphor Panel for Maverick LED Light is used in a technology that allows the light to achieve a color temperature of 3200K with a very high CRI (Color Rendering Index) of 98. UPC: 850526006365
• Phosphor Panel for Maverick LED Light (5600K) This Cineo Lighting 5600K Phosphor Panel for Maverick LED Light is used in a technology that allows the light to achieve a color temperature of 5600K with a very high CRI (Color Rendering Index) of 94. UPC: 850526006389
• Maverick 150W AC Adapter The Maverick 150W AC Adapter from Cineo is dedicated to the Maverick series of LED panels and requires an additional AC power cord for use. This 150W version is a spare or replacement item for the one originally included with the daylight or tungsten LED kits.
• Maverick Backpack Accessory Bracket Attach Anton Bauer or V-mount battery plates, DMX adapter, or AC power adapter to your Maverick light with this Backpack Accessory Bracket from Cineo. The bracket comes with the necessary, Phillips head screws for mounting the bracket to the back of your light.
• TVMP Connector for Maverick LED Light The TVMP Connector for Maverick LED Light from Cineo Lighting allows the Maverick to be stand-mounted rather than camera-mounted. The connector has a 5/8" receiver for stands with a matching top stud. A large wing nut secures the stand. The outer diameter of the adapter is 1-1/8" allowing it to be dropped into a matching "Junior" receiver.

• A/B Gold Mount Battery Adapter for Maverick Light

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Mounting Screws

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Maverick LED Light

  Technology	Remote Phosphor Technology (RPT)
  CRI	95
  Color Temperature	3200K, 5600K, 2700K, 4300K, or 6500K with optional panels
  Output	8000 lumens
  Beam Angle	160°
  LED Lifetime	35,000 hours, L70 rated
  Dimming	0-100%
  DMX	EtherCon DMX port
  XLR Inputs	4-pin XLR power input
  Operating Voltage	10.5-28 VDC, 75-135 W
  Mount	80/20 T-slot mounting slots
  Operating Conditions	-4 to 104°F (-20 to 40°C) Max Temperature Rise: 81°F (45°C)
  Dimensions	9.4 x 7.3 x 3.0" (24.0 x 18.6 x 7.8 cm)
  Weight	4.9 lb (2.2 kg)

• Phosphor Panel for Maverick LED Light (3200K)

  Box Dimensions (LxWxH)	12.0 x 9.3 x 0.3"

• Phosphor Panel for Maverick LED Light (5600K)

  Box Dimensions (LxWxH)	12.0 x 9.75 x 0.3"

• Maverick Backpack Accessory Bracket

  Compatibility	Cineo Maverick
  Mounting Options	V-mount and Anton Bauer battery plates DMX adapter 120 or 150 watt AC power adapter

• TVMP Connector for Maverick LED Light

  Dimensions

  Inner diameter: 5/8" (16 mm) Outer diameter: 1-1/8" (28 mm)

  Box Dimensions (LxWxH)	6.0 x 2.5 x 0.8"

• A/B Gold Mount Battery Adapter for Maverick Light

  Accessory Type	Battery adapter plate

  Intended For	Studio light

  Box Dimensions (LxWxH)	9.0 x 5.0 x 4.0"

• Yoke Assembly for Maverick LED Light
• Maverick 150W AC Adapter
