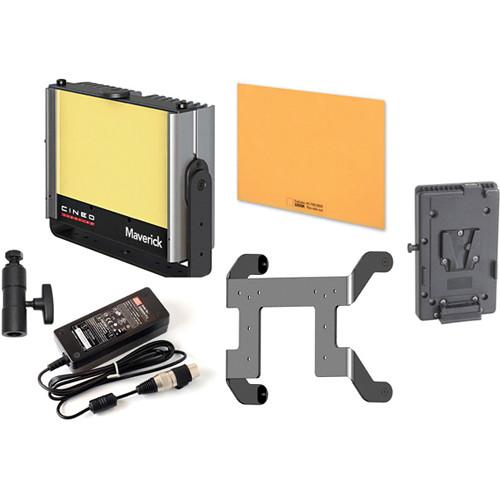

Product description This Maverick LED Light Bi-Color Portable V-Lock Kit from Cineo utilizes Remote Phosphor Technology to allow users to very quickly switch between different color temperatures using separate panels while maintaining a good output and color accuracy. The kit includes the Maverick fixture, a V-Lock battery adapter, a yoke, 2300K and 5600K panels, a 120W AC adapter, an accessory bracket, and a stand adapter. It offers an excellent CRI of 98 at 3200K and 94 at 5600K along with a TLCI of 99 at 3200K and 97 at 5600K. Also, it has a good output at 10' of 205 lux / 19 fc at 3200K and 248 lux / 23 fc at 5600K. A wide coverage of 160° also allows users to light a whole scene.
In order to meet the demands of field usage, the 9.4 x 7.3 x 3.0" panel is able to run on DC power and has a weatherproof construction. Also, it has both local and DMX dimming from 0-100% along with a 4-pin XLR power input. Further enhancing usability are 80/20 T-slot mounting slots for versatility. - Maverick LED Light Utilizing Remote Phosphor Technology, the portable Maverick LED Light from Cineo allows users to very quickly switch between different color temperatures using phosphor panels, which are available separately, while maintaining a good output and color accuracy. It offers an excellent CRI of over 95 and accepts various phosphor panels to achieve different color temperatures from 2700-6500K or chroma colors. Also, it is quite powerful with an output of 8000 lumens while a wide coverage of 160° allows users to light a whole scene with ease.
In order to meet the demands of field usage, the 9.4 x 7.3 x 3.0" panel is able to run on DC power and has a weather-resistant construction. Also, it has both local and DMX dimming from 0-100% along with a 4-pin XLR power input. Further enhancing usability are 80/20 T-slot mounting slots for versatility. Users can also use an optional AC adapter to run the unit. - Photometrics
- 2700K: 22 fc (324 lux) at 10' (3 m)
3200K: 30 fc (346 lux) at 10' (3 m)
4300K: 35 fc (367 lux) at 10' (3 m)
5600K: 28 fc (378 lux) at 10' (3 m)
6500K: 27 fc (356 lux) at 10' (3 m) - Yoke Assembly for Maverick LED Light This replacement Cineo Lighting Yoke Assembly for Maverick LED Light allows the light to be stand mounted.
- Phosphor Panel for Maverick LED Light (3200K) This Cineo Lighting 3200K Phosphor Panel for Maverick LED Light is used in a technology that allows the light to achieve a color temperature of 3200K with a very high CRI (Color Rendering Index) of 98. UPC: 850526006365
- Phosphor Panel for Maverick LED Light (5600K) This Cineo Lighting 5600K Phosphor Panel for Maverick LED Light is used in a technology that allows the light to achieve a color temperature of 5600K with a very high CRI (Color Rendering Index) of 94. UPC: 850526006389
- Maverick 120W AC Adapter The Maverick 120W AC Adapter from Cineo is dedicated to the Maverick series of LED panels and requires an additional AC power cord for use. This 120W version is a spare or replacement item for the one originally included with the bi-color LED kit. UPC: 856084006229
- Maverick Backpack Accessory Bracket Attach Anton Bauer or V-mount battery plates, DMX adapter, or AC power adapter to your Maverick light with this Backpack Accessory Bracket from Cineo. The bracket comes with the necessary, Phillips head screws for mounting the bracket to the back of your light.
In the Box Bundle Items Maverick LED Light ucaevedubrytrubqavyy Yoke Assembly for Maverick LED Light Phosphor Panel for Maverick LED Light (3200K) Phosphor Panel for Maverick LED Light (5600K) Maverick 120W AC Adapter Maverick Backpack Accessory Bracket
Also Includes - Stand Adapter
- V-Lock Battery Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineo Lighting Maverick LED Light Bi-Color Portable V-Lock Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Maverick LED Light
| Technology | Remote Phosphor Technology (RPT) | | CRI | 95 | | Color Temperature | 3200K, 5600K, 2700K, 4300K, or 6500K with optional panels | | Output | 8000 lumens | | Beam Angle | 160° | | LED Lifetime | 35,000 hours, L70 rated | | Dimming | 0-100% | | DMX | EtherCon DMX port | | XLR Inputs | 4-pin XLR power input | | Operating Voltage | 10.5-28 VDC, 75-135 W | | Mount | 80/20 T-slot mounting slots | | Operating Conditions | -4 to 104°F (-20 to 40°C)
Max Temperature Rise: 81°F (45°C) | | Dimensions | 9.4 x 7.3 x 3.0" (24.0 x 18.6 x 7.8 cm) | | Weight | 4.9 lb (2.2 kg) | - Phosphor Panel for Maverick LED Light (3200K)
| | | Box Dimensions (LxWxH) | 12.0 x 9.3 x 0.3" | - Phosphor Panel for Maverick LED Light (5600K)
| | | Box Dimensions (LxWxH) | 12.0 x 9.75 x 0.3" | - Maverick 120W AC Adapter
| | | Box Dimensions (LxWxH) | 8.8 x 5.4 x 4.1" | - Maverick Backpack Accessory Bracket
| Compatibility | Cineo Maverick | | Mounting Options | V-mount and Anton Bauer battery plates
DMX adapter
120 or 150 watt AC power adapter | - Yoke Assembly for Maverick LED Light
