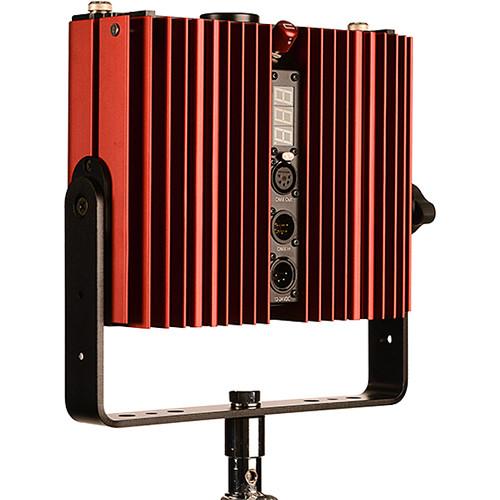

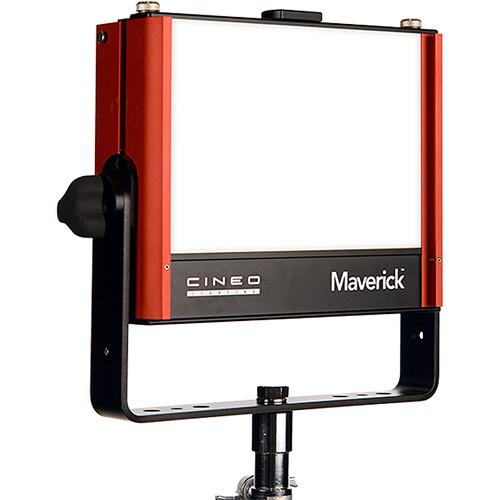

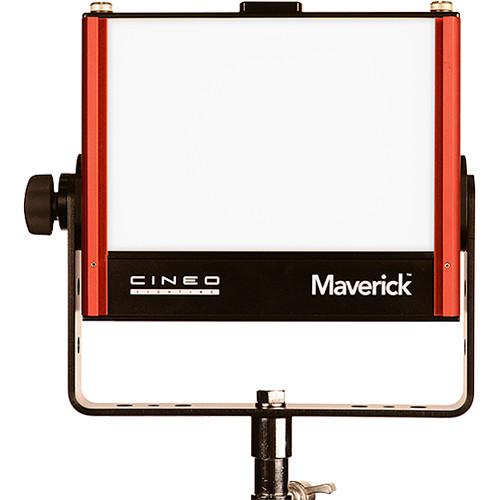

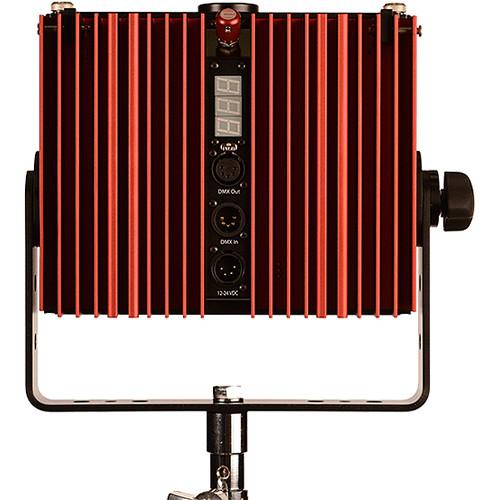

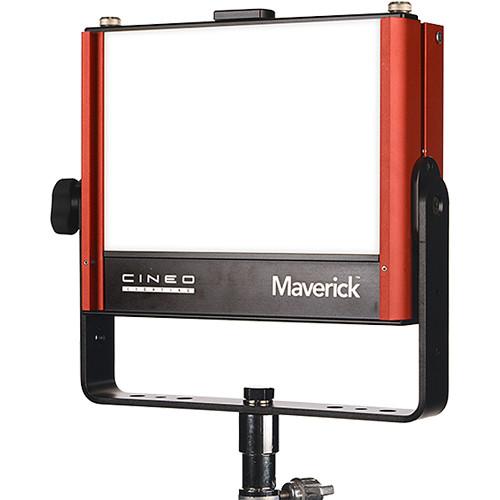

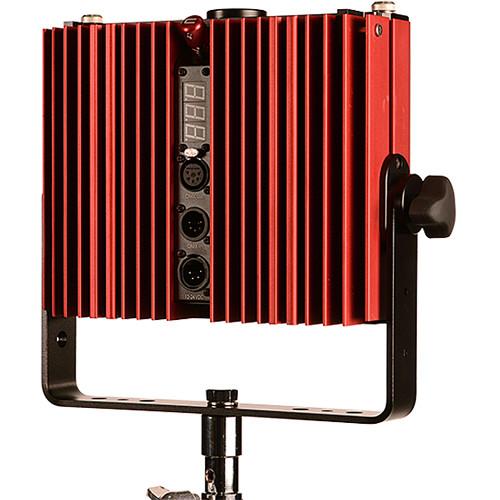

Product description Utilizing Remote Phosphor Technology, the portable Maverick LED Light with Yoke from Cineo allows users to very quickly switch between different color temperatures using phosphor panels, which are available separately, while maintaining a good output and color accuracy. It offers an excellent CRI of over 95 and accepts various phosphor panels to achieve different color temperatures from 2700-6500K or chroma colors. Also, it is quite powerful with an output of 8000 lumens while a wide coverage of 160° allows users to light a whole scene with ease.
In order to meet the demands of field usage, the 9.4 x 7.3 x 3.0" panel is able to run on DC power and has a weather-resistant construction. Also, it has both local and DMX dimming from 0-100% along with a 4-pin XLR power input. Further enhancing usability are 80/20 T-slot mounting slots for versatility. Users can also use an optional AC adapter to run the unit. - Photometrics
- 2700K: 22 fc (324 lux) at 10' (3 m)
3200K: 30 fc (346 lux) at 10' (3 m)
4300K: 35 fc (367 lux) at 10' (3 m)
5600K: 28 fc (378 lux) at 10' (3 m)
6500K: 27 fc (356 lux) at 10' (3 m) UPC: 856084006120 In the Box Cineo Lighting Maverick LED Light with Yoke Yoke Assembly for Maverick LED Light TVMP Adapter AC Power Cord for Maverick LED Light (6', Edison Plug) Limited 2-Year Warranty User Manual PDF 5.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineo Lighting Maverick LED Light with Yoke in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineo Lighting 900.0085 Specs | Technology | Remote Phosphor Technology (RPT) | | CRI | 95 | | Color Temperature | 3200K, 5600K, 2700K, 4300K, or 6500K with optional panels | | Output | 8000 lumens | | Beam Angle | 160° | | LED Lifetime | 35,000 hours, L70 rated | | Dimming | 0-100% | | DMX | EtherCon DMX port | | XLR Inputs | 4-pin XLR power input | | Operating Voltage | 10.5-28 VDC, 75-135 W | | Mount | 80/20 T-slot mounting slots | | Operating Conditions | -4 to 104°F (-20 to 40°C)
Max Temperature Rise: 81°F (45°C) | | Dimensions | 9.4 x 7.3 x 3.0" (24.0 x 18.6 x 7.8 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 18.1 x 14.5 x 8.6" |
