User Manual for Cineo Lighting MavX Studio Kit Click to enlarge the picture
Contents of the user manual for the Cineo Lighting MavX Studio Kit
- Product category: LED Lights Cineo Lighting
- Brand: Cineo Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cineo Lighting LED Lights
 |
User manual for the Cineo Lighting MavX Studio Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cineo Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cineo Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cineo Lighting product will considerably shorten its lifespan!
|

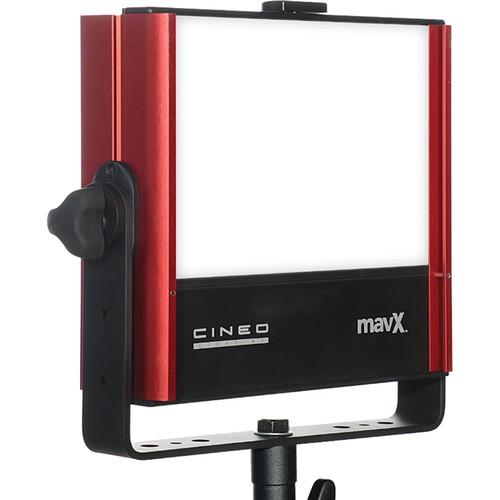

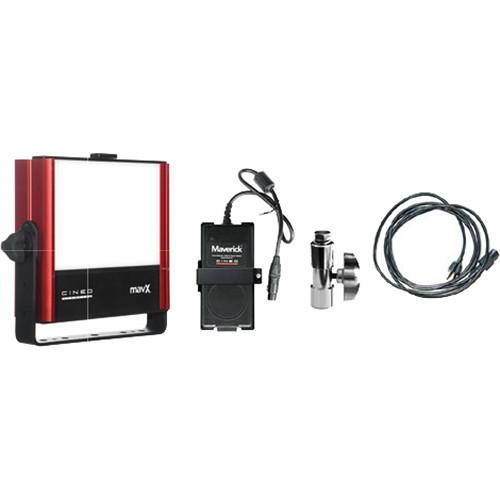

Product description The Cineo Lighting MavX Studio Kit includes the MavX fixture, a 150W AC adapter, a 6' AC power cord with Edison plug, a TVMP connector, and a yoke mount.

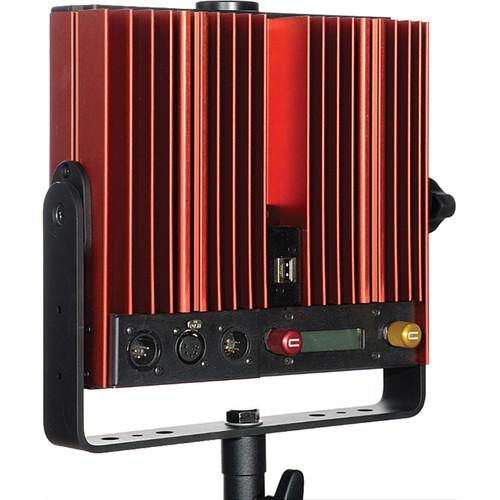

The Cineo MavX provides all the color rendering and output benefits of the Remote Phosphor technology, while offering the ability to color tune from 2700K to 6500K. It delivers a volume of light equal to a traditional 1K soft source with no color shift or flicker at any output level. The MavX uses passive thermal management for completely silent operation. It supports photo-accurate dimming, which matches the dimming curve to the camera stops. Local control is simple and intuitive, complemented by both wired and built-in wireless DMX control. For studio applications, MavX delivers up to 8000 lumens suitable for lighting broad areas where grid height is challenging. - Fixture
-
- Optimized output for film, video, and still photography
- Utilizes CineoColor custom LEDs for accurate and consistent output
- Color-accurate CCT adjustment from 2700K to 6500K with presets at 3200K, 4300K, and 5600K
- 150° light spread
- Flicker-free operation
- Silent, passive cooling without fans
- Rotary on-board dimming, with presets calibrated in camera stops
- 5-pin wired DMX control for both dimming and CCT adjustment
- Built-in LumenRadio wireless DMX control included
- 80/20 T-Slot mounting slots for maximum mounting flexibility
- Easily removable yoke
- Includes barndoors, grids, louvers, soft box, and snap bag
- ETL, cETL, CE, and RoHS compliant
- Zero UV light emitted
- Made in the USA
UPC: 856084006533 In the Box Cineo Lighting MavX Studio Kit MavX Fixture Maverick 150W AC Adapter ddawtaafywrfffdyuddxxbzxcdecdycrss AC Power Cord for Maverick LED Light (6', Edison Plug) TVMP Connector Yoke Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineo Lighting MavX Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineo Lighting MavX Specs | | | Input | 10.5 to 28 VDC input; 75, 120, 135 W user configurable | | Maximum Output | Up to 8000 lumens
SmartPower technology delivers constant output as battery voltage decreases | | Mounting | 4-pin XLR power input | | LED Life | 50,000 hours | | Rating | L70 rated | | Temperature Range | -4 to 104°F (-20 to 40°C) | | Temperature | 113°F (45°C) | | Dimensions | 9.5 x 8.5 x 3.25" (24 x 22 x 8.25 cm) | | Weight | 5 lb (2.3 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 14.0 x 13.0 x 6.0" |
