User Manual for Cineroid 30 Watt On-Camera Variable Color Temperature LED Light Click to enlarge the picture
Contents of the user manual for the Cineroid 30 Watt On-Camera Variable Color
- Product category: On Camera Lights Cineroid
- Brand: Cineroid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cineroid On Camera Lights
 |
User manual for the Cineroid 30 Watt On-Camera Variable Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cineroid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cineroid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cineroid product will considerably shorten its lifespan!
|

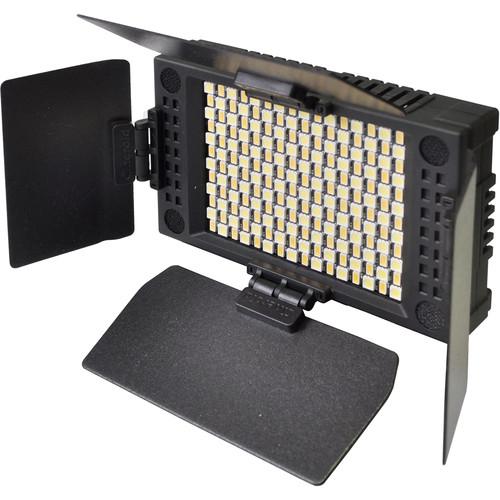

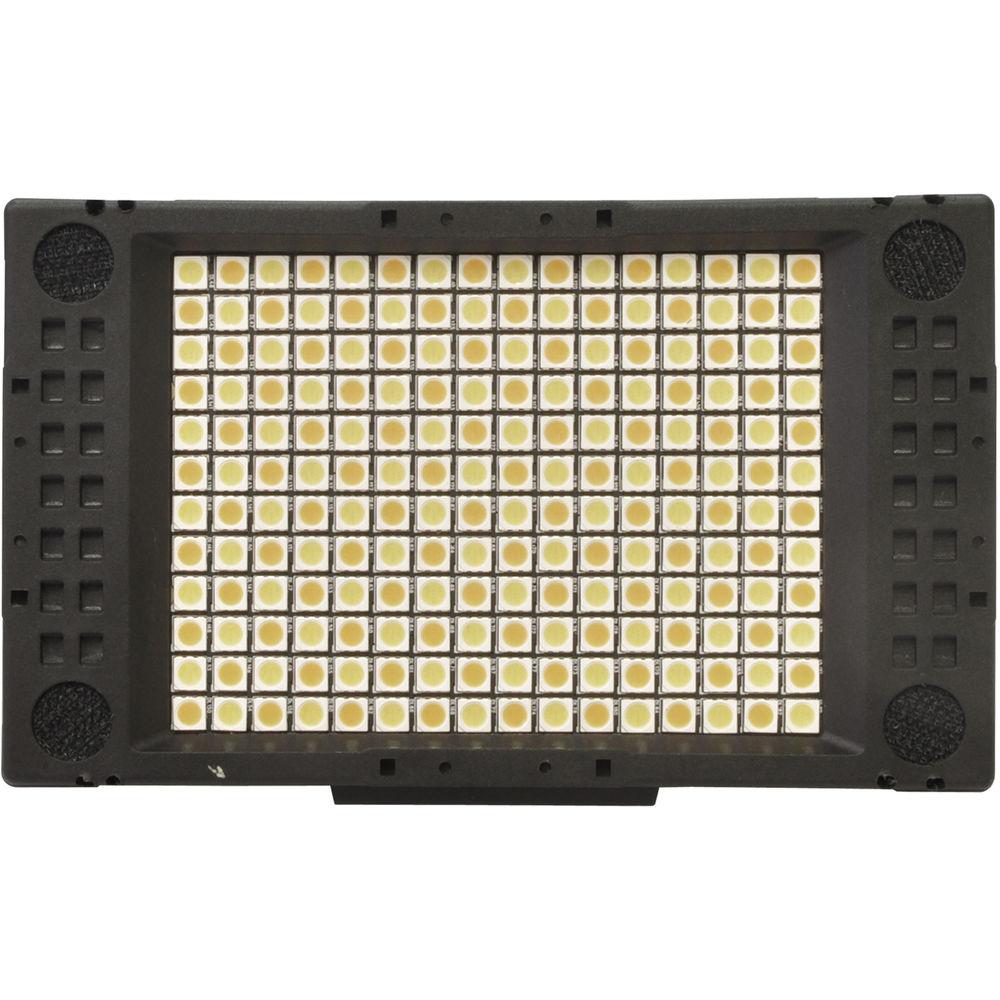

Product description The 30 Watt On-Camera Variable Color Temperature LED Light from Cineroid is a variable color temperature light with a range of 2,700 to 6,500K and a wide beam spread of 120°. It features 30 steps of dimming, using a two button up/down adjustment with a readout of the dimming level on the back of the unit. The same two buttons that control the dimming also control the color temperature adjustment, using a mode button to select which one you wish to control. The L10VC incorporates a 1/4"-20 threaded mounting hole in its base, and the included ball adapter allows you to attach the light to a camera with a hot/cold shoe. It includes a diffuser panel to control light spill, and the body incorporates mounting screws for the included Sony NPF type battery plate, battery not included. - Variable Color Temperature
-
- The unit is adjustable in 30 steps from 2,700 to 6,500K.
- Color temperature adjustments are made via an up/down button arrangement on the back of the light unit.

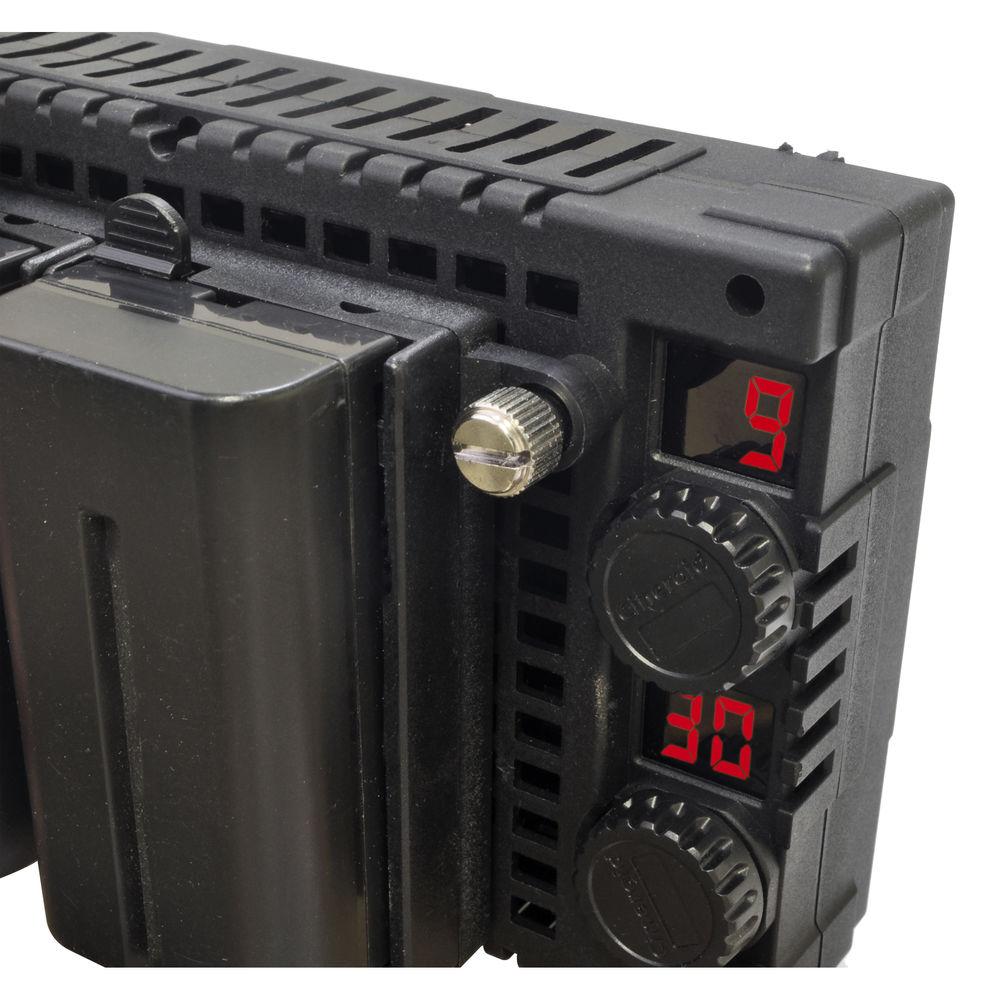

- The color temperature adjustment reads in 30 steps on the back of the unit.
- Variable Brightness
-
- The unit's brightness level is adjustable in 30 steps.
- Dimming adjustments are made via an up/down button arrangement on the back of the light unit.
- The brightness adjustment reads in 30 steps on the back of the unit.
- Mode
- A mode button allows you to switch between brightness dimming and color temperature control.

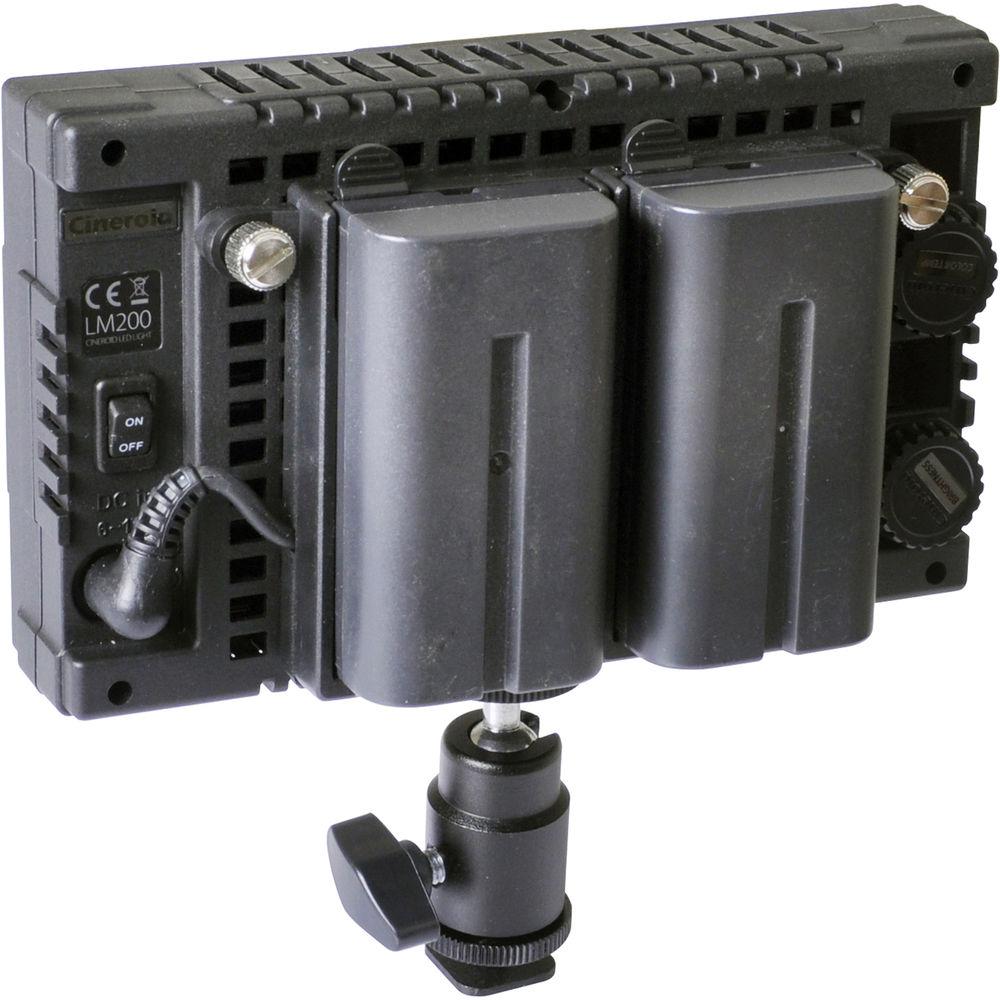

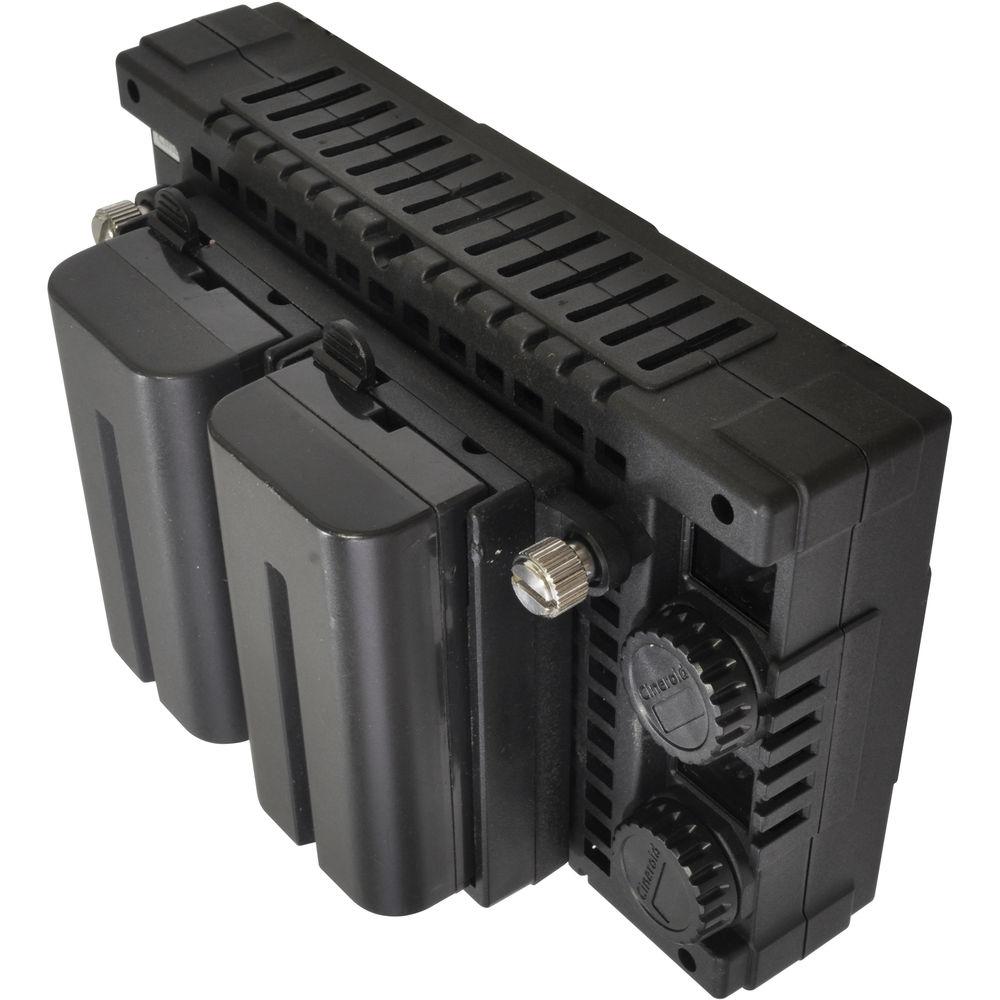

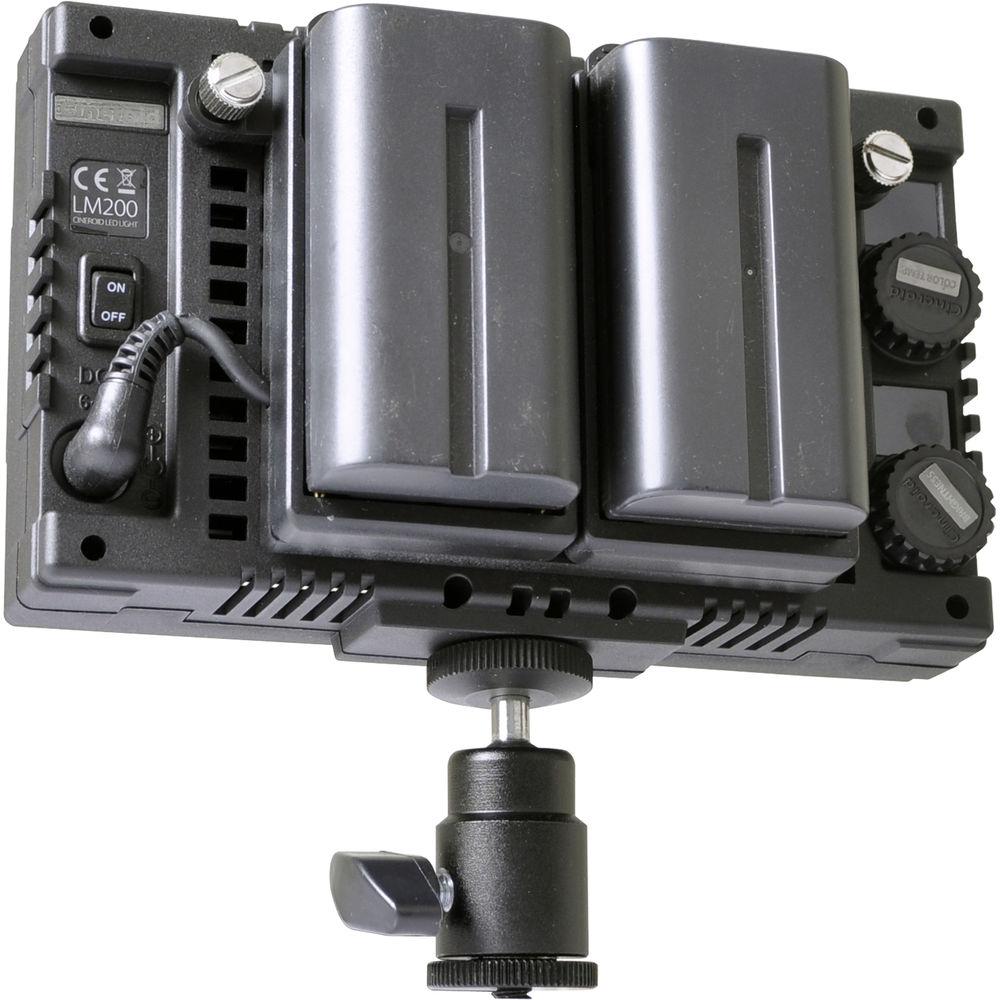

- Built-In Sony L-Series Type Battery Plate
- The unit powers from a Sony NPF type battery, not included, using the battery plate that comes with the kit. Optionally available battery plates for use with other types of batteries are available.
- DC Input Supports D-Tap Power Output
- The Included D-Tap power cable allows you to power the light from larger Anton Bauer or V-Mount batteries with D-Tap outputs.
UPC: 884980001611 In the Box Cineroid 30 Watt On-Camera Variable Color Temperature LED Light NPF Type Battery Plate Diffuser Panel DC Plug with D-Tap Cable Mini Ball Head Carry Bag Limited 1-Year Warranty Specification PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid 30 Watt On-Camera Variable Color Temperature LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid LM200-VC Specs | | | Beam Angle | 120° | | Color Temperature | 2700 to 6500K ± 200K | | | | DC Input Power | 6 to 17 VDC | | Max Power Consumption | 30 W | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 5.9 x 3.6 x 1.4" / 150 x 91 x 35 mm | | Weight | 9.9 oz / 281 g | | | | Package Weight | 1.965 lb | | Box Dimensions (LxWxH) | 7.7 x 6.9 x 5.95" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
